Product Overview

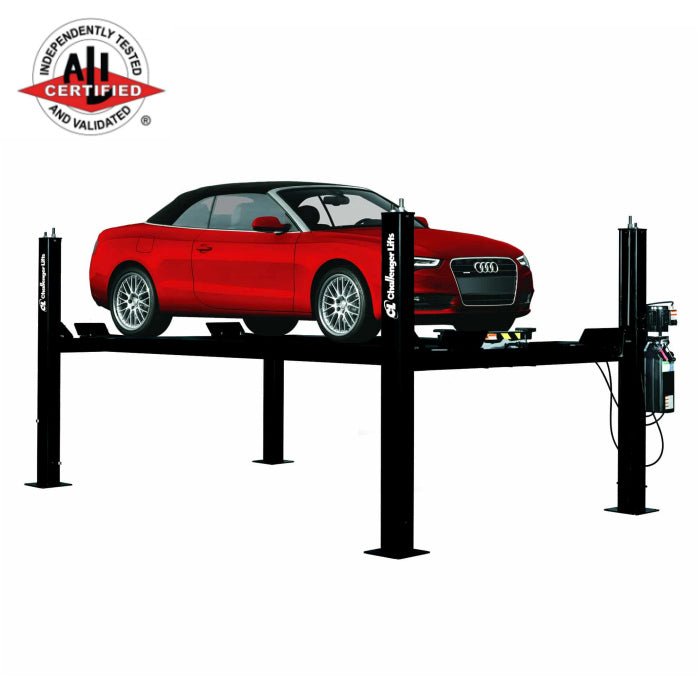

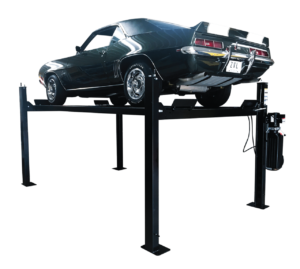

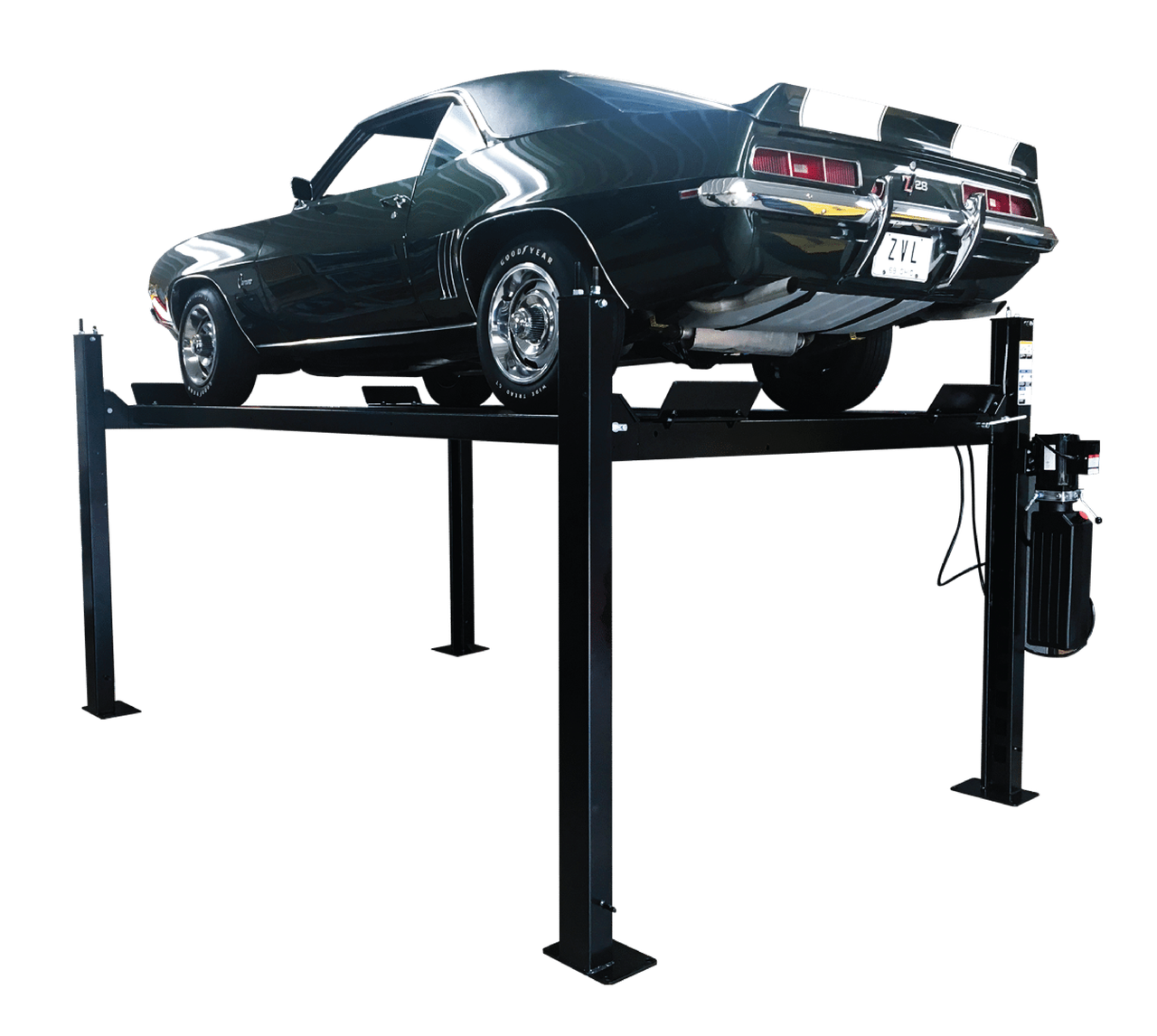

Challenger CL4P7 4 Post Storage/Service Lift 7,000 ALI Cert.
The Challenger CL4P7 delivers the ultimate versatility for home garage enthusiasts and light commercial applications. With a 7,000 lb. lifting capacity and ALI/ETL certification, this professional-grade four-post lift adapts seamlessly to your needs—whether you're servicing vehicles with a 68-1/8" rise height or maximizing space with vehicle storage. Its free-standing design (no anchoring required to maintain certification) means you can relocate it as your shop evolves, while the single-point manual lock release and adjustable lock ladders accommodate uneven floors and ensure safe, stable operation every time.

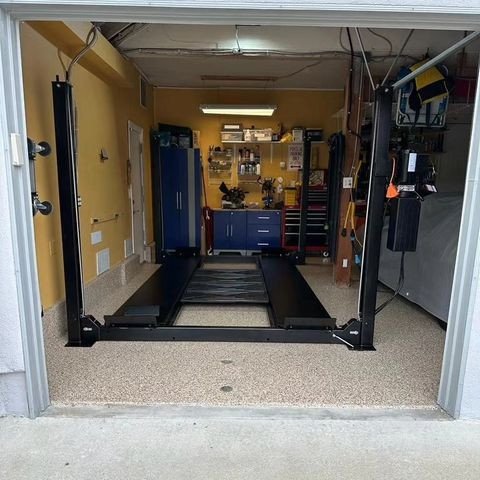

Designed specifically for environments with limited space, the CL4P7 fits into a 10' x 20' bay with ease. The commercial-grade formed runways with a built-in rail system allow you to add rolling jacks, jack trays, and oil drip pans (sold separately), transforming this lift into a complete service solution. With 80" of clearance when fully raised, you can easily store a vehicle on top and park another underneath—perfect for collectors, restoration projects, or everyday garage use. The powder-coat finish ensures long-lasting durability, and with both 115V and 220V voltage options, installation is flexible for virtually any shop setup.
to keep your CL4P7 operating safely and efficiently for years to come.
Why Choose the Challenger CL4P7?
The CL4P7 four-post lift was engineered to be the ultimate dual-purpose solution for home and light commercial use. Here's what sets it apart:
- Dual Service & Storage Capability: Use the 68-1/8" service rise for oil changes, tire rotations, and brake work, or leverage the 63" clearance in top locked position to store a vehicle up top while parking another underneath.
- Free-Standing Portability: Anchoring is not required to maintain ALI/ETL certification, so you can reposition the lift around your garage or shop whenever needed.
- Single-Point Lock Release: Disengages all column locks simultaneously for quick, easy, and safe operation—no air required.

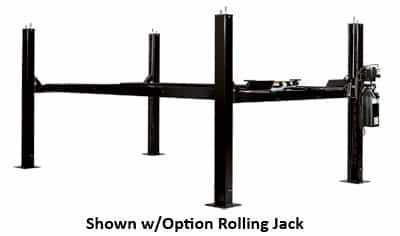

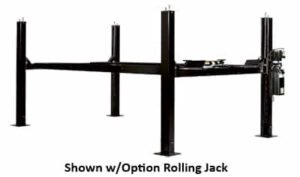

- Built-In Runway Rail System: Add convenience accessories like rolling jacks, oil drip trays, and more to customize your service setup.
- Adjustable Lock Ladders & Stable Design: Accommodates uneven floors while maintaining rock-solid stability with commercial-grade formed runways and sturdy columns.
Service Application
With professional-grade quality and an impressive 80" high rise, the CL4P7 is perfect for light-duty service applications up to 7,000 lbs. Multiple lock positions allow you to work comfortably at various heights, whether you're performing routine maintenance, exhaust work, or suspension repairs. Optional rolling jacks and jack trays (sold separately) provide quick and convenient access for tire and brake jobs, making this lift a true workhorse in any home or commercial garage.

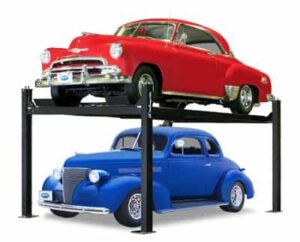

Storage Application
Maximize your garage space by storing vehicles on top of the CL4P7 while keeping another vehicle parked underneath for everyday use. With 80" of rise height, most full-size vehicles fit easily below, and an optional drip tray set (sold separately) keeps any fluids from contacting the vehicle parked underneath. Whether you're a collector, restorer, or just need extra space in your garage, the CL4P7 delivers unmatched storage versatility without sacrificing service functionality.
Flexible Power Unit Placement
The power unit on the CL4P7 can be placed on either the front column of the driver's side or the back column of the passenger side. This flexibility ensures convenient power control accessibility and allows you to adapt the lift to any garage layout—whether you're installing a single lift or arranging multiple units for maximum storage density.
With the 1HP motor and options for 115V or 220V voltage, you get fast, reliable operation every time. At 220V, the lift rises in just 60 seconds, while 115V operation takes approximately 120 seconds both providing smooth, controlled ascent with no air required.
Key Highlights
- 7,000 lb. capacity handles sedans, sports cars, light trucks, and classic vehicles with ease.
- 68-1/8" rise height in top locked position for comfortable service work; 63" clearance for storage applications.
- Free-standing design with no anchoring required for ALI/ETL certification—move it anywhere in your shop.
- Commercial-grade formed runways with built-in rail system for accessory mounting.
- Adjustable lock ladders ensure stable operation even on uneven floors.
- Powder-coat finish delivers long-lasting durability and a professional appearance.
- Single-point manual lock release disengages all column locks simultaneously for safe, easy operation.

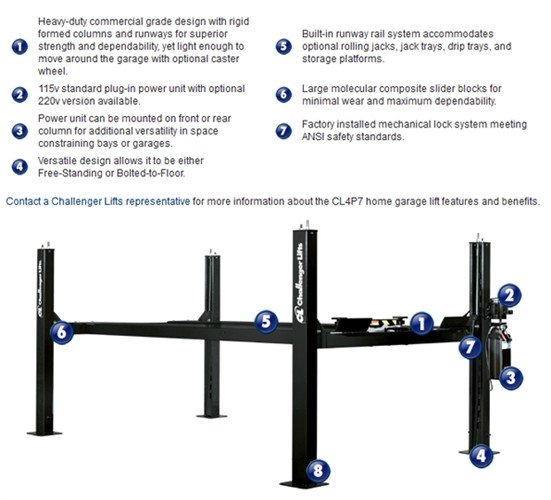

Product Features
- 7,000 lb. lifting capacity
- 68.1/8" service rise height in top locked position
- 63" clearance in top locked position for storage application
- Adjustable lock ladders allow for a versatile install with sensitivity to uneven floors
- Commercial-grade formed runways ensure a strong, stable unit
- Single-point manual lock release disengages column locks simultaneously
- Air not required for operation
- Anchoring not required to maintain ALI/ETL certification
- Larger columns and base plates add stability (9,000 lb. models only)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drip trays (sold separately)
- Powder coat finish provides long-lasting durability
Product Specifications
Model
CL4P7
Lift Capacity*
7,000 lbs. (3175kg)
A Length Overall
195-1/2" (4966mm)
B Width Overall
100-1/2" (2553mm)
C Inside Columns
(Full Stroke)
92-1/8" (2340mm)
D Length of Runways
164" (4166mm)
E Height of Columns
79-1/2" (2019mm)
F Height of Runways
7" (178mm)
G Width of Runways
20" (508mm)
H Width Between Runways
38" (965mm)
I Rise Height
68-1/8" (1730mm)
Motor
1HP
Voltage 1
115v or 220V
Speed of Rise
120 seconds (115V)/60 seconds (220V)
Min. Recommended Bay Size
10' x 20' (2540 mm x 5080mm)
Shiping Weight
1650 lbs. (839 kg)
*1 Must be specified at time of order. Available in Black only.
Key Features
- Published product configuration: Challenger CL4P7 4 Post Storage/Service Lift 7,000 ALI Cert. The Challenger CL4P7 delivers the ultimate versatility for home garage enthusiasts and light commercial applications. With a 7,000 lb. lifting capacity and ALI/ETL certification, this professional-grade four-post lift adapts seamlessly to your needs—whether
- Exact manufacturer model or part number: CL4P7-SR-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 5 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | CL4P7-SR-V001 |
| MPN / Model | CL4P7-SR-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Compatibility & Ordering Notes
Use SKU / MPN CL4P7-SR-V001 as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
