Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs
Important: Cylinder Bleeding Procedure
After installation, immediately perform the Cylinder Bleeding Procedure to ensure safe, optimal lift performance.

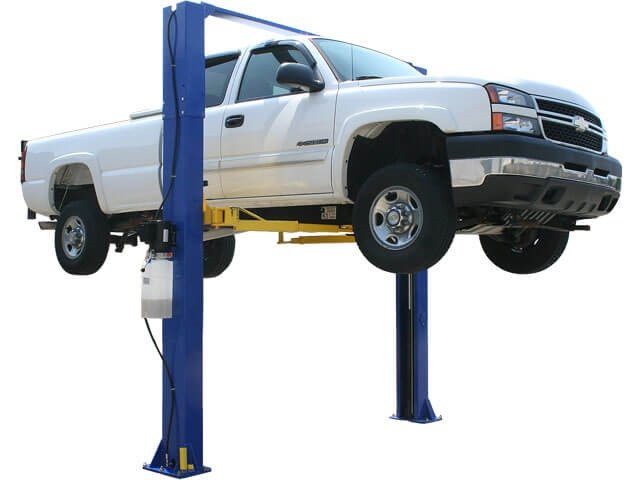

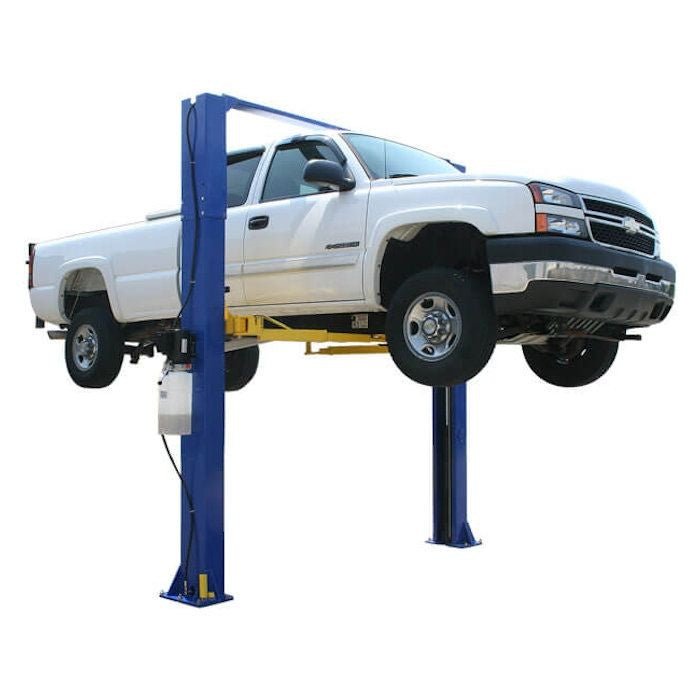

The Atlas® 9KOH is the perfect solution for professionals and serious enthusiasts who demand maximum lifting capacity without breaking the bank. With a robust 9,000 lb capacity and an overhead, open-floor design, this versatile two-post lift tackles everything from compact cars to heavy-duty pickup trucks with confidence and precision.
Built with flexibility in mind, the Atlas® 9KOH can be adjusted to two different height settings: 11' 6" or 11' 10", allowing you to optimize the lift for your ceiling clearance and workspace requirements. This adaptability makes it an ideal fit for a wide range of shop environments.
Asymmetric & Symmetric Arm Configuration
The Atlas® 9KOH features symmetric columns paired with specially designed arms that can be configured in either symmetric or asymmetric position. This dual-mode capability provides unmatched versatility, enabling you to position vehicles for optimal balance and door clearance depending on the job at hand.

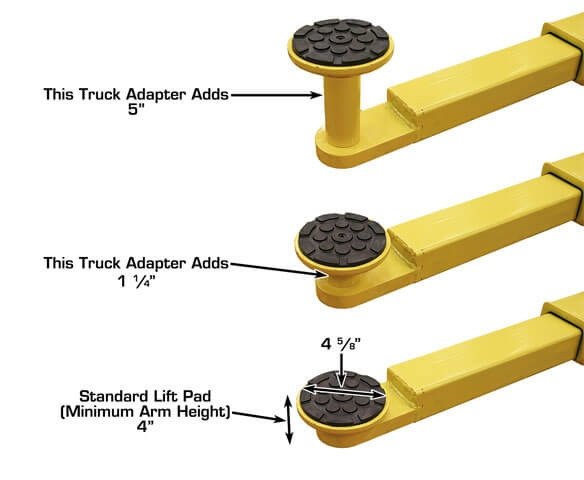

The asymmetric/symmetric arm design offers an extremely low lift pad position with an EZ-metric lift arm configuration. With a minimum arm height of just 4 inches, the 9KOH allows operators to position lift arms under most small cars with low pick-up points, as well as heavier pickup trucks, without compromise. This low-profile design ensures you can service a diverse range of vehicles safely and efficiently.
Comprehensive Package & Included Accessories

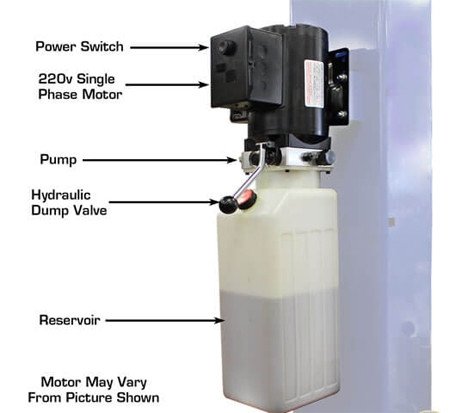

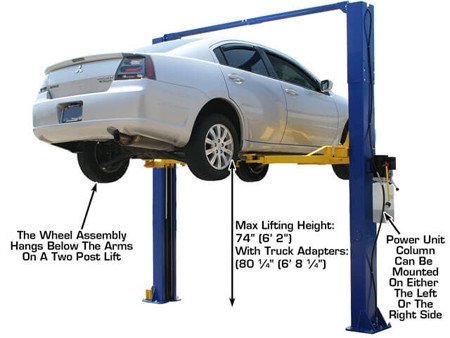

The Atlas® 9KOH arrives complete with everything you need to start lifting immediately. Included in the package is a free 8-piece solid peg type truck adapter set, a set of sliding lift point adapters, and all necessary mounting hardware. The lift also features a 220V single-phase power unit that can be mounted on either side of the lift, providing installation flexibility to match your shop layout. (Note: The power unit column must be positioned on the correct side for safe operation.)
What's Included:
- 8-Piece Truck Adapter Set for versatile vehicle positioning
- Sliding Arm Adapters for enhanced flexibility
- Complete Mounting Hardware for secure installation
Free 8-Piece Truck Adapter Kit Included with the Atlas® 9KOH
Advanced Safety & Reliability Features

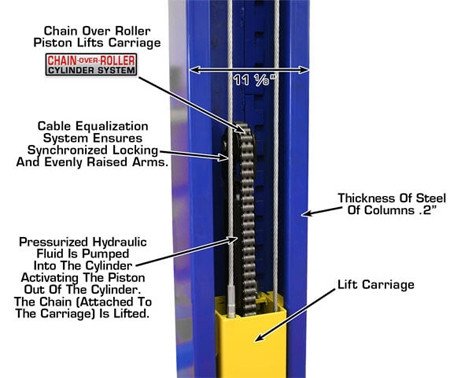

Safety is paramount in every Atlas® lift. The 9KOH two-post lift utilizes a proven "chain over roller" design paired with dual hydraulic chain-drive cylinders for smooth, balanced lifting performance. The lift is equipped with a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain, providing an additional layer of protection and peace of mind.

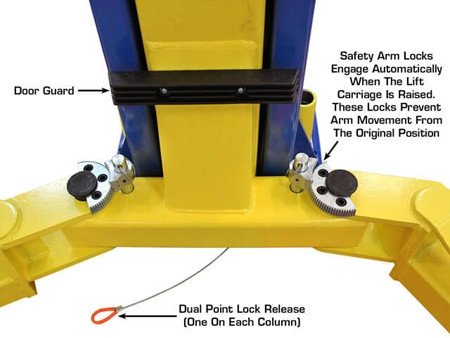

Additional safety features include automatic arm restraints, a dual-point lock release mechanism for secure lowering, and rubber guards on all carriages to protect vehicle finishes. These thoughtful design elements ensure that every lift is safe, controlled, and vehicle-friendly.
Key Highlights
- 9,000 lb lifting capacity handles cars, trucks, and SUVs with ease
- Adjustable height options: 11' 6" or 11' 10" overall height for flexible installation
- Asymmetric & symmetric arm configurations for versatile vehicle positioning and door clearance

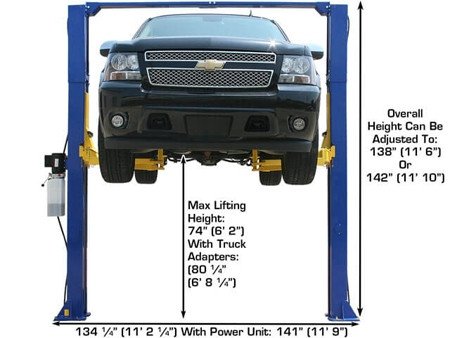

- Maximum lift height of 81 inches with adapters (74.5" without) – plenty of working room
- Overhead, open-floor design keeps the workspace clear and accessible

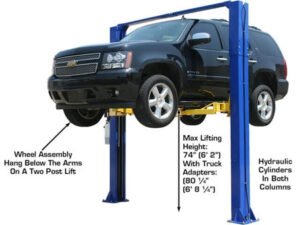

- Dual hydraulic chain-drive cylinders with automatic secondary lock system for enhanced safety
- Includes free truck adapter set and sliding adapters ready to work out of the box
Installation Requirements
Electrical: Requires 220V single-phase power with a 30-amp breaker.
Concrete: Minimum 4 inches of concrete with 3000 psi strength is required for safe anchoring.
Hydraulic Oil: Requires 3-5 gallons of AW32/AW46 hydraulic oil (not included).
Watch the Atlas® 9KOH lift in action
Product Features
- 9,000 LB. Capacity
- Overhead, Open-Floor design
- Overall Height: 138" (11' 6") or 142" (11' 10")
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- Dual-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System
- Free 8 Piece Truck Adapter Set
- Free set of Sliding Arm Adapters
- Mounting Hardware Included
- Shipping Weight 1,450 lbs.
Includes
- 8 Piece Truck Adapter Set
- Mounting Hardware
Product Specifications
Specifications
9KOH
Capacity
9,000 lbs
Lifting Time
N/A

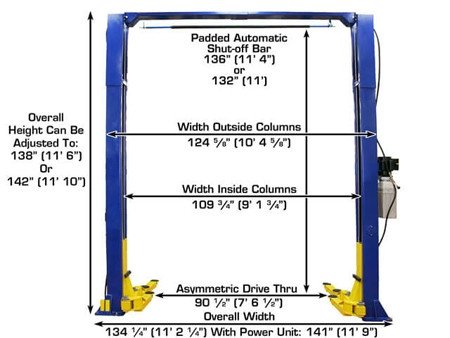

Overall Height
138" (11' 6") or 142" (11' 10")
Overall Width w/Power Unit
141" (11' 9")
Overall Width w/o Power Unit
134 ¼" (11' 2 ¼")
Outside Column To Outside Column
124 7/8" (10' 4 7/8")
Maximum Lift Height w/o Adapters
74 1/2"
Maximum Lift Height w/Adapters
81"
Padded Bar Height
136" (11' 4") or 132" (11')
Minimum Arm Height
4"

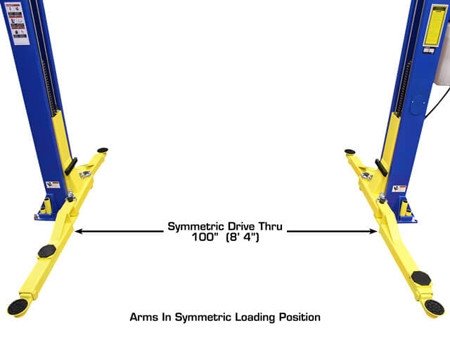

Drive Thru Arm Configuration
100" (8' 4") Symmetric / 90 ½" (7' 6 ½") Asymmetric
Inside Column
109 ¾" (9' 1 ¾")
Base Of Lift
4 1/4" x 18"
Column Size
7-1/4" x 11"
Column Thickness of Steel
5mm
Adapter Heights/ Peg Size
4 ea.- 1.5" & 5" / 1.5" (Arm Hole)
Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight
1,450 LB.
Requires a minimum of 4" of concrete with 3000 psi
Key Features
- Published product configuration: Atlas® 9KOH Symmetric/Asymmetric 2 Post Lift 9,000 lbs Important: Cylinder Bleeding Procedure After installation, immediately perform the Cylinder Bleeding Procedure to ensure safe, optimal lift performance. The Atlas® 9KOH is the perfect solution for professionals and serious enthusiasts who demand maximum lifting
- Exact manufacturer model or part number: XH-9KOHX
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | XH-9KOHX |
| MPN / Model | XH-9KOHX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model XH-9KOHX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
