Product Overview

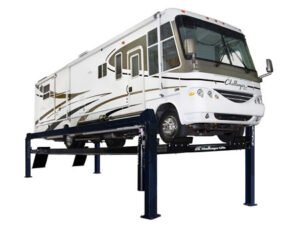

Challenger 44030EAR HD Ex-Length 4-Post Hydraulic Alignment Lift 30,000 lb Capacity – New Black Color
When your shop specializes in heavy-duty commercial trucks, transit buses, and oversized vehicles, you need a lift that can handle the toughest jobs with confidence. The Challenger 44030EAR is an extended-length alignment rack engineered to deliver 30,000 lbs of lifting capacity with the precision and reliability that professional technicians demand. This 4-post hydraulic truck lift combines extended wheelbase capability up to 290 inches with integrated alignment rack features, turning radius gauge cutouts, and a robust build designed for high-volume commercial service environments. Now available in a sleek new black color, the 44030EAR is your complete productivity solution for heavy truck repair, wheel service, brake work, and alignment operations.
30,000 Pounds of Heavy Duty Truck Lifting Power
The Challenger 44030EAR delivers 30,000 lbs of reliable lifting capacity, making it the ideal choice for servicing large commercial vehicles, heavy-duty trucks, and transit buses. This heavy-duty four-post truck lift features a superior lifting system built on high tensile strength leaf chain and sealed roller bearings, ensuring maximum reliability and smooth operation even under extreme loads. The lift's heavy-duty hydraulic cylinders provide optimum lifting performance with minimal maintenance requirements, keeping your shop productive day in and day out.
One of the standout features of the 44030EAR is the single point air actuated lock release system, which allows technicians to disengage all column locks simultaneously with ease. This time-saving innovation streamlines operations and improves workflow efficiency in busy shops. The lift also features diamond plate anti-skid runways and ramps that provide positive vehicle traction during approach and unload, ensuring safe and confident operation for your team.
With an overall length of 29' 7-1/2" and a maximum wheelbase capacity of 290 inches, the 44030EAR extended-length configuration handles a wide variety of large vehicles that shorter lifts simply can't accommodate. The lift rises to a full 68 inches in just 105 seconds, giving you fast, efficient access to undercarriage components.
An All-in-One Hydraulic Truck Lift and Alignment Rack Solution
The 44030EAR four-post truck lift is more than just a standard lift—it's an alignment rack (AR) model designed to expand your service capabilities. This model features turning radius gauge cutouts and is compatible with optional flush mounted 10500HD turning radius gauges, transforming it into a complete alignment solution for heavy-duty trucks and commercial vehicles. By adding optional ramp kits, oil drain pans, turning radius gauges, and rolling jacks, you can create a versatile, all-in-one workstation for brake service, wheel work, alignment diagnostics, and general heavy truck repair.
The lift's adjustable runways accommodate a wide variety of commercial transit buses and other large vehicles, while the built-in runway rail system provides the versatility to add convenience options like rolling jacks and sliding oil drain pans. This modular approach lets you configure the lift to match your shop's specific workflow and service mix. Note: rolling jack applications require fixed runways.
Alignment rack truck lifts like the 44030EAR are perfect for shops looking to increase their heavy truck repair service offerings and profitability. Whether you're performing alignments, brake inspections, or comprehensive undercarriage work, this lift provides the access, capacity, and precision you need to deliver top-quality service.
Key Highlights of the Challenger 44030EAR
- 30,000 lb lifting capacity for heavy-duty trucks and commercial vehicles
- Extended-length design with 29' 7-1/2" overall length and 290" max wheelbase for larger vehicles
- Alignment rack (AR) model with turning radius gauge cutouts for precision alignment work
- Single point air actuated lock release disengages all column locks simultaneously for fast, efficient operation
- 68-inch rise height achieved in just 105 seconds, maximizing productivity and access
Engineered for Durability and Performance
Diamond Plate Approach Ramps
The diamond plate approach ramps provide superior drive-on tread traction, ensuring safe and confident vehicle loading. These ramps feature heavy-duty steel rolling wheels designed for high-volume durability, making them ideal for shops that service multiple vehicles daily. The anti-skid design ensures positive traction during approach and unload, reducing the risk of accidents and improving overall safety.
Internal Lock Ladder
The multi-position internal lock ladder allows technicians to select from a variety of comfortable work heights, ensuring ergonomic access to all undercarriage components. This safety feature provides secure locking at multiple positions throughout the lift's travel, giving you peace of mind and flexibility during service operations.

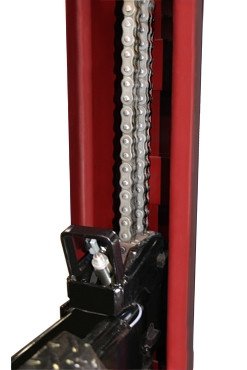

Heavy-Duty Leaf Chain and Lock Release System
The heavy-duty, high tensile strength leaf chain paired with sealed roller bearings delivers smooth, reliable lift operation with minimal maintenance. The single point air actuated lock release system is a game-changer for technicians, enabling them to disengage all post column locks at once with the push of a button, saving time and improving workflow efficiency.
Watch the Challenger 44030 Series in Action
Product Features
- Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation
- Heavy duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan
Product Specifications
To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.
Model Number
44030
44030AR
44030E
44030EAR
44030X
44030XAR
Lift Capacity
30,000 lbs.
A Overall Length
24' 7-1/2"
29' 7-1/2"
34' 7-1/2"
B Overall Width
12’ 5½”
C Inside Columns
132-1/2"
D Between Columns
233-3/4"
293-3/4"
353-3/4"
E Overall Height
92"
F Height of Runways
9"
G Width of Runways
24"
H Width Between Runways
54" – 75"
I Maximum Wheelbase
230"
290"
350"
J Rise Height
68"
Max. 2 Wheel Align
N/A
206"
N/A
266"
N/A
326"
Motor
3HP
Voltage
208v – 230v
Speed of Rise
105 seconds
Amps
30
Shipping Weight
5250 lbs
(2381 kg)
5450 lbs
(2472 kg)
5750 lbs
(2608 kg)
5950 lbs
(2699 kg)
6250 lbs
(2835 kg)
6450 lbs
(2926 kg)
*Optional Three Phase Electrical Power Available. Please Specify at time of order.
Available in Black Only
Key Features
- Published product configuration: Challenger 44030EAR HD Ex-Length 4-Post Hydraulic Alignment Lift 30,000 lb Capacity – New Black Color When your shop specializes in heavy-duty commercial trucks, transit buses, and oversized vehicles, you need a lift that can handle the toughest jobs with confidence. The Challenger 44030EAR is an extended-length
- Exact manufacturer model or part number: 44030EAR-V001
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 44030EAR-V001 |
| MPN / Model | 44030EAR-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model 44030EAR-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
