Product Overview
BendPak PCL-18B-4 18,000 lb. per Portable Column Lift (Set of 4) – New Gray
The Perfect Fit for Your Heavy Duty Maintenance Facility

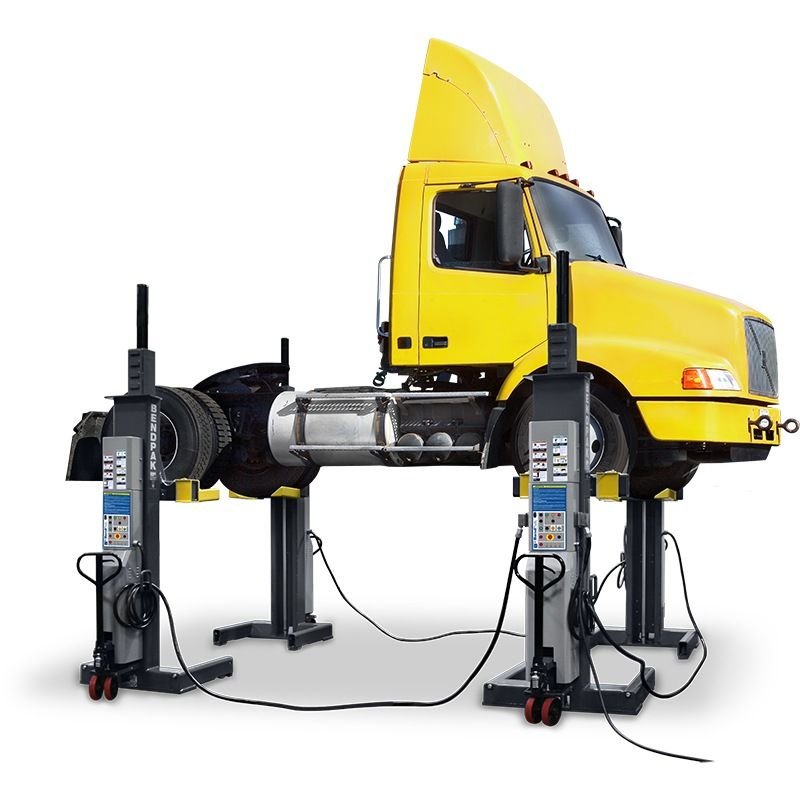

The BendPak PCL-18B-4 delivers 72,000 lbs. total capacity with a set of four portable columns, each rated at 18,000 lbs. This system proudly adds to BendPak's distinctive history of building the best lifts money can buy with evolutionary steps in ergonomics, power, safety, durability, and performance. Designed exclusively for heavy-duty fleet service, these portable column lifts are precisely suited for the toughest applications in commercial and municipal garages. Because they're portable and surface mounted, there's no excavation or expensive site preparation required — you can deploy them where you need them, when you need them.

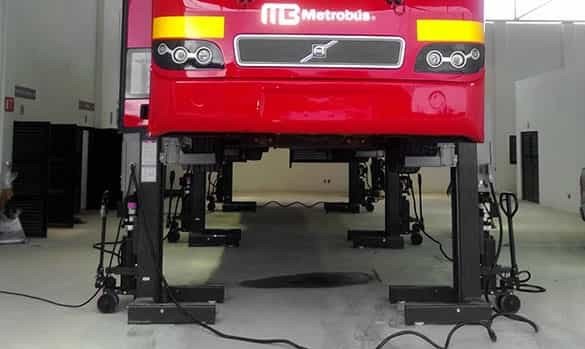

BendPak mobile column lifts provide unmatched flexibility and convenience to lift vehicles ranging from light trucks to the largest two and three-axle vehicles. They provide limitless lift cycles to keep you working longer, more flexibility to work on a wide variety of vehicles with easier, safer operation, and productivity-enhancing tools matched to your needs. The PCL-18B Series defines professional-level performance and quality from the super-efficient 208-240 volt, 3-phase power system to a simplistic yet durable design that helps reduce scheduled service requirements and operating costs.
Never before has a series of portable column lifts delivered so much power and versatility for both indoor and outdoor* applications. *Outdoor use only if covered and dry.
Why Choose the PCL-18B-4?
Here are just a few standout reasons why the PCL-18B-4 is trusted by heavy-duty service professionals nationwide:
- 72,000 lb. total system capacity each column rated at 18,000 lbs., perfect for buses, heavy trucks, and multi-axle vehicles
- Energy-efficient on-demand electric-hydraulic power no constant recharging required, ready around the clock for measurably longer work cycles
- Horseshoe wiring design just three 30' cables for a 4-column set, leaving front or back of the lift always clear and accessible
- Ergonomic pallet-jack style steering with Cush-Ride™ front wheels that adjust for uneven floors, expansion seams, and thresholds

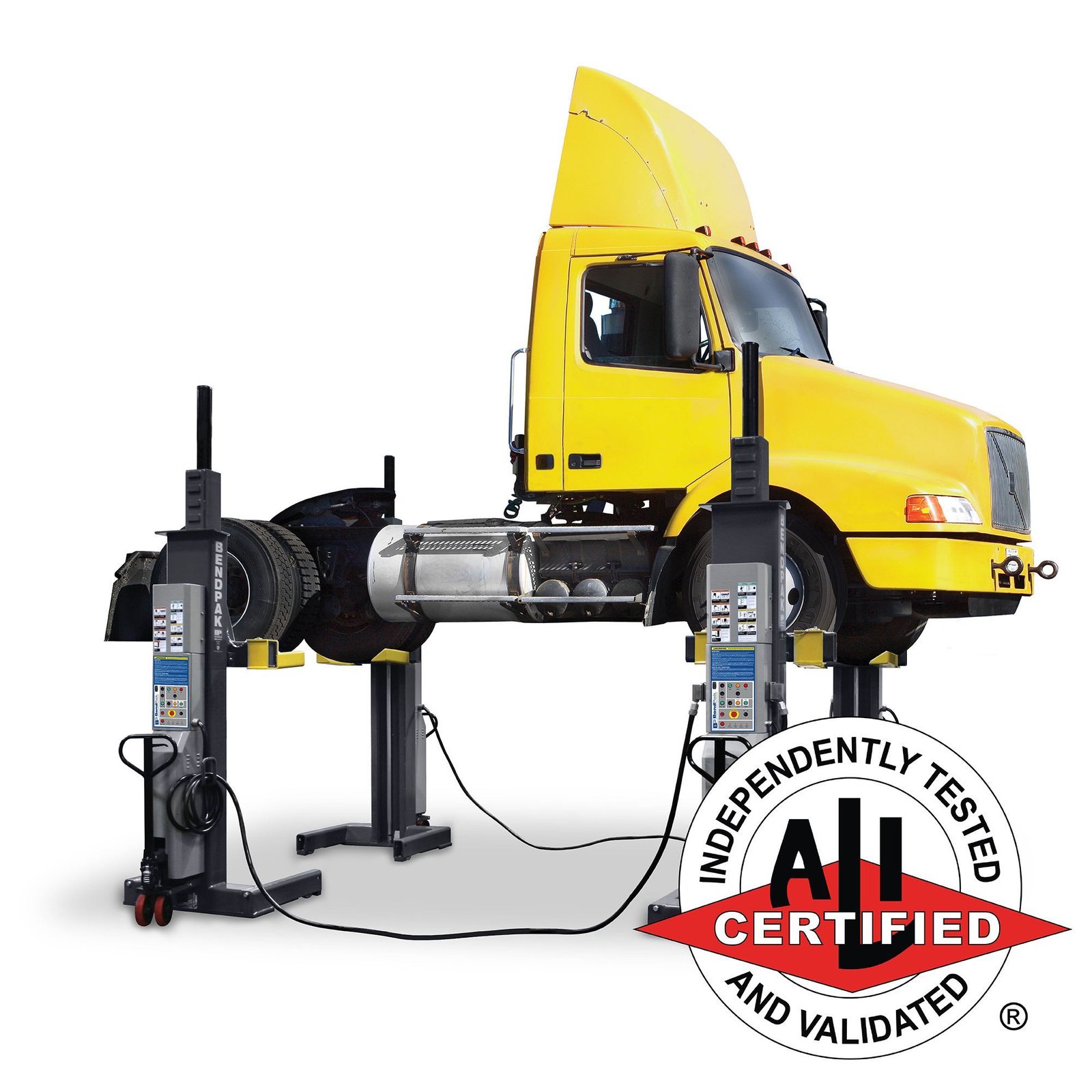

- ALI/ETL certified and meets or exceeds ANSI/ALI ALCTV-2011 standards engineered and assembled in the USA with top-tier off-the-shelf components
Maximum Productivity
The PCL-18B portable column lift systems feature a user-friendly and revolutionary design that reduces operator fatigue, meaning a mobile lift that's easier to use and set up and much faster than competitive units. Your technicians can get vehicles in the air and back on the road faster and easier than ever before. Because the PCL-18B uses an energy-efficient on-demand electric-hydraulic power system, it requires no constant recharging — it's ready around the clock, providing measurably longer work cycles than any other mobile column lift in its class.
Key productivity features include Single, Pair, or Team operation modes, allowing you to control columns individually or in synchronized groups. The intuitive PLC-based push-button control system can be operated from any column, with all instructions, symbols, and warnings printed in clear text. Self-diagnostic fault codes instantly light up if a system error is detected or if the life of a consumable part is nearly expired, allowing you to take appropriate action immediately.
Ergonomic Steering Control
Durable, versatile, and simple to use, the PCL-18B features an ergonomic steering control with a built-in hydraulic jack that elevates the lift assembly in seconds and reduces operator fatigue and downtime. A 180-degree handle with familiar pallet-jack controls provides exceptional maneuverability in compact areas. Tandem 8" diameter polyurethane-covered steel wheels with sealed roller bearings easily roll over dirt and debris.
With an effortless three strokes of the handle, the lift column is raised off the floor for instant portability. Once the column is positioned, the convenient spring-loaded handle returns efficiently to the upright position automatically. In the event the lift is raised with the steering wheels in the elevated position, an overload bypass valve protects the steering control unit. This pallet-jack style design means the columns lower firmly onto the floor versus constantly loaded spring-type wheels that can cause columns to roll when unladen.
Horseshoe Wiring for Unobstructed Access

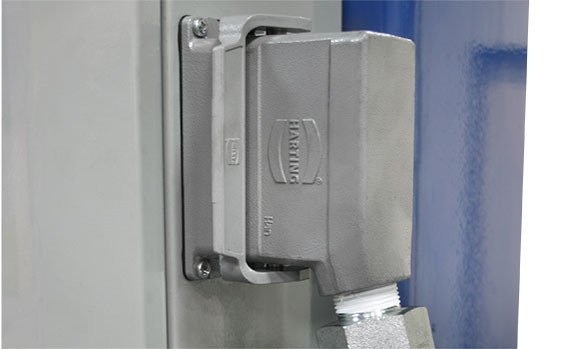

The PCL-18B-4 uses just three 30' control cables (as opposed to four like other brands), so the front or back of the lift is always accessible and free of interconnecting cable obstruction. Save valuable time by driving vehicles in and out of the work area without disconnecting and reconnecting cables — a feature that dramatically speeds up workflow in busy fleet garages.
Powerful and Reliable Hydraulic Design
Low-pressure HVLP direct-drive cylinders eliminate the need for lifting chains or expensive-to-maintain screw-drive systems. Inverted hydraulic cylinders mean the chrome piston rods are protected from debris and damage at all times, which extends the service life and reduces maintenance costs substantially. Each column features an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss.
Independent self-contained electric-hydraulic power units (one per column) are fast, smooth, and reliable, and include a motor, gear pump, reservoir, internal valving, a load hold check valve, and pressure relief circuit in a reliable yet easily serviceable assembly. An enclosed electric-hydraulic power system ensures quieter operation, making the PCL-18B better suited for sound-sensitive areas. Low-mounted power units and cylinders mean a lower center of gravity, making the columns easier to move and less likely to topple versus screw-drive systems with heavy overhead motors and drive systems.
Industry-Best Mobility
Six-inch diameter Cush-Ride™ front wheels feature an adjustable active leaf spring design that provides variable up-front ground clearance for smooth traveling over uneven floors, deteriorating asphalt, expansion seams, and thresholds. You set the front wheel ride-height to whatever setting best suits your conditions. Turn the adjusting screw to the max setting and the front legs rise nearly three inches off the ground to facilitate roll-on-roll-off loading of trailers and rollback trucks or to make easy passage of drainage gutters or floor irregularities. During operation, the front wheels automatically compress and settle down, providing firm stable support of the lift column.
The tight turning radius (40") and space-saving design provide improved mobility in tight bays. Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another. Reduced column weight and exceptional maneuverability make the PCL-18B one of the most portable heavy-duty column lifts on the market.
Intelligent Push-Button Controls
Operator convenience is a key parameter in the design of the PCL-18B. The PLC-based control system is operated by means of intuitive push-button controls for continuous synchronization of all columns. All operator instructions, symbols, and warnings are printed in clear text and are easy to understand. The PCL-18B Series allows you to operate, view, and change operation parameters directly from each individual full-control panel. Each column is equipped with an emergency shut-off switch and a separate key lock enclosure.
Control systems feature 24-volt safety circuitry, and electronics are multi-fuse protected. Smart electronics include self-diagnostics and self-calibration functions, meaning the lift can alert you to issues before they become serious problems. Each column is equipped with a warning light and audible alarm for critical warning alerts.
Off-the-Shelf Componentry
A Direct Logic™ PLC (Programmable Logic Control) and other off-the-shelf components from top-tier hardware manufacturers control operation functions and column synchronization. Other lift systems may use dedicated proprietary printed circuit boards specific to that brand, which can be very expensive should replacement ever be needed — if and when available. All control system hardware conforms to CE, CSA, ANSI, ASME, OSHA, and UL regulations, ensuring maximum safety and easy serviceability.
Designed and Assembled in USA
At BendPak, we make every effort to use USA-sourced components and engineering for our products. Product development, assembly, testing, and packaging of all PCL-18B lifts is undertaken at our manufacturing facility in Santa Paula, California.
Standard Operation Functions
The PCL-18B features versatile operation modes to suit any service scenario:
TEAM, PAIR, OR SINGLE COLUMN OPERATION selects which lift columns will operate as a group, tandem, or individually. Single mode results in commands from specific lift columns; team and pair modes result in commands from any column designated in their respective group.
UP CONTROL initiates the lift rise sequence. Automatic synchronization via auto-level corrections is made throughout all operations in addition to inadvertent loss of motion detection.
DOWN CONTROL initiates the lift lowering sequence. If the lift is parked on the locks, the lift will first automatically rise slightly to clear the locks before descending. If the lift is not parked on the locks, the lift will descend immediately with no initial upward movement. During the lowering sequence, the lift will initially descend at a slowed (turtle) speed, then automatically initiate to full (rabbit) speed after a short delay. Automatic synchronization via auto-level corrections is made throughout all operations.
ULTIMATE LEVEL ERROR makes sure that if for any reason the lift operation exceeds a specified out-of-level tolerance threshold, all lift columns will stop and display an out-of-level tolerance error. To clear the error, an offending lift would be put in SINGLE mode and raised or lowered accordingly to reduce the difference in lift heights.
PARK CONTROL initiates the lift locking (parking) sequence. Each lift column will slowly settle onto the multiple, automatic, independent safety locks spaced every 4 inches to ensure safe operation.
TWO SPEED OPERATION parking and lowering speeds are controlled by you. When trying to settle a bus on tall jack stands, opt for the slower "turtle" speed for a safe controlled descent; when the job's done and it's time to remove the vehicle from the work area, select the faster "rabbit" speed for a rapid controlled descent.
EMERGENCY STOP shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator.
Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks.
Advanced Safety Features
Safety is paramount in every aspect of the PCL-18B design:
- Multiple, automatic, independent safety locks spaced every 4 inches ensure safe operation
- Inverted hydraulic cylinders with integrated safety valves prevent accidental lowering in the event of oil pressure loss
- 24-volt safety circuitry with multi-fuse protection
- Sealed and enclosed linear potentiometers feature precision output and high frequency response for precise synchronization and communication of all columns
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Warning lights and audible alarms on each column for critical alerts
- Emergency shut-off switches on each column
- Separate key lock enclosure on each column
Versatile Lifting Capacity
The PCL-18B system is available in multiple configurations to suit your specific needs:
- PCL-18B-2 (Set of 2) — 36,000 lbs. total capacity
- PCL-18B-4 (Set of 4) — 72,000 lbs. total capacity
- PCL-18B-6 (Set of 6) — 108,000 lbs. total capacity
- PCL-18B-8 (Set of 8) — 144,000 lbs. total capacity
Each column provides 18,000 lbs. of lifting capacity, with a maximum lifting height of 71.5" and a lifting speed of 85 seconds. Extended forks accommodate wide tires and deep wheel configurations, while multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters. Fork width adjusts from 9.5" minimum to 35" maximum, with a fork length of 11.5".
Built to Last
Every aspect of the PCL-18B is engineered for longevity and minimal maintenance:
- Durable powder-coat finish resists corrosion and wear
- Heavy-duty steel carriage rollers feature turned, ground, and polished axle pins
- Sealed roller bearings on all wheels reduce maintenance requirements
- Simple operation, long service life, and minimum maintenance requirements
- Low center of gravity for stability and easier movement
You Never Have to Say "Now What?" Again
We're more than just a lift company; we're a dedicated and highly focused team of experts whose primary commitment is to provide our customers with the best possible after-the-sale service available. Our award-winning Certified Service™ program is how we keep those customers smiling long after the initial purchase of their garage equipment product. When the unexpected happens, BendPak Certified Service™ is your first and final step towards making it right. Even though our business starts with a quality, cost-effective product, we understand that it is the support and services we provide after the sale that help keep your business running at peak efficiency.
Product Features
- Sets of 4 Columns 72,000 Total Capcity
- Available in sets of 2 – PC8L-18B-2 36,000 lbs, 6 – PC8L-18B-6 108,000lbs or 8 – PCL-18B-8 144,000 lbs
- 18,000-lb. individual column capacity; 108,000-lb. maximum system capacity
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
- 208-240 volt, 3-phase main power system – optional voltages available upon request
- SINGLE, PAIR or TEAM operation,
- For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
- Simple operation, long service life and minimum maintenance
- Intuitive controls allow the lift to be fully programmed and controlled from any column
- Control systems feature 24-volt safety circuitry
- The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls which can be very expensive to service or replace
- Smart electronics feature self-diagnostics and self-calibration functions
- Sealed and enclosed linear potentiometers feature precision potentiometric output and high frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Two-speed lowering option – turtle or rabbit speed settings
- Each column is equipped with a warning light and audible alarm for critical warning alerts
- Emergency shut off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
- Separate key lock enclosure on each column
- Electronics are multi-fuse protected
- An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas
- Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen with the weight of a vehicle
- Low mounted power units and cylinders means a lower center of gravity making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
- Extended forks accommodate wide tires and deep wheel configurations

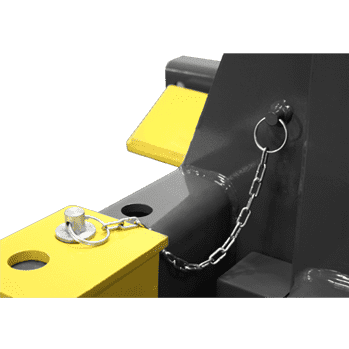

- Multi-width wheel forks with locking pins accommodate the widest range of wheels eliminating the need for specialty wheel adapters
- Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
- Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
- Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
- Durable forklift pockets provide simplistic handling when moving the lift columns from once facility to another
- Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
- Multiple, automatic, independent safety locks spaced every 4 inches ensure safe operation
- Space-saving design, reduced column weight and a tight turning radius provides improved mobility
- Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay
- Durable powder-coat finish
Product Specifications
Specifications
PCL-18B-2
PCL-18B-4
PCL-18B-6
PCL-18B-8
Set of 2
Set of 4
Set of 6
Set of 8
Capacity
Max Column Capacity
18,000 lbs. / 8,165 kg (ea)
Total Capacity (lbs.)
36,000
72,000
108,000
144,000
Column Specs
A Overall Height (Raised)
101” (2,565 mm)
B Overall Height (Lowered)
146.5” (3,721 mm)
C Max Lifting Height
71.5” (1,889 mm)
D Overall Depth
48.75” (1,238 mm)
E Overall Width
45” (1,143 mm)/center>
C Chassis Length
32.25” (819 mm)
G Min Lifting Fork Width
9.5” (241 mm)
H Max Lifting Fork Width
35” (889 mm)
I Lifting Fork Length
11.5” (292 mm)
Turning Circle
40" (1,016 mm)
Column Weight
Each 1,450 lbs. (657 Kg)
Lifting Speed
85 sec
Motor
208 V – 240 V / 50 Hz – 60 Hz / 3 Ph
Shipping
Shipping Weight
1,450 lbs. / 657 kg (Ea. Column)
Shipping Dimensions
106" x 55" x 41" (Ea. Column)
(2,696 x 1,397 x 1,041 mm)
Key Features
- Published product configuration: BendPak PCL-18B-4 18,000 lb. per Portable Column Lift (Set of 4) – New Gray The Perfect Fit for Your Heavy Duty Maintenance Facility The BendPak PCL-18B-4 delivers 72,000 lbs. total capacity with a set of four portable columns, each rated at 18,000 lbs. This system proudly adds to BendPak's distinctive history of
- Exact manufacturer model or part number: 5175292-V001
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175292-V001 |
| MPN / Model | 5175292-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 5175292-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
