Product Overview

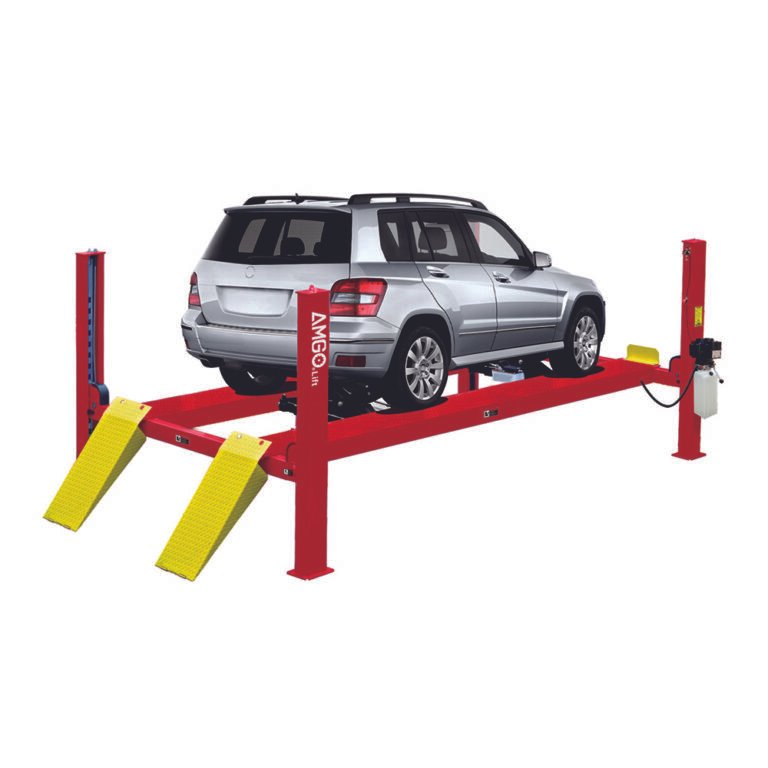

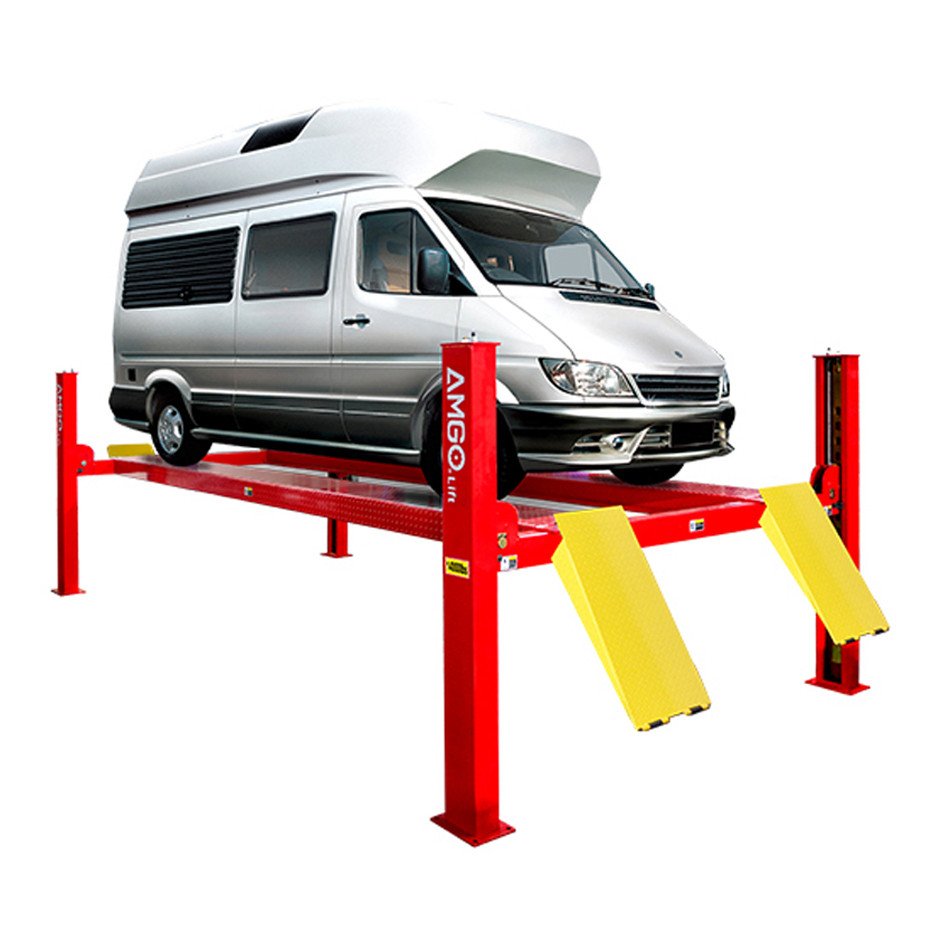

AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs
Professional-Grade Performance for Heavy-Duty Applications
The AMGO® Hydraulics PRO-14E is engineered for professionals who demand exceptional performance and reliability. This powerful 4-post lift delivers a generous 14,000 lbs lifting capacity with extended runway length, making it the ideal solution for shops working with trucks, SUVs, and full-size commercial vehicles. With an impressive 287 1/16" overall length with ramps, the PRO-14E accommodates longer wheelbases that standard lifts simply can't handle.
Built to AMGO® Hydraulics exacting quality standards, this heavy-duty 4-post truck lift features extra wide runways to accommodate a diverse range of vehicle types and wheelbases. The non-alignment design provides versatility for general service, maintenance, and storage applications. Whether you're servicing light trucks, vans, or larger commercial vehicles, the PRO-14E delivers the capacity and reach you need.
Safety and reliability are engineered into every aspect of this lift. The air-released safety lock system provides convenient operation with absolute confidence, while the mechanical self-locking device and cable-breaking protection ensure redundant safety throughout every lift cycle. High-quality 1/2" aircraft quality cable delivers exceptional strength and longevity, and the skid-proof diamond platform provides secure footing during vehicle service.
Why Choose the PRO-14E Extended Lift?
- Extended Runway Length: At 287 1/16" overall length with ramp, this lift handles longer wheelbase trucks and commercial vehicles that shorter lifts can't accommodate
- Impressive 75 9/16" Lifting Height: Provides ample working clearance with 68 7/8" max underneath height for comfortable access to vehicle undercarriages
- Triple-Redundant Safety Systems: Air-released safety locks, mechanical self-locking mechanism, and cable-breaking protection work together to ensure operator confidence
- Wide 116" Width Between Columns: Generous 102 1/8" drive-thru clearance accommodates vehicles with wide track widths and provides easy access for service
- Professional-Grade Hydraulics: 2.0HP motor with 220V/60Hz single phase power drives precision-engineered hydraulic cylinders with flow restrictors for stable, smooth operation
Engineered for Quality and Reliability

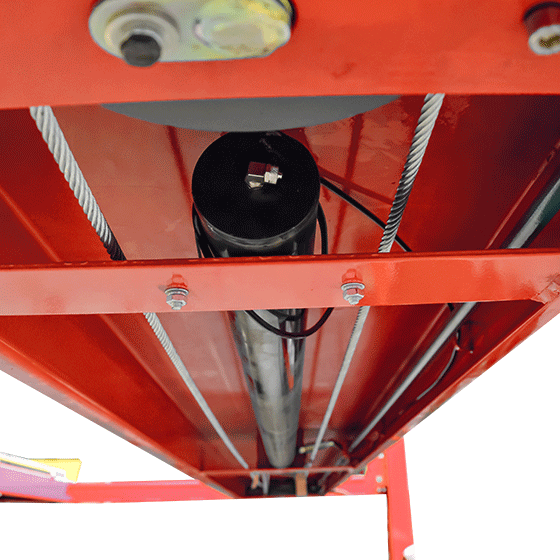

Every AMGO® Hydraulics PRO-14E is manufactured under strict quality control standards. The hydraulic cylinders are designed and built to meet demanding professional specifications, featuring integrated flow restrictors that ensure stable and smooth operational speed throughout the entire lifting range. This attention to detail translates into consistent, predictable performance shift after shift.
The lift's offers a 46" width between runways to accommodate vehicle track widths. The outside edge of runways measures 87" standard, expandable to 86" maximum, providing the versatility needed in a busy professional shop environment.
With a compact 7 7/8" minimum height, the PRO-14E easily accommodates low-clearance vehicles, while the 86 3/16" overall height fits comfortably in standard commercial bays. The 130 7/8" overall width maximizes lifting capacity while maintaining a footprint that doesn't dominate your workspace.
Expand Your Capabilities with Optional Accessories
The PRO-14E is designed to grow with your business. Consider these popular accessories to maximize your investment:
- 41403 Extension Platform Set for PRO-14 & PRO-14A (2 pieces) – adds even more length for specialized applications

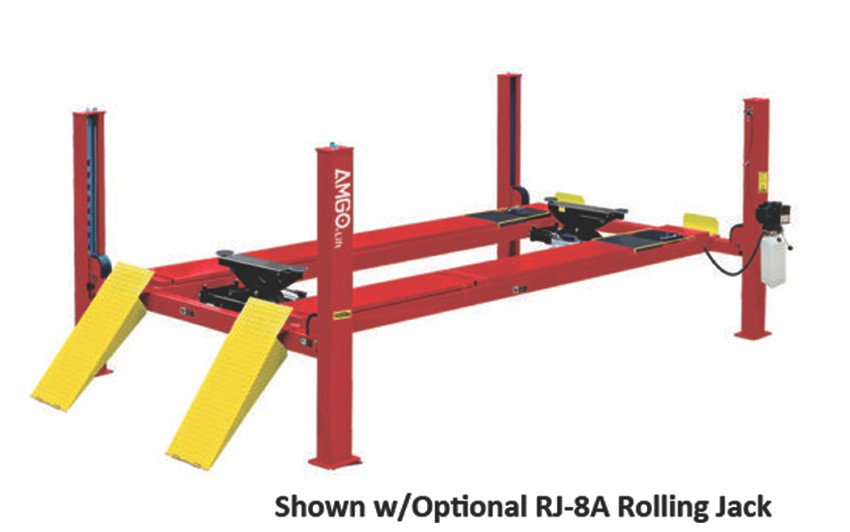

- RJ-8A Pneumatic Rolling Jacks 8,000 lbs capacity jacks for wheel service and suspension work
- 40102 Airline Kit for 4 Post Lifts less than 18K – convenient compressed air access at the lift
Model Specifications & Technical Details
Ready to upgrade your shop's capabilities?
The AMGO® PRO-14E delivers the extended reach, heavy-duty capacity, and reliable performance that professional technicians demand. With its triple-redundant safety systems, precision-engineered hydraulics, and generous 14,000 lbs capacity, this lift is built to handle your toughest jobs for years to come.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 14,000 lbs capacity
- AMGO ETL certified power unit comes as standard
- Mechanical self-locking safety device with air-driven lock release
- Primary multiple safety locks and cable-slack protection system come standard
- Cable-driven, utilizing aircraft standard high quality cables
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve
- Non-skid diamond platforms
Optional Accessories Available
- 41403 Extension Platform Set for PRO-14 & PRO-14A (2Pcs)
- RJ-8A Pneumatic 8,000lbs Rolling Jacks
- 40102 Airline Kit for 4 Post Lifts less than 18K
Product Specifications
Model
PRO-14E
Style
Non-Alignment
Lifting Capacity
14,000 lbs
A Overall Length w/Ramp
287 1/16"
A Overall Length w/o Ramp
N/A
B Outside Edge of Crossbeams
238 13/16"
C Overall Width
130 7/8"
D Width Between Columns
116"
E Max Lifting Height
75 9/16"
E Max. Lock Height (to Top of Runway)
72 7/16"
F Overall Height
86 3/16"
G Minimum Height
7 7/8"
H Max. Underneath Height
68 7/8"
H Max. Lock Underneath Height
65 3/4"
I Drive-Thru Clearance
102 1/16"
J Width Between Runways
46"
K Outside Edge of Runways
86"
Lifting Time
81 S
Motor
2.0HP, 220V/60Hz Single Phase
Gross Weight
3,267 lbs
Key Features
- Published product configuration: AMGO® Hydraulics PRO-14E Extended 4 Post Lift 14,000 lbs Professional-Grade Performance for Heavy-Duty Applications The AMGO® Hydraulics PRO-14E is engineered for professionals who demand exceptional performance and reliability. This powerful 4-post lift delivers a generous 14,000 lbs lifting capacity with extended
- Exact manufacturer model or part number: PRO-14E
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | PRO-14E |
| MPN / Model | PRO-14E |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model PRO-14E, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
