Product Overview

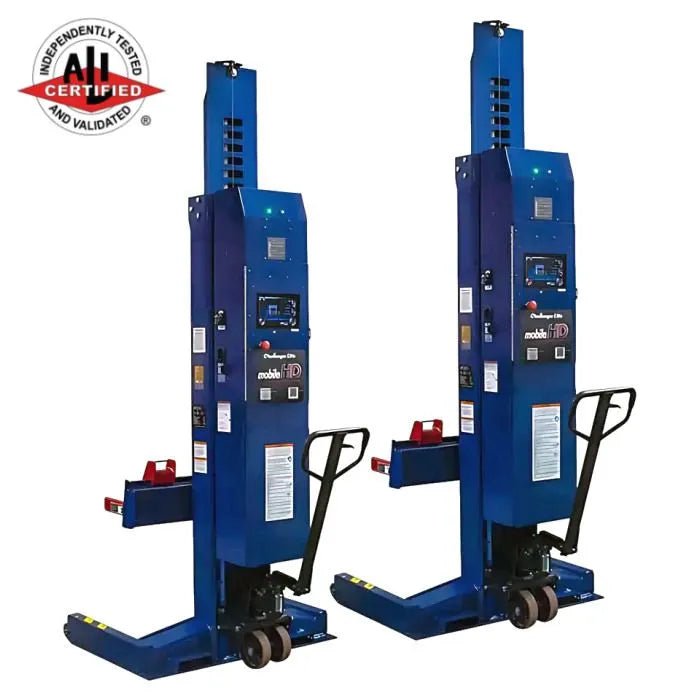

Challenger CLHM-190 ALI Mobile HD Column Lifts (Set of 4)

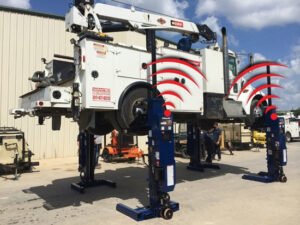

The Challenger CLHM-190 mobile column lift system delivers professional-grade heavy-duty lifting for shops, municipalities, and fleet operations that demand maximum flexibility and power. This 4-column configuration offers a combined lifting capacity of 76,000 lbs. ( 19,000 lbs. per column ), making it ideal for medium-duty trucks, service vehicles, buses, and transit equipment. Designed with wireless operation, integrated battery systems, and touchscreen control technology, the CLHM-190 provides ultimate portability and eliminates the clutter of cables and power hookups. Whether you're working indoors or outdoors on virtually any solid surface, these ALI Gold Label certified mobile columns provide robust, synchronized lifting with advanced safety features and effortless maneuverability. Transform your bay into a versatile multi-vehicle service center with one system that moves where you need it.
Ultimate Portability and Power
Our heavy-duty mobile lifting system, along with optional sets of accessory support stands, accommodates multiple lift bays with one lift system. The CLHM-190 robust yet easily maneuverable mobile columns can be operated on almost any solid surface, indoors or out. This 19,000 lb. capacity per column model features wireless technology, 10-inch Android-based touchscreen controls, an integrated battery and 110-volt charging system, and adjustable wheel carriages that fit a range of wheel sizes from 5" to 24.5" diameters. The system's precise balanced design, heavy-duty tow handle, and spring-loaded wheels make moving and aligning individual lift units simple and easy with minimal effort.
Hydraulic-operated units provide heavy-duty lifting capacity enabling you to service everything from small cars to large trucks, transit vehicles, and municipality equipment. With a maximum lift height of 69 inches (when using 4 or more units) and a smooth lift speed of 60 inches per minute at max load, the CLHM-190 combines speed, precision, and safety. The system operates on 12-volt deep cycle batteries (now standard with AGM batteries effective May 2025, featuring a 2-year free replacement warranty ) to eliminate the need for power source hookups and provide reliable 25 VDC nominal operation.
Advanced Integrated Technology
Integrated Charging System
The 110V built-in multi-stage charging system keeps your battery-powered wireless operation running smoothly. A charging status light provides real-time battery updates to assist with job planning and management, so you always know your power status before starting a lift. The system requires only 120 VAC @ 60 Hz with 1.3 amps, making it easy to plug in and charge between jobs without specialized electrical infrastructure.
Wireless Operation
The wireless operation system allows for a clutter-free work area without cables to connect, navigate around, roll over, or replace. With 12 radio frequencies and a wide channel range (100 to 120) for each frequency, the system prevents radio noise from interrupting service. This means no more tripping hazards, no tangled cables, and no downtime replacing worn cords—just clean, efficient operation across your entire shop floor.

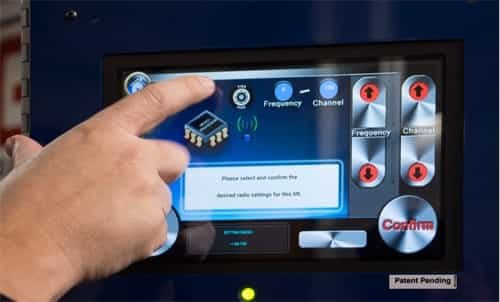

NEW 10" Touch Screen Control Console
The Android-based integrated touch screen control console provides easy-to-use control and precise measurements of lifting height and lifting weight per column. The intuitive interface includes an internal CPU and fully functional web browser, plus on-board training videos and manuals so your techs have instant access to guidance right at the lift. Real-time monitoring ensures accurate, synchronized lifting across all columns for maximum safety and efficiency.
Why Choose the CLHM-190?
- Heavy-Duty 76,000 lb. Total Capacity: 4 columns × 19,000 lbs. per column handles medium to heavy-duty trucks, buses, transit, and fleet vehicles with ease.
- True Wireless Freedom: Integrated battery operation and wireless communication eliminate cables, reduce clutter, and let you position columns anywhere on any solid surface.
- ALI Gold Label Certified: Meets stringent ALI and ETL safety standards for maximum reliability and operator confidence.
- Advanced Safety Features: Linear position transducers maintain system synchronization, and integrated weight gauges help prevent column overloading and verify lock engagement for safe, dependable lifts every time.
- Versatile and Maneuverable: Compact footprint of 560 sq. inches per column, 47-inch turning radius, and spring-loaded wheels allow easy positioning in tight spaces and across multiple bays.
Product Features
- Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.
- 110 volt built in multi-stage charging system

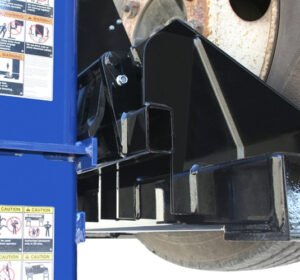

- Adjustable wheel carriages fits a range of wheels
- Integrated touch screen control console provides easy-to-use and precise operating.
- Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.
- Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation
- Meets stringent ALI Gold Label standards
- Safety Features
- Linear position transducers maintains system synchronization and ensures maximum reliability
- Integrated weight gauges help prevent column overloading and verifies lock engagement
- Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace
- Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty
Product Specifications
Model
CLHM-140
CLHM-190
CLHM-190W
Lift Capacity Per Column
14,000 lbs.
19,000 lbs.
A Height of Lift Unit
88.5" (2,248 mm)
B Height of Lift Unit at Full Rise
157.125" (3,991 mm)
C Width of Lift Unit
44.25" (1,124 mm)
49" (1,245 mm)
D Length of Lift Unit
53.625" (1,362 mm)
E Maximum Lift Height
(4 or more units)
69" (1,753 mm)
Maximum Lift Height
(2 units – Normal Mode)
32" (813 mm)
F Min-Max Wheel Diameter
5" – 24.5" (127 -622mm)
4" – Max det. by tire size
Max. Hydraulic System Operating Pressure
2,180 psi
2,600 psi
Lift Speed (Max Load)
60" per min. (1524 mm)
Weight of Lift Unit
1,485 lbs (674 kg)
1,500 lbs (685 kg)
1,565 lbs (714 kg)
Footprint of Lift Unit
560" 2 (3,613 sq cm)
600" 2 (3,870 sq cm)
Ground Pressure for Each Lift
(Max. Load)
27.7 psi
36.6 psi
34.3 psi
Turning Radius of Lift Unit
47" (1194 mm)
Operating Peak Power
4HP
Operating Voltage
24 VDC Nominal
25 VDC Nominal
26 VDC Nominal
Charger Voltage Required
120 VAC @ 60 Hz
Charger Amps Required
1.3 Amps
ALI/ETL Certified
Yes
*CLHM Series Wireless/Battery Operated Mobile Columns available in 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.
1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.
Only Available in Blue
Key Features
- Published product configuration: Challenger CLHM-190 ALI Mobile HD Column Lifts (Set of 4) The Challenger CLHM-190 mobile column lift system delivers professional-grade heavy-duty lifting for shops, municipalities, and fleet operations that demand maximum flexibility and power. This 4-column configuration offers a combined lifting capacity of 76,000
- Exact manufacturer model or part number: CLHM-190-4
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | CLHM-190-4 |
| MPN / Model | CLHM-190-4 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model CLHM-190-4, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
