Challenger CLHM-190W HD Wide Mobile Column Lifts (Set of 4)

Product Overview

Challenger CLHM-190W HD Wide Mobile Column Lifts (Set of 4)

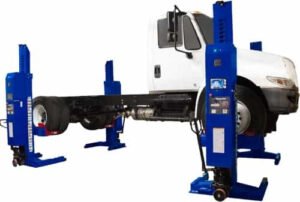

The Challenger CLHM-190W heavy-duty mobile column lift system represents the pinnacle of wireless lifting technology for professional shops servicing everything from passenger vehicles to heavy-duty commercial trucks. This 4-column configuration delivers a combined lifting capacity of 76,000 lbs (19,000 lbs per column), making it ideal for fleet maintenance, municipal garages, and dealerships working with buses, transit vehicles, and large trucks. With wireless operation, integrated battery power, and an advanced Android-based 10" touch screen control console, the CLHM-190W eliminates the clutter and limitations of traditional cable-connected systems while providing exceptional mobility and precision.

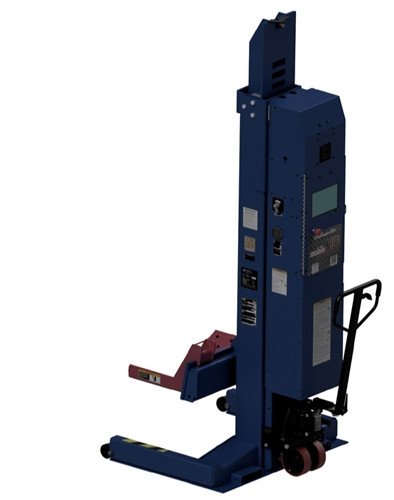

Each column features a 49-inch wide footprint specifically designed for wide tire applications, adjustable wheel carriages to accommodate a broad range of wheel diameters, and a hydraulic system capable of 69 inches of maximum lift height in 4-column mode. The system operates on 12-volt deep cycle AGM batteries with a built-in 110V multi-stage charger, ensuring cordless freedom without sacrificing power or reliability. Real-time battery status indicators keep your team informed, while ALI Gold Label certification and integrated safety features guarantee compliance and protection on every lift.

Unmatched Versatility for Multi-Bay Operations

Our heavy-duty mobile lifting system, along with optional accessory support stands, can accommodate multiple lift bays with a single lift system. The robust yet easily maneuverable mobile columns operate on almost any solid surface—indoors or outdoors—giving your facility unmatched layout flexibility. Position columns exactly where you need them, service multiple vehicles across different bays, and move the system as your workload changes throughout the day.

The CLHM Series is available in 14,000 lb (CLHM-140) and 19,000 lb (CLHM-190 / CLHM-190W) capacity per column, with configurations ranging from 2 columns up to 8 columns for a maximum system capacity of 152,000 lbs. Whether you're lifting a compact car or a fully loaded transit bus, Challenger's mobile column system scales to meet your needs.

Key Highlights

• 76,000 lb total capacity (19,000 lbs per column) — handles heavy-duty trucks, buses, and commercial fleet vehicles with ease

• Wireless battery-powered operation with integrated 110V charging system — no cables to connect, trip over, or replace

• 10" Android touch screen console with real-time lift height and weight monitoring, plus on-board training videos and manuals

• 69" maximum lift height in 4-column configuration — ample clearance for undercarriage work on large vehicles

• Wide 49" column width accommodates oversized tires and dual wheel assemblies common on commercial trucks

• ALI Gold Label certified with advanced safety features including linear position transducers and integrated weight gauges

• AGM battery technology (Group 27 AGM 12 Volt) with 2-year free replacement warranty effective May 2025

Integrated Charging System

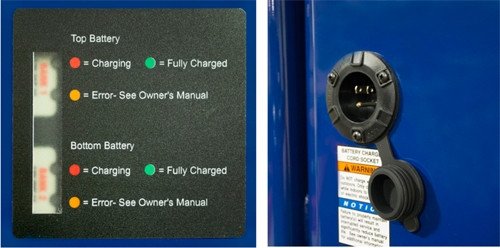

The CLHM-190W features a built-in 110V multi-stage charging system that powers the lift's 12-volt deep cycle AGM batteries (operating at 26 VDC nominal). This intelligent charging system ensures maximum battery life and optimal performance, while the charging status light provides real-time updates to help you plan jobs and manage workflow efficiently. Simply plug in between jobs, and the system is ready when you need it—no downtime, no hassle.

Effective May 2025, all Challenger CLHM model lifts ship with AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt, backed by a 2-year free replacement warranty.

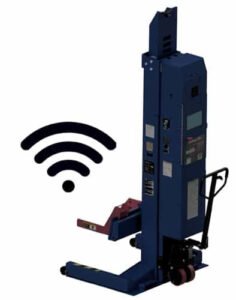

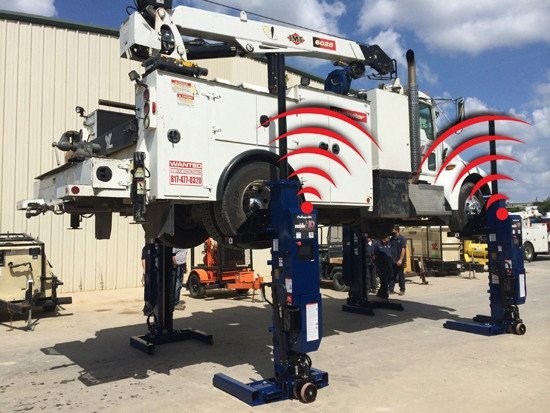

Wireless Operation for a Clutter-Free Workspace

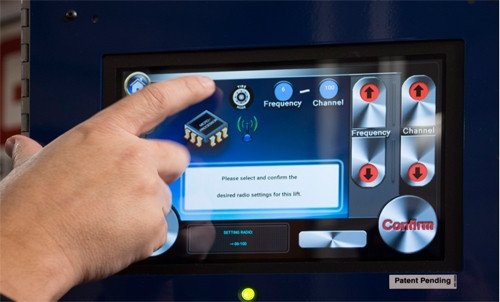

Say goodbye to tangled cables and connection hassles. The wireless operation system on the CLHM-190W allows for a completely clutter-free work area—no cables to connect, navigate around, roll over, or replace. The system operates on 12 radio frequencies with a wide channel range (100 to 120) for each frequency, preventing radio noise from interrupting service even in busy, multi-lift environments.

Wireless technology also means faster setup and repositioning. Move columns independently to accommodate different vehicle configurations, and synchronize lifts instantly with the touch of a button. The result is improved shop efficiency, reduced setup time, and a safer workspace free from trip hazards.

Advanced 10" Touch Screen Control Console

The NEW 10" Android-based touch screen control console transforms the lifting experience with intuitive, easy-to-use controls and precise real-time data. Monitor lifting height and lifting weight per column at a glance, ensuring balanced loads and safe operation on every lift. The integrated console provides:

• Internal CPU and fully functional web browser for access to online resources and troubleshooting

• On-board training videos and manuals everything your team needs right at their fingertips

• Real-time diagnostics and alerts to keep the system running smoothly and safely

This advanced control system makes training new technicians faster and easier, reduces operator error, and ensures consistent, precise lifts every time.

Built for Safety and Reliability

Safety is paramount when lifting heavy commercial vehicles. The CLHM-190W is designed and tested to meet stringent ALI Gold Label standards, ensuring every lift meets or exceeds industry safety requirements. Advanced safety features include:

• Linear position transducers maintain system synchronization across all columns, ensuring maximum reliability and preventing uneven lifting

• Integrated weight gauges help prevent column overloading and verify lock engagement for secure holding

• Hydraulic safety locks engage automatically at multiple heights to prevent accidental lowering

• Balanced design with heavy-duty tow handle and spring-loaded wheels make moving and aligning individual lift units simple with minimal effort

The system operates at a maximum hydraulic pressure of 2,600 psi and delivers a smooth lift speed of 60 inches per minute even at maximum load, providing both power and control for safe, efficient operation.

Wide Carriage Design for Heavy-Duty Applications

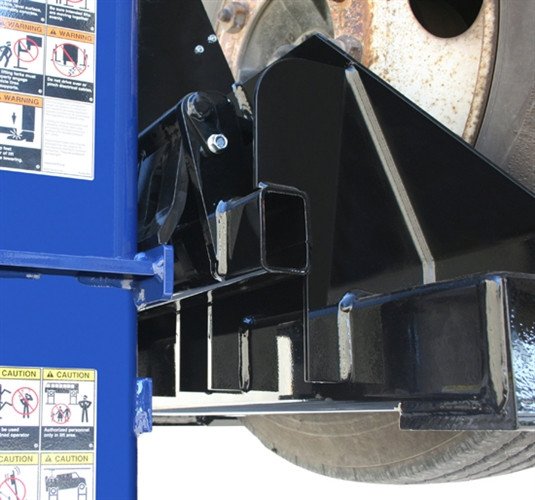

The CLHM-190W features a 49-inch wide column design (compared to 44.25" on standard models), specifically engineered to handle oversized tires, dual wheel assemblies, and the unique lifting requirements of commercial trucks and heavy-duty vehicles. The adjustable wheel carriages accommodate tire diameters starting at just 4 inches, with the maximum determined by tire size—ensuring compatibility with virtually any vehicle in your fleet.

Each column weighs 1,565 lbs and features a 600 sq. inch footprint, providing exceptional stability and a ground pressure of just 34.3 psi at maximum load. The compact 47-inch turning radius ensures maneuverability in tight shop spaces, while the robust construction and 4HP operating peak power deliver the muscle needed for day-in, day-out commercial service.

Product Features

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue
