Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs
Important:
The Atlas® 412 is a commercial-grade four post lift engineered to deliver professional performance at an exceptional value. With a 12,000 lb capacity, this lift is designed and built to exacting standards that will provide many years of reliable service in demanding shop environments. The Atlas® 412 offers exclusive features not found on many competitor lifts, including extra tall, extra wide, and extra long dimensions to accommodate a broad range of vehicles from trucks and SUVs to full-size vans and commercial vehicles.
This lift incorporates structural and cosmetic features typically found on lifts costing thousands of dollars more. Every Atlas® 412 is thoroughly tested to ensure flawless performance at its rated capacity, and it has been manufactured to the same rigorous specifications for many years—a testament to its proven design and durability.
Advanced Cable & Cylinder System

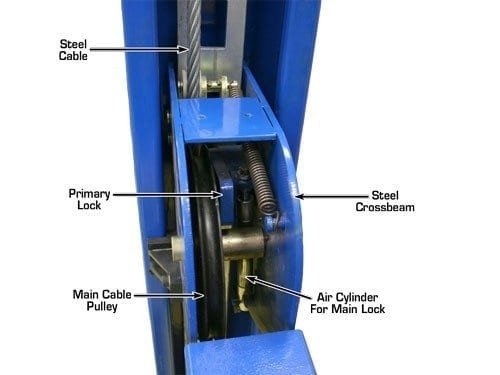

The Atlas® 412 uses a high-strength cable lifting system paired with an underslung, oversized hydraulic cylinder powered by a 220-volt single-phase power unit. This modern design provides smooth, reliable operation and easy leveling. Many competitors still rely on old-style chain lifting systems with exposed hydraulic cylinders—designs that are difficult to level properly and prone to causing "door dings" on customer vehicles. The Atlas® cable system eliminates these issues, offering cleaner aesthetics, superior performance, and enhanced safety.
Key Advantages of the Atlas® 412
- 12,000 lb Capacity: Heavy-duty commercial-grade construction handles trucks, SUVs, vans, and more with ease.
- Extra Tall, Wide & Long Design: Generous dimensions including a 77 3/4" lifting height, 89 3/4" column height, and 194 1/2" runway length accommodate larger vehicles and extended wheelbases up to 185 inches.
- Air-Operated Single Point Lock Release: Fast, convenient operation with a double lock safety system and lock ladder design for maximum security and operator confidence.
- Diamond Plated Runways: Durable, slip-resistant surface with steel approach ramps included for safe vehicle loading.
- Powder Coat Finish: Professional appearance with long-lasting corrosion resistance for years of service in busy shop environments.
Complete Package with Everything You Need
The Atlas® 412 arrives ready to install with all necessary mounting hardware and steel approach ramps included. Optional accessories such as drive-off ramps and runway extensions are available separately to further customize your lift to meet your shop's specific needs. The lift requires an external air supply (85-115 PSI) for the single-point lock release, a 220V / 1 phase / 30 amp breaker, and 3-5 gallons of AW32/AW46 hydraulic oil (not included).
Installation Requirements

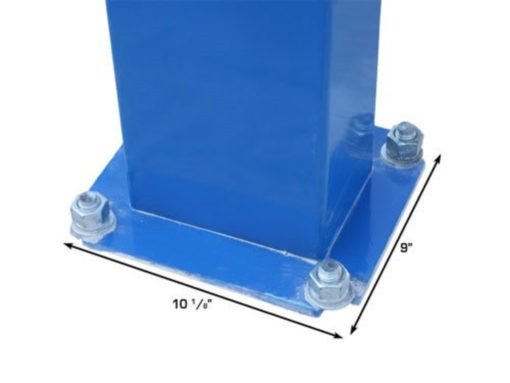

For safe and reliable operation, the Atlas® 412 requires installation on a minimum 6-inch thick concrete slab with a 3000 PSI rating. Proper concrete preparation is essential to ensure the lift anchors securely and operates safely under full load. The lift weighs approximately 2,800 lbs, so plan accordingly for delivery and positioning.
Why Choose Atlas® Automotive Equipment?
Atlas® has built a reputation for delivering professional-grade lifts at competitive prices without compromising on quality, safety, or performance. The Atlas® 412 combines proven engineering, heavy-duty construction, and thoughtful features to give you a lift that will serve your shop reliably for years to come.
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 12,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways
- Air Operated Single Point Lock Release (External Air Supply Required)

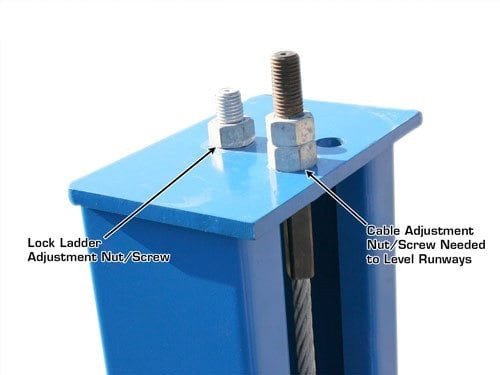

- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
Includes
- Steel Approach Ramps
- Mounting Hardware
Product Specifications
Specifications
412
Capacity
12,000 lbs
Lifting Height
77 3/4" (6' 5 3/4")

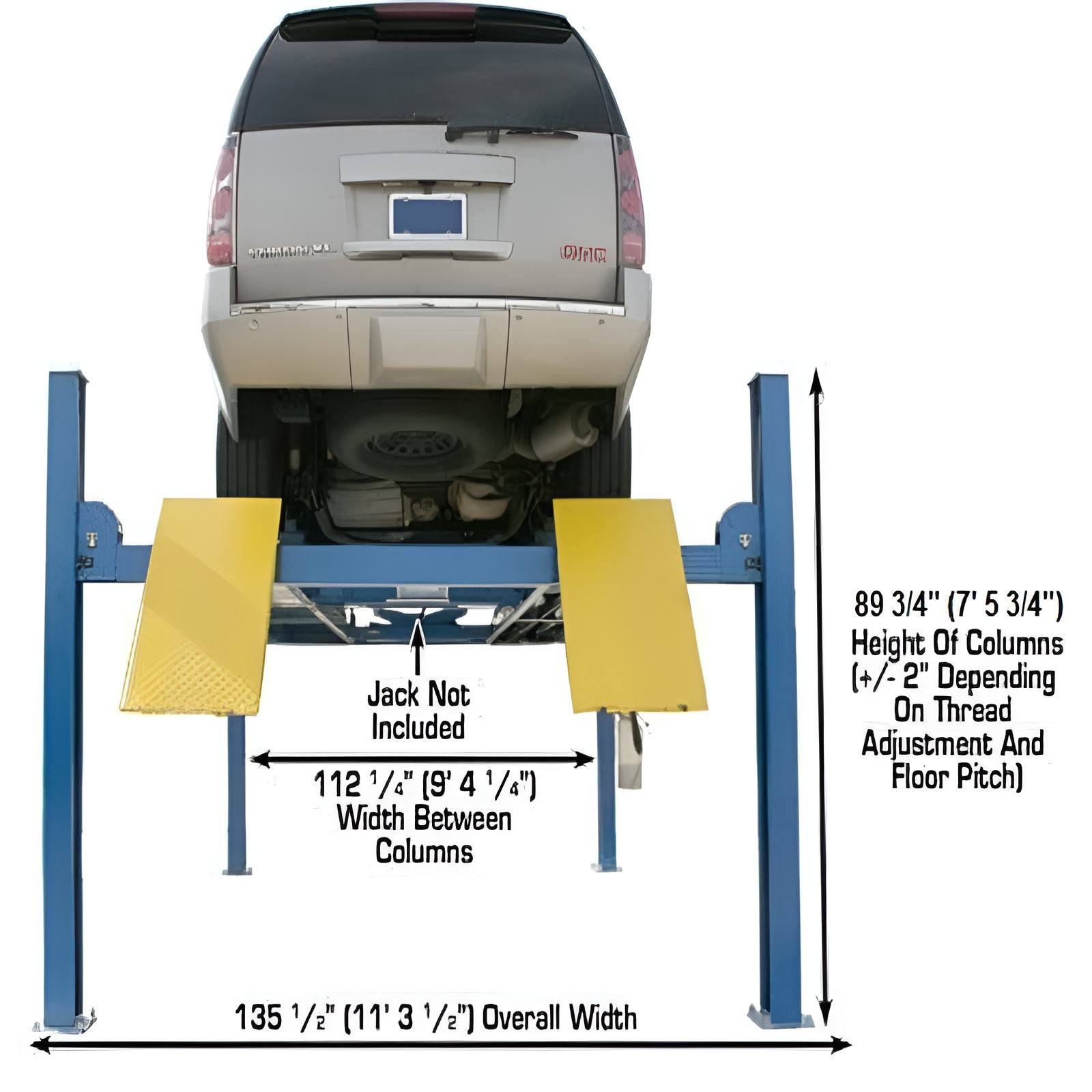

Height of Columns
89 3/4" (7' 5 3/4")
Overall Width w/ Motor
135 1/4" (11' 3 1/4")
Overall Width w/o Motor
126 1/4" (10' 6 1/4")
Overall Length w/Approach Ramps
236 1/2" (19' 8 1/2")
Length Between Columns
183 1/4" (15' 3 1/4")
Runway Length
194 1/2" (16' 2 1/2")
Runway Width
20"
Runway Thickness
7 1/2"
Width Between Runways
43 1/4" (w/ Rail 39 3/4")
Outside Runway to Outside Runway
83 1/4" (6' 11 1/4")
Clearance Under Runways
70 1/4" (5' 10 1/4")
Clearance Between Columns
112 5/8" (9' 4 5/8")
Maximum Wheel Base
185" (15' 5")
Drive Thru
98" (8' 2")
Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor
220V / 1 phase / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Weight
2,800 LB.
Requires a minimum of 6" of concrete with a 3000 psi. rating
Key Features
- Published product configuration: Atlas® 412 Commercial Grade 4 Post Lift 12,000 lbs Important: The Atlas® 412 is a commercial-grade four post lift engineered to deliver professional performance at an exceptional value. With a 12,000 lb capacity, this lift is designed and built to exacting standards that will provide many years of reliable service in
- Exact manufacturer model or part number: ATTD-412
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-412 |
| MPN / Model | ATTD-412 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model ATTD-412, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
