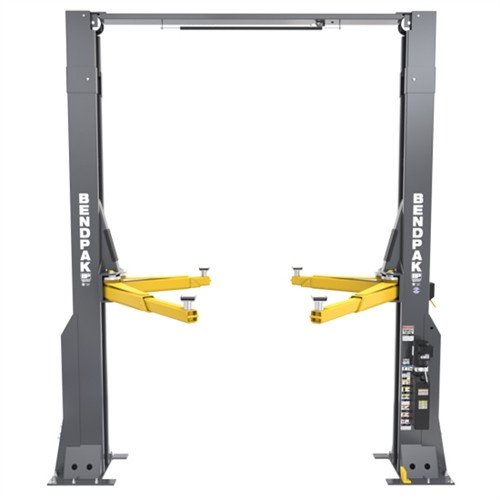

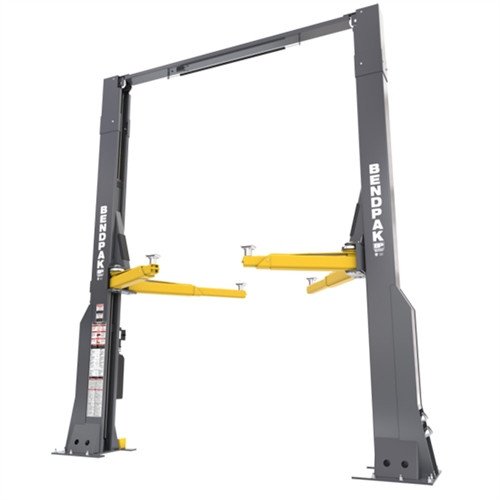

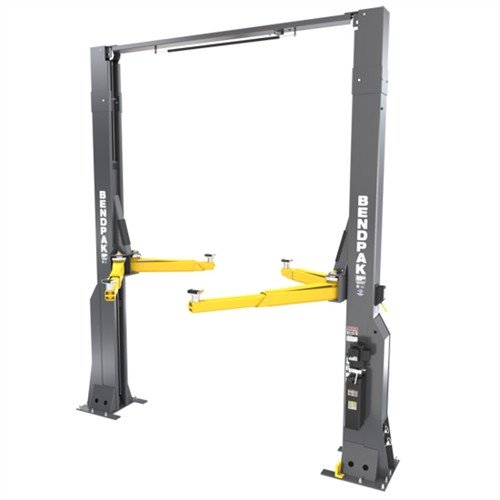

BendPak 16AP-192 High-Rise Clearfloor 2 Post Lift 16,000 lb. w/192" O.A Height
The Ultimate High-Rise Heavy-Duty Two-Post Lift
The BendPak 16AP-192 is engineered for professional shops and fleet service centers that demand maximum lifting capacity, exceptional overhead clearance, and unmatched durability. With an impressive 16,000 lb. lifting capacity and a 193" overall height, this high-rise clearfloor two-post lift delivers the clearance, reach, and reliability needed to service everything from full-size commercial trucks to long wheelbase vehicles with ease.
Built on BendPak's revolutionary multi-face metal column design, the 16AP-192 goes well beyond traditional two-post lifts in lifting height, arm reach, and structural stability. With dual direct-drive hydraulic cylinders, an electric-hydraulic power system, and ergonomic push-button controls, this lift offers simple operation, long service life, and minimal maintenance—delivering more uptime and higher productivity for demanding commercial environments.

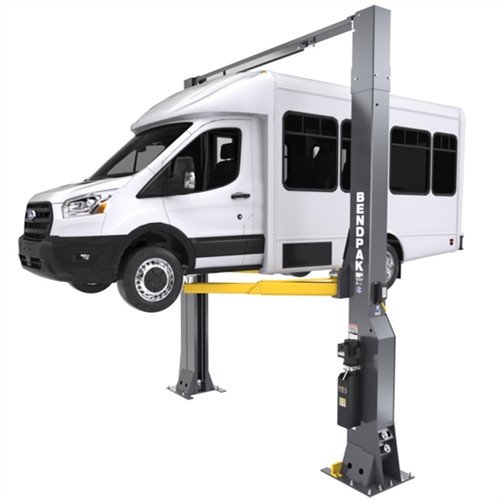

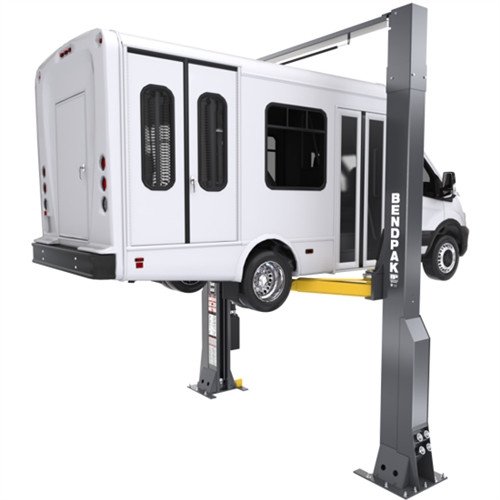

Whether you're accommodating large commercial trucks or lifting long awkward vehicles, the 16AP-192 handles heavy fleet tasks with confidence. Graciously spaced columns provide easier entry and exit, while ruggedly built telescoping arms with extended reach increase lifting point coverage for greater stability and versatility across a wide range of vehicle chassis.
Engineered for Heavy-Duty Reliability
Rugged Enough to Stand Up to Anything: Our revolutionary multi-face metal columns redefine strength and durability, especially under biaxial loading conditions. Unlike traditional single-formed columns, this innovative design incorporates multiple faces strategically engineered to distribute loads more efficiently. This unique configuration enhances structural rigidity and integrity, enabling the columns to withstand higher levels of stress and strain from varying directions simultaneously.
By evenly dispersing forces during biaxial loading conditions, the multi-face columns provide unparalleled stability and resilience, ensuring optimal performance even in the most demanding environments. This makes the 16AP-192 the ideal choice for heavy-duty lifting applications where dependability is paramount.
Each ultra-tall lifting carriage features eight UHMW load bearings that evenly disperse both radial and axial load forces throughout all lifting and lowering operations. Combined with failsafe mechanical equalization and redundant safety-lock mechanisms on each column spaced every 4 inches, this lift provides reliable, secure holding power at any height. Full-perimeter 360-degree arm restraints keep the arms from moving when loaded, adding an extra layer of operator confidence.
Built for Fleet Operations and Commercial Service Bays
Facility administrators rely heavily on asset management with a primary focus on equipment maintenance, activity tracking, and service history. Fleet service equipment assumes greater importance than almost any other facility asset. Significant disruptions or long lead times for repairs can cripple an operation. Equipment dependability is paramount.
Every Super-Duty AP Series lift is perfectly engineered with a heavy focus on reliability. With fewer moving parts, these lifts are less susceptible to wear and tear, easier to maintain, and less expensive to operate—all adding up to a cost-savings advantage you'll appreciate regardless of your environment. More uptime means more free time and higher profitability.
Combine that engineering excellence with BendPak's unparalleled dealer and after-sale support, and you have the perfect service lift to help bolster your equipment criticality matrix. Our award-winning Certified Serviceâ„¢ program is how we keep customers smiling long after the sale. When the unexpected happens, our Certified Service advantage encompasses a broad spectrum of services, competencies, processes, and tools to assure that your lift performs precisely for the job it was designed and constructed. At BendPak, we understand that it is the support and services we provide after the sale that helps keep your business running at peak efficiency.
Key Features & Performance Highlights
- 16,000 lb. lifting capacity handles full-size trucks and heavy commercial vehicles with ease
- 193" overall height provides maximum overhead clearance for high-roof vehicles and equipment access
- 82.75" maximum rise with 76" under clearance at top lock – ample working height for technicians
- Dual direct-drive hydraulic cylinders for smooth, reliable lifting with approximately 45 seconds to full rise
- Electric-hydraulic power system with ergonomic push-button controls and lift dampener lowering control for softer descents
- Multi-adjustable telescoping arms with extended reach ( 36" to 65" ) accommodate a wide variety of vehicle chassis and lifting points
- Extended height top-beam provides greater clearance and improved structural support
- Convenient storage included for lifting adapters
- Added overhead safety shutoff bar for enhanced operator protection
- Safety locks in each column spaced every 4" with redundant failsafe mechanisms reliably secure and hold the lifting carriages and arm assemblies
- Full-perimeter 360-degree arm restraints keep the arms from moving when loaded
- Durable powder-coat finish for long-lasting protection
- 220 VAC, 60 Hz, 1 Phase motor for easy installation and efficient operation
- Low sound level (<70 dB) for a quieter, more comfortable work environment
Includes 12-Piece Adapter Set:

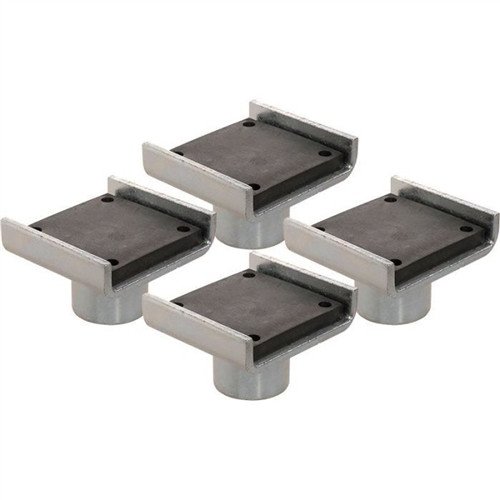

- (4) Drop-in frame cradle pads

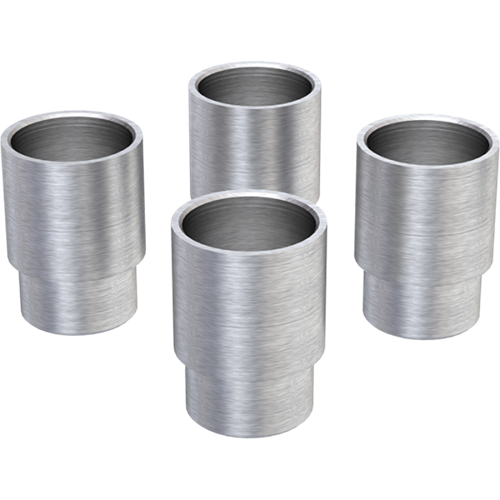

- (4) 2.5" Medium stacking adapters

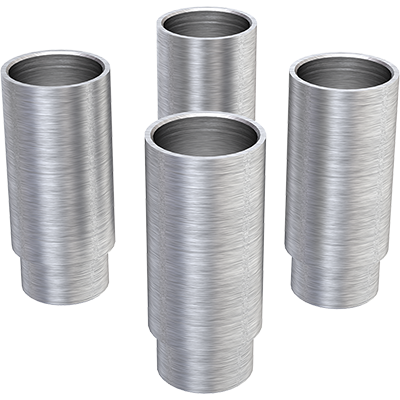

- (4) 5" Tall stacking adapters
Specifications at a Glance
The BendPak 16AP-192 features an impressive 168" overall width, 149" outside posts, and 126" inside posts, delivering a 107.75" drive-thru width for easy vehicle positioning. The minimum pad height is just 7.75", allowing low-profile vehicle access, while the maximum lifting height with adapters reaches 89.75" for maximum versatility.
With a maximum load per lift arm of 4,000 lbs. and UHMW load bearings throughout the lifting carriages, this lift ensures even load distribution and exceptional stability at all heights. The 28" base plate width and robust foundation design provide a stable footprint for heavy-duty commercial use.
Why Choose the BendPak 16AP-192?
When you need maximum lifting capacity, exceptional overhead clearance, and the structural strength to handle heavy commercial vehicles day in and day out, the BendPak 16AP-192 is the solution. Its high-rise 193" overall height, extended-reach telescoping arms, and multi-face column design deliver unmatched performance, stability, and longevity in demanding fleet and commercial service environments.
Backed by ALI certification, BendPak's Certified Serviceâ„¢ program, and a reputation for engineering excellence, the 16AP-192 is built to keep your operation running at peak efficiency for years to come.
Product Features
- 16,000-lb. lifting capacity
- Convenient Storage is included for lifting adapters
- Dual direct-drive hydraulic cylinders
- Electric-hydraulic power system with ergonomic push-button controls
- Simple operation, long service life and minimum maintenance
- Lift dampener lowering control for softer descents.
- added overhead safety shutoff bar
- Failsafe mechanical equalization system
- Safety locks in each column spaced every 4"
- Extended height top-beam provides greater clearance
- Multi-face metal columns redefine strength and durability, especially under biaxial loading conditions
- ach ultra-tall lifting carriage features eight UHMW load bearings to evenly disperse both radial and axial load forces throughout all lifting and lowering operations
- Multi-adjustable telescoping arms accommodate a wide variety of vehicle chassis
- Redundant, failsafe safety-lock mechanisms on each column reliably secure and always hold the lifting carriages and arm assemblies during operation
• Full-perimeter 360-degree arm restraints stand alert at all times and keep the arms from moving when loaded.
Durable powder-coat finish.
Includes 12 Piece Adapter Set
- (4) Drop-In frame cradle pads
- (4) 2.5" Medium stacking adapters
- (4) 5" Tall stacking adapters
Product Specifications
Model
16AP
16AP-192
Capacity
Lifting Capacity:
16,000 lbs. (7,257 kg)
Dimensions
A Under Clearance 1 (Top Lock)
76" / 1,930 mm
B1 Max. Lifting Height 2 (Top Lock)
82.25" / 2,089 mm
B2 Max. Rise 3
82.75" / 2,102 mm
C Max. Lifting Height w/ Adapters 4
89.75" / 2,28 mm
D Min. Height w/ Pad
7.75" / 195 mm
E Overall Height
169" / 4,294 mm
193" / 4,904 mm
F Overall Width
168" / 4,267 mm
G Outside Posts
149" / 3,785 mm
H Inside Posts
126" / 3,199 mm
I Drive-Thru Width
107.75" / 2,740 mm
J Floor to Top Switch
163" / 4,128 mm
186.5" / 4,738 mm
K Lift Arm Reach 5
36" / 931 mm (Min) – 65" / 1,651 mm (Max)
L Base Plate Width
28" / 710 mm
M Post to Base Plate
9.5" / 241 mm
Max. Load Per Lift Arm
4,000 lbs. / 2,268 kg
Motor 3
220 VAC, 60 Hz, 1 Phase
Time to Full Rise
≈ 45 seconds
Sound
<70 dB
- Under Clearance is to the bottom of the lift arms while engaged on top locks.
- Max Lifting Height is with the locks engaged measured to the top of the pad.
• Max Rise is distance
raised to maximum vertical travel, above locks.
- Max Lifting height is measured with adapters stacked and on top lock positions.
- Lift Arms are measured from the Lift Arms axis of rotation to the Frame Cradle Pad mounting pin center.
Specifications subject to change without notice.
Key Features
- Published product configuration: BendPak 16AP-192 High-Rise Clearfloor 2 Post Lift 16,000 lb. w/192" O.A Height The Ultimate High-Rise Heavy-Duty Two-Post Lift The BendPak 16AP-192 is engineered for professional shops and fleet service centers that demand maximum lifting capacity, exceptional overhead clearance, and unmatched durability. With an
- Exact manufacturer model or part number: 5175609
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175609 |
| MPN / Model | 5175609 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model 5175609, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
