Product Overview

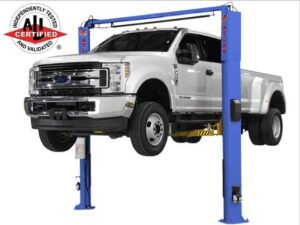

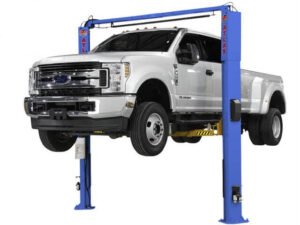

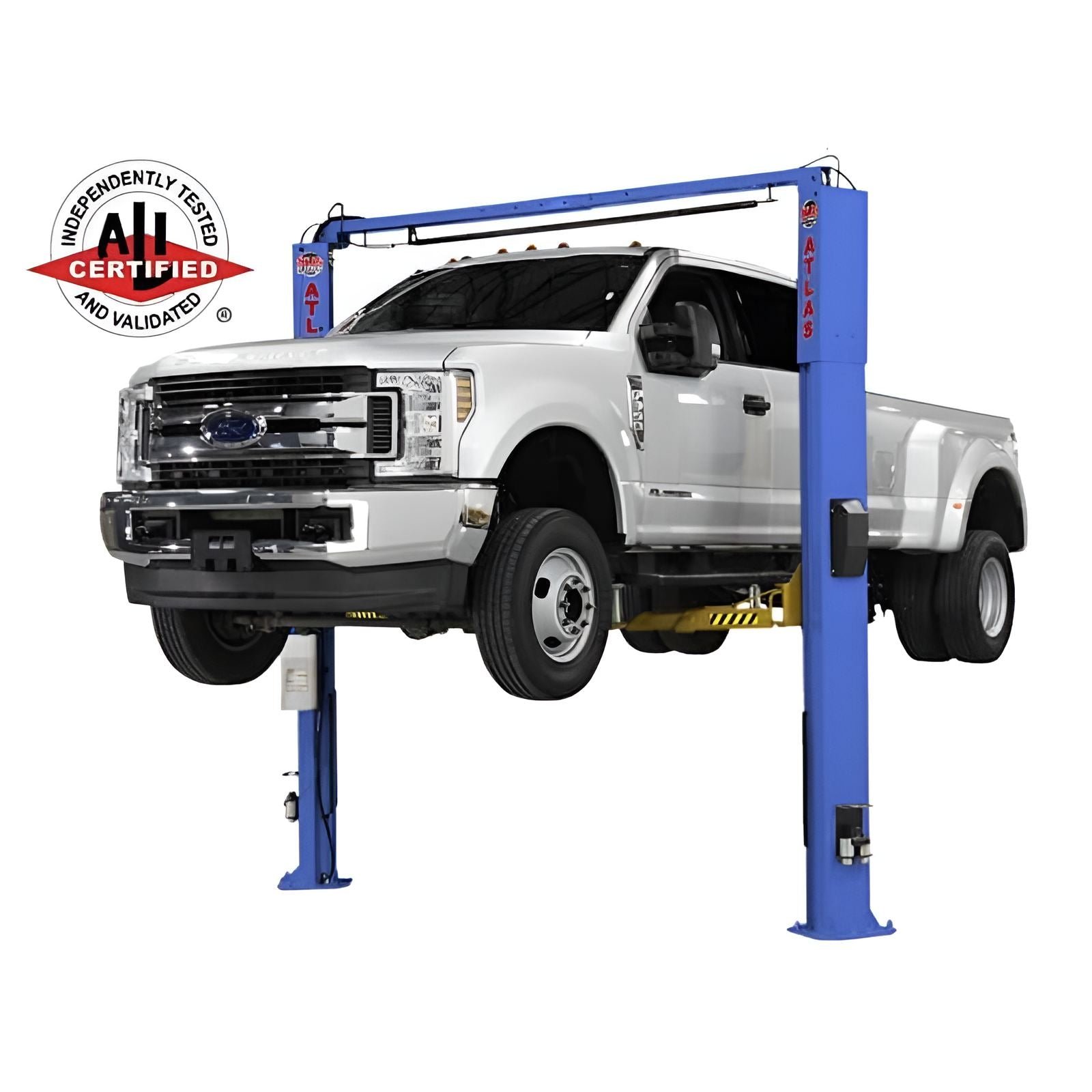

Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs
Experience commercial-grade lifting performance with the Atlas® Platinum PVL-10, a 10,000 lb capacity two-post lift that combines ALI Certified safety with the legendary reliability of the patented Double S column design. Built for professional shops and serious enthusiasts, this adjustable-height lift delivers unmatched versatility, structural strength, and lifting precision at an exceptional value.
Engineered to meet the demands of modern automotive service, the PVL-10 features symmetric or asymmetric column configurations, providing flexible positioning options to accommodate a wide variety of vehicles. The innovative three-stage telescoping front arms and two-stage rear arms offer unparalleled reach and adjustment range, while the adjustable overall height allows installation in facilities with ceiling constraints—choose between 11' 7 7/8" standard height or 11' 3 7/8" low-height configuration.
Legendary Double S Column Design
The Atlas Platinum PVL-10 was engineered and built to offer a commercial-grade above-ground lift to customers who have "fallen in love" with the reliability offered by the Double S column design and symmetric columns. Tens of thousands of above-ground lifts incorporating the Double S column design have been sold worldwide over the past two decades. This revolutionary design was so effective that it was protected by a patent—that patent has now expired, allowing Atlas to bring you this proven technology at an incredible price point.
The Double S bends incorporated into the column structure dramatically increase column strength and rigidity, providing superior stability under load. Constructed from 6mm thick steel columns measuring 7" x 10 1/4", this lift is built to last. The columns feature protective rubber guards and padded carriages to protect vehicle contact points, ensuring both safety and care for the vehicles you service.
Premium Features & Professional-Grade Components
The PVL-10 is loaded with features that elevate it above entry-level lifts. The three-stage telescoping front arms provide exceptional reach and flexibility, while the two-stage rear arms offer robust support and adjustment options for asymmetric configurations. The professional-grade arm lock restraint system with single-point lock release ensures safe, convenient operation with every lift cycle.
Included with your lift are double screw-up rubber/metal adapters with truck height extensions, providing versatility for a wide range of vehicle types—from compact cars to full-size trucks. The 2" arm hole/adapter peg size and included adapter heights (4 each of 3" and 6" adapters) give you maximum flexibility. The lift achieves a maximum lift height of 81 1/2" with adapters and 72 1/2" without adapters, with a minimum arm height of just 4" for low-profile vehicles.
This product features a premium ALLY Hydraulic AL2850 Power Unit, certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry-leading two-year limited warranty. View Power Unit Specs.
The lift is finished with a higher quality powder coating that resists chipping and wear, maintaining a professional appearance for years. Note: Door guard size may vary.
Key Advantages at a Glance
- 10,000 lb capacity with ALI Certification for verified safety and performance
- Adjustable height installation 139 7/8" standard or 135 7/8" low-height (cylinders extend to 12' 4")

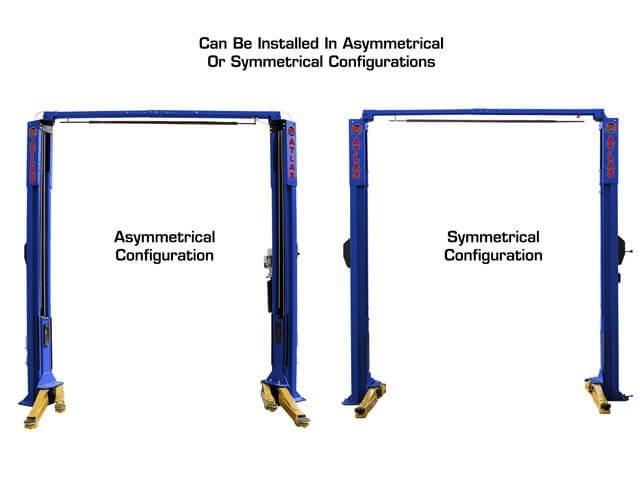

- Symmetric or asymmetric column configurations for maximum vehicle positioning flexibility

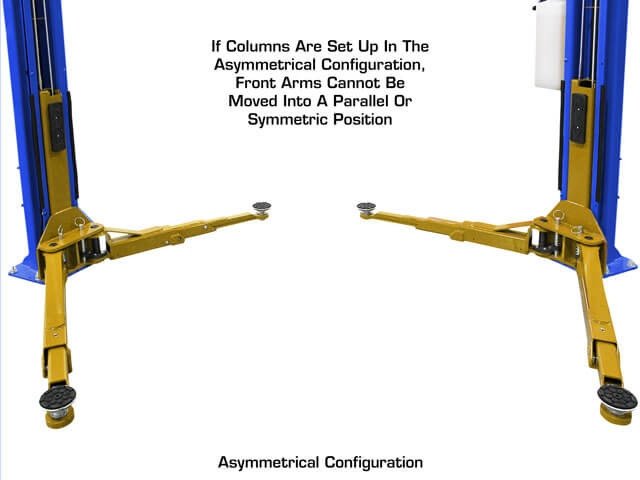

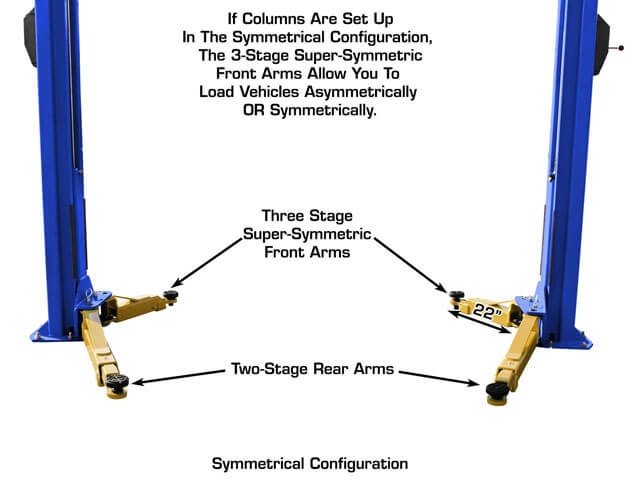

- Three-stage front arms and two-stage rear arms provide exceptional reach and adjustment range
- Professional-grade ALLY Hydraulic AL2850 Power Unit with two-year warranty and superior heat management
- Double S column design delivers proven strength and reliability trusted worldwide
Complete Package Includes
Your Atlas® Platinum PVL-10 arrives ready for installation with everything you need:
- Complete mounting hardware for secure installation
- Truck adapter set for lifting larger vehicles
- Double screw-up adapter kit with multiple height options
- Padded carriages for vehicle protection
- Rubber column guards
Watch this detailed overview of the Atlas Platinum PVL-10 and see its features and operation:
Installation Requirements
Foundation & Electrical Requirements:
- Requires a minimum of 4" of concrete with 3000 psi rating
- 2 HP 220V single-phase motor with 30 amp breaker required
- Oil requirement: 3-5 gallons AW32/AW46 (not included)
- Special low-height configuration requires purchase of extra cables (sold separately)
The lift ships at 1,850 lbs and features a robust construction designed for decades of reliable service.
Product Features
- 10,000 LB. Capacity
- ALI Certified
- Symmetric or Asymmetric columns
- 3 stage front arms and 2 stage rear arms offer more options
- Column design incorporates special Double S bends to increase column strength.
- Adjustable Height – 11' 7 7/8" or 11' 3 7/8"
- Padded Carriages
- Professional grade arm lock restraint system
- Higher quality powder coating
- Single point lock release
- Premium ALLY Hydraulic AL2850 Power Unit View Power Unit Specs
- Shipping Weight: 2,100 lbs.
Note: Door Guard Size May Vary
Includes
- Mounting Hardware
- Truck Adapter Set
- Double screw-up adapter kit
Product Specifications
Specifications
PVL10-EXT
Capacity
10,000 lbs

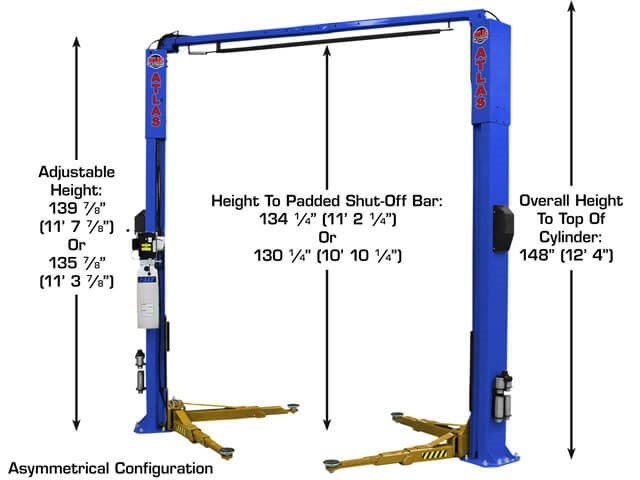

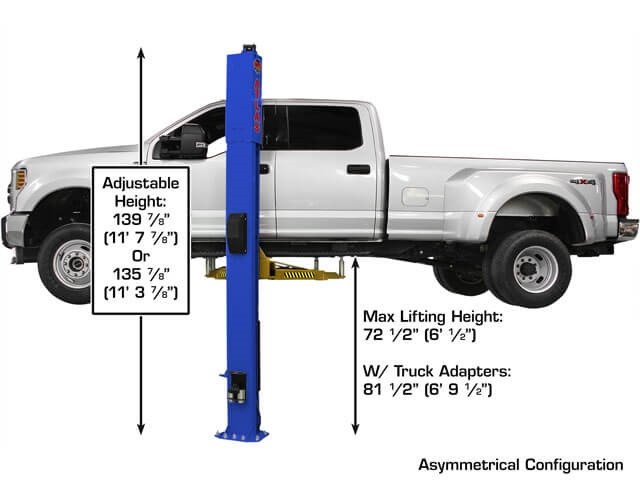

Overall Height
139 7/8" (11' 7 7/8") ‐ (Cylinder Extends to 12' 4")
Special Low Height*
135 7/8" (11' 3 7/8") ‐ (CYLINDERS EXTEND TO 12' 4”)

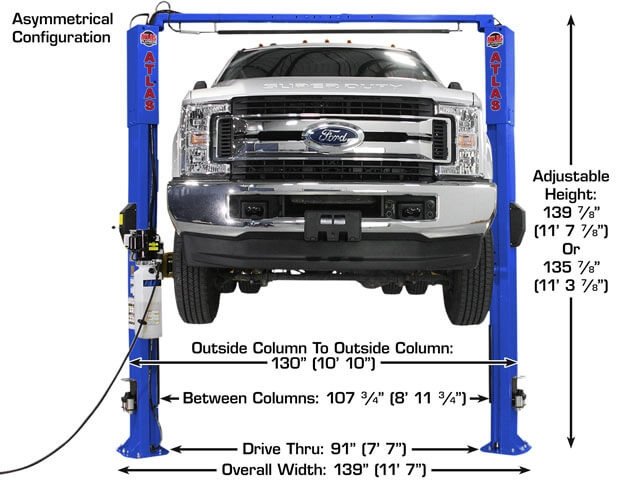

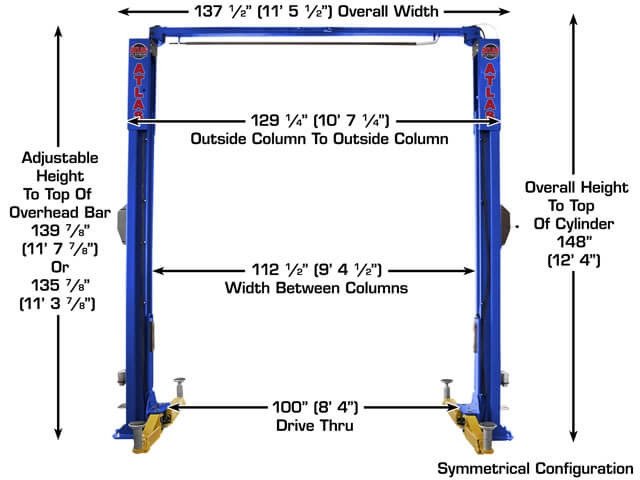

Overall Width
139" (11' 7") Asymmetric / 137 1/2' (11' 5 1/2") Symmetric
Outside Column to Outside Column
130" (10' 10") Asymmetric/129 1/4” (10' 9 1/4") Symmetric

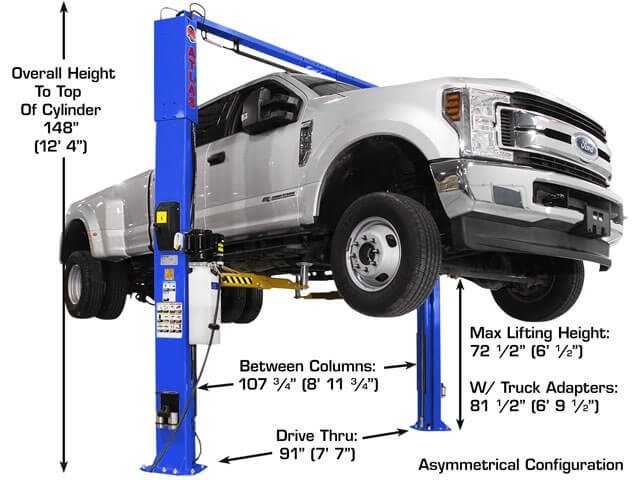

Maximum Lift Height w/Adapters
81 1/2"
Maximum Lift Height w/o Adapters
72 1/2"
Minimum Arm Height
4"
Inside Column
107 3/4” (8' 11 3/4”) Asymmetric / 112 1/2" (9' 4 1/2") Symmetric
Drive Thru
91" Asymmetric / 99 1/2" Symmetric
Column Size
7" x 10 1/4"
Column Thickness of Steel
6mm
Base of Lift
15" x 18"
Arm Hole/Adapter Peg Size
2"
Adapter Heights
4 Each – 3" & 6"
Motor/Electrical Requirement
2 HP 220V (1) phase / 30 amp breaker is required
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight
1,850 lbs.
Requires a minimum of 4" of concrete with 3000 psi
- REQUIRES PURCHASE OF EXTRA CABLES (SOLD SEPARATELY)
Key Features
- Published product configuration: Atlas® Platinum PVL-10 ALI Certified Adj Height 2 Post Lift 10,000 lbs Experience commercial-grade lifting performance with the Atlas® Platinum PVL-10, a 10,000 lb capacity two-post lift that combines ALI Certified safety with the legendary reliability of the patented Double S column design. Built for professional
- Exact manufacturer model or part number: AP-PVL10
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Platinum |
|---|---|
| SKU | AP-PVL10 |
| MPN / Model | AP-PVL10 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
