Product Overview

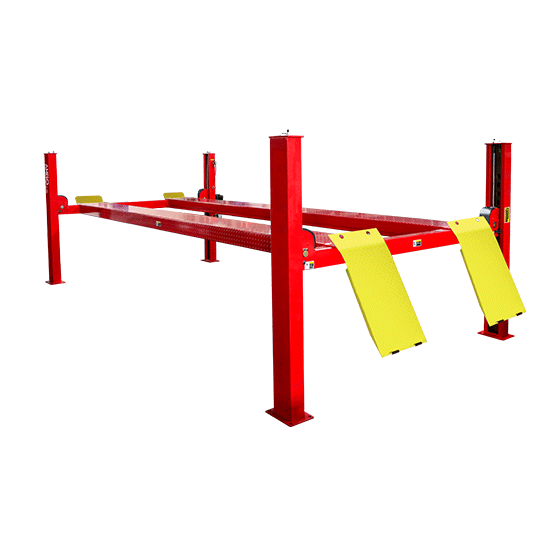

AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs
Professional 4-Post Lifting for Your Shop
The AMGO® Hydraulics PRO-12 delivers a robust 12,000 lbs lifting capacity designed for professional garage and shop owners who demand reliability and efficiency. This 4-post lift is engineered for quick setup and undercarriage repairs, making it an essential tool for busy automotive service environments. Whether you're performing routine maintenance, brake service, suspension work, or detailed inspections, the PRO-12 provides a stable, secure platform that streamlines your workflow and maximizes productivity.
Built with 1/2" aircraft quality cable and featuring mechanical self-lock and cable-breaking protection, the PRO-12 prioritizes safety without sacrificing performance. The air-released safety lock ensures convenient operation and dependable reliability during every lift cycle. With a 62-second lifting time and powered by a 2.0HP, 220V/60Hz single phase motor, this lift combines speed with precision to keep your service bays running smoothly.
The skid-proof diamond platform provides excellent traction and stability, while the hydraulic cylinders are manufactured to exacting quality standards with integrated flow restrictors for stable, smooth operational speed. With an overall width of 126 5/16" and drive-thru clearance of 98 3/8", the PRO-12 accommodates a wide range of vehicles while maintaining a compact footprint that fits most shop layouts.
Key Features & Benefits
- 12,000 lbs lifting capacity handles a wide variety of vehicles including trucks and SUVs

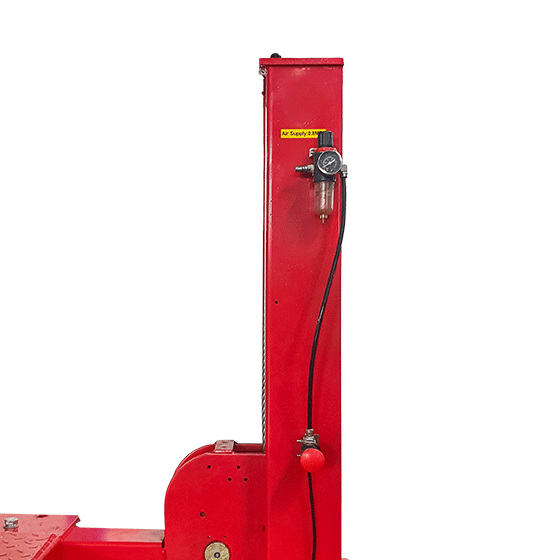

- Air-released safety lock for convenient, reliable operation with every lift
- Max 74 7/16" lifting height provides ample undercarriage clearance for thorough service work
- Quick 63-second lifting time keeps your workflow moving efficiently

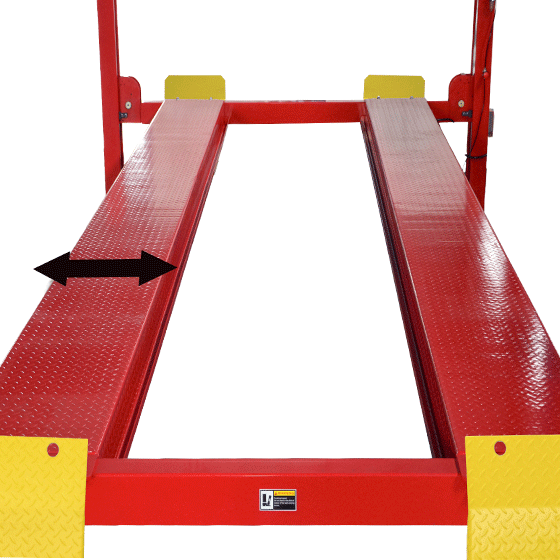

- Adjustable runway spacing from Min. 38" to Max. 50 7/8" accommodates various wheelbases
Enhanced Safety & Performance
Safety is paramount in any professional shop environment, and the PRO-12 delivers with multiple redundant safety systems. The mechanical self-lock and cable-breaking protection provide peace of mind during extended service procedures. The lift utilizes 1/2" aircraft quality cable the same grade used in critical aerospace applications—ensuring exceptional strength and durability under constant use.
The hydraulic cylinders undergo strict quality control and are engineered with flow restrictors that deliver stable, smooth operational speed throughout the lift range. The skid-proof diamond platform surface ensures vehicles remain securely positioned, preventing dangerous shifting during service work. With a minimum height of just 6 11/16", the PRO-12 accommodates low-clearance vehicles without difficulty.
Versatile Configuration Options
The PRO-12 is available in both non-alignment and alignment-capable (PRO-12A) configurations, allowing you to choose the model that best fits your shop's service offerings. The standard PRO-12 features 20" runway width, while the PRO-12A alignment model includes 22" runways and accommodates four-wheel alignment with a minimum wheelbase of 81 3/4" and maximum two-wheel alignment up to 167 5/8".
Both models share the same generous overall length of 239 13/16" with ramp, providing excellent accessibility for vehicles of all sizes. The 112 1/4" width between columns offers plenty of working space around the vehicle, while the 86" overall height fits comfortably in most shop spaces with standard ceiling heights.
Expand Your Capabilities with Optional Accessories
Enhance your PRO-12 with a range of purpose-built accessories designed to expand functionality and improve shop efficiency:
- 41203 Extension Platform Set for PRO-12 & PRO-12A (2Pcs) – increases usable platform area
- RJ-6A Pneumatic 6,000lbs Rolling Jacks enables tire removal and axle service while vehicle is on the lift
- 40102 Airline Kit for 4 Post Lifts less than 18K – convenient compressed air access at lift level
- 40103 LED Light Kit for 4 Post Lifts – illuminates undercarriage for detailed inspection and service
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 12,000 lbs capacity

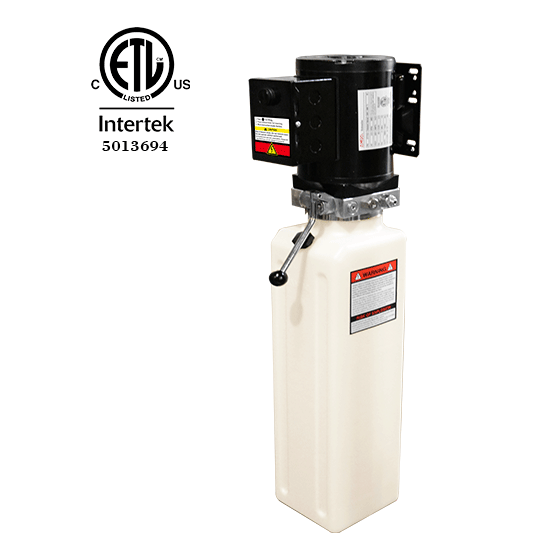

- Air-released safety lock for convenient operation and reliabilityAMGO ETL certified power unit comes as standard

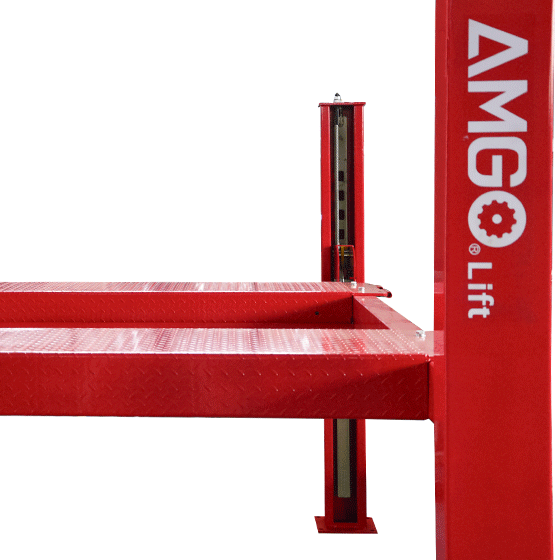

- Mechanical self-locking safety device with air-driven lock release
- Primary multiple safety locks and cable-slack protection system come standarde

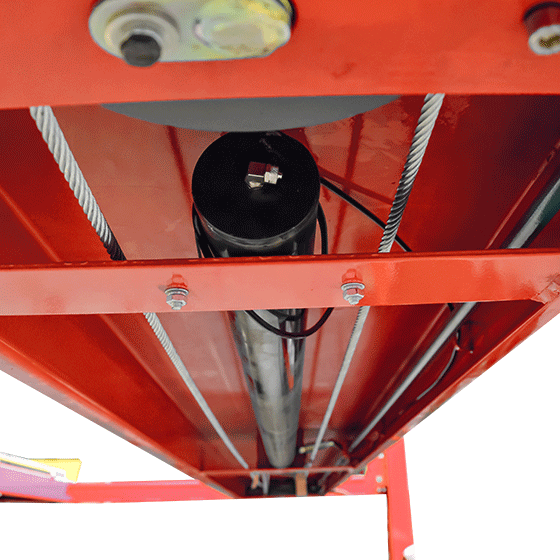

- Cable-driven, utilizing aircraft standard high quality cabless
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve
- Non-Skid diamond platform
- Stepless adjustable width between platformsd
Optional Accessories Available

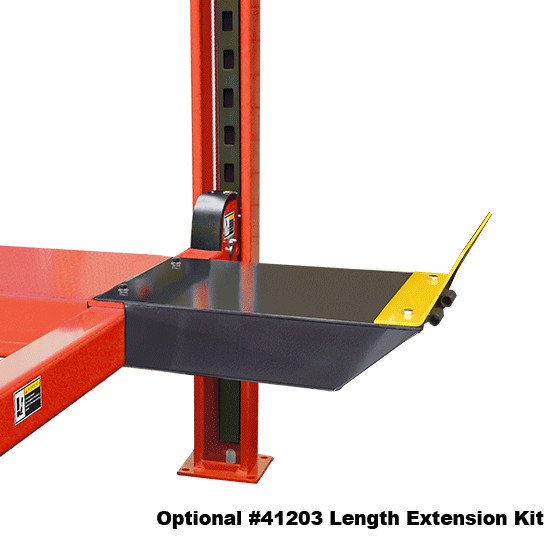

- 41203 Extension Platform Set for PRO-12 & PRO-12A (2Pcs). Adds 26" in length to the platform
- RJ-6A Pneumatic 6,000lbs Rolling Jacks
- 40102A Airline Kit for 4 Post Lifts less than 18K
Product Specifications
Model
PRO-12
Style
Non-Alignment
Lifting Capacity
12,000 lbs
A Overall Length w/Ramp
239 13/16"
A Overall Length w/o Ramp
N/A
B Outside Edge of Crossbeams
197 3/4"
C Overall Width
126 5/16"
D Width Between Columns
112 1/4"
E Max Lifting Height
74 7/16"
E Max. Lock Height (to Top of Runway)
71 1/4"
F Overall Height
86"
G Minimum Height
6 11/16"
H Max. Underneath Height
68 7/8"
H Max. Lock Underneath Height
65 3/4"
I Drive-Thru Clearance
98 3/8"
J Width Between Runways
43 5/16" / Min. 38" / Max. 50 7/8"
K Outside Edge of Runways
83 5/16" / Min. 78" / Max. 90 7/8"
Lifting Time
63 S
Motor
2.0HP, 220V/60Hz Single Phase
Gross Weight
2,361 lbs
Key Features
- Published product configuration: AMGO® Hydraulics PRO-12 4 Post Lift 12,000 lbs Professional 4-Post Lifting for Your Shop The AMGO® Hydraulics PRO-12 delivers a robust 12,000 lbs lifting capacity designed for professional garage and shop owners who demand reliability and efficiency. This 4-post lift is engineered for quick setup and undercarriage
- Exact manufacturer model or part number: PRO-12
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | PRO-12 |
| MPN / Model | PRO-12 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model PRO-12, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
