Atlas® FM9SL Flush-Mount In-Ground Scissor Lift 9,000 lbs

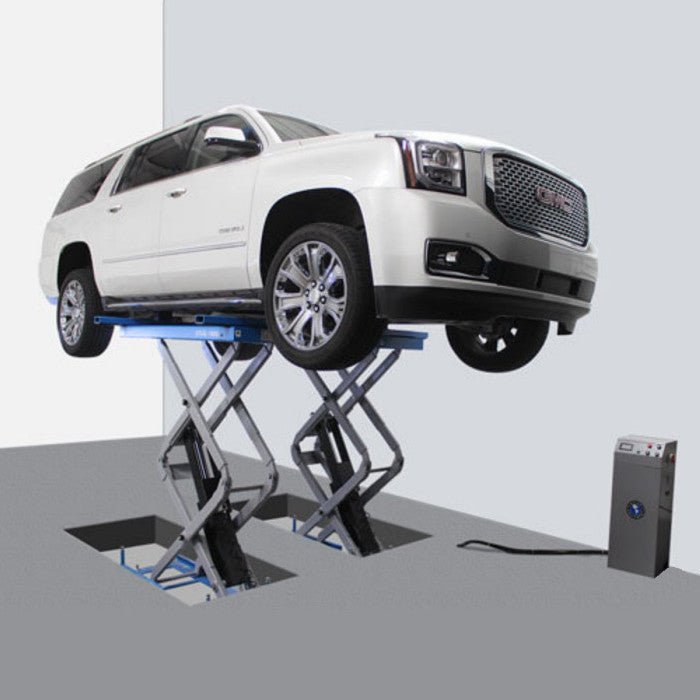

The Atlas® FM9SL 9,000 lb. flush-mount in-ground scissor lift is engineered for service facilities that demand maximum efficiency from every square foot of their shop floor. This innovative lift design eliminates above-ground obstructions entirely, delivering the clean, professional "flush floor look" that today's modern service departments require. With extendable platforms on both ends, 15 locking positions, and a 71½" maximum lift height, this lift is built to handle a wide range of vehicles—from compact cars to long-wheelbase pickup trucks—while preserving valuable floor space and allowing technicians to work in tight service bays with ease.
Unlike traditional "old school" in-ground lifts that require extensive excavation and suffer from difficult maintenance access, the Atlas® FM9SL features minimal installation depth and a separate self-contained control panel with an easily accessible electric/hydraulic power unit. Routine maintenance is straightforward, keeping your lift operational and minimizing downtime. The flush-mounted platforms can be driven over from any direction, enabling precise vehicle positioning even in the most confined spaces—a game-changer for busy shops looking to maximize their lift count per service area.
The Flush-Mount Advantage
The Atlas® FM9SL delivers the perfect alternative to traditional above-ground lifts. With no above-ground obstruction, your service floor remains clean, uncluttered, and safe. Technicians, customers, and vehicles can move freely across the shop floor without navigating around bulky lift bases or columns. The platforms sit flush with the floor when lowered, and their 13" minimum lowered height and open middle design provide easy access to the undercarriage from any angle.

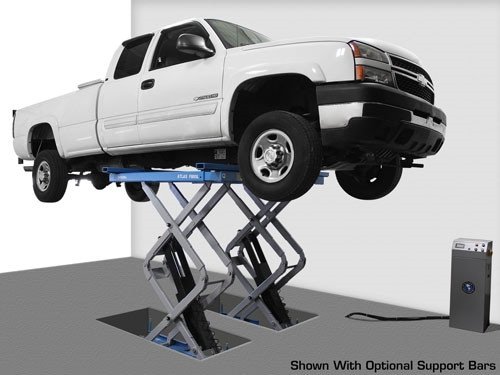

This flush-mount design is ideal for high-volume shops that need to fit more lifts into their existing footprint without sacrificing workflow efficiency or safety. Because the platforms can be driven over from any direction, positioning vehicles is fast and intuitive, even in tight quarters. Whether you're servicing sedans, SUVs, or extended-cab pickups, the FM9SL's extendable platforms on both front and rear ends adapt to long wheelbases with ease.
Key Selling Points
- 9,000 lb. lifting capacity handles a wide variety of cars, trucks, and SUVs with confidence
- 71½" maximum lift height (5' 11½" without blocks; 73¾" with blocks) – provides ample working clearance for undercarriage service
- Extendable platforms on both ends accommodates long-wheelbase pickups and extended-cab trucks
- Flush-mount, no above-ground obstruction maintains a clean, professional shop floor that can be driven over from any direction
- 15 locking positions with air-actuated locks precise height adjustment and reliable, fast engagement for safety and convenience
- Separate self-contained control panel easy access to the electric/hydraulic power unit for straightforward maintenance
- Open middle design provides unobstructed access to the vehicle's undercarriage and chassis
- CE Certified meets rigorous European safety and quality standards

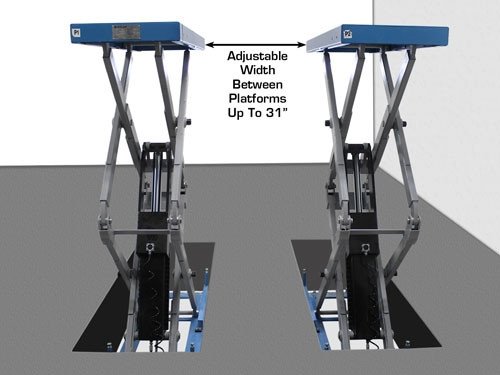

- Adjustable platform width up to 31" between platforms for flexible vehicle positioning
What's Included
The Atlas® FM9SL comes complete with adapter pads for secure vehicle contact and compatibility with a variety of lift points. These precision-engineered pads help protect vehicle frames and ensure stable, even lifting every time.
Adapter pads included with the FM9SL for secure vehicle lifting
Power and Performance Specifications
The FM9SL is powered by a robust 2 HP electric motor that operates on 220V ±5% (209-231 volts) single-phase power. A 30-amp breaker is required for safe operation. The lift's hydraulic system uses 5 gallons of AW32/AW46 hydraulic oil, ensuring smooth, reliable lifting performance and long service life.
The platforms are 21½" wide with a 4" platform thickness, offering a solid, stable surface for vehicle contact. The overall lift width is 74" (6' 2"), with an overall length of 64½" with extensions retracted and 80½" with extensions fully extended. This compact footprint makes the FM9SL ideal for service bays where space is at a premium.
Important Technical Resources
Important Information – Read to Avoid Damaging Your Lift
Proper installation and operation are critical to the performance and longevity of your lift. Please review this important document before installation:
Read Important Information (PDF)
Why won't my scissor lift raise its rated capacity?
Scissor lifts with horizontal cylinders may exhibit different lifting characteristics than vertical-cylinder designs. For a detailed technical explanation, please see:
Horizontal vs. Vertical Cylinders (PDF)
Product Features
- 9,000 LB. capacity
- 71 1/2" (5' 11 1/2") max lifting height
- Extendable platforms on BOTH ends
- No above ground obstruction
- CE Certified
- Air actuated locks
- Open middle for easy access
- Separate Self-Contained Control Panel
Includes
- Adapter Pads
Product Specifications
Specifications
FM9SL
Capacity
9,000 lbs
Max Lift Height Above Floor w/Blocks
73 3/4" (6' 1 3/4")
Max Lift Height Above Floor w/o Blocks
71 ½" (5' 11 ½")
Overall Length w/ Extensions Out
80 ½" (6' 8 ½")
Overall Length w/ Extensions In
64 ½" (5' 4 ½")
Overall Width
74” (6’ 2”)
Platform Width
21 ½"
Platform Thickness
4"
Min Lowered Height
13"
Width Between Platforms
Adj. up to 31"
Locking Positions
15
Locks Actuated
Air
Motor/Electrical Requirement
2 HP 220V +/- 5% (209-231volts) 1 phase
A 30 amp breaker is required.
Oil Requirement
5 Gallons AW32/AW46
Shipping Weight
2,025 lbs
Important Information! Read To Avoid Damaging Your Lift
Key Features
- Published product configuration: Atlas® FM9SL Flush-Mount In-Ground Scissor Lift 9,000 lbs The Atlas® FM9SL 9,000 lb. flush-mount in-ground scissor lift is engineered for service facilities that demand maximum efficiency from every square foot of their shop floor. This innovative lift design eliminates above-ground obstructions entirely, delivering
- Exact manufacturer model or part number: ATTD-FM9SL
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-FM9SL |
| MPN / Model | ATTD-FM9SL |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model ATTD-FM9SL, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
