Product Overview

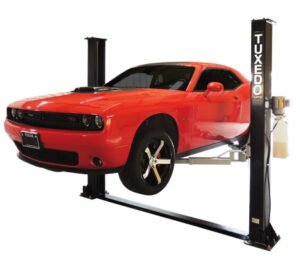

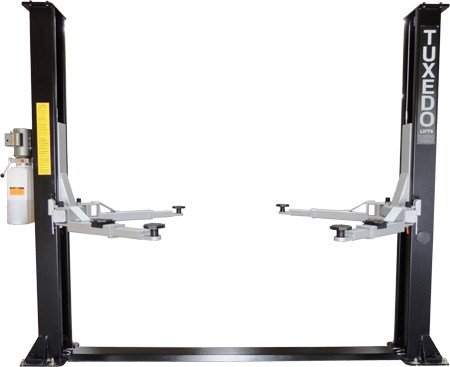

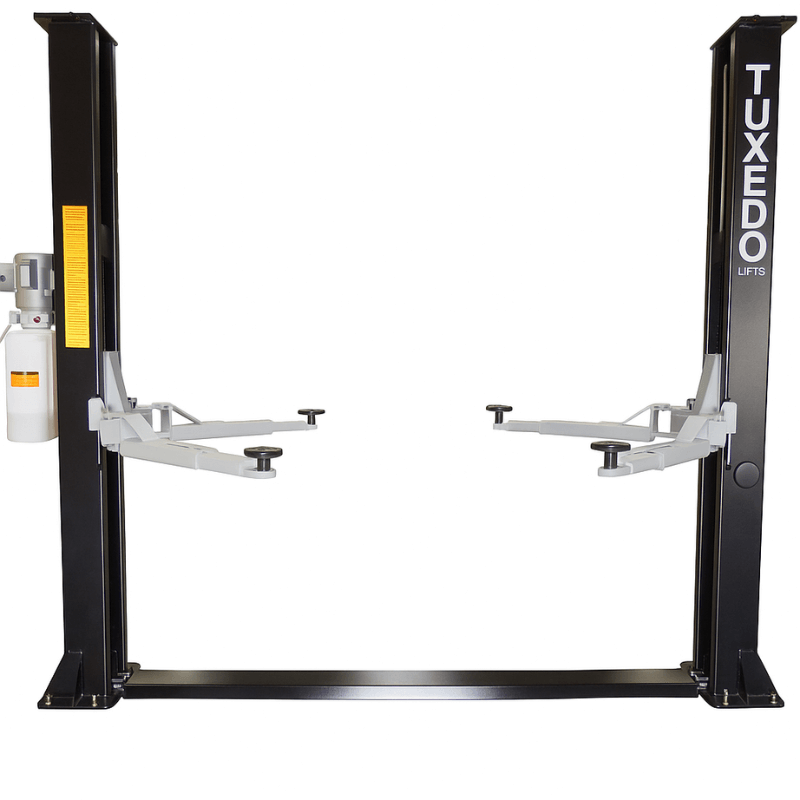

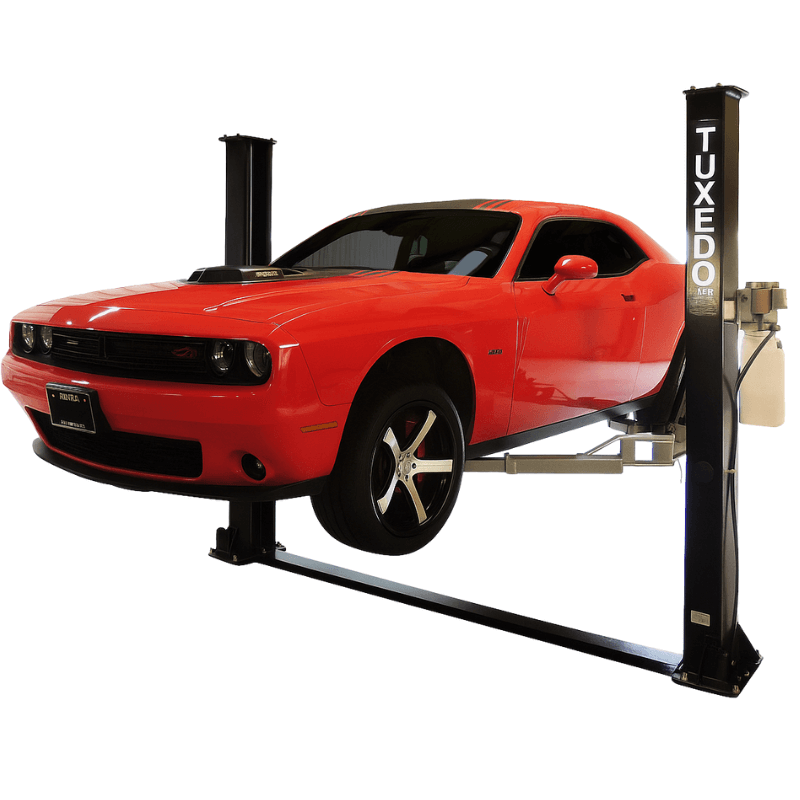

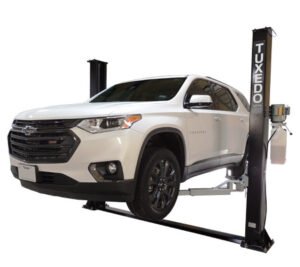

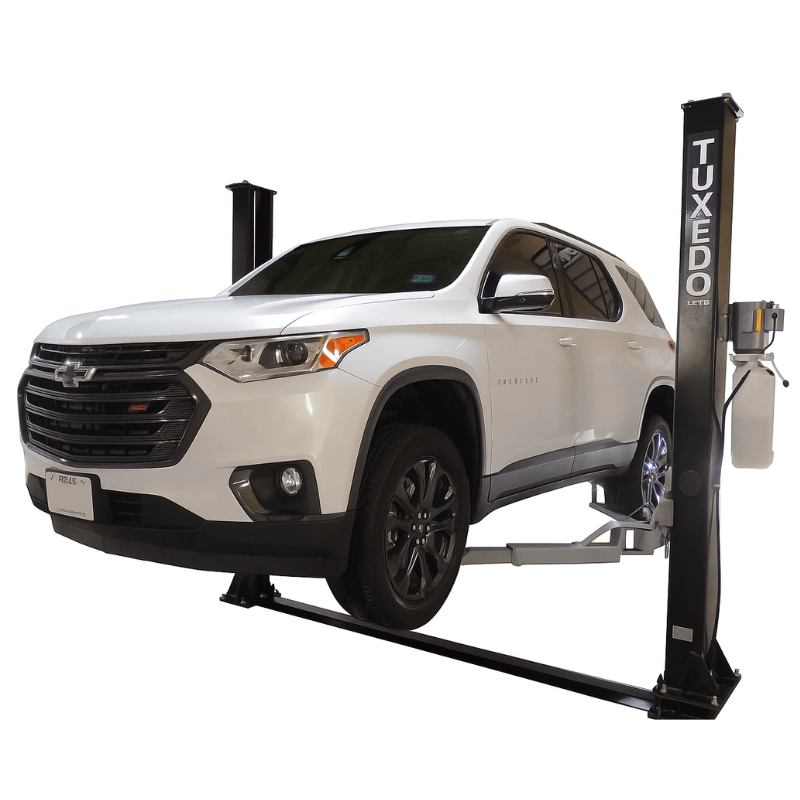

Tuxedo TP9KF-TUX 9,000 lb. Symmetric Floor Plate 2 Post Car Lift
Professional Performance at an Economical Price
The Tuxedo TP9KF-TUX is a 9,000 lb. capacity light duty two post lift engineered to deliver exceptional value without compromising on essential features. This symmetric floor plate lift combines a robust one-piece column design with reliable chain drive cylinders, making it the ideal service lift for passenger cars, light duty trucks, and most SUVs. Built for shop owners and enthusiasts who demand professional-grade equipment at an accessible price point, the TP9KF-TUX offers the perfect balance of capability and affordability.
With a maximum lift height of 72 inches and a minimum pad height of just 4 inches, this lift accommodates a wide range of vehicles from low-profile sports cars to taller trucks. The symmetric swing arms provide versatile vehicle positioning, while the 101.7-inch drive-thru clearance ensures easy vehicle access. Featuring automatic arm restraints, dual point lock release, and a durable powder-coat finish, the TP9KF-TUX delivers all the standard features you expect from a premium lift—all for an exceptional value.
Key Highlights
- 9,000 lb. lifting capacity handles passenger cars, light trucks, and most SUVs with ease
- Symmetric design with floor plate construction provides stable, reliable lifting for balanced vehicle service
- Low profile 4" drop-in lift pads accommodate even the lowest ground clearance vehicles
- Fast 50-second lifting speed powered by efficient 220V, 20 AMP, single phase electric system
- Chain drive cylinders and one-piece columns ensure long-lasting durability and smooth operation
Bonus Value Included:
Every TP9KF-TUX includes free drop-in stackable height adapters a set of 4 each: 1-5/16" & 5" adapters for added versatility when lifting taller vehicles or trucks. Also includes one pair of saddle pad adapters to expand your lifting options right out of the box.
Built for Real-World Service Demands
The TP9KF-TUX is designed with the professional technician and serious DIYer in mind. The low profile swing arm design allows for precise pad placement on a variety of lift points, while the innovative drop-in lift pads make vehicle positioning quick and intuitive. With an arm reach ranging from 31.2 inches minimum to 45.4 inches maximum, you have the flexibility to adapt to nearly any vehicle frame configuration.
Safety is paramount with dual point carriage lock releases that provide redundant locking security, and automatic arm restraints that engage to prevent unintended arm movement. Each arm is rated to hold a maximum load of 2,250 lbs., giving you confidence when working under elevated vehicles. The lift's durable powder-coat finish protects against scratches, chemicals, and corrosion, ensuring years of dependable service in demanding shop environments.
Installation is straightforward with a ceiling height requirement of just 113 inches and an overall height of 112 inches when installed. The lift's overall width including the power unit is 141 inches, with 110.4 inches between columns, making it suitable for most garage and shop spaces. At a shipping weight of 1,295 lbs., the TP9KF-TUX arrives ready to transform your workspace into a professional-grade service facility.
Included Accessories & Optional Upgrades
Included at No Extra Cost:
- Drop-In Stackable Height Adapters Set of 4 each: 1-5/16" and 5" for lifting taller vehicles and trucks
- Saddle Pad Adapters 1 pair included for expanded vehicle compatibility
Optional Accessory:
TP9-CA Frame Cradle Pads (4 Pack) Designed specifically for the TP9KF-TUX, these optional cradle pads provide additional contact support for unibody vehicles and specialty lifting applications.
Product Features
- 9,000 lb lifting capacity
- Symmetric Lift Arms
- Low Profile Swing Arm Design
- Low Profile 'Drop In' Lift Pads
- Saddle Pad Adapters included (1 pair)

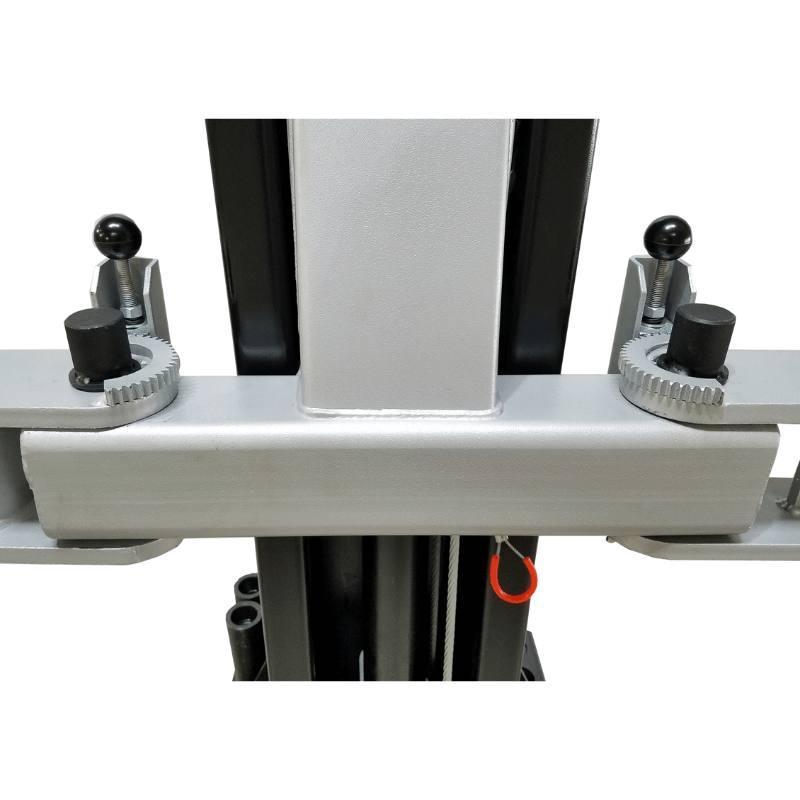

- Dual Point Lock Release
- Automatic Arm Restraints
- Chain Drive Cylinders
- Durable Power-Coat Finish/li>
Free Drop-In Stackable Height Adapters
Set of 4 each: 1-5/16" & 5"
Optional Accessory
TP9-CA Frame Cradle Pads (4 Pack) for TP9KAC-TUX & TP9KF-TUX
Product Specifications
Specifications
TP9KF-TUX
Capacity
9,000 lbs.
Overall Height
112"
Width Overall w/Power Unit
141"
Max Lift Height
72"
Width Between Columns
110.4"
Min Pad Height
4"
Drive thru Clearance
101.7"
Lifting speed
50 sec
Asymmetric / Symmetric
Symmetric
Clear Floor / Floor Plate
Floor Plate
Arm Reach – Min/Max
31.2" – 45.4"
Ceiling Height Required
113"
Max Load Per Arm
2,250 lbs.
Power
220V – 20 AMP – 1 PH
Ship Weight
1,295 lbs.
Key Features
- Published product configuration: Tuxedo TP9KF-TUX 9,000 lb. Symmetric Floor Plate 2 Post Car Lift Professional Performance at an Economical Price The Tuxedo TP9KF-TUX is a 9,000 lb. capacity light duty two post lift engineered to deliver exceptional value without compromising on essential features. This symmetric floor plate lift combines a robust
- Exact manufacturer model or part number: TP9KF-TUX-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Tuxedo |
|---|---|
| SKU | TP9KF-TUX-V001 |
| MPN / Model | TP9KF-TUX-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model TP9KF-TUX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
