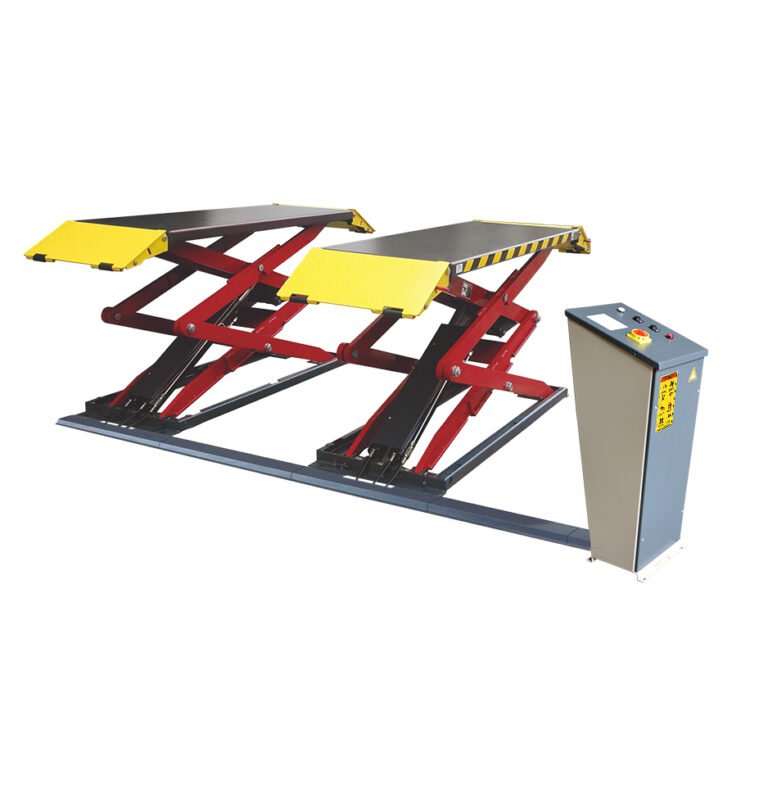

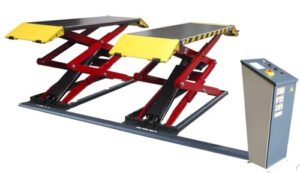

AMGO® Hydraulics XL-7 Low-Profile Full Rise Scissor Lift 7,000 lbs.
Maximum Lifting Power in Minimum Space
The AMGO XL-7 Full Rise Scissor Lift is the perfect solution for shops with a growing workload but limited bay space. Engineered to raise vehicles high enough to walk comfortably underneath, the XL-7 delivers a full 78 3/4-inch lifting height while maintaining an ultra-low profile of just 4 5/8 inches when lowered. This low-profile design maximizes your available bay space and allows you to service a wide range of vehicles with ease.
With a robust 7,000 lb lifting capacity, the AMGO XL-7 is made stronger, more versatile, and easier to use than comparable scissor lifts in its class. Whether you're performing routine maintenance, diagnostics, or complex repairs, this lift provides the accessibility and reliability you need to work efficiently and safely.
Engineered for Safety and Performance
The XL-7 incorporates advanced safety features that set it apart from other scissor lifts on the market. It features dual synchronous hydraulic cylinders that ensure perfectly level lifting on both platforms, eliminating the risk of uneven loads. Each cylinder is equipped with hose burst valves for added safety protection, preventing sudden drops in the event of a hydraulic failure.
Safety is further enhanced by a dual lock system combining both mechanical and hydraulic locks, making this one of the safest small scissor lifts in the world. A safety stop device activates at 11 7/8 inches, requiring both control buttons to be pressed simultaneously to lower the lift to the ground. A tone alarm provides audible confirmation for added peace of mind during operation.

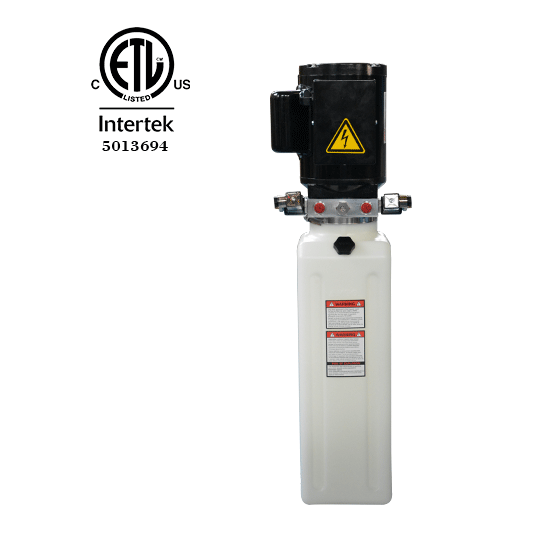

Powered by a 2.0HP motor and a 24V control system, the XL-7 delivers smooth, reliable operation with a fast 50-second lifting time. The low-voltage control system enhances safety and is designed for long-term durability in busy shop environments.
Key Highlights
- 7,000 lb lifting capacity handles a wide range of vehicles including trucks, SUVs, and cars

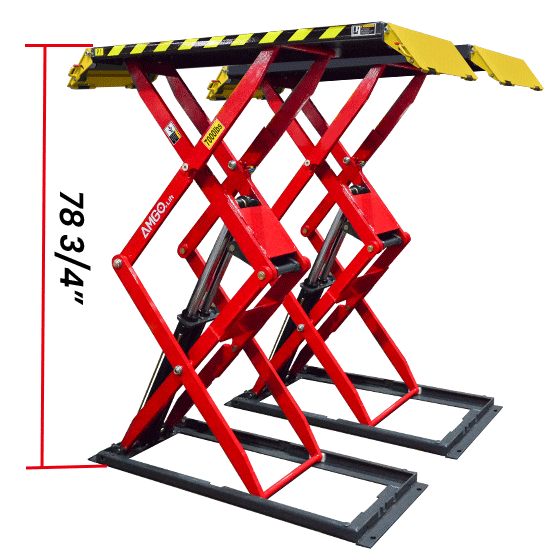

- Full rise design with 78 3/4" lifting height provides ample clearance to walk underneath and work comfortably

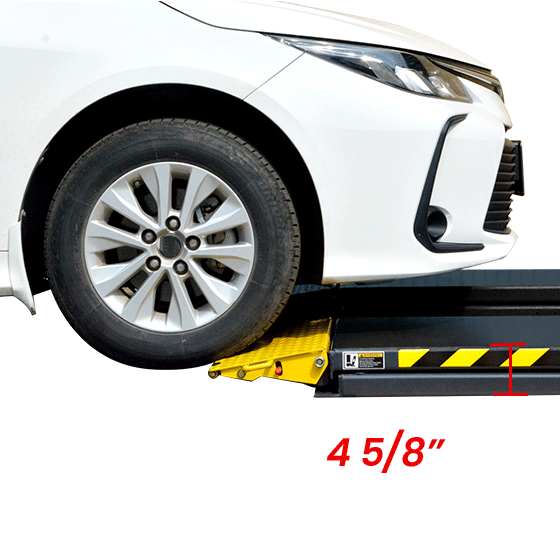

- Ultra-low 4 5/8" minimum height allows for easy drive-on access and maximizes bay space
- Dual mechanical and hydraulic lock system offers industry-leading safety protection
- 24V control system with dual synchronous cylinders ensures safe, level lifting every time
Complete Package Includes
The AMGO XL-7 arrives ready to install and includes everything you need to get started:
- Power Unit Stand for organized hydraulic system placement

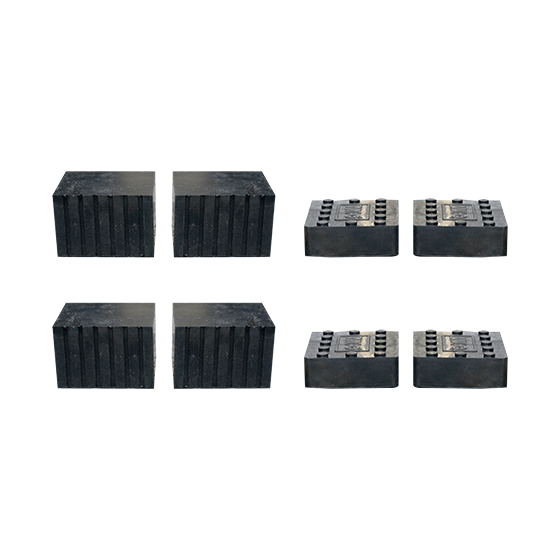

- 1 1/2" and 3" Rubber Lift Pads to accommodate different frame configurations and protect vehicle undercarriages
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 7,000 lb lifting capacity
- Low profile on surface design, allows easy access for low-clearance vehicles
- Full rise to 78 3/4″ height, allows comfortable work underneath the vehicle
- 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
- Hydraulic cylinders built with hose burst valves for safety protection

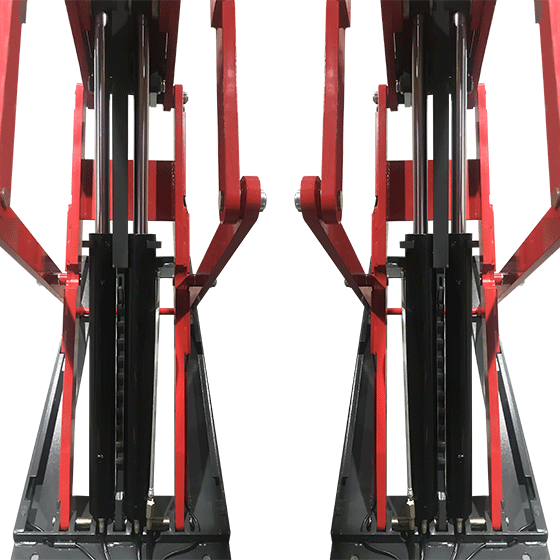

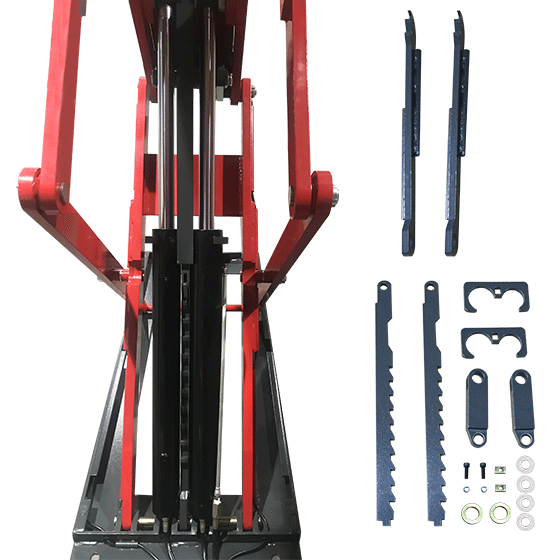

- Dual safety system features both automatic mechanical lock and hydraulic lock
- No need of extra air source
- Automatic safety stop device at 11 13/16" from ground
- Electro control system, with control cabinet for enhanced safety.
Includes
- Power Unit Stand
- 1 1/2" & 3" Rubber Lift Pads
Product Specifications
Specifications
XL-7
Lifting Capacity
7,000 lbs
A Lifting Height
78 3/4"
A Minimum Height
4 5/8"

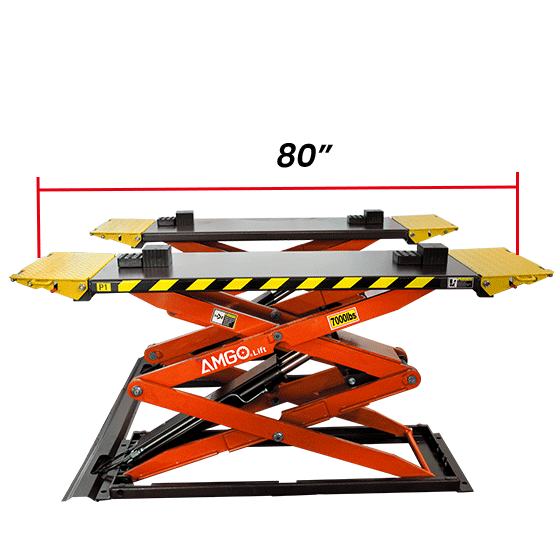

B Overall Length
80"
C Runway Length
57 5/8"
D Overall Width
76 3/4"
E Width Between Runways
29 1/2"
Lifting Time
50 S
Motor
2.0HP
Gross Weight
2,006 lbs
Key Features
- Published product configuration: AMGO® Hydraulics XL-7 Low-Profile Full Rise Scissor Lift 7,000 lbs. Maximum Lifting Power in Minimum Space The AMGO XL-7 Full Rise Scissor Lift is the perfect solution for shops with a growing workload but limited bay space. Engineered to raise vehicles high enough to walk comfortably underneath, the XL-7 delivers a
- Exact manufacturer model or part number: XL-7
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | XL-7 |
| MPN / Model | XL-7 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model XL-7, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
