Product Overview

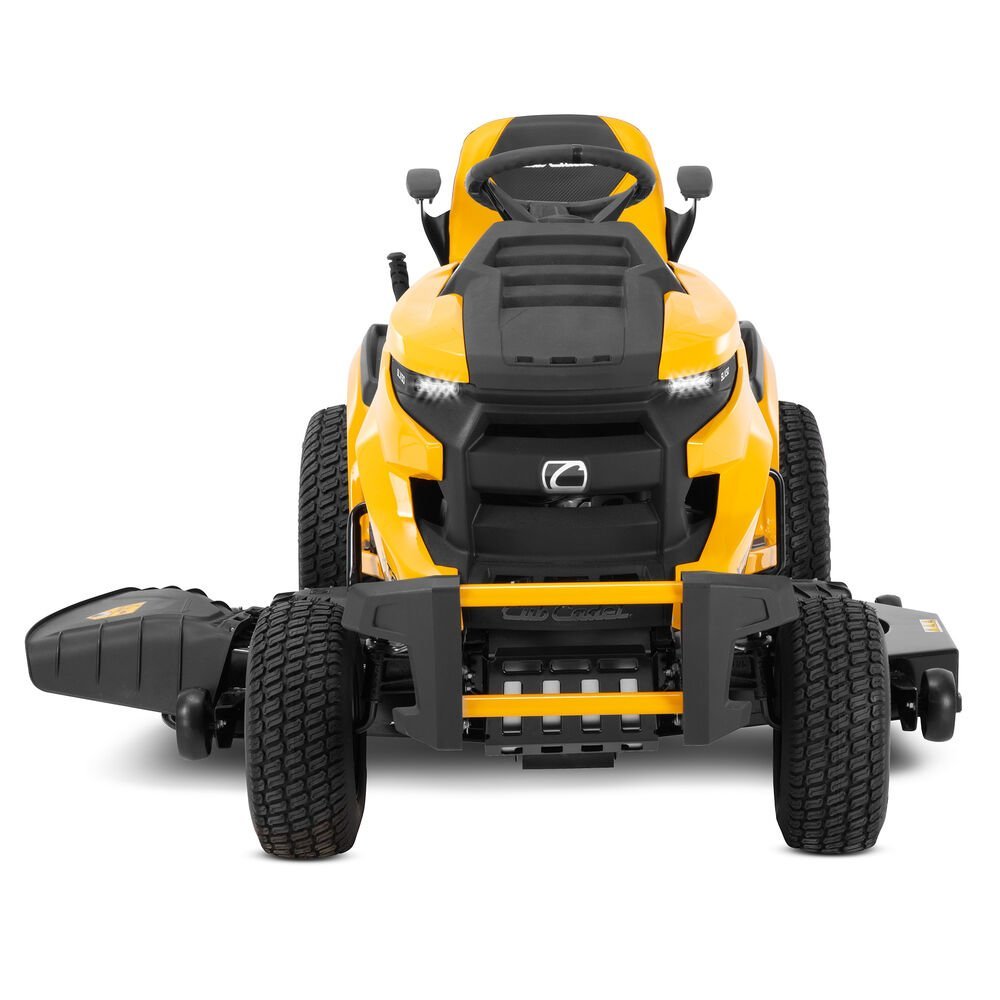

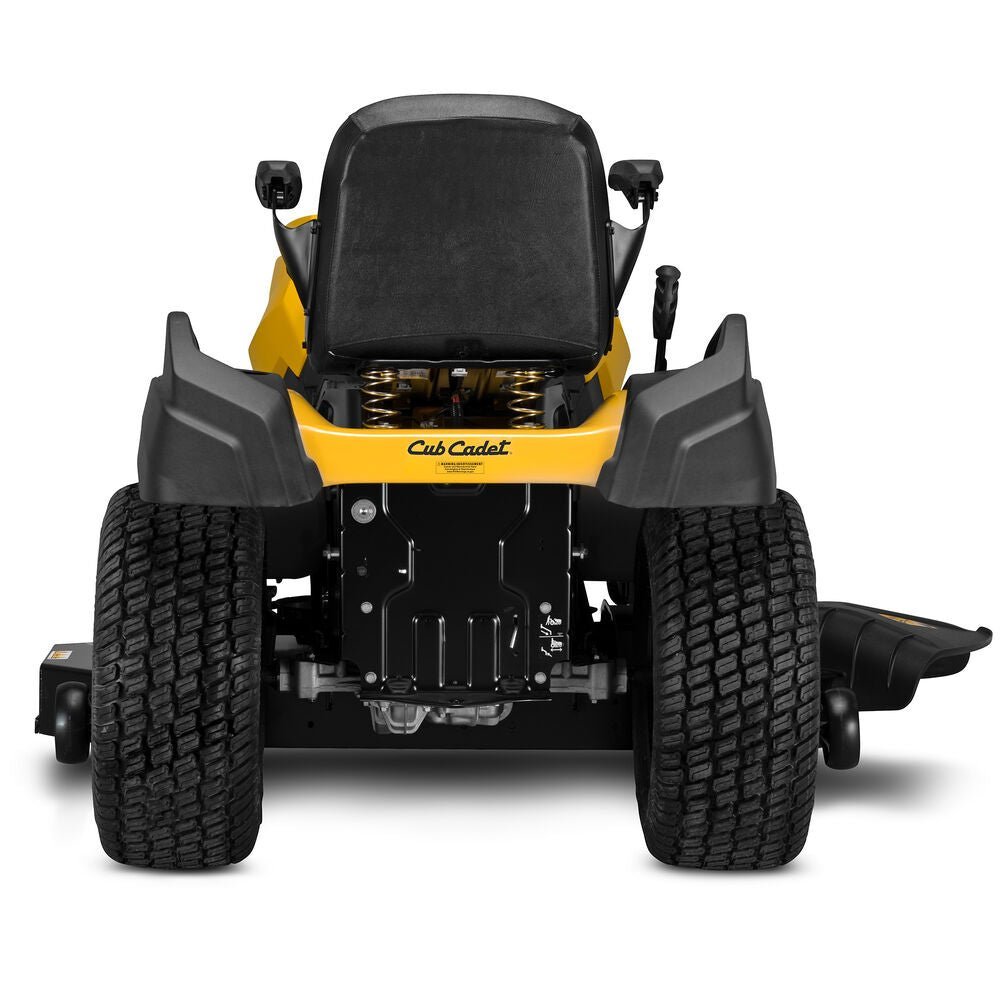

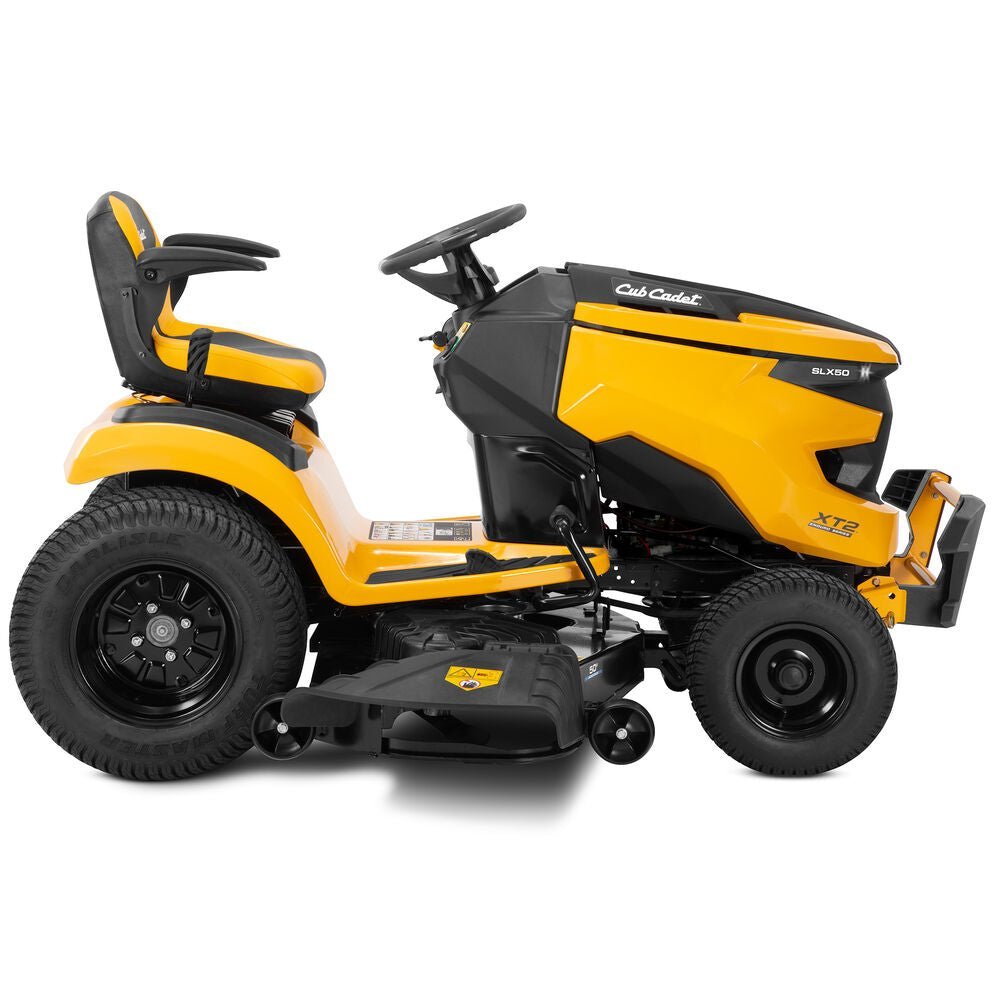

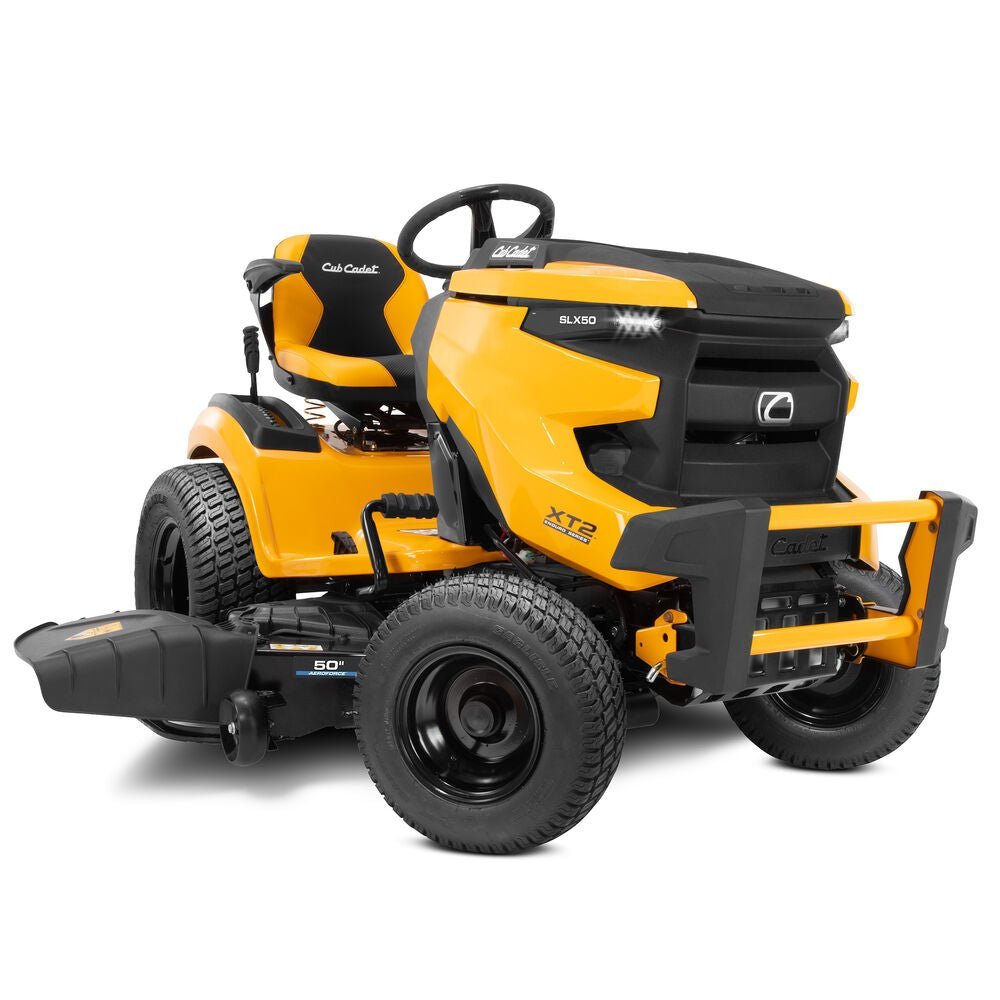

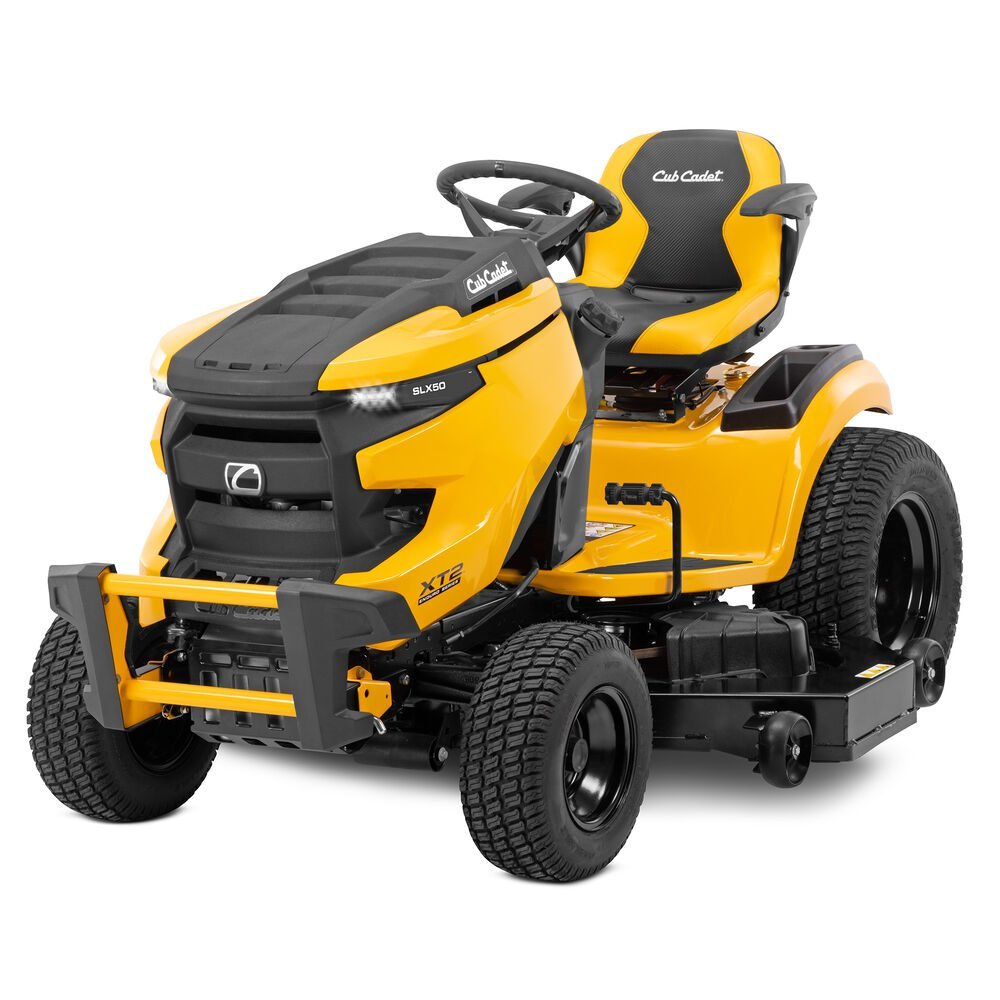

The Cub Cadet XT2-SLX 50 13B5A2TLA10 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 13B5A2TLA10. Key specifications for this configuration include engine brand: Kohler®; engine model: 7000 Series HD; engine model number: KT724; model: 13b5a2tla10: Description: MOWER:NX15 SLX50 FAB SLTK46 CC.
Key Features
- JDF SKU: 13B5A2TLA10
- Engine Brand: Kohler®
- Engine Model: 7000 Series HD
- Engine Model Number: KT724
- Model: 13B5A2TLA10: Description: MOWER:NX15 SLX50 FAB SLTK46 CC
- Deck Cutting Width: 50 in
- Engine Output: 24HP
- Engine Displacement: 747cc
- Transmission: Tuff Torq® K46
- Transmission Control: Foot Pedal
- Transmission Housing: Aluminum
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler® |
| Engine Model | 7000 Series HD |
| Engine Model Number | KT724 |
| Model / MPN | 13B5A2TLA10 |
| Model: 13B5A2TLA10 | Description: MOWER:NX15 SLX50 FAB SLTK46 CC |
| JDF SKU | 13B5A2TLA10 |
| Deck Cutting Width | 50 in |
| Engine Output | 24HP |
| Engine Displacement | 747cc |
| Transmission | Tuff Torq® K46 |
| Transmission Control | Foot Pedal |
| Transmission Housing | Aluminum |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| Air | Filter: Single element |
| Anti-Scalping | 4 gauge wheels |
| Armrests | Yes |
| Blade(s) | Three |
| Brakes | Disc |
| Bumper | Brush Guard |
| Charging System | 12 amp regulated |
| Choke | Separate Choke |
| Corrosion Protection | Yes |
| Cruise Control | Yes |
| Cup Holder | Yes |
| Cylinders | Twin |
| Deck Construction | Fabricated |
| Deck Engagement (PTO) | Electric |
| Deck Lift | Manual |
| Deck Material | 11-gauge steel |
| Deck Positions | 12 |
| Deck Wash | Yes |
| Drive | System: Hydrostatic |
| Engine Oil Capacity | 2.0 qts. US (1.89 L) |
| Engine Start | Ignition Key |
| Floor Mats | Rubber |
| Forward | Speed: 5.5 MPH / 8.6 km/h |
| Frame | Robotically welded |
| Front Pivot Bar | Cast iron |
| Fuel | Delivery: Carburetor |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.0 gal. US |
| Governor | Mechanical |
| Headlight(s) | Dual LED |
| Hour Meter | Yes |
| Lubrication | Fully pressurized |
| Mulch Kit | Available separately |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Rear Axle | 3/4″ |
| Rear Differential Loc | No |
| Rear Tow Hitch | Yes |
| Reverse Speed | 3 MPH / 4.8 km/h |
| Seat Adjustment | Lever |
| Seat Type | 15″ High-back |
| Starter Type | Electric |
| Turning Radius | 16″ |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 13B5A2TLA10 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
