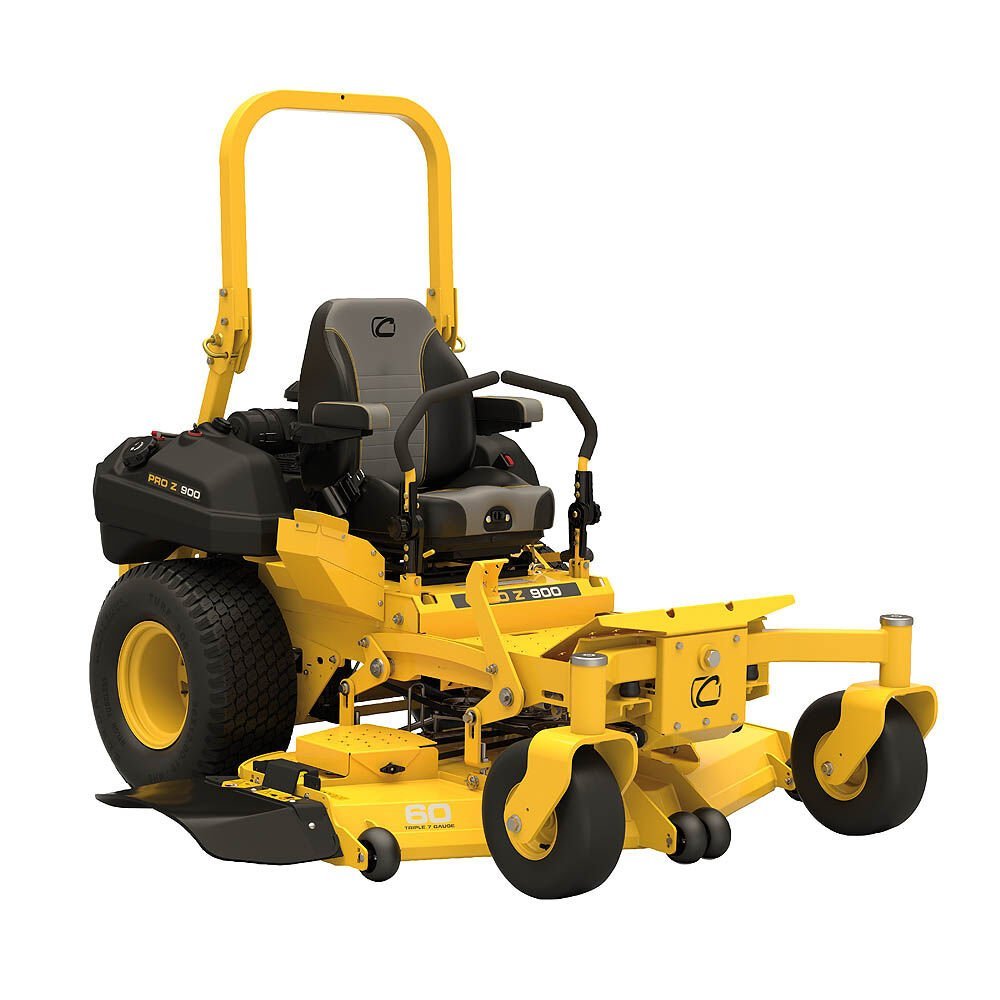

Product Overview

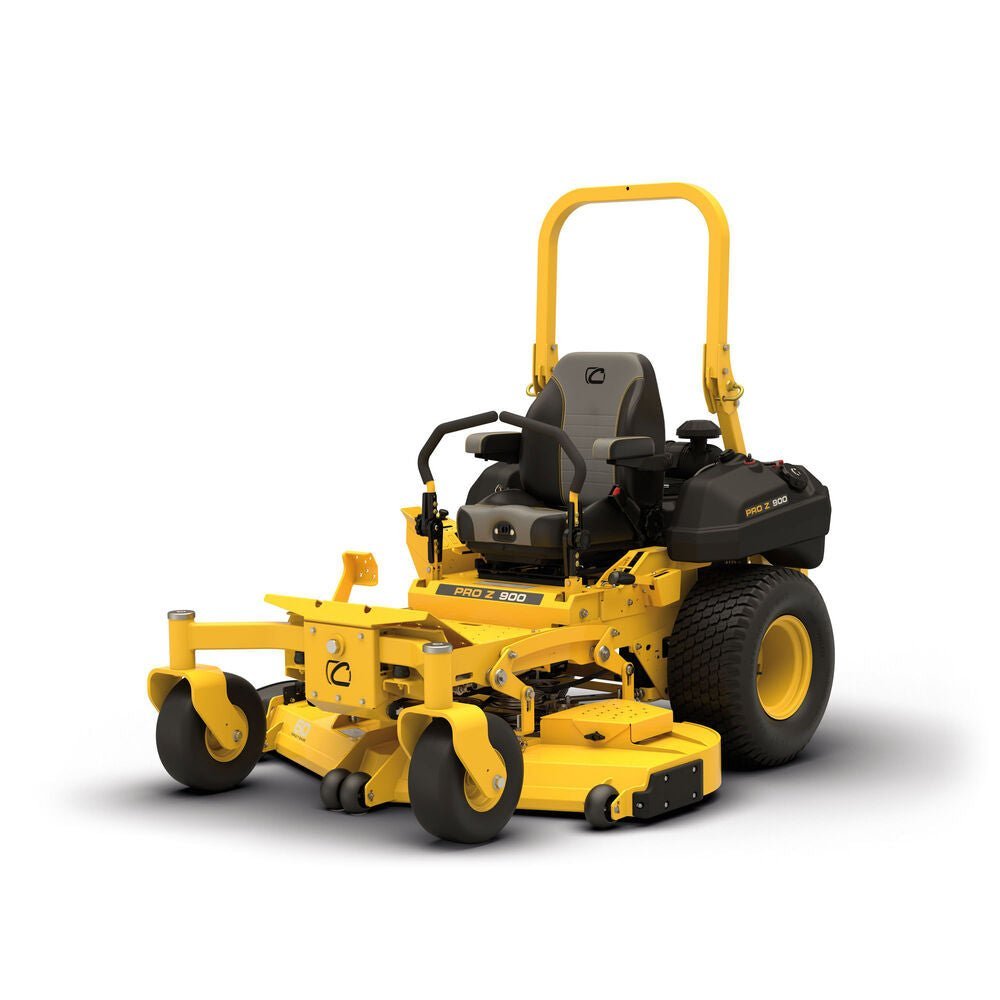

The Cub Cadet Pro Z 960 L EFI KW 53FLHUTV050 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 53FLHUTV050. Key specifications for this configuration include engine brand: Kawasaki; engine model: FX Series EFI FXT00V-BS42; deck cutting width: 60”; engine output: 38.5 HP.
Key Features
- JDF SKU: 53FLHUTV050
- Engine Brand: Kawasaki
- Engine Model: FX Series EFI FXT00V-BS42
- Deck Cutting Width: 60”
- Engine Output: 38.5 HP
- Engine Displacement: 999cc
- Transmission: Hydro Gear 5400
- Cutting Height Range: 1″ – 5″
- Weight (approx.): 1591 lbs.
Product Highlights
- Deck construction: the published configuration uses 7-gauge fabricated or welded steel.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kawasaki |
| Engine Model | FX Series EFI FXT00V-BS42 |
| Model / MPN | 53FLHUTV050 |
| JDF SKU | 53FLHUTV050 |
| Deck Cutting Width | 60” |
| Engine Output | 38.5 HP |
| Engine Displacement | 999cc |
| Transmission | Hydro Gear 5400 |
| Cutting Height Range | 1″ – 5″ |
| Weight (approx.) | 1591 lbs. |
| AIR FILTER | KM-11013-7044 |
| Anti-Scalping | 2 front deck gauge wheels |
| Arm Rests | Padded arm rests |
| Blade Count | 942 |
| Blade(s) | Triple-blade / High-lift blade (standard) Marbain Blade |
| BLADES | 942-04415 OR 490-110-C163 |
| Brakes | Hand-operated lever with integrated hydro pump release lever |
| Bumper | 5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch |
| Charging System | 15 amp regulated |
| Cup Holder | Intergrated into Side Pod |
| DECK BELT | 954-04319 |
| Deck Construction | 7ga. top plate 7ga. bottom reinforcement ¼” rolled leading edge |
| Deck Engagement (PTO) | electronic fingertip engagement pto |
| Deck Material | fabricated 7ga. (.187”) steel shell |
| Deck Positions | Foot pedal with spring assist, 16 Positions |
| Dimensions | L/W/H 86″ L x 74″ W x 52″ H |
| Discharge Chute | High-density, impact-resistant rubber |
| DRIVE BELT | 754P07149 |
| ENGINE OIL | 490-000-C044 |
| Forward Speed; | 14 mph |
| Frame | Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots |
| Front Axle(s) | 2″ x 3″ solid axle tube with ISO dampening suspension |
| Front Tires | 15″x6″-6″Reliance Carlisle run flat |
| Fuel Delivery | Electronic Fuel Injection (EFI) |
| FUEL FILTER | KM-49019-0031 |
| Fuel Tank Capacity | Twin 7.45 gal. tanks (14.9 gal. total) |
| Hour Meter | Crew Boss |
| IGNITION KEY | 925-06908 |
| OIL FILTER | KM-49065-0724 |
| PRE FILTER | KM-11013-7045 |
| PTO BELT | 954-05128 |
| Rear Tires | 26″ x 12″ – 12″ |
| Reverse Speed | 6 mph |
| ROPS | 2″ x 2″ spring-latch tool-less foldable 3 position |
| Seat Adjustment | Angle back adjust and lumbar support |
| Seat Suspension | High-back Air-Ride suspension with EVC cushion, ISO mounted base (lateral suspension) |
| Seat Type | Cushion with seat belts |
| SPARK PLUG | KM-BPR5ES |
| Spindle Construction | 8″ sealed cast aluminum housing (maintenance-free) |
| Steering Wheel Control | High Performance & Speed Control |
| Tire Tread | Turf Tread |
| TRANS FILTER | HG-71943 NEED 2 |
| XTREME BLADE | 02005019-X |
| Yokes | 1/2″ thick steel front yokes |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 53FLHUTV050 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
