Product Overview

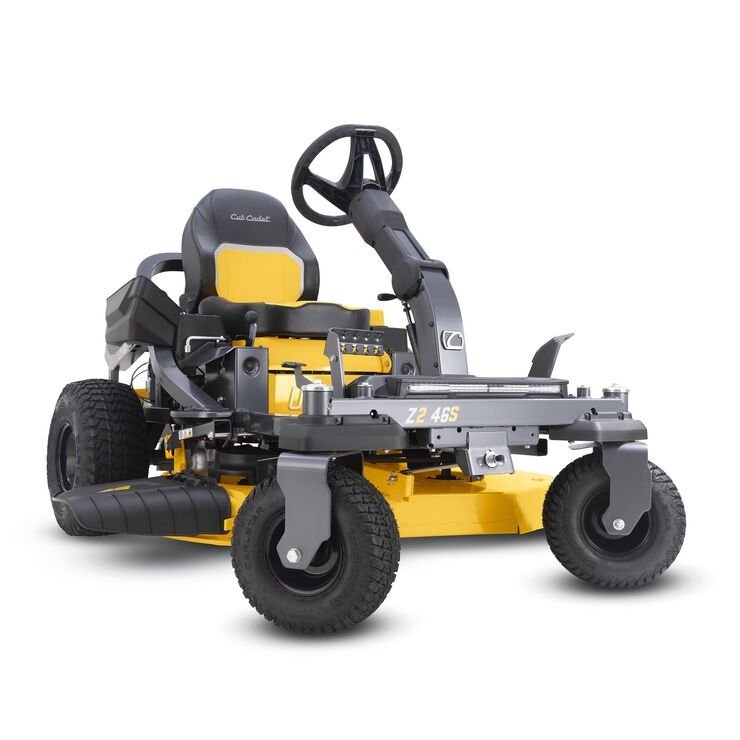

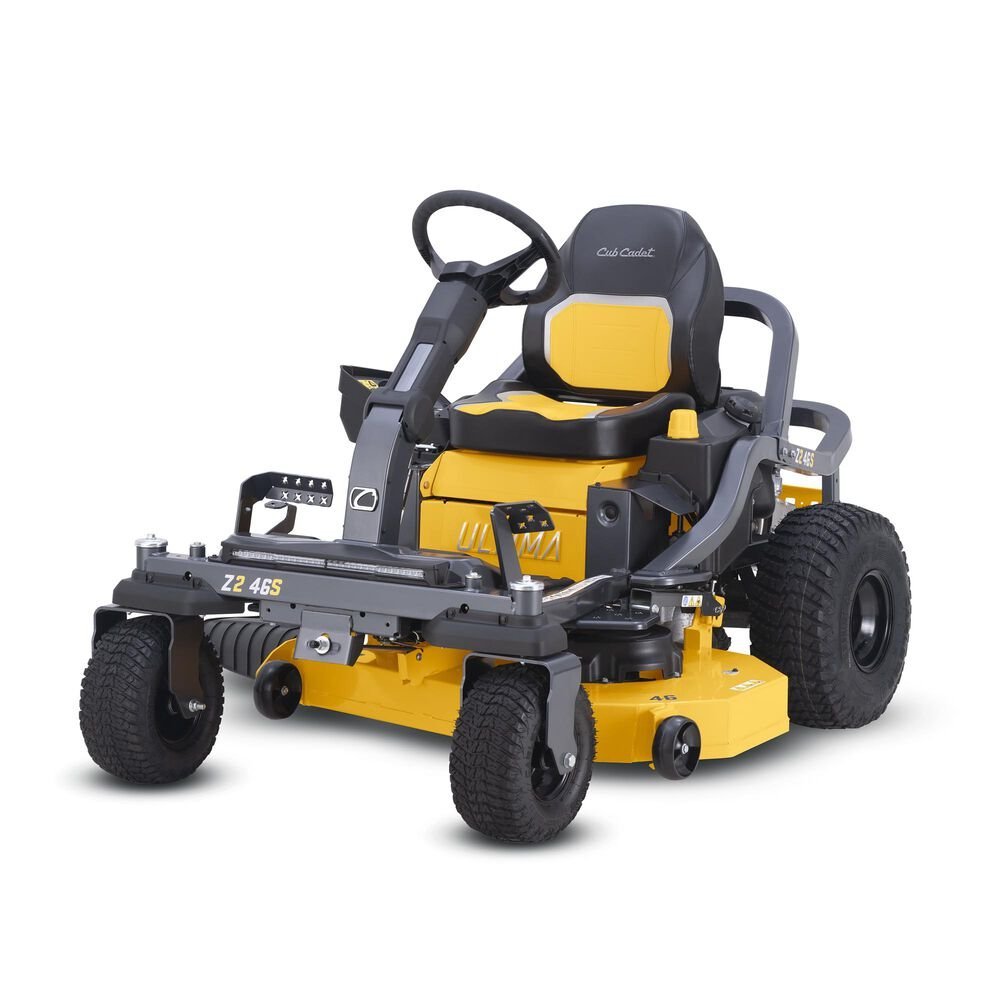

The CUB CADET ULTIMA Z2 46S 17CIGBYNA10 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 17CIGBYNA10. Key specifications for this configuration include engine brand: Kawasaki®; engine model: FR Series; model: 17cigbyna10: Description: MOWER: ZTS 46FAB DZTS CUB CADE; cutting width: 46 in.
Key Features
- JDF SKU: 17CIGBYNA10
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Model: 17CIGBYNA10: Description: MOWER: ZTS 46FAB DZTS CUB CADE
- Cutting Width: 46 in
- Engine Output: 21.5HP
- Engine Displacement: 726cc
- Transmission: Hydro-Gear EZT 2200
- Cutting Height Range: 1” – 4.5”
- Maximum Speed: 7 MPH
- Fuel Capacity: 3.5 gal
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kawasaki® |
| Engine Model | FR Series |
| Model / MPN | 17CIGBYNA10 |
| Model: 17CIGBYNA10 | Description: MOWER: ZTS 46FAB DZTS CUB CADE |
| JDF SKU | 17CIGBYNA10 |
| Cutting Width | 46 in |
| Engine Output | 21.5HP |
| Engine Displacement | 726cc |
| Transmission | Hydro-Gear EZT 2200 |
| Cutting Height Range | 1” – 4.5” |
| Maximum Speed | 7 MPH |
| Fuel Capacity | 3.5 gal |
| Battery Voltage | 12V |
| Air Filter | Dual element |
| Anti-Scalping | 2 gauge wheels |
| Armrests | No |
| Battery | 230 CCA |
| Battery Type | Lead Acid |
| Blade Count | 742 |
| Blade(s) | 2 |
| BLADES | 742-05648-0637 OR 490-110-F192 |
| Brakes | Disc |
| Charging System | 12 amp regulated |
| Choke | Separate Choke |
| Corrosion Protection | Yes |
| Cruise Control | No |
| Cup Holder | Yes |
| Cylinders | Twin |
| DECK BELT | 754P06135 |
| Deck Construction | Fabricated |
| Deck Cutting | Width 46 in |
| Deck Engagement | (PTO) Electric |
| Deck Lift | Foot pedal with Dial Adjust |
| Deck Material | 11-gauge steel |
| Deck Positions | 15 |
| Deck Wash | No |
| DRIVE BELT | 954-04317A OR 490-501-C069 |
| Drive System | Hydrostatic |
| Engine Oil Capacity | 2.1qt. US (1.89 L) |
| Engine Start | Ignition Key |
| Forward Speed | 7 MPH / 11.3 km/h |
| Frame | 2” x 2” tubular steel |
| Front Caster Suspension | No |
| Front Tires | 13″x 6.5″-6″ |
| Fuel Delivery | Carburetor |
| FUEL FILTER | KM-49019-0031 |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Governor | Mechanical |
| Headlight(s) | LED |
| Hour Meter | Yes |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Mulch Kit | Available separately |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Parking Brake | Hand lever |
| Rear Tires | 20”x 8”-8″ |
| Rear Tow Hitch | Yes |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| ROPS | No |
| Seat Adjustment | Knob |
| Seat Type | 20″ Cut-and-Sew with Head Bolster |
| SPARK PLUG | KM-BPR4ES |
| Starter Type | Electric |
| Steering Control | Steering Wheel |
| Tire Tread | Turf Armor |
| Turning Radius | 0° |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 17CIGBYNA10 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
