Product Overview

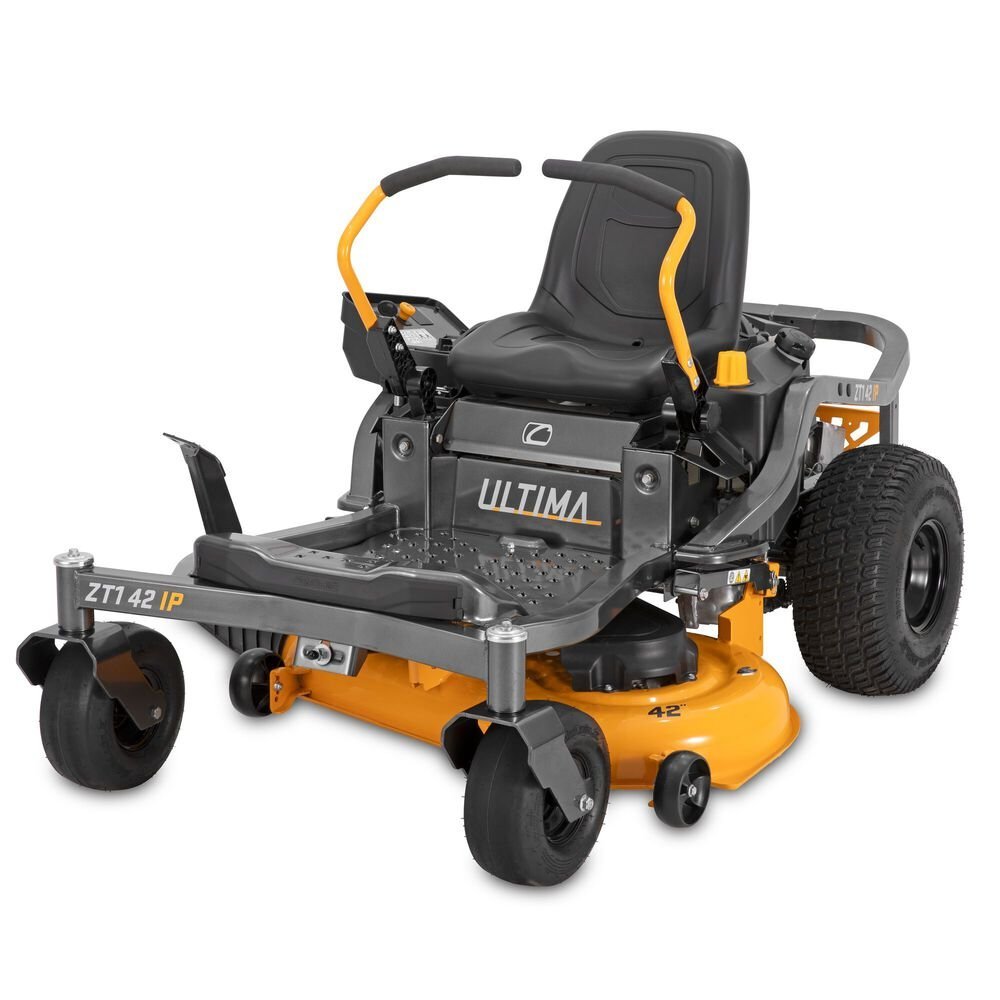

The Cub Cadet ULTIMA Z1 42IP 17RLEACS010 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 17RLEACS010. Key specifications for this configuration include engine brand: Cub Cadet®; engine model: IntelliPOWER; engine model number: AX90Z0; deck cutting width: 42 in.
Key Features
- JDF SKU: 17RLEACS010
- Engine Brand: Cub Cadet®

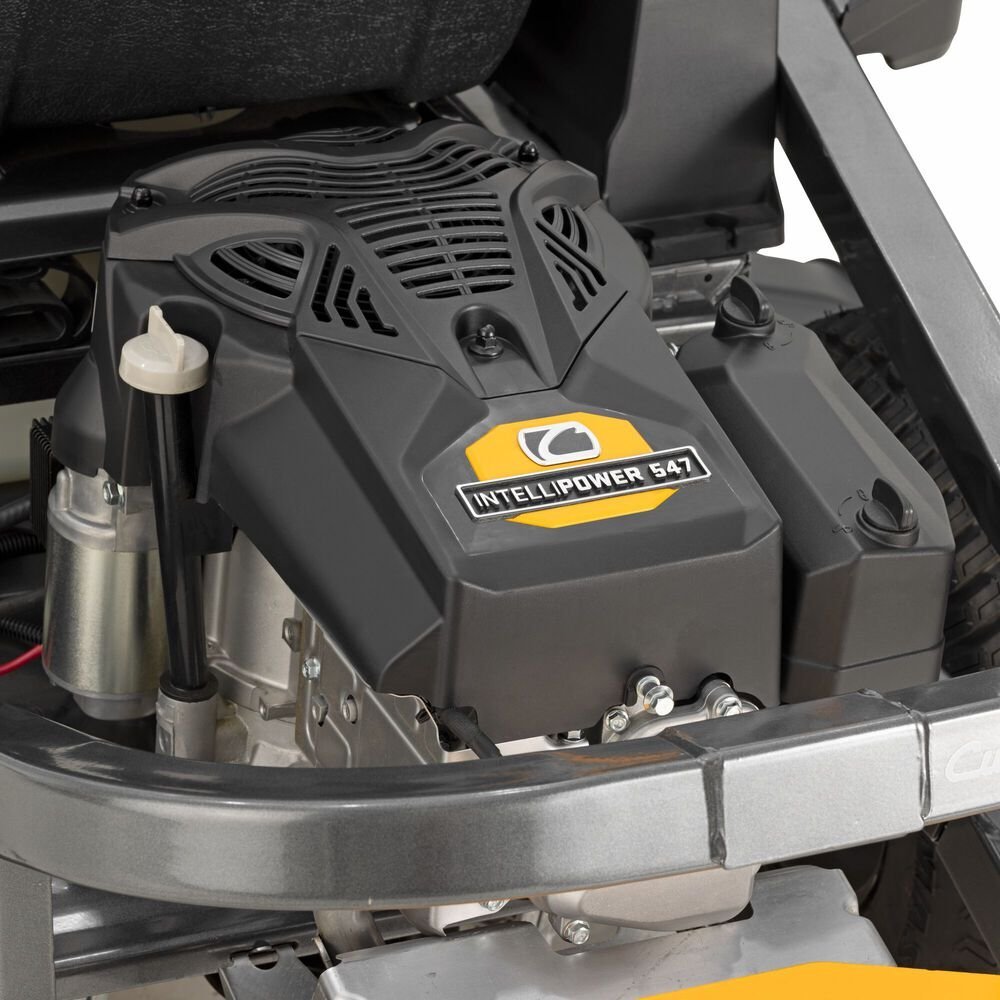

- Engine Model: IntelliPOWER
- Engine Model Number: AX90Z0
- Deck Cutting Width: 42 in
- Engine Displacement: 547cc
- Transmission: Hydro-Gear EZT 2200
- Cutting Height Range: 1” – 4.5”
- Maximum Speed: 7 MPH
- Fuel Capacity: 3.5 gal
- Battery Voltage: 12V
Product Highlights
- Deck construction: the published configuration uses 13-gauge fabricated or welded steel.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Cub Cadet® |
| Engine Model | IntelliPOWER |
| Engine Model Number | AX90Z0 |
| Model / MPN | 17RLEACS010 |
| JDF SKU | 17RLEACS010 |
| Deck Cutting Width | 42 in |
| Engine Displacement | 547cc |
| Transmission | Hydro-Gear EZT 2200 |
| Cutting Height Range | 1” – 4.5” |
| Maximum Speed | 7 MPH |
| Fuel Capacity | 3.5 gal |
| Battery Voltage | 12V |
| Air Filter | Dual element |
| Anti-Scalping | Two gauge wheels |
| Armrests | No |
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Blade(s) | Two |
| BLADES | 742P05528 |
| Charging System | 12 amp regulated |
| Choke | Electronic |
| Corrosion Protection | Yes |
| Cruise Control | No |
| Cup Holder | Yes |
| Cylinders | Single |
| DECK BELT | 754P06134 OR 490-501-C081 |
| Deck Construction | Stamped |
| Deck Engagement | (PTO) Electric |
| Deck Lift | Foot pedal with Dial Adjust |
| Deck Material | 13-gauge steel |
| Deck Positions | 15 |
| Deck Wash | Yes |
| DRIVE BELT | 954-04317A OR 490-501-C069 |
| Drive System | Hydrostatic |
| Engine Oil Capacity | 1.8 qts. US (1.7 L) |
| Engine Start | Ignition Key |
| Forward Speed | 7 MPH / 11.3 km/h |
| Frame | 2” x 2” tubular steel |
| Front Tires | 11″x 6″-5″ |
| Fuel Delivery | Carburetor |
| FUEL FILTER | 751P22912 |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Governor | Electronic |
| Headlight(s) | No |
| Hour Meter | No 490-900-C075 |
| HOUR METER KIT | 490-900-C075 |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Rear Tires | 20”x 8”-8″ |
| Rear Tow Hitch | No |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| ROPS | No |
| Seat Adjustment | Knob |
| Seat Type | 18″ high back |
| SPARK PLUG | 951-10292A |
| Starter Type | Electric |
| Steering Control | Lap Bars |
| Turning Radius | 0° |
| XTREME BLADES | 742P05177A-X OR SET 490-110-C202 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 17RLEACS010 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
