Product Overview

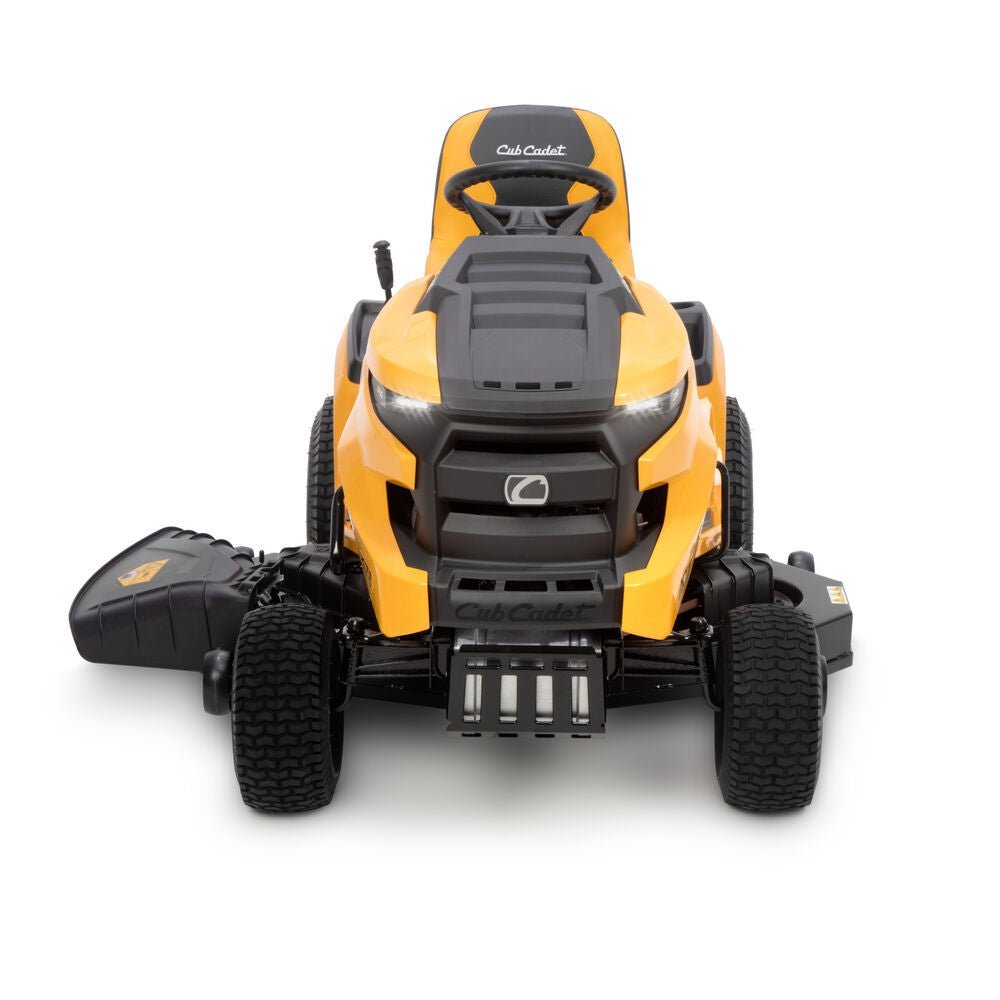

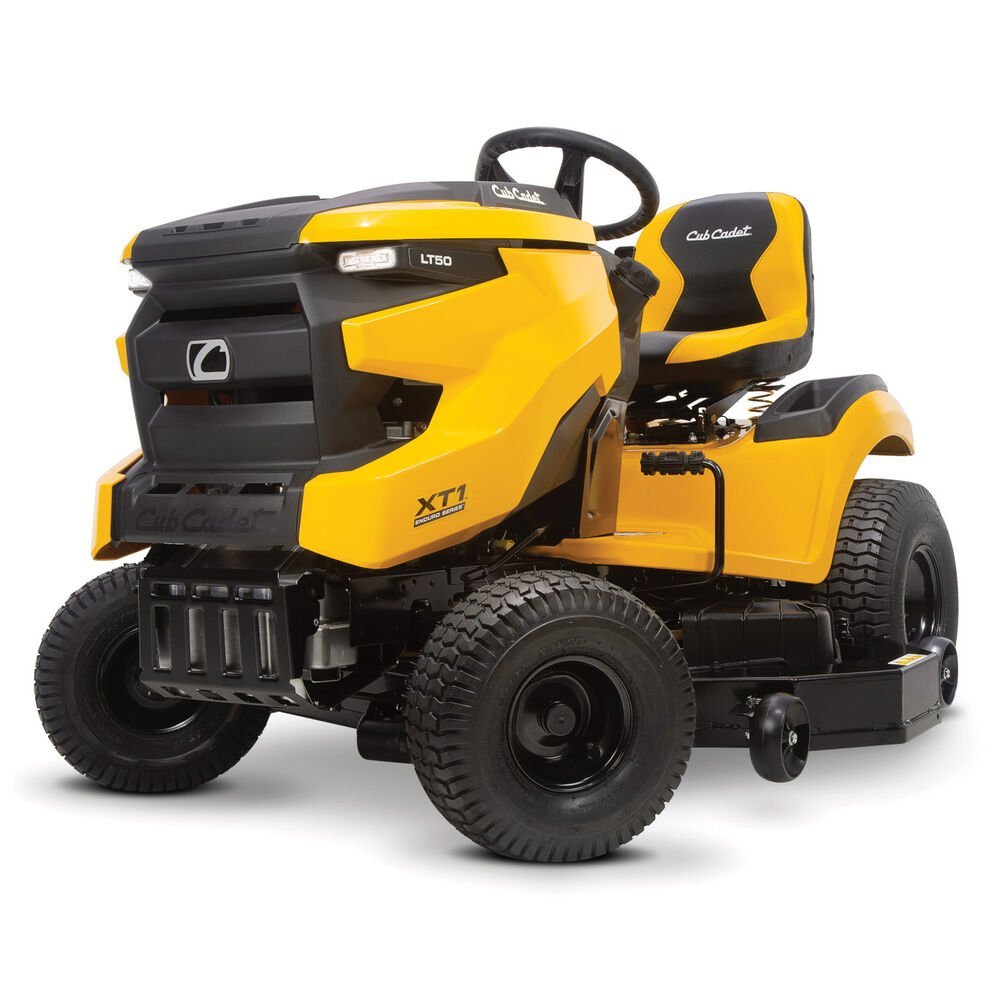

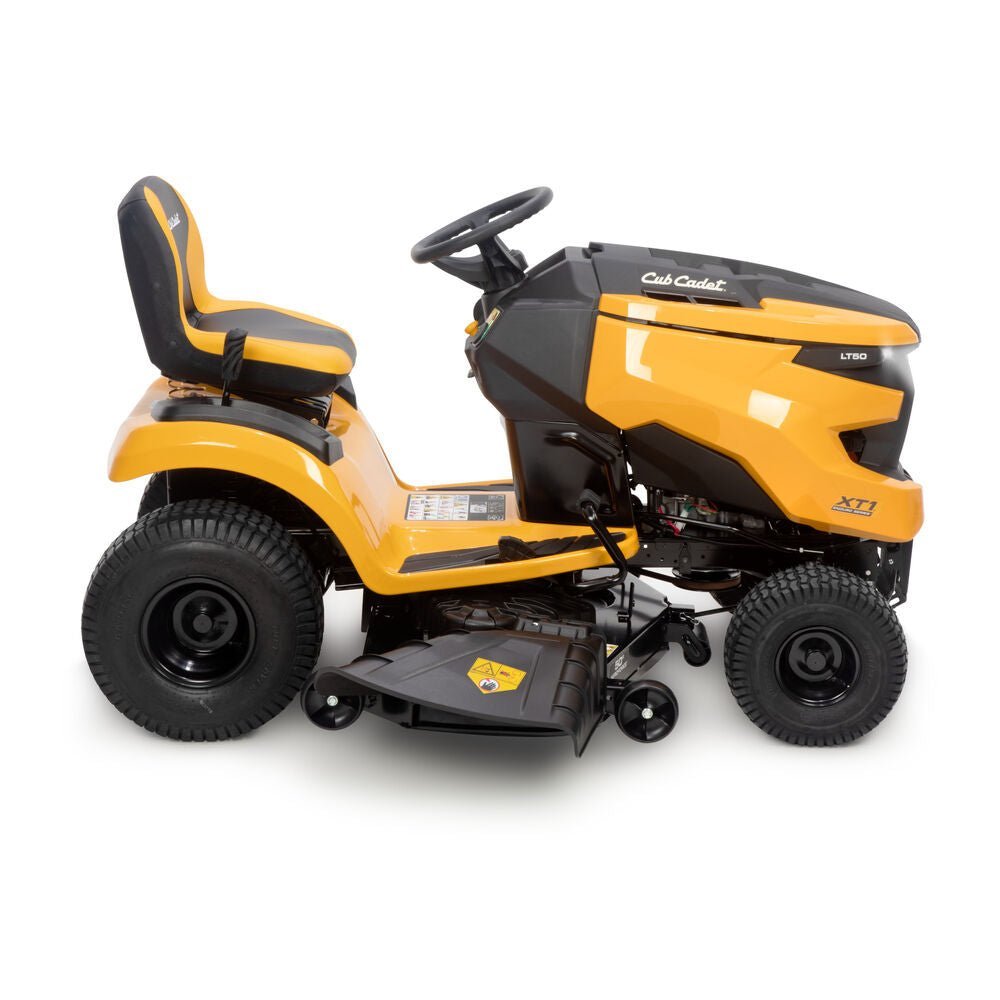

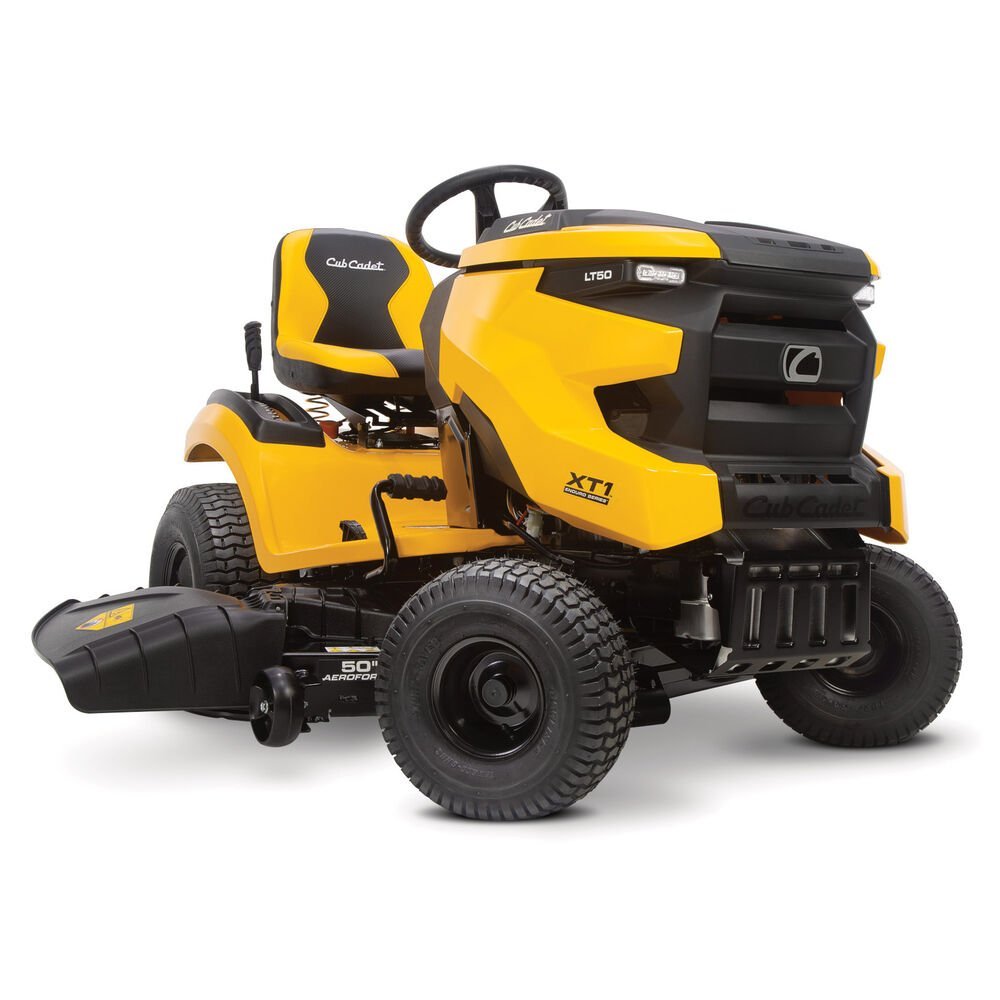

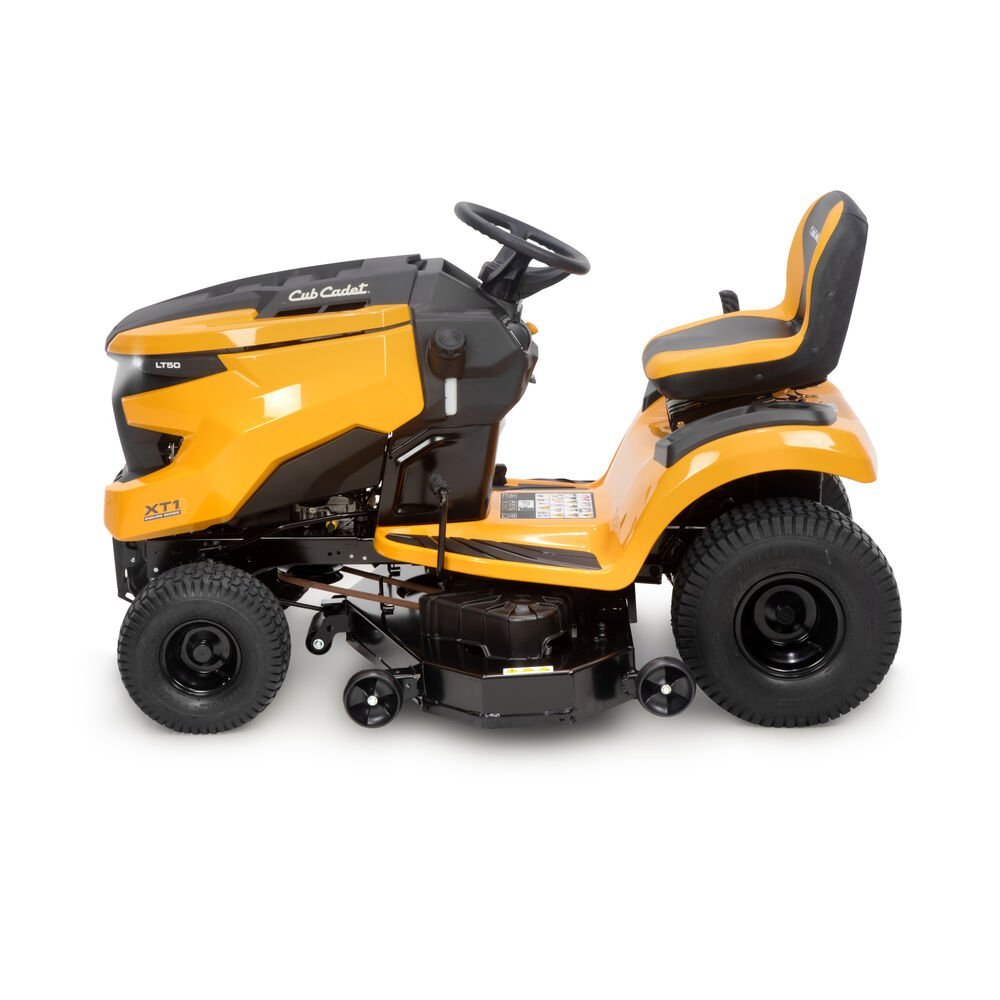

The CUB CADET XT1-LT50 FAB 13AQA1TLA10 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 13AQA1TLA10. Key specifications for this configuration include engine brand: Kohler®; engine model: KT724; model: 13aqa1tla10: Description: MOWER:NX15 LT50 FAB K46 CC; deck cutting width: 50″.
Key Features
- JDF SKU: 13AQA1TLA10
- Engine Brand: Kohler®
- Engine Model: KT724
- Model: 13AQA1TLA10: Description: MOWER:NX15 LT50 FAB K46 CC
- Deck Cutting Width: 50″
- Engine Output: 24 HP
- Engine Displacement: 747cc
- Engine to Transmission: Heavy-duty belt
- Transmission: Hydrostatic, foot
- Transmission Housing: Cast aluminum
- Transmission Type: Tuff Torq K46
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler® |
| Engine Model | KT724 |
| Model / MPN | 13AQA1TLA10 |
| Model: 13AQA1TLA10 | Description: MOWER:NX15 LT50 FAB K46 CC |
| JDF SKU | 13AQA1TLA10 |
| Deck Cutting Width | 50″ |
| Engine Output | 24 HP |
| Engine Displacement | 747cc |
| Engine to Transmission | Heavy-duty belt |
| Transmission | Hydrostatic, foot |
| Transmission Housing | Cast aluminum |
| Transmission Type | Tuff Torq K46 |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| Weight (approx.) | 500 lbs. |
| Air Filter | Dual element |
| Anti-Scalping | 2 Ball/2 Ball/Nose Roller |
| Bagger | Optional |
| Battery | 12V 230 cold crank amps AGM |
| Blade(s) | Triple Blades |
| BLADES | 742P05094 OR SET 490-110-C193 |
| Brakes | Disc |
| Bumper | Optional |
| Charging System | 12 amp regulated |
| Choke | Choke-a-matic |
| Corrosion Protection | Yes |
| Cruise Control | Included |
| Cup Holder | Included |
| Cutting Modes | Discharge/mulch/bagging |
| Cylinders/Material | Twin |
| Deck Attach/Removal | QuickAttach™ (no tools required) |
| DECK BELT | 954-04077A |
| Deck Construction | Fabricated |
| Deck Engagement (PTO) | Electronic fingertip engagement |
| Deck Lift | Lever |
| Deck Material | Steel, 11-gauge |
| Deck Positions | 12-position |
| Deck Wash | Yes |
| Dimensions | L/W/H 68″/60″/42.5″ |
| Discharge Chute | Included |
| DRIVE BELT | 954-05027B OR 490-501-C061 |
| ENGINE OIL | 25 357 65-S OR 490-000-C044 |
| Engine Oil Capacity | 2 qt. |
| Engine Start | Key |
| Floor Mats | Rubber |
| Forward Speed | 5.5 MPH |
| Frame | Fully robotically-welded frame with new e-coating corrosion defense system |
| Front Axle(s) | Cast iron |
| Front Tires | 15″ x 6″ sleeve bearing |
| FUEL FILTER | 25 050 22-S1 |
| Fuel Gauge | Fuel sight window |
| Fuel Tank Capacity | 3 gal. |
| Governor | Manual |
| Headlight(s) | 2 – LED |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Mulch Kit | Optional |
| Oil Filter | Yes |
| Operator Presence System | Included |
| Rear Axle | 3/4″ w/dual PM steel drive hubs |
| Rear Tires | 20″ x 8″ |
| Rear Tow Hitch | Included |
| Reverse Speed | 3 MPH |
| Seat Adjustment | Lever |
| Seat Suspension | Seat spring |
| Seat Type | 15″ high-back seat |
| SPARK PLUG | 25 132 23-S OR RC12YC |
| Spindle Construction | 3/4″ with steel cap and Triple Lip Sealed |
| Steering Wheel Control | Manual sector and pinion |
| Tire Tread | Turf Saver |
| TRANS FLUID | TT-187Q0899000 |
| Turning Radius | 16″ |
| Wheelbase | 47″ |
| XTREME BLADE | 742P05094-X OR SET 490-110-C204 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 13AQA1TLA10 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
