Product Overview

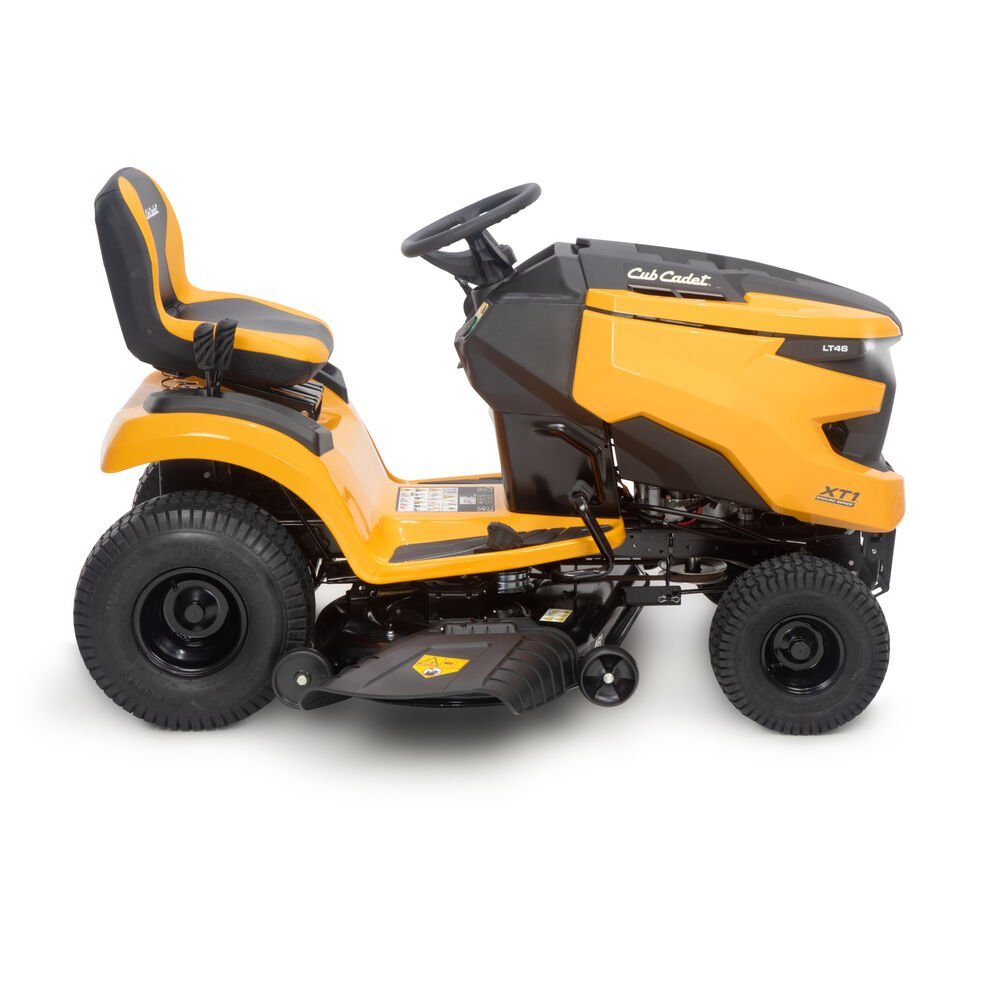

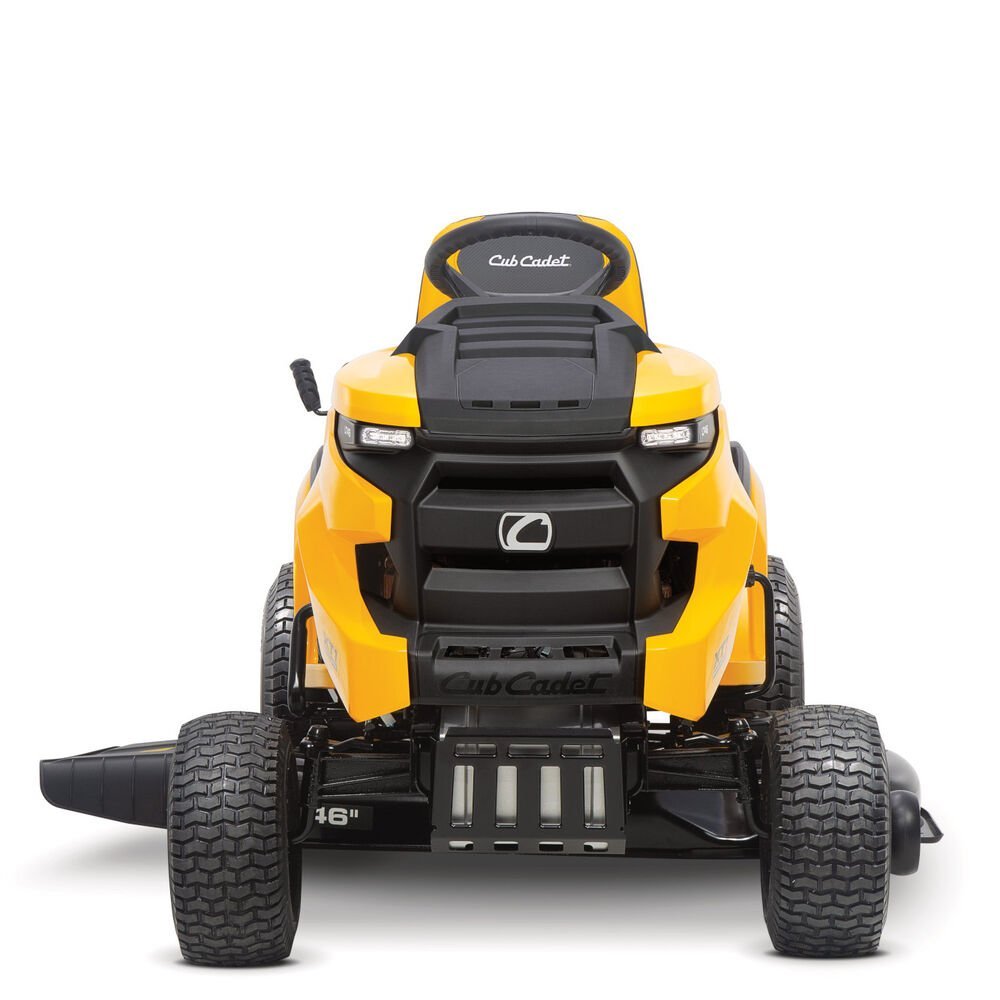

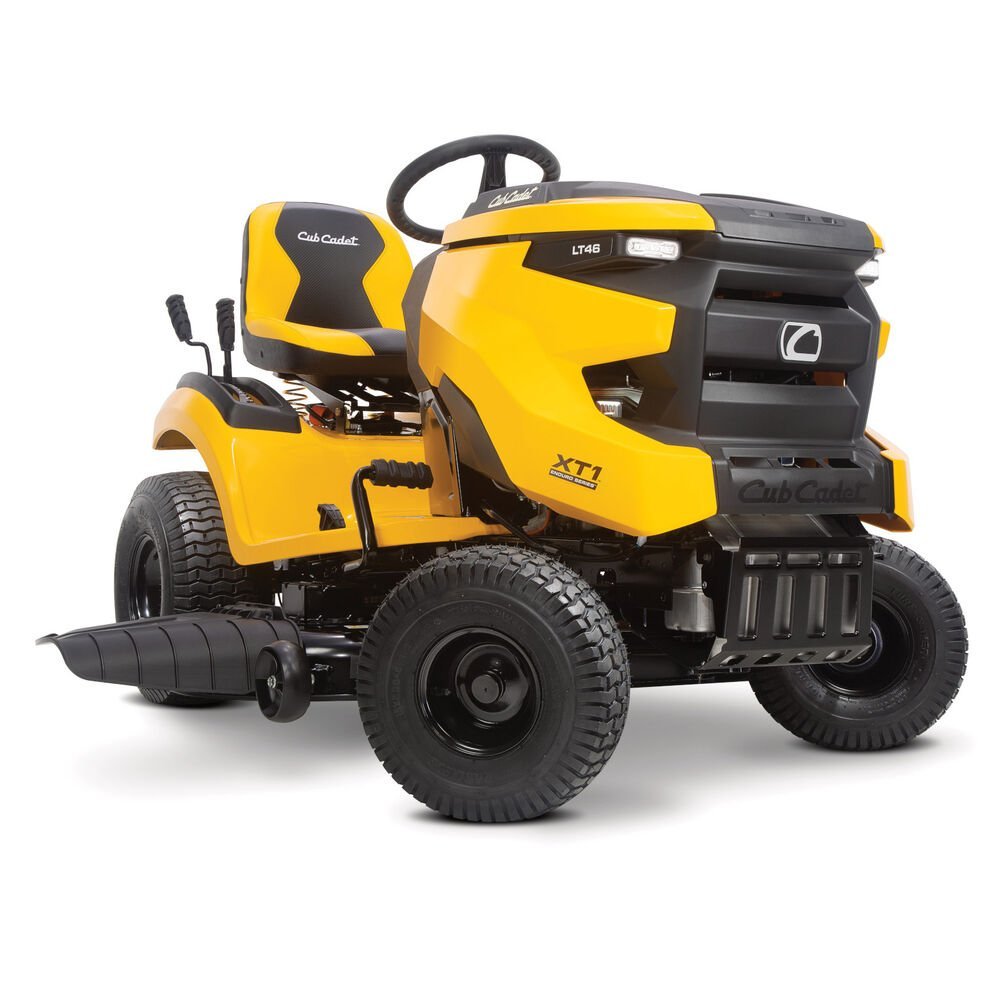

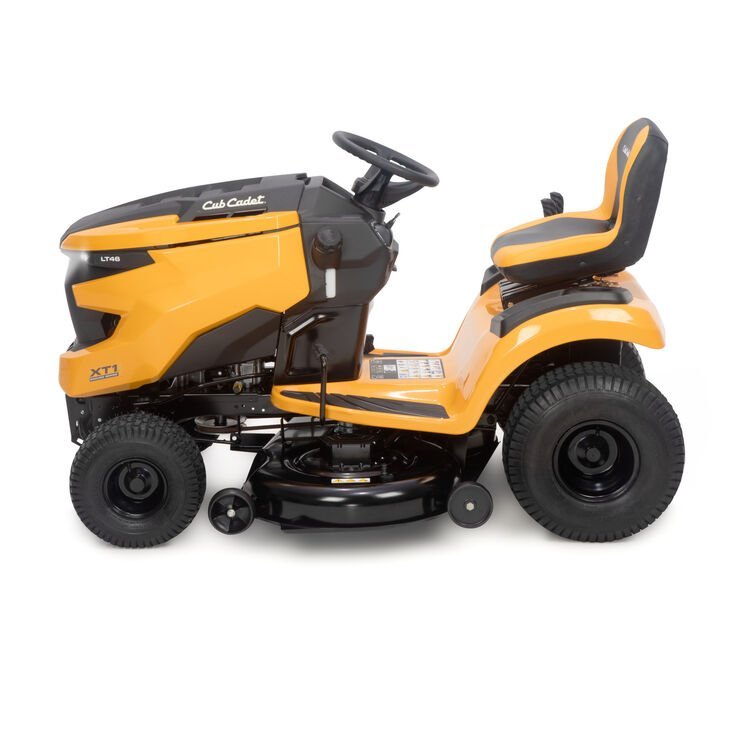

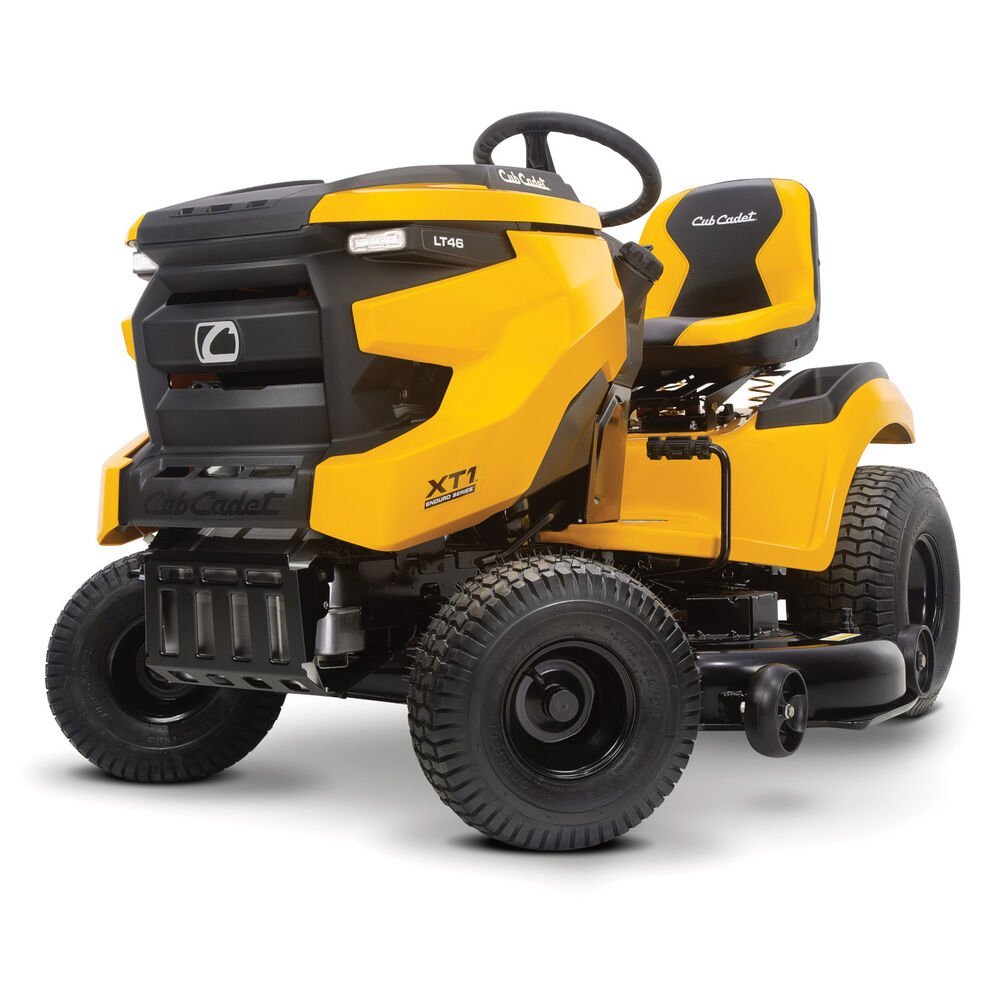

The Cub Cadet XT1-LT 46 13APA9TTA10 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 13APA9TTA10. Key specifications for this configuration include engine brand: Kohler KT722; model: 13apa9tta10: Description: MOWER:NX15 LT46 SD TL200 CC; deck cutting width: 46″; engine power: 22HP.
Key Features
- JDF SKU: 13APA9TTA10
- Engine Brand: Kohler KT722
- Model: 13APA9TTA10: Description: MOWER:NX15 LT46 SD TL200 CC
- Deck Cutting Width: 46″
- Engine Power: 22HP
- Engine Displacement: 747cc
- Transmission: Tuff Torq® TL-200
- Transmission Housing: Die-Cast Aluminum
- Transmission Type: Tuff Torq TL-200
- Area Capacity: 1.5 acres
- Cutting Height Range: 1″ – 4″
Product Highlights
- Deck construction: the published configuration uses 12-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests and suspension support.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kohler KT722 |
| Model / MPN | 13APA9TTA10 |
| Model: 13APA9TTA10 | Description: MOWER:NX15 LT46 SD TL200 CC |
| JDF SKU | 13APA9TTA10 |
| Deck Cutting Width | 46″ |
| Engine Power | 22HP |
| Engine Displacement | 747cc |
| Transmission | Tuff Torq® TL-200 |
| Transmission Housing | Die-Cast Aluminum |
| Transmission Type | Tuff Torq TL-200 |
| Area Capacity | 1.5 acres |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| Air Filter | Dual element |
| Anti-Scalping | 2 ball, 2 narrow |
| Arm Rests | No |
| Bagger | Optional |
| Battery | 12V 210 cold crank amps |
| Blade(s) | 2 |
| BLADES ORDER 2 | 742P05510 OR SET 490-110-C192 |
| Brakes | disc |
| Charging System | 12 amp regulated |
| Corrosion Protection | Yes |
| Cruise Control | Yes |
| Cup Holder | Included |
| Cutting Modes | Discharge/mulch/bagging |
| Cylinders/Material | Twin |
| Deck Attach/Removal | QuickAttach™ (no tools required) |
| DECK BELT | 954-05022A |
| Deck Construction | Stamped |
| Deck Engagement (PTO) | Manual lever |
| Deck Lift | Lever |
| Deck Material | Steel, 12-gauge |
| Deck Positions | 12 positions |
| Deck Shell | Lifetime Limited |
| Deck Wash | Included |
| Discharge Chute | Included |
| DRIVE BELT | 954-05027B |
| Engine Oil Capacity | 2 qts. |
| Engine Start | Key |
| Floor Mats Traction | Rubber |
| Forward Speed | 5.5 MPH |
| Frame | Robotically welded |
| Front Axle | Cast iron |
| FUEL FILTER | 25 050 22-S1 |
| Fuel Tank Capacity | 3.0 gal. |
| Headlight(s) | 2 – LED |
| IGNITION KEY | 925-1745A |
| Mulch Kit | Optional |
| Oil Filter | Yes |
| Operator Presence System | Included |
| Rear Axle | 3/4″ w/dual PM steel drive hubs |
| Rear Tow Hitch | Included |
| Reverse Speed | 3 MPH |
| Seat Suspension | Seat spring |
| Seat Type | 15″ high-back seat |
| SPARK PLUG | 25 132 14-S OR RC12YC |
| Spindle Construction | 3/4″ with steel cap and Triple Lip Sealed |
| Steering Control | Manual sector and pinion |
| Turning Radius | 16″ |
| XTREME BLADES | 742P05510-X OR SET 490-110-C203 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 13APA9TTA10 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
