Product Overview

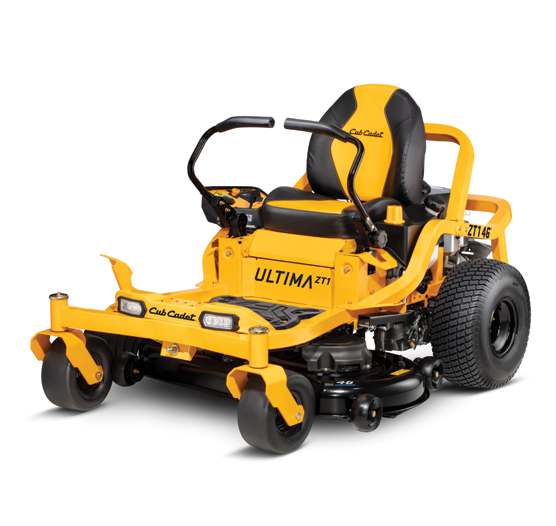

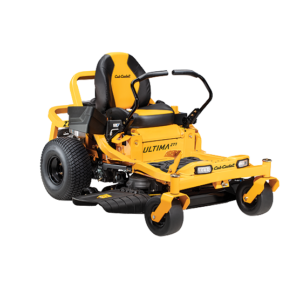

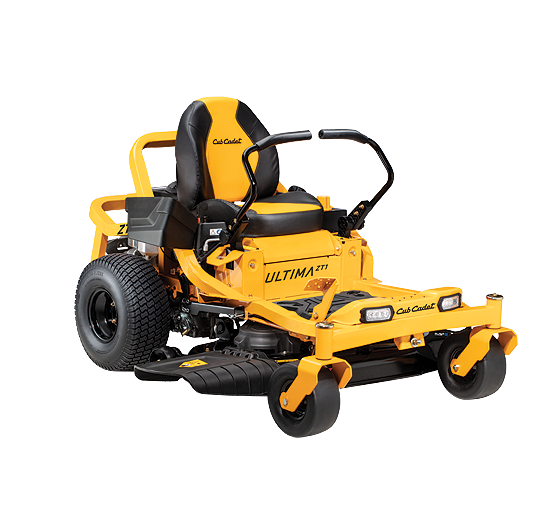

The CUB CADET ULTIMA ZT1 46 FAB 17RIEACN010 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 17RIEACN010. Key specifications for this configuration include engine brand: Kawasaki®; engine model: FR Series; engine model number: 651V; model: 17rieacn010: Description: MOWER:ZT 46FAB DZT CC.
Key Features
- JDF SKU: 17RIEACN010
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 651V
- Model: 17RIEACN010: Description: MOWER:ZT 46FAB DZT CC
- Cutting Width: 46 in
- Engine Output: 21.5HP
- Engine Displacement: 726cc
- Transmission: Hydro-Gear EZT 2200
- Cutting Height Range: 1” – 4.5”
- Maximum Speed: 7 MPH
Product Highlights
- Deck construction: the published configuration uses 11-gauge fabricated or welded steel.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Kawasaki® |
| Engine Model | FR Series |
| Engine Model Number | 651V |
| Model / MPN | 17RIEACN010 |
| Model: 17RIEACN010 | Description: MOWER:ZT 46FAB DZT CC |
| JDF SKU | 17RIEACN010 |
| Cutting Width | 46 in |
| Engine Output | 21.5HP |
| Engine Displacement | 726cc |
| Transmission | Hydro-Gear EZT 2200 |
| Cutting Height Range | 1” – 4.5” |
| Maximum Speed | 7 MPH |
| Fuel Capacity | 3.5 gal |
| Battery Voltage | 12V |
| Air Filter | Dual element |
| Anti-Scalping | 2 gauge wheels |
| Armrests | No |
| Battery | 210 CCA |
| Battery Type | AGM (Absorbent Glass Mat) |
| Blade(s) | 2 |
| BLADES | 742P05510 OR SET 490-110-C192 |
| Brakes | Disc |
| Charging System | 12 amp regulated |
| Choke | Separate Choke |
| Corrosion Protection | Yes |
| Cruise Control | No |
| Cup Holder | Yes |
| Cylinders | Twin |
| DECK BELT | 754P06135 OR 490-501-C082 |
| Deck Construction | Fabricated |
| Deck Cutting | Width 46″ |
| Deck Engagement | (PTO) Electric |
| Deck Lift | Foot pedal with Dial Adjust |
| Deck Material | 11-gauge steel |
| Deck Positions | 15 |
| Deck Wash | No |
| DRIVE BELT | 954-04317A |
| Drive System | Hydrostatic |
| ENGINE OIL | 490-000-C044 |
| Engine Oil Capacity | 2.0 qt. US (1.89 L) |
| Engine Start | Ignition Key |
| Forward Speed | 7 MPH / 11.3 km/h |
| Frame | 2” x 2” tubular steel |
| Front Caster Suspension | No |
| Front Tires | 11″x 6″-5″ |
| Fuel Delivery | Carburetor |
| FUEL FILTER | KM-49019-0031 |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.5 gal. US (13.25 L) |
| Governor | Mechanical |
| Headlight(s) | Dual-LED |
| Hour Meter | No 490-900-C075 |
| HOUR METER KIT | 490-900-C075 |
| IGNITION KEY | 925-1745A |
| Lubrication | Fully pressurized |
| Mulch Kit | Available separately |
| Oil Filter | Yes |
| Operator Presence System | Yes |
| Parking Brake | Lap Bar Integrated |
| Rear Tires | 20”x 8”-8″ |
| Rear Tow Hitch | Yes |
| Reverse Speed | 3.5 MPH / 5.6 km/h |
| ROPS | No |
| Seat Adjustment | Knob |
| Seat Type | 20″ high back |
| SPARK PLUG | KM-BPR4ES |
| Starter Type | Electric |
| Steering Control | Lap Bars |
| Tire Tread | Turf Master / Multi Trac |
| Turning Radius | 0° |
| XTREME BLADES | 742P05510-X OR SET 490-110-C203 |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 17RIEACN010 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
