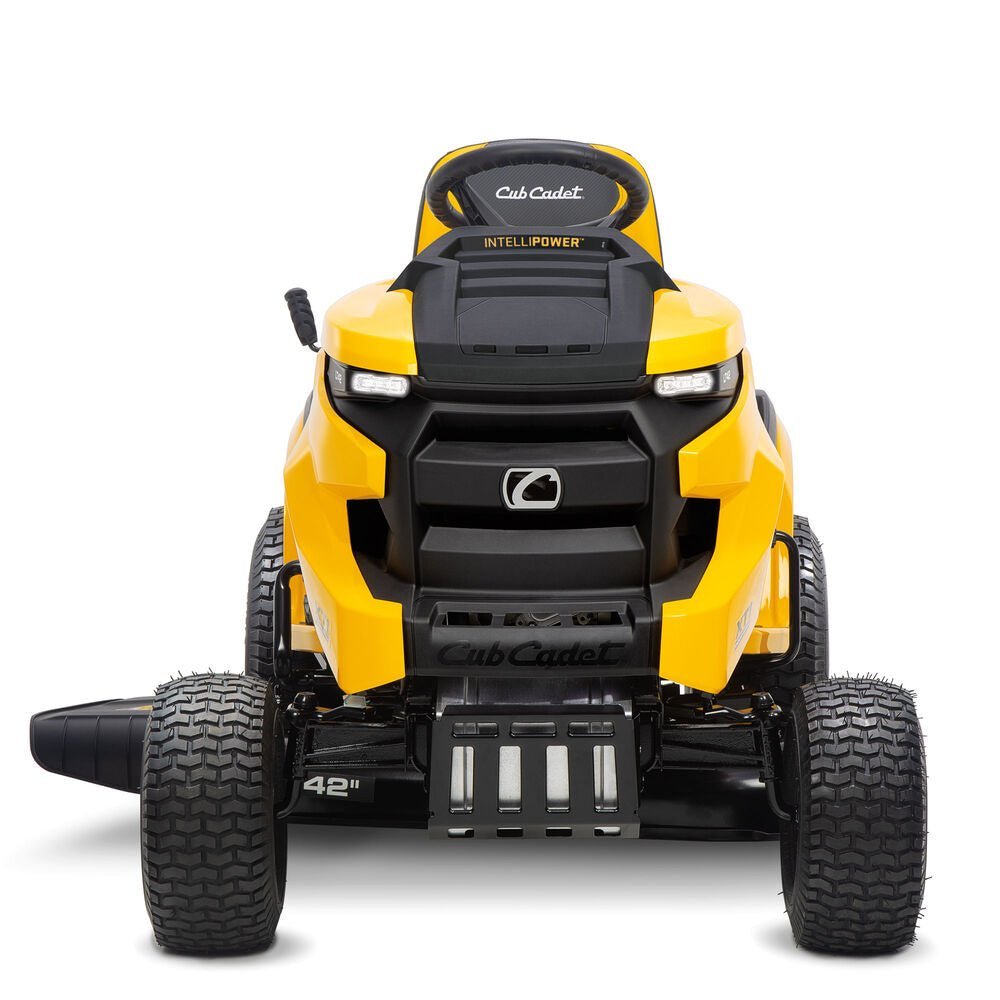

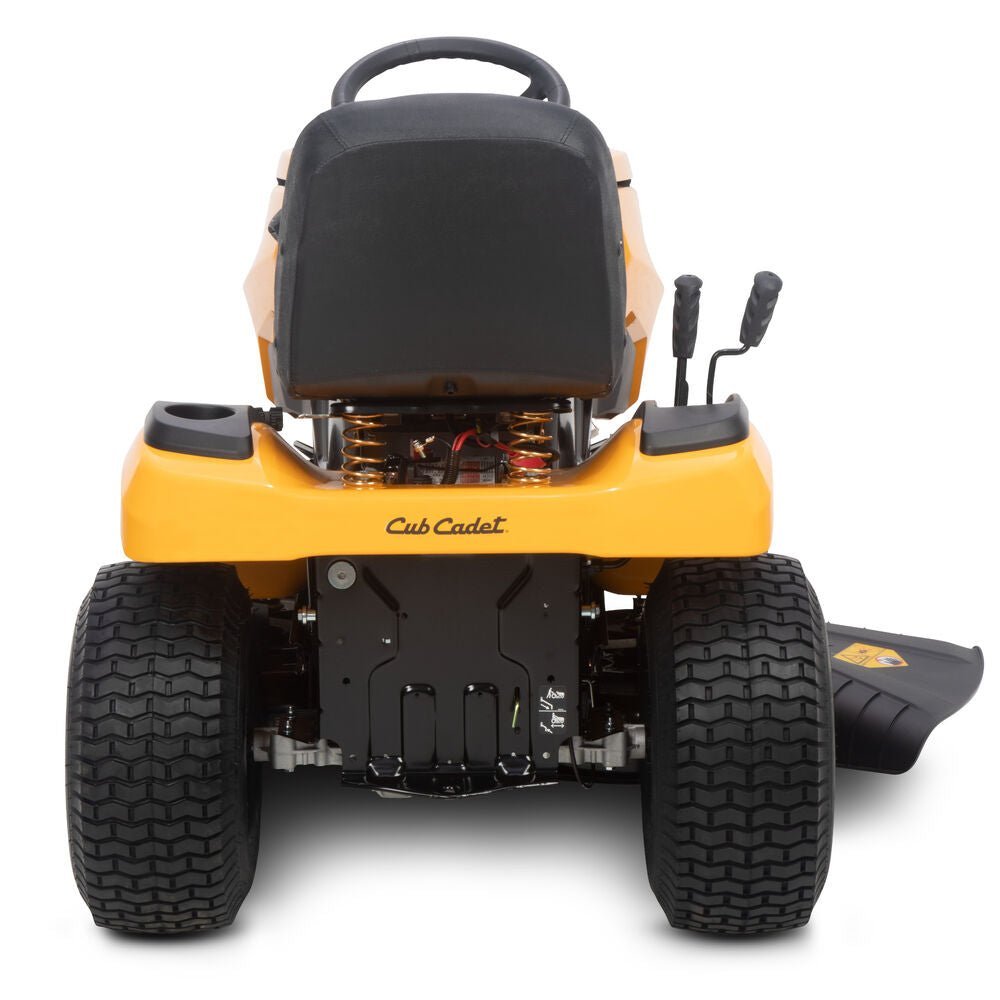

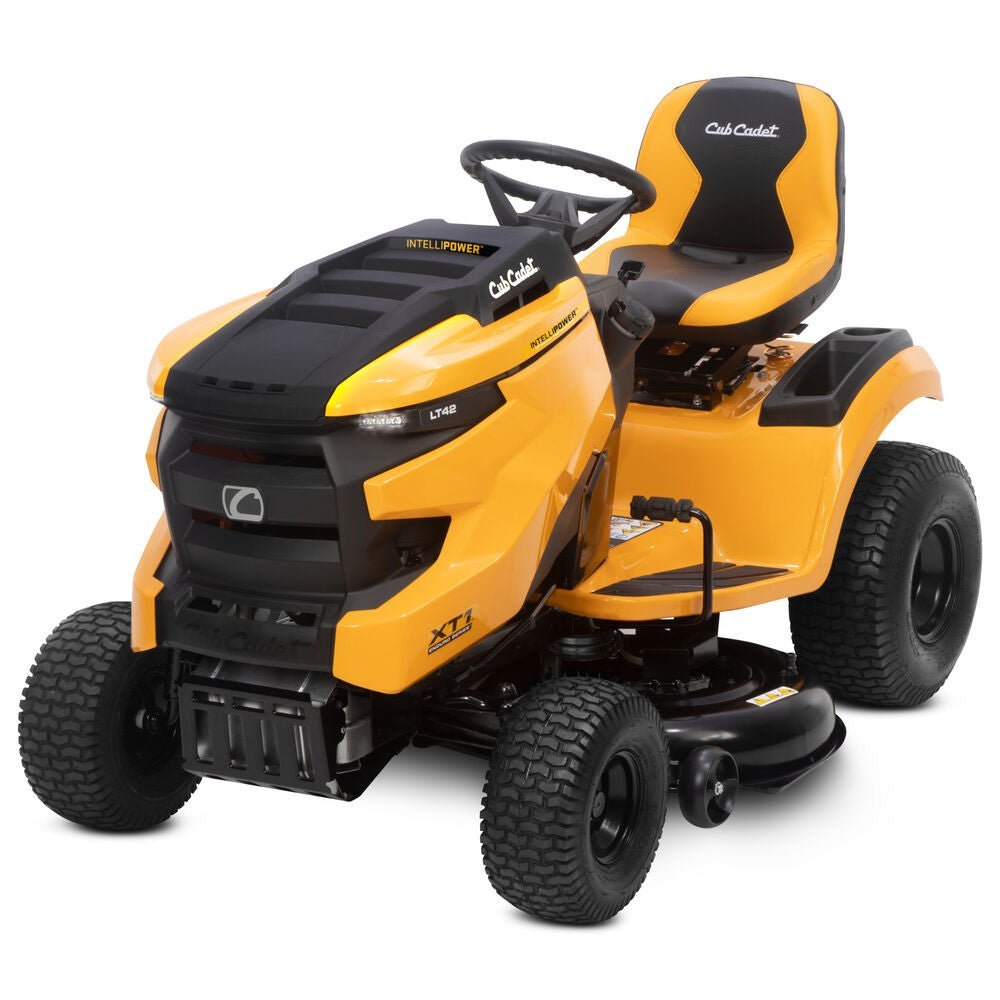

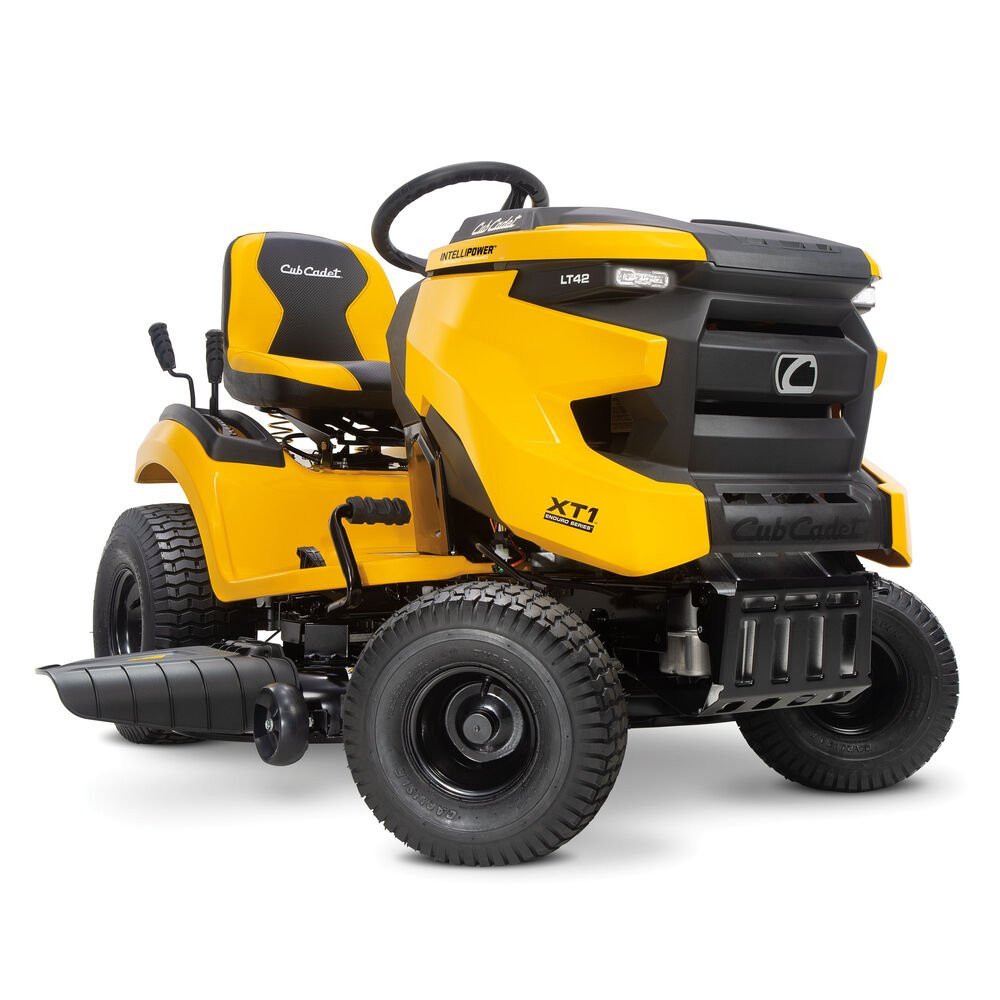

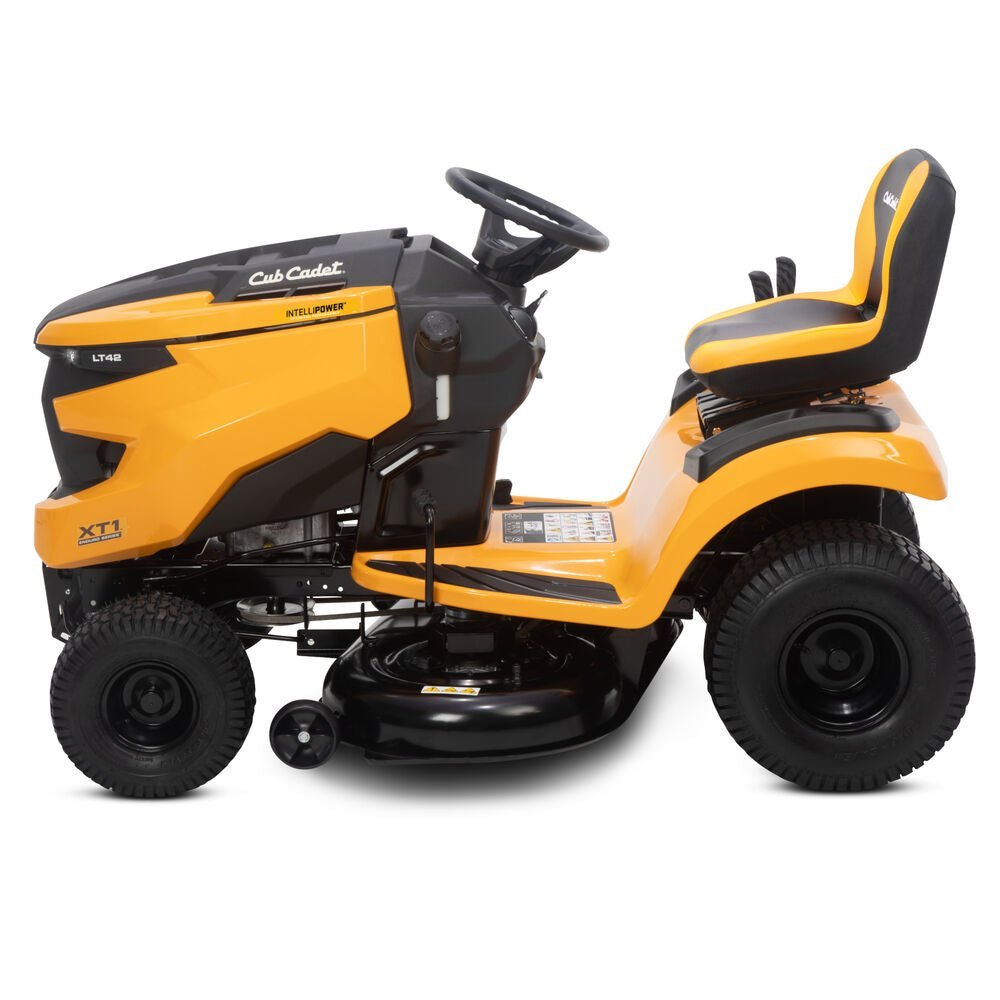

Product Overview
The Cub Cadet XT1-LT 42 IP 13A6A9TS010 is a Cub Cadet lawn-care equipment product listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 13A6A9TS010. Key specifications for this configuration include engine brand: Cub Cadet®; model: 13a6a9ts010: Description: MOWER:NX15 LT42 SD TL200 CC; deck cutting width: 42″; engine displacement: 547cc.
Key Features
- JDF SKU: 13A6A9TS010
- Engine Brand: Cub Cadet®
- Model: 13A6A9TS010: Description: MOWER:NX15 LT42 SD TL200 CC
- Deck Cutting Width: 42″
- Engine Displacement: 547cc
- Transmission: Hydrostatic, foot
- Transmission Housing: Aluminum
- Transmission Type: Tuff Torq TL-200
- Cutting Height Range: 1″ – 4″
- Maximum Speed: 5.5 MPH
- Fuel Capacity: 3.0 gal
Product Highlights
- Deck construction: the published configuration uses 13-gauge fabricated or welded steel.
- Operator station: a high-back seat is identified with armrests.
Product Specifications
| Brand | Cub Cadet |
|---|---|
| Engine Brand | Cub Cadet® |
| Model / MPN | 13A6A9TS010 |
| Model: 13A6A9TS010 | Description: MOWER:NX15 LT42 SD TL200 CC |
| JDF SKU | 13A6A9TS010 |
| Deck Cutting Width | 42″ |
| Engine Displacement | 547cc |
| Transmission | Hydrostatic, foot |
| Transmission Housing | Aluminum |
| Transmission Type | Tuff Torq TL-200 |
| Cutting Height Range | 1″ – 4″ |
| Maximum Speed | 5.5 MPH |
| Fuel Capacity | 3.0 gal |
| Battery Voltage | 12V |
| AIR FILTER | 937-05066 |
| Anti-Scalping | 2 gauge wheels |
| Armrests | No |
| Bagger | Optional |
| Battery | 12V 210 cold crank amps |
| Blade(s) | 2 |
| BLADES ORDER 2 | 742P05177 |
| Brakes | Disc |
| Bumper | No |
| Charging System | 15 amp regulated |
| Choke | Choke-a-matic |
| Corrosion Protection | Yes |
| Cruise Control | Yes |
| Cup Holder | Included |
| Cylinders/Material | Single |
| Deck Attach/Removal | QuickAttach™ (no tools required) |
| DECK BELT | 954-05021 |
| Deck Construction | Stamped |
| Deck Engagement (PTO) | Manual lever |
| Deck Lift | Lever |
| Deck Material | Steel, 13-gauge |
| Deck Positions | 12 positions |
| Deck Shell | 3-year unlimited hours |
| Deck Wash | Included |
| Discharge Chute | Included |
| DRIVE BELT | 954-05027B |
| ENGINE Oil | 490-000-C044 |
| Engine Oil Capacity | 1.8 qts. |
| Engine Start | Key |
| Floor Mats Traction | Rubber |
| Forward Speed | 5.5 MPH |
| Frame | Robotically welded |
| Front Axle | Cast iron |
| Front Wheels | 15″x 6″-6″ Turf Saver |
| FUEL FILTER | 951-3013 |
| Fuel Gauge | No |
| Fuel Tank Capacity | 3.0 gal. |
| Headlight(s) | 2 – LED |
| Hour Meter | Available Separately 490-900-C075 |
| IGNITION KEY | 925-1745A |
| Mulch Kit | Available Separately 19A30046100 |
| Oil Filter | Yes |
| Operator Presence System | Included |
| Pre Filter | Included with air filter |
| Rear Axle | 3/4″ |
| Rear Tow Hitch | Included |
| Rear Wheels | 20″x 8″-8″ Turf Saver |
| Reverse Speed | 3.1 MPH |
| Seat Adjustment | Lever |
| Seat Type | 15″ high-back seat |
| SPARK PLUG | 951-10292A |
| Steering Control | Manual sector and pinion |
| TRANS FLUID | TT-187Q0899000 |
| Turning Radius | 16″ |
| XTREME BLADES | 742P05177A-X |
Application and Compatibility
Confirm model identity, dimensions, power requirements, compatibility, included equipment, and delivery needs before ordering.
Before You Order
- Use JDF SKU 13A6A9TS010 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
