Product Overview
Challenger SX14-FM Flush Mount Heavy-Duty Scissor Alignment Lift Package 14,000 lbs
The Challenger SX14-FM is a premium flush mount scissor alignment lift engineered for professional shops requiring precision wheel alignment capabilities combined with heavy-duty lifting performance. With a robust 14,000 lbs capacity, this ALI certified alignment rack delivers the reliability and accuracy needed for today's light-duty trucks, SUVs, crossovers, and passenger vehicles. The flush mount installation provides a clean, professional shop appearance with no protruding above-grade components, making it ideal for high-traffic bays where space efficiency and aesthetics matter.
Challenger SX14-FM series scissor lifts are designed for easy operation and vehicle loading. The adjustable turn plates accommodate a wide range of wheelbase alignments, from compact cars to extended wheelbases up to 183 inches. Advanced features like photo cell runway synchronization, automatic LED lighting, and maintenance-reduced rear slip plates with oversized encapsulated bearings ensure smooth, reliable operation shift after shift. This complete alignment lift package includes two rolling jacks, a pair of turn plates, and an airline kit for dual jack operation everything you need to start performing precision alignments right out of the box.
Key Features & Advantages
The SX14-FM flush mount design offers a streamlined installation with a lowered profile that sits flush with your shop floor. Unlike surface-mounted models, the SX14-FM maximizes your ceiling clearance with a 66½" raise height while maintaining full alignment functionality. The extra-wide 25½" platform width with 40 inches between platforms accommodates both single and dual rear wheel vehicles with ease.
Twin hydraulic cylinders provide balanced, smooth lifting action, while the single point air actuated lock release allows technicians to engage and disengage locks from an ergonomic working height—reducing fatigue and increasing productivity during long alignment sessions. Approach ramps equipped with end rollers minimize noise and reduce floor damage as vehicles drive onto the lift. The integrated automatic lighting feature illuminates the vehicle's underside during service and automatically shuts off when the lift is lowered below 18 inches, conserving energy and extending bulb life.
Built for durability, the lift features a powder coat finish that resists corrosion and shop chemicals, ensuring long-lasting appearance and performance. With 208v-240v single phase power requirements and a recommended minimum bay size of 14' x 28', the SX14-FM integrates seamlessly into most professional shop environments. ALI certified for safety and quality assurance, this flush mount alignment lift represents a smart investment for shops committed to precision wheel service.
Why Choose the Challenger SX14-FM?
- Flush Mount Installation: Clean, professional appearance with no above-grade protrusions—maximizes ceiling clearance and shop aesthetics
- 14,000 lbs Heavy-Duty Capacity: Handles light-duty trucks, full-size SUVs, crossovers, and passenger vehicles with confidence
- Complete Alignment Package: Includes two rolling jacks, turn plates, and airline kit—ready to perform precision alignments immediately
- Advanced Synchronization: Photo cell technology ensures both runways lift and lower in perfect unison for safe, balanced operation
- ALI Certified: Meets rigorous safety and quality standards for automotive lifting equipment
Technical Highlights
The Challenger SX14-FM is engineered with an overall width of 91¼" and an overall length of 219", offering a generous working area for vehicle positioning and alignment procedures. The lift accommodates a maximum wheelbase of 183 inches, with a maximum wheel alignment capacity of 176 inches and a minimum 4-wheel alignment of 70¾ inches. The adjustable control positioning allows 24" to 64" width and 40" to 74" length flexibility, so you can tailor the console placement to your bay layout.
Powered by a reliable 3P motor running on 208v-240v, 1 Phase, 60Hz, the lift operates efficiently in standard shop electrical environments. The unit ships in two primary packages: the main lift assembly at 212" L x 32" W x 50" H and 6,800 lbs, plus the console at 17" L x 24" W x 52" H and 330 lbs. Available in black only, the lift's professional appearance complements any modern service facility.
Additional Resources
Product Features
- Extra wide runway width accommodates single and dual rear wheel vehicles
- Photo cell ensures runway synchronization
- Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
- Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
- Twin hydraulic cylinders provide smooth operation
- Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
- Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
- Powder coat finish provides long-lasting durability
- Flush mounted
- ALI certified
Package Includes

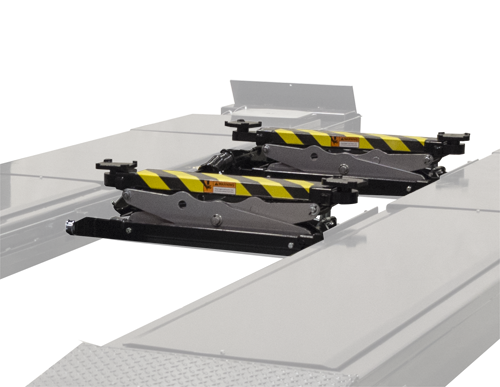

- Two Rolling Jacks
- Pair of Turn Plates
- Airline Kit for Dual Jack Operation
Product Specifications
Model Number
SX14
SX14-ER
(Extended Approach Ramps)
SX14-FM
Lift Capacity
14,000 lbs.
Installation
Surface Mount
Flush mount
A Overall Width
91 ¼"
B Overall Length
265”
283"
219”
C Distance between Platforms*
40"
D Platform Width
25 ½"
E Raise Height
77"
66 ½"
F Lowered Height
10 ½"
N/A
G Max Wheelbase**
183"
H Max Wheel Alignment
176"
I Min 4-Wheel Alignment
70 ¾"
J Distance to Controls Width
24" min – 64" max
K Distance to Controls Length
40" min – 74" max
Motor
3P
Voltage
208v – 240v 1 Phase 60Hz
Minimum Recommended Bay Size
14' x 28'
Lift Shipping Dimensions
212" L x 32" W x 50" H
Lift Shipping Weight
6,800 lbs
Console Shipping Dimensions
17" L x 24" W x 52" H
Console Shipping Weight
330 lbs
Available in Black Only
* Dimension between Runway Sidewalls, not Jack Rails.
** Wheelbase is based on a tire diameter of 30”
Key Features
- Published product configuration: Challenger SX14-FM Flush Mount Heavy-Duty Scissor Alignment Lift Package 14,000 lbs The Challenger SX14-FM is a premium flush mount scissor alignment lift engineered for professional shops requiring precision wheel alignment capabilities combined with heavy-duty lifting performance. With a robust 14,000 lbs capacity
- Exact manufacturer model or part number: SX14-FM-V001
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | SX14-FM-V001 |
| MPN / Model | SX14-FM-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model SX14-FM-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
