Product Overview

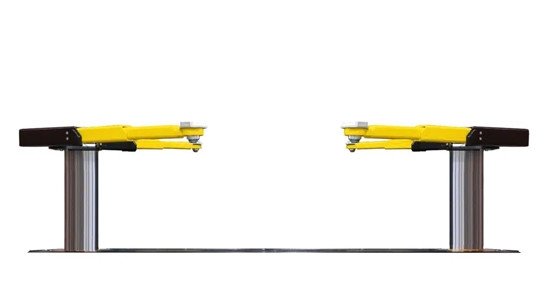

Challenger EW1220 Wide Inground ALI Car Lift 12,000 lb. Capacity
The Challenger EW1220 is a professional-grade 12,000 lb. capacity hydraulic inground lift engineered specifically for servicing today's widest vehicles — including heavy-duty trucks, electric vehicles, and large SUVs. With an industry-leading 88" drive-through clearance, this ALI-certified lift can accommodate extra-wide models like the RAM TRX, Hummer EV, Tesla Model X, and Ford Mach-E with ease. The EW1220's innovative design allows for battery lowering operations on electric vehicles, making it an essential tool for modern automotive service facilities preparing for the future of vehicle repair.
Built with true 3-stage arms at both front and rear positions, the EW1220 delivers exceptional reach flexibility with arm extension ranging from 20.125" to 48.125". Each arm is rated for 3,500 lbs. capacity, and the lift features double-telescoping screw pads with adjustable height from 4" to 6.125" for secure, precise vehicle positioning. The lift achieves a 78" rise height with a smooth 72" stroke, providing ample working clearance beneath even large trucks and SUVs.
Important Configuration Update – Integrated Power Unit Design
Configuration Change Notice: Integrating the Powerunit & Controls Under the Bench
Due to the recent move to the DLH power units on the EW and EV Series inground lifts, the configuration for the cabinet door for bench mount levered controls will change. Please make sure that when using BML controls with ingrounds, you account for this configuration change.
NOTE: The BMC configuration will not change.
Control System Resources:
BMC Configuration & Bench Mount Lever (BML-DLH)
Key Performance Highlights

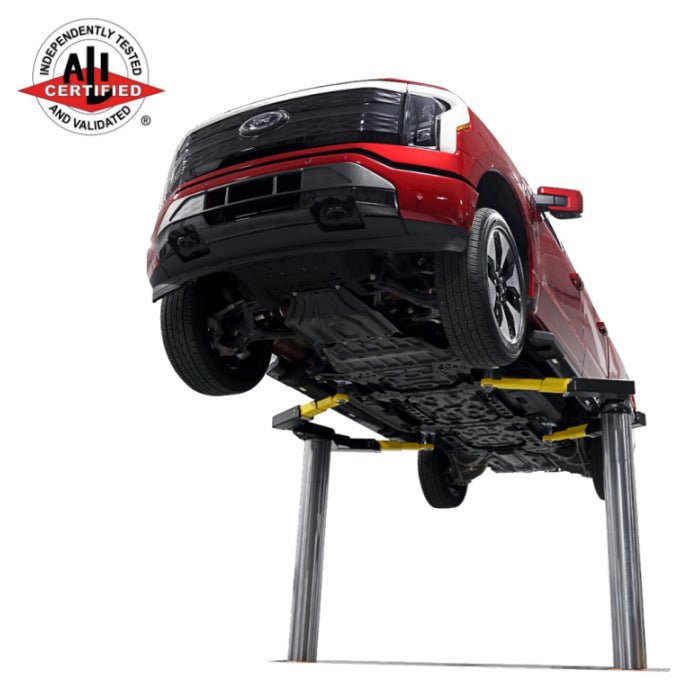

- Extra-Wide 88" Drive-Through Clearance Accommodates wide-body trucks, electric vehicles, and full-size SUVs including RAM TRX, Hummer EV, Tesla Model X, and Ford Mach-E
- True 3-Stage Front & Rear Arms Superior reach adjustment from 20.125" to 48.125" with 3,500 lb. capacity per arm for flexible vehicle positioning
- Electric Vehicle Ready Designed to allow battery-lowering operations for safe EV service and repair work
- Fast 63-Second Rise Time Efficient operation with a 78" maximum rise height and 72" stroke for excellent undercarriage access
- ALI Certified Meets rigorous safety and performance standards set by the Automotive Lift Institute
Advanced Inground Design for Modern Vehicles
The EW1220 delivers the extra width that modern vehicles demand. With a 121.5" overall width and 88" drive-through clearance, this inground lift provides unmatched access for wide-bodied vehicles that simply won't fit on standard lifts. Whether you're servicing heavy-duty pickup trucks with wide fender flares or next-generation electric vehicles with wider wheelbases, the EW1220 ensures safe, stable lifting every time.
Powered by a robust 2HP motor (208v-230v, 60Hz, 1Ph), the lift operates efficiently with air requirements of 90-120 psi. The hydraulic system delivers a smooth, controlled rise in just 63 seconds, allowing technicians to work faster without sacrificing precision or safety. Double-telescoping screw pads provide secure contact points with adjustable height from 4" to 6.125", ensuring compatibility with a wide range of vehicle undercarriage designs.
The EW1220 is available in Black, Red, or Blue powder coat finishes, allowing you to customize the look of your shop while benefiting from durable, corrosion-resistant protection. Bench-mounted controls are available as an optional upgrade for convenient operation placement.
Optional QuickCycle Upgrade Available
Want even faster cycle times for high-volume service operations? The EW1220 is compatible with the optional QuickCycle system (sold separately), which can dramatically reduce rise and lower times to maximize shop productivity.
Product Features
- 3-Stage Front & Rear Arms
- 88″ Drive-Thru clearance
- QuickCycle Available (Not Included)
Product Specifications
Specifications
EW1220
Lift Capacity
12,000 lbs.
Capacity per Arm
3,500 lbs.
Arms
3-stage front/3-stage rear
Arm Reach
20.125" – 48.125"
Screw Pad Height
4" – 6.125"
Width Overall 118"
121.5"
Drive-Thru Clearance
88"
Rise Height
78"
Stroke
72"
Speed of Rise
63 seconds
Air Required
90 – 120 psi
Motor
2HP, 208v-230v, 60Hz, 1Ph
Available in Black, Red or Blue
Key Features
- Published product configuration: Challenger EW1220 Wide Inground ALI Car Lift 12,000 lb. Capacity The Challenger EW1220 is a professional-grade 12,000 lb. capacity hydraulic inground lift engineered specifically for servicing today's widest vehicles — including heavy-duty trucks, electric vehicles, and large SUVs. With an industry-leading 88"
- Exact manufacturer model or part number: EW1220-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 5 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | EW1220-V001 |
| MPN / Model | EW1220-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model EW1220-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
