Atlas® 414 Commercial Grade 4 Post Lift 14,000 lbs
Important: 4-Post Cylinder Bleeding Procedure
This procedure must be performed immediately after installation to ensure optimal lift performance.

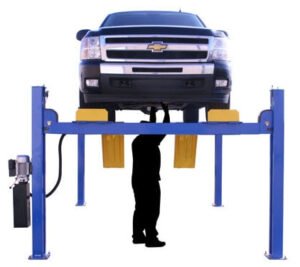

The Atlas® 414 is a commercial-grade 4-post lift engineered to deliver professional-level performance for shops and facilities working with heavy-duty vehicles. With a robust 14,000 lb. capacity, extra tall 80" lifting height, and extra wide 116" clearance between columns, this lift accommodates a wide range of trucks, vans, SUVs, and larger vehicles with ease. Built from heavy-duty steel and finished with a durable powder coat, the Atlas® 414 is designed and tested to provide many years of reliable service in demanding commercial environments.
The Atlas® 414 incorporates many structural and cosmetic features typically found on lifts costing thousands of dollars more. This lift has been manufactured to the same exacting specifications for many years, ensuring consistent quality and performance. Whether you're running a professional service bay or equipping a serious home garage, the Atlas® 414 delivers the strength, stability, and features you need at an exceptional value.
Superior Lifting Technology

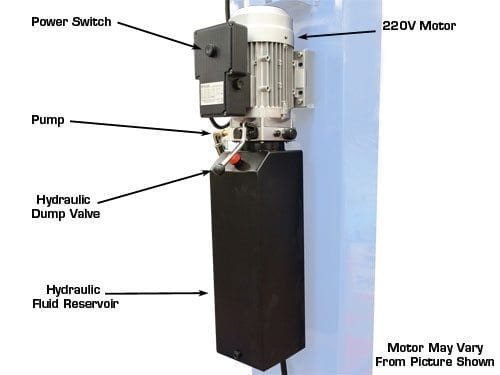

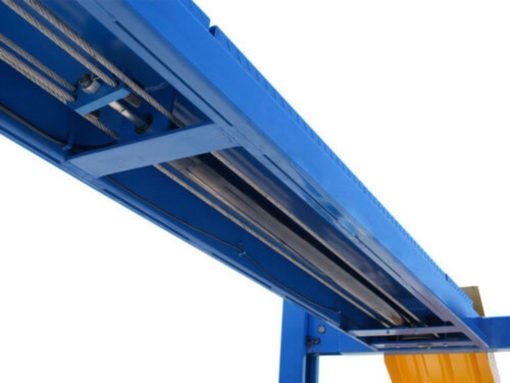

The Atlas® 414 uses an advanced high-strength cable lifting system paired with an under-runway oversized hydraulic cylinder, powered by a 220-volt single-phase power unit. This modern design offers significant advantages over older-style chain lifting systems used by many competitors.
Unlike old-style chain lifts that are difficult to level properly and feature exposed hydraulic cylinders prone to causing door dings, the Atlas® 414's under-runway cylinder design keeps all hydraulic components safely out of the way. This results in a cleaner workspace, easier operation, and better vehicle protection. The cable system is tested to ensure this lift performs flawlessly at its rated 14,000 lb. capacity.
Key Features & Benefits
- 14,000 lb. capacity handles heavy-duty trucks, vans, SUVs, and oversized vehicles with confidence
- Extra tall 80" lifting height (6' 8") – provides ample clearance for extensive undercarriage work

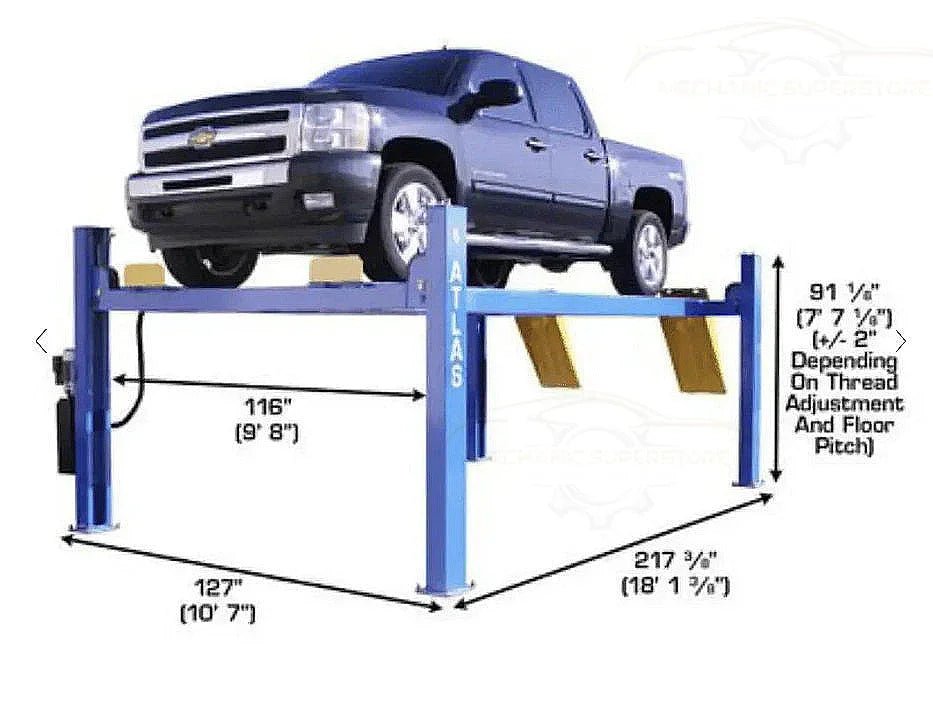

- Extra wide 116" clearance between columns (9' 8") – accommodates wide-body and dually trucks
- Extra long 197 1/4" length between columns (16' 5 1/4") – supports vehicles with extended wheelbases up to 197"

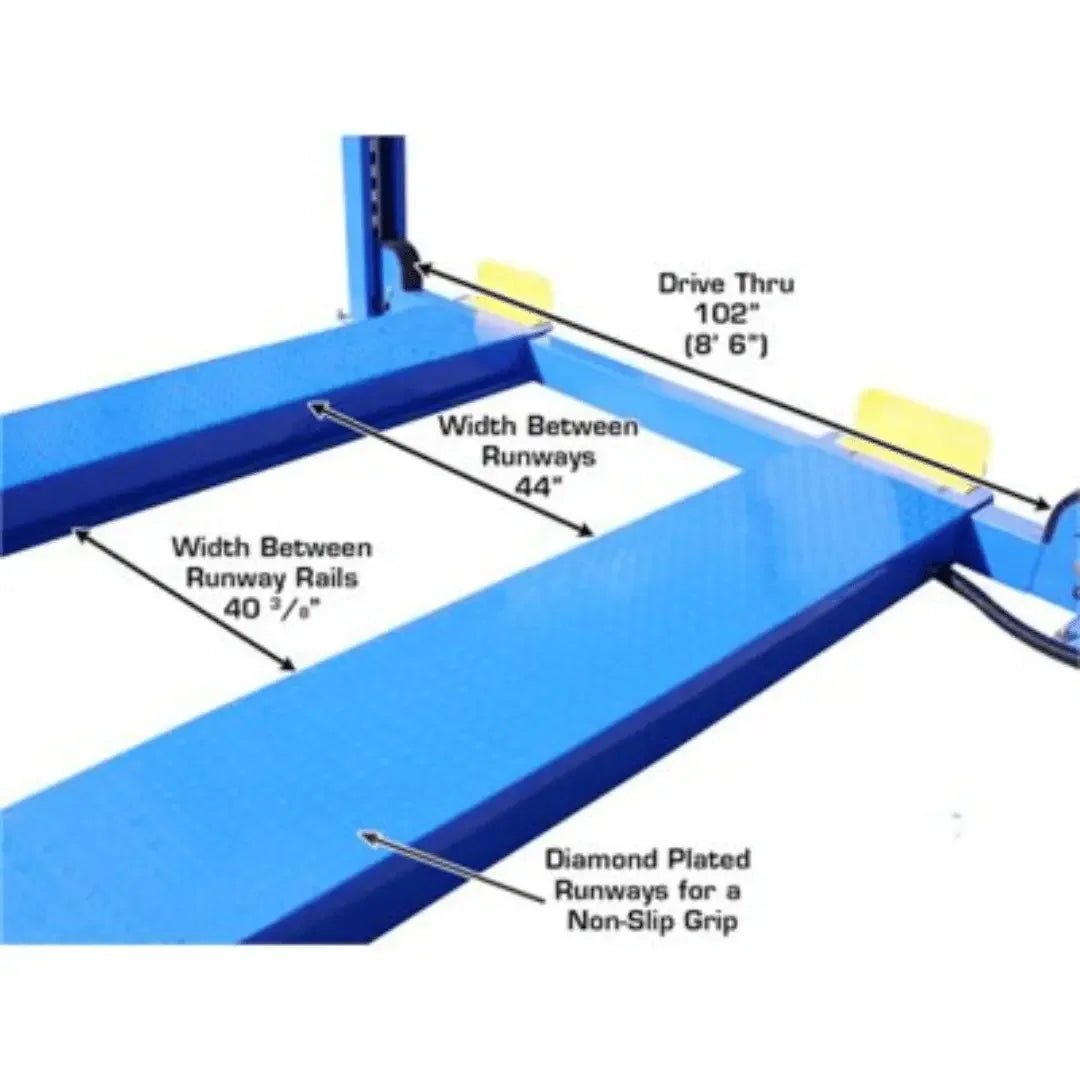

- Diamond-plated runways superior traction and a professional appearance

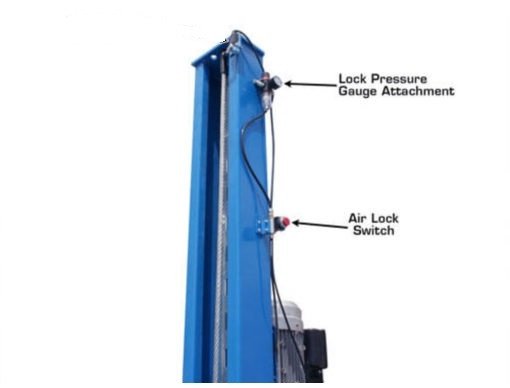

- Air-operated single point lock release fast, convenient unlocking for efficient operation ( external air supply required: 85-115 PSI )

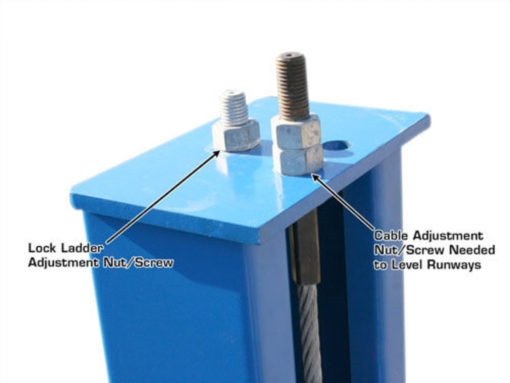

- Lock ladder design with double lock safety system redundant safety locks provide maximum security at any height
- Heavy-duty powder coat finish protects against rust, chemicals, and daily wear

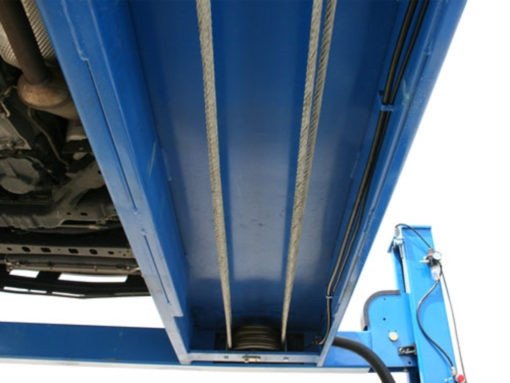

- Under-runway hydraulic cylinder keeps cylinders out of harm's way and prevents door dings
- 220V single-phase operation requires a 30 amp breaker (standard in most commercial facilities)
What's Included
The Atlas® 414 comes complete with everything you need for a professional installation:

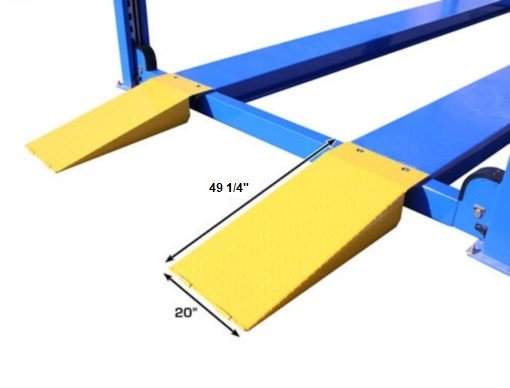

- Steel approach ramps drive on and off safely and smoothly
- Mounting hardware all necessary anchors and fasteners included
- Full installation manual step-by-step instructions for setup
Optional accessories available separately: Additional drive-off ramps and runway extensions can be purchased to further customize your lift for specific applications.
Commercial-Grade Construction You Can Trust
Every Atlas® 414 is designed and built to commercial-grade standards that meet or exceed industry expectations. The lift features heavy-duty structural steel construction, precision-engineered cable and pulley systems, and oversized hydraulic components for long-term reliability under heavy use.

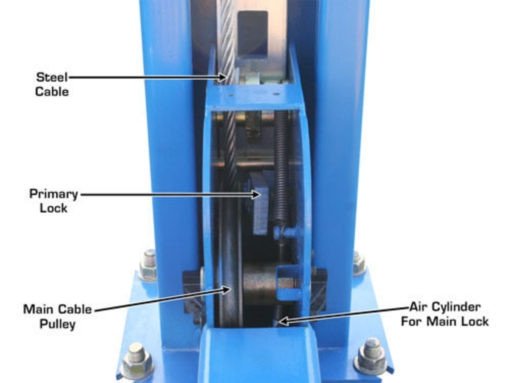

The lock ladder design provides multiple secure locking positions throughout the lift's range, and the double lock safety system ensures that vehicles remain safely elevated even in the unlikely event of a primary lock failure. Combined with the air-operated single point release, you get both maximum safety and operational convenience.
With a shipping weight of 3,100 lbs and robust construction, the Atlas® 414 is a substantial piece of equipment built to last. Installation requires a minimum of 6 inches of concrete with a 3,000 PSI rating to ensure proper anchoring and long-term stability.
Why Choose the Atlas® 414?
- Commercial-grade performance at a competitive price point
- Extra tall, extra wide, extra long design handles the biggest vehicles
- Modern cable lifting system with under-runway cylinder for cleaner, safer operation
- Air-operated lock release for fast, convenient positioning
- Double lock safety system provides peace of mind on every lift
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 3,100 lbs.
Includes
- Steel Approach Ramps
- Mounting Hardware
Product Specifications
Specifications
414
Capacity
14,000 lbs

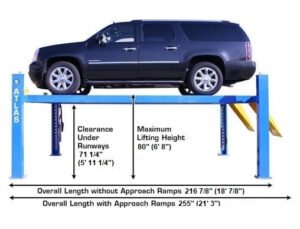

Lifting Height
80" (6' 8")
Height of Columns
91 1/8" (7' 7 1/8")
Overall Width w/ Motor
138 7/8" (11' 6 7/8")
Overall Width w/o Motor
130 7/8" (10' 10 7/8")
Overall Length w/Approach Ramps
255" (21' 3")
Length Between Columns
197 1/4" (16' 5 1/4")
Runway Length
208 5/8" (17' 4 5/8")
Runway Width
20"
Runway Thickness
8 3/4"
Width Between Runways
46 7/8" (w/ Rail 44 3/8")
Outside Runway to Outside Runway
86 7/8" (7' 2 7/8")
Clearance Between Columns
116" (9' 8")
Clearance Under Runways
71 1/4" (5' 11 1/4")
Maximum Wheel Base
197" (16' 5")
Drive Thru
102 1/8" (8' 6 1/8")
Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor
220V / 1 phase / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Weight
3,100 lbs
Requires a minimum of 6" of concrete with a 3000 psi. rating
Key Features
- Published product configuration: Atlas® 414 Commercial Grade 4 Post Lift 14,000 lbs Important: 4-Post Cylinder Bleeding Procedure This procedure must be performed immediately after installation to ensure optimal lift performance. The Atlas® 414 is a commercial-grade 4-post lift engineered to deliver professional-level performance for shops and
- Exact manufacturer model or part number: ATTD-414
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-414 |
| MPN / Model | ATTD-414 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model ATTD-414, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
