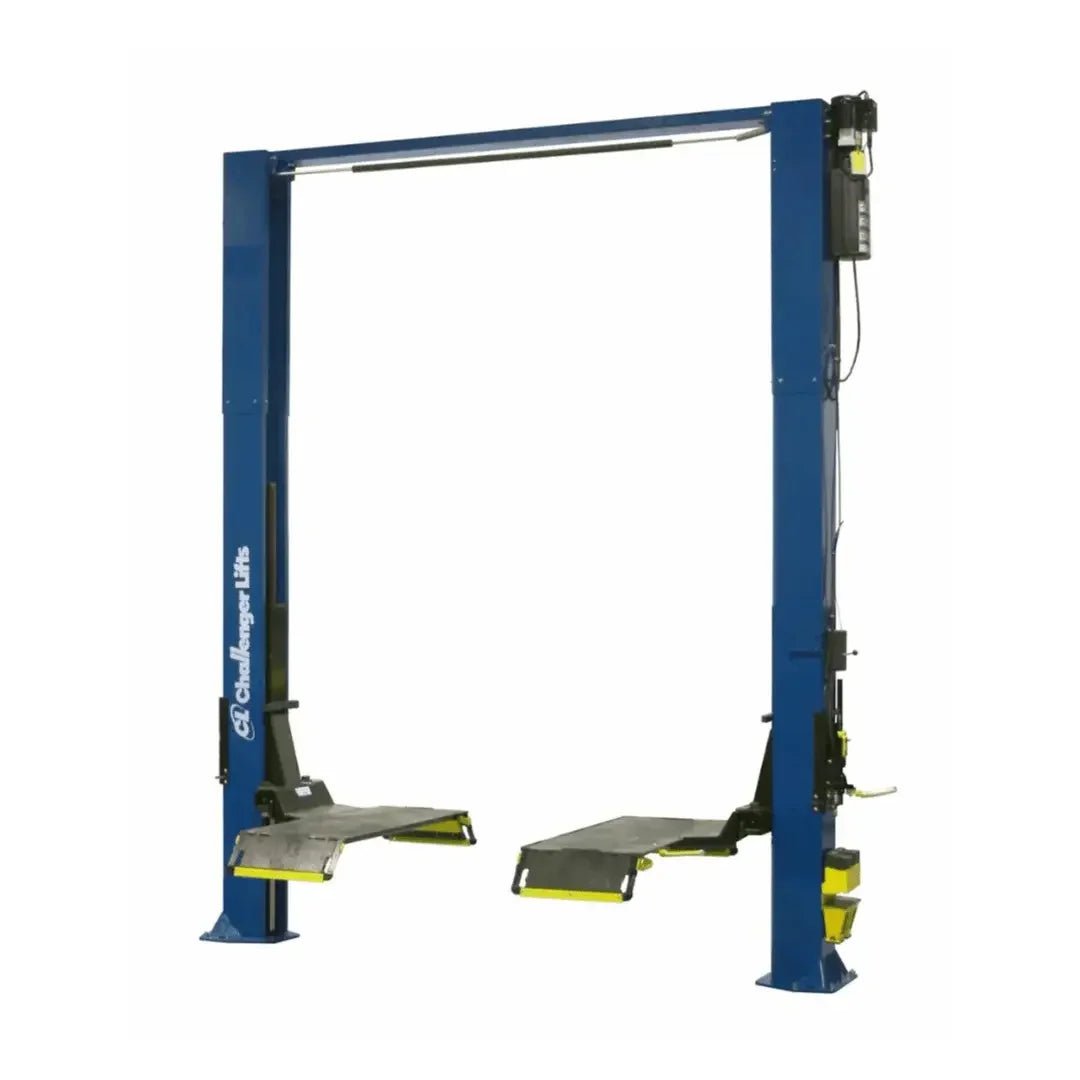

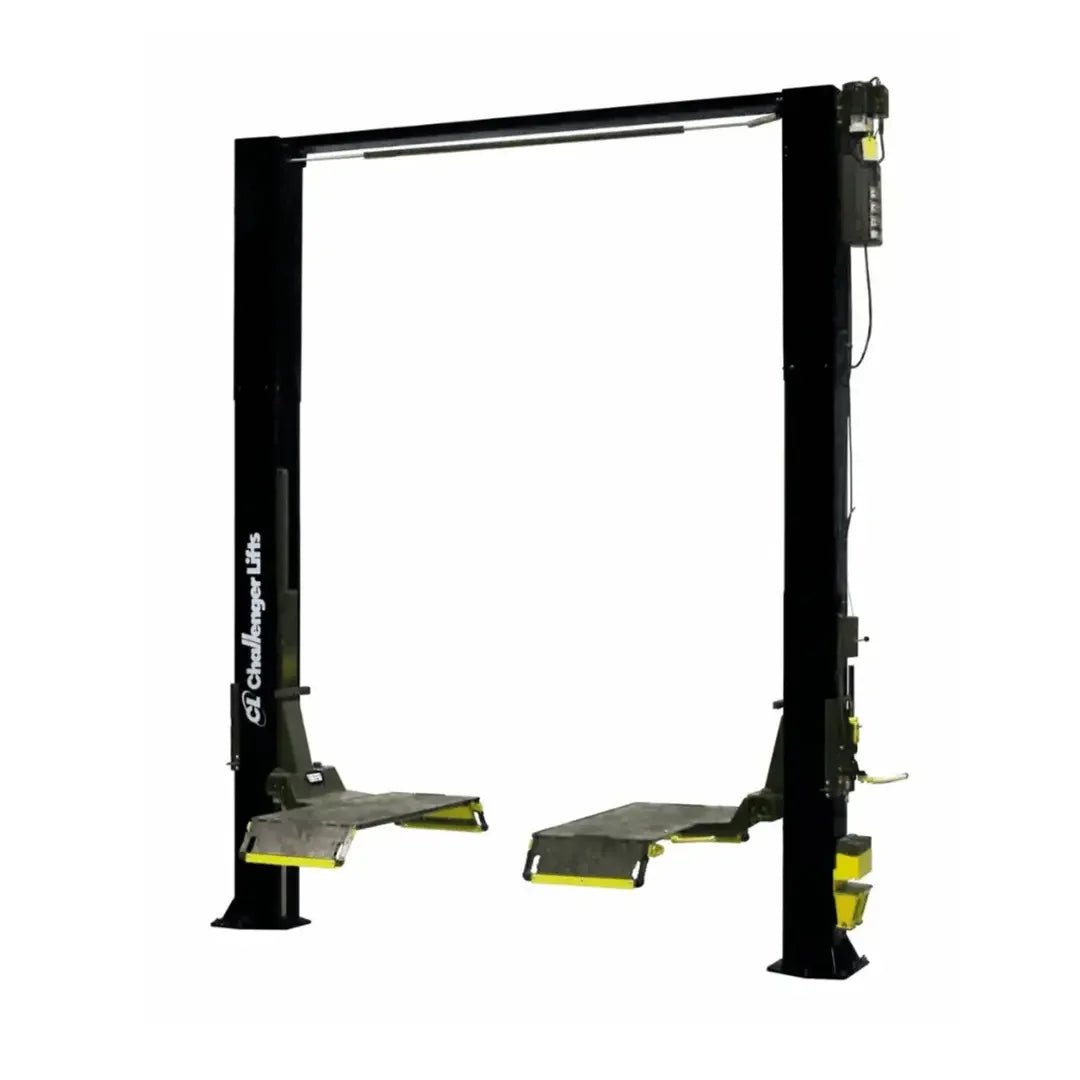

Challenger CL10A-XP9-DPC-QC Series ALI Quick Cycle 9K 2 Post Lift w/Dual Pendant Power Controls & Increases Rise/Descent Speed

Product Overview

Challenger Lifts CL10A-XP9-DPC-QC Series Quick Cycle™ 2 Post Lift w/Increases Rise/Descent Speed, Dual Pendant Power Controls & Drive-on Express Pad

Supersedes CL10-XP9-DPC-QC Series

Industry-Leading Express Service Solution

The Challenger CL10A-XP9-DPC-QC represents the ultimate evolution in express service bay technology. This 9,000 lb. capacity 2-post lift combines Quick Cycle™ technology with an innovative drive-on pad design, dramatically improving throughput while maintaining the precision and safety standards that professionals demand. Whether you're running an express lube center, tire shop, or high-volume service facility, this ALI-certified lift delivers accurate first-try spotting that boosts productivity and eliminates frustration.

At the heart of this system is Quick Cycle™ technology, which reduces rise time to just 24 seconds and descent to 17 seconds a 30% improvement over standard models. Combined with Dual Pendant Power Controls that provide unobstructed views of lift points from either column, you'll spot vehicles faster and work more efficiently than ever before. The drive-on express pad configuration means no more guessing, no more repositioning, and no more wasted minutes on every single vehicle.

Challenger engineered this lift for the real world: three width adjustment settings (from 11'6-1/2" to 11'11"), adjustable column heights to fit 12-foot ceilings or higher, and a low-profile 2.25" pad height that minimizes clearance issues with lowered or performance vehicles. Built in the USA with premium materials including an oversized 5" diameter pulley, heavy-duty 5/16" cable, and a 48" elongated carriage design, this lift is engineered for decades of reliable service in the most demanding environments.

Quick Cycle™ Technology: Speed Without Compromise

Quick Cycle™ models dramatically improve lifting speed to achieve 24-second rise time and 17-second descent a 30% reduction compared to standard models. This translates directly to increased bay utilization and higher revenue per hour. The system achieves this performance boost through an upgraded 3HP single-phase motor (versus 2HP in standard models) running on 208/230V, 60Hz power, delivering more torque and faster hydraulic actuation without sacrificing smoothness or control.

In express service environments where every minute counts, Quick Cycle™ technology can mean the difference between completing six jobs per hour versus eight. Over the course of a year, that efficiency gain adds up to thousands of additional services—and significantly increased profitability—while reducing technician fatigue and customer wait times.

Dual Pendant Power Controls: Precision at Your Fingertips

The Dual Pendant Power Control system redefines operator convenience and safety. With control stations mounted on both columns, technicians always have immediate access to lift controls regardless of which side they're working from. This design provides an unobstructed view of lifting points during vehicle spotting, eliminating the guesswork and allowing for micro-adjustments without running around the vehicle.

Key Dual Pendant Features:

• Always within reach when small spotting adjustments matter most—no more walking around the lift to make a minor correction

• OSHA-compliant keyed lockout safety button locks out power to the lift, preventing unauthorized operation and ensuring compliance with workplace safety regulations

• Intuitive up power button raises the lift smoothly and predictably

• Down power button with dual single-point mechanical lock release allows lift lowering from either column, improving workflow efficiency and safety

• Unobstructed sightlines to vehicle lift points from both sides expedite accurate positioning on the first try

This dual-control architecture dramatically reduces vehicle spotting time while enhancing safety. Technicians maintain full visual contact with lift arms and vehicle contact points throughout the entire lifting cycle, catching potential issues before they become problems.

Drive-On Express Pad: Precision Spotting Made Simple

The CLXP9 Low Profile Express Service Pad is the defining feature that sets this lift apart for high-volume operations. Unlike traditional swing-arm configurations that require careful positioning and multiple attempts, the drive-on pad design allows vehicles to be driven directly onto 24" wide platforms with minimal fuss. The result? Accurate first-try spotting that slashes setup time and keeps your bays moving.

At just 2.25" in height, the low-profile pad design accommodates even lowered vehicles, sports cars, and performance models that might scrape or bottom out on taller ramps. The 58" / 66.5" / 75" platform length options and 31.5" width between platforms provide excellent coverage across a wide range of vehicle types, from compact sedans to full-size trucks.

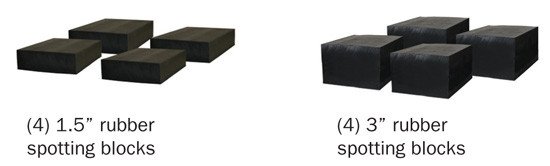

Each CL10A-XP9-DPC-QC includes a complete set of spotting accessories:

• (4) 1.5-inch rubber spotting blocks for fine-tuning lift point contact

• (4) 3-inch rubber spotting blocks for vehicles requiring additional height

• (2) Spotting block storage caddies to keep accessories organized and accessible

This drive-on configuration is ideal for oil changes, tire rotations, brake inspections, alignments, and other express services where speed and repeatability are paramount. Your technicians will appreciate the reduced physical strain and mental load, while your bottom line will reflect the increased throughput.

Engineered for Longevity and Reliability

Challenger didn't just design this lift for speed—they engineered it to last. Every component is built to withstand the rigors of daily commercial use in high-volume environments:

Oversized 5" diameter pulley and heavy-duty 5/16" cable reduce stress on the equalization system, extending cable life far beyond industry norms. This robust design ensures consistent, smooth operation even after tens of thousands of lift cycles.

The 48" elongated carriage design distributes load more evenly across the lift mechanism, reducing wear on individual components and significantly increasing overall lift life. This extended carriage design also improves stability during lifting and lowering operations, particularly with heavier vehicles near the 9,000 lb. capacity limit.

A fully gusseted base plate design increases column rigidity and structural integrity, preventing flexing and maintaining precise alignment between columns over years of use. The pulley-less jacketed single-point lock release system eliminates a common failure point, making operation smoother, easier, and more reliable while extending service intervals.

Additional durability features include:

• Plated arm restraints and arm pins that inhibit rust and provide long-lasting durability even in humid or corrosive environments

• Premium powder coat finish with an upgraded textured formula (implemented November 1, 2022) that provides superior scratch resistance and long-lasting appearance

• Standard dual integrated rubber door guards that protect vehicle panels from inadvertent damage during entry and exit

• Padded overhead shut-off system that prevents vehicle damage if the lift is inadvertently raised too high

Flexible Configuration Options for Any Facility

The CL10A-XP9-DPC-QC Series offers three column height configurations to accommodate virtually any facility ceiling height:

• CL10A-XP9-DPC-QC Standard model with column heights of 11'2" or 11'8", perfect for facilities with 12-foot ceilings (minimum)

• CL10A-XP9-2-DPC-QC 2-foot column extension with heights of 13'2" or 13'8" for shops with taller ceilings

• CL10A-XP9-3-DPC-QC 3-foot column extension with heights of 14'2" or 14'8" for maximum overhead clearance

All models feature adjustable width from 11'6-1/2" to 11'11" with three distinct settings, allowing you to optimize the lift for your specific bay dimensions and vehicle mix. The 90" drive-thru clearance ensures plenty of room for technicians to work safely around raised vehicles.

Maximum specifications include a 74-1/8" (1908mm) rise height and 11'11" max extended cylinder height, providing ample working room underneath vehicles. The low lock height of 12" net rise allows for safe work at minimal elevation when full height isn't required.

Facility Requirements:
Bay Dimensions: 13'3" or 13'9" width × 14'3" or 14'9" depth (depending on configuration)
Ceiling Height: 12' minimum (standard model)
Electrical: Quick Cycle DPC: 3HP, Single Phase, 60Hz, 208/230V / Standard DPC: 2HP, Single Phase, 60Hz, 208/230V

Why Choose the CL10A-XP9-DPC-QC?

This lift represents the intersection of speed, precision, and durability three factors that define success in modern express service operations:

• 30% faster cycle times with Quick Cycle™ technology mean more vehicles serviced per day

• Drive-on pad design eliminates spotting errors and reduces vehicle positioning time to seconds

• Dual pendant controls provide unprecedented operator convenience and safety compliance

• 9,000 lb. capacity handles everything from compact cars to full-size trucks and SUVs

• ALI-certified design ensures compliance with industry safety standards and insurance requirements

• Made in the USA with premium components and Challenger's legendary build quality

• Adjustable height and width options ensure perfect fitment in virtually any service bay

Made in the USA
This lift is proudly manufactured in the United States with American steel and components, supporting domestic jobs while ensuring the highest quality standards and rapid parts availability.

Bay Layout and Installation Planning

Paint Upgrade Notice

Product Features

• 9,000 lb. lift capacity

• Drive-on style pad aids in quick vehicle spotting for express bays

• Dual Pendant Power Controls

• Low-profile pad design minimizes vehicle clearance issues

• Oversized 5" diameter pulley and heavy duty 5/16" cable reduces stress on equalization system and increases cable life

• 48" elongated carriage design increases lift life

• Three settings for width adjustment, from 11' 6.5" to 12' 6.5"

• Adjustable Width 11'6-1/2" – 11'11"

• Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available

• Padded overhead shut off system prevents vehicle damage

• Fully gusseted base plate design increases column rigidity

• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life

• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

• Premium powder coat finish provides long-lasting durability

CLXP9 Low Profile Express Service Pad

• 9,000 Capacity

• Includes

• (4) 1.5 in. Rubber spotting blocks

• (4) 3 in. Rubber spotting blocks

• (2) Spotting block storage caddies

CL10-XP9-DPC-QC Series Available

• CL10A-XP9-DPC-QC – Column Height 11' 2" or 11' 8"

• CL10A-XP9-2-DPC-QC – 2ft Column Extension Height 13' 2" or 13' 8"

• CL10A-XP9-3-DPC-QC 3ft Column Extension Height 14' 2" or 14' 8"

Supersedes CL10-XP9-DPC-QC Series

Product Specifications

Model

CL10A-XP9-DPC-QC
CL10-XP9-2-DPC-QC
CL10-XP9-3-DPC-QC

Lifting Configuration

Drive-on Express Pad

Lift Capacity*

9,000 lbs.

Rise Height

74-1/8" (1908mm)

Column Height

11' 2" or 11' 8"

13' 2" or 13' 8"

14' 2" or 14' 8"

Max. Extended Cylinder Height

11' 11"

Adjustable Width Overall

11'6-1/2" – 11'11"

Drive-Thru Clearance

90"

Floor to Overhead Switch

10' 8 1/2" or 11' 2-1/2"

12' 8 1/2" or 13' 2-1/2"

13' 8 1/2" or 14' 2-1/2"

Platform Height

2.25"

Platform Width

24"

Platform Length

58" / 66.5" / 75"

Width Between Platform

31.5"

Low Lock Height

12" Net Rise

Rise Time

QuickCycle™ DPC: 24s (est.) / Standard DPC: 38s

Service Bay Specifications

Height

12' Minimum

Width

13'- 3" or 13'- 9" Required

Depth

14'- 3' or 14'- 9" Required

Electrical

Motor

Quick Cycle DPC: 3HP, Single Phase, 60Hz, 208/230V / Standard DPC: 2HP, Single Phase, 60Hz, 208/230V

Ali Certified

Key Features

• Published product configuration: Challenger Lifts CL10A-XP9-DPC-QC Series Quick Cycle™ 2 Post Lift w/Increases Rise/Descent Speed, Dual Pendant Power Controls & Drive-on Express Pad Supersedes CL10-XP9-DPC-QC Series Industry-Leading Express Service Solution The Challenger CL10A-XP9-DPC-QC represents the ultimate evolution in express service bay
• Exact manufacturer model or part number: CL10A-XP9-DPC-QC-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model CL10A-XP9-DPC-QC-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
