Challenger CLHM-190W ALI HD Wide Mobile Column Lift – Single

Product Overview

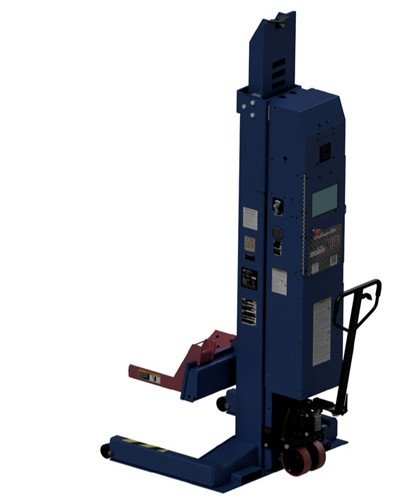

Challenger CLHM-190W ALI HD Wide Mobile Column Lift – Single

The Challenger CLHM-190W delivers professional-grade mobile lifting for heavy-duty commercial and municipal applications. With a 19,000 lb. capacity per column and a wider footprint design, this ALI/ETL certified lift is engineered to handle everything from small passenger vehicles to large trucks, transit buses, and specialty fleet equipment. Each column operates independently yet synchronizes wirelessly with up to 8 units for configurations ranging from 38,000 lbs. (2 columns) to 152,000 lbs. (8 columns).

What sets the CLHM-190W apart is its 49-inch wide wheel carriage, providing enhanced stability and accommodating a broader range of wheel sizes and vehicle types compared to standard models. The fully wireless, battery-powered system eliminates the hassle of power cables and allows you to position lifts anywhere on your shop floor—indoors or outdoors—on virtually any solid surface. With the new 10-inch Android-based touch screen, operators gain precise control, real-time weight monitoring per column, lift height readings, and access to on-board training videos and manuals.

Designed for serious professionals, the CLHM-190W combines robust hydraulic power, intelligent safety systems, and user-friendly wireless operation into one versatile lifting solution. Whether you're servicing a single vehicle or managing a busy multi-bay shop, this lift adapts to your workflow with ease and reliability.

Built for Heavy-Duty Performance and Flexibility

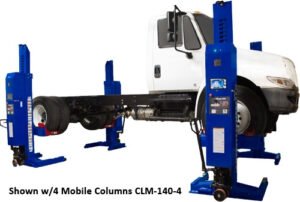

The Challenger CLHM-190W is a single mobile column lift designed to work as part of a scalable system. Connect up to 8 columns together to create a custom lifting configuration tailored to your shop's needs. This lift is compatible with previously purchased CLHM-190 units, so you can expand your existing system without replacing equipment.

Each column is powered by a hydraulic system operating at 2,600 psi, providing smooth and powerful lifting with a lift speed of 60 inches per minute even under maximum load. The maximum lift height of 69 inches (when using 4 or more units) gives technicians ample clearance for undercarriage work, axle service, brake jobs, and more. In 2-column mode, the system offers a 32-inch lift height in normal mode, ideal for quick inspections and tire changes.

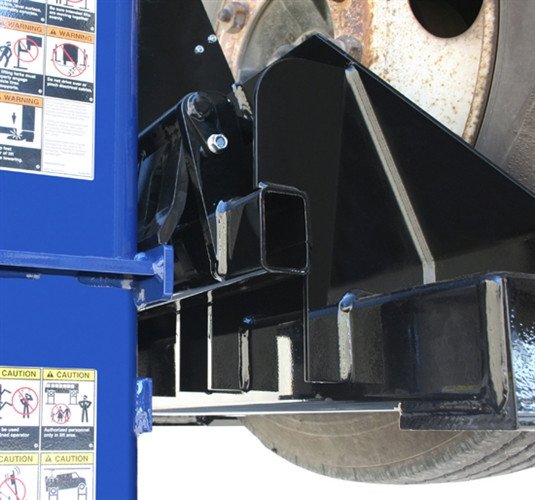

The wide 49-inch carriage on the CLHM-190W model accommodates wheels from 4 inches up to the maximum diameter determined by tire size, making it the go-to choice for oversized or specialty vehicles. The adjustable wheel carriages ensure a secure fit across a broad range of wheel types and diameters.

Wireless Operation and Integrated Charging System

Wireless technology is at the heart of the CLHM-190W system. The lift operates on 12 radio frequencies with a wide channel range (100 to 120) for each frequency, ensuring reliable communication without interference from other shop equipment or radio noise. This wireless system creates a clutter-free work environment no cables to connect, trip over, roll over, or replace.

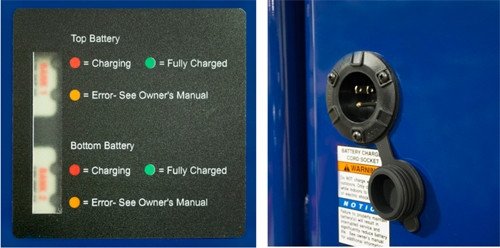

Each column is powered by 12-volt deep cycle batteries (operating at 26 VDC nominal ) that eliminate the need for constant power hookups. The 110-volt built-in multi-stage charging system automatically manages battery health and provides real-time charging status via an indicator light, so you can plan jobs efficiently and avoid downtime. Effective May 2025, all Challenger CLHM lifts ship with AGM (Absorbed Glass Mat) Group 27 batteries, which offer improved performance and come with a 2-year free replacement warranty.

Advanced Touch Screen Control Console

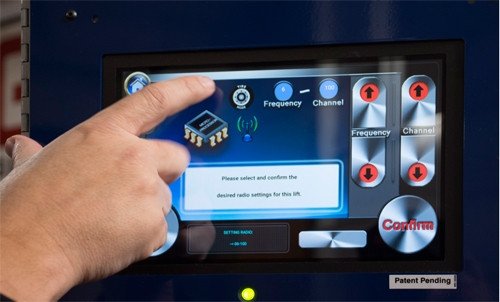

The new 10-inch Android-based touch screen control console puts total control at your fingertips. The intuitive interface displays real-time lifting height and weight per column, helping operators monitor load distribution and prevent overloading. The console's internal CPU and fully functional web browser allow access to on-board training videos and manuals, so your team can troubleshoot issues or review operating procedures without leaving the shop floor.

Precision is key in heavy-duty lifting, and the CLHM-190W delivers. Linear position transducers maintain perfect system synchronization across all connected columns, ensuring balanced lifts and maximum reliability. Integrated weight gauges provide continuous feedback to help prevent column overloading and verify that mechanical locks are properly engaged before service begins.

Engineered for Easy Maneuverability and Precise Positioning

Despite its 1,565 lb. weight and heavy-duty construction, the CLHM-190W is designed for effortless positioning. The precise balanced design, combined with a heavy-duty tow handle and spring-loaded wheels, makes it easy to move and align individual lift units with minimal effort. The turning radius of just 47 inches allows technicians to navigate tight spaces and position columns exactly where needed.

The lift's 600 square inch footprint distributes weight evenly, resulting in a ground pressure of only 34.3 psi at maximum load. This low ground pressure means the lift can be safely operated on most solid shop floors without risk of damage. Whether you're working indoors on a concrete slab or outdoors on a paved surface, the CLHM-190W adapts to your environment.

Safety and Certification You Can Trust

Safety is never an afterthought with Challenger. The CLHM-190W meets stringent ALI Gold Label standards and is ALI/ETL certified, ensuring compliance with industry safety regulations. Multiple safety features work together to protect operators and vehicles:

• Linear position transducers maintain system synchronization and ensure balanced lifting across all columns.

• Integrated weight gauges help prevent column overloading and verify lock engagement before service begins.

• Wireless operation eliminates tripping hazards and cable damage, creating a safer work environment.

• Mechanical locks engage automatically to secure the vehicle at the desired height.

These systems work seamlessly in the background, giving you peace of mind that every lift is safe, stable, and reliable.

Key Highlights

• 19,000 lb. capacity per column scalable from 38,000 lbs. (2 columns) to 152,000 lbs. (8 columns)

• 49-inch wide carriage accommodates a broader range of wheel sizes and heavy-duty vehicles

• Wireless operation with 12 radio frequencies no cables, no clutter, no interference

• 10-inch Android touch screen real-time weight and height monitoring, on-board manuals and training videos

• Integrated 110V multi-stage charging system automatic battery management with status indicator light

• ALI/ETL certified meets Gold Label safety standards for professional heavy-duty lifting

Video Overview

Limited Time Rebate Offer

Product Features

• Single column mobile lift. Connect up to 8 units together. Can be added to previous CLHM-190 lifts purchased

• Hydraulic operated unites provide heavy duty lifting capacity from 28,000/38,000 lbs. (set of 2) to 112,000/152,000 lbs. (set of 8) enabling heavy-duty lifting from small cars to large trucks, transit, and municipality vehicles.

• 110 volt built in multi-stage charging system

• Adjustable wheel carriages fits a range of wheels

• Integrated touch screen control console provides easy-to-use and precise operating.

• Precise balanced design, heavy-duty tow handle and spring loaded wheels make moving and aligning individual lift units simple and easy with little effort.

• Operates with 12 volt deep cycle batteries to eliminate the need for power source hook ups and provide 24 volt operation

• Meets stringent ALI Gold Label standards

• Safety Features

• Linear position transducers maintains system synchronization and ensures maximum reliability

• Integrated weight gauges help prevent column overloading and verifies lock engagement

• Wireless system for clutter free work area without cables to connect, navigate around, roll-over or replace

• Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty

Product Specifications

Model

CLHM-140
CLHM-190
CLHM-190W

Lift Capacity Per Column

14,000 lbs.

19,000 lbs.

A Height of Lift Unit

88.5" (2,248 mm)

B Height of Lift Unit at Full Rise

157.125" (3,991 mm)

C Width of Lift Unit

44.25" (1,124 mm)

49" (1,245 mm)

D Length of Lift Unit

53.625" (1,362 mm)

E Maximum Lift Height
(4 or more units)

69" (1,753 mm)

Maximum Lift Height
(2 units – Normal Mode)

32" (813 mm)

F Min-Max Wheel Diameter

5" – 24.5" (127 -622mm)

4" – Max det. by tire size

Max. Hydraulic System Operating Pressure

2,180 psi

2,600 psi

Lift Speed (Max Load)

60" per min. (1524 mm)

Weight of Lift Unit

1,485 lbs (674 kg)

1,500 lbs (685 kg)

1,565 lbs (714 kg)

Footprint of Lift Unit

560" 2 (3,613 sq cm)

600" 2 (3,870 sq cm)

Ground Pressure for Each Lift
(Max. Load)

27.7 psi

36.6 psi

34.3 psi

Turning Radius of Lift Unit

47" (1194 mm)

Operating Peak Power

4HP

Operating Voltage

24 VDC Nominal

25 VDC Nominal

26 VDC Nominal

Charger Voltage Required

120 VAC @ 60 Hz

Charger Amps Required

1.3 Amps

ALI/ETL Certified

Yes

*CLHM Series Wireless/Battery Operated Mobile Columns available in 1, 2, 4, 6 and 8 column configurations with 14,000 lb and 19,000 lb. per column capacity.

1 Multiply number of columns by "Lifting Capacity Per Column" to calculate overall lifting capacity of configuration.

Only Available in Blue

Key Features

• Published product configuration: Challenger CLHM-190W ALI HD Wide Mobile Column Lift – Single The Challenger CLHM-190W delivers professional-grade mobile lifting for heavy-duty commercial and municipal applications. With a 19,000 lb. capacity per column and a wider footprint design, this ALI/ETL certified lift is engineered to handle everything from
• Exact manufacturer model or part number: CLHM-190W
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• 1 product manual or technical document linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model CLHM-190W, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.

Manuals & Technical Resources

• Product document 1
