Product Overview

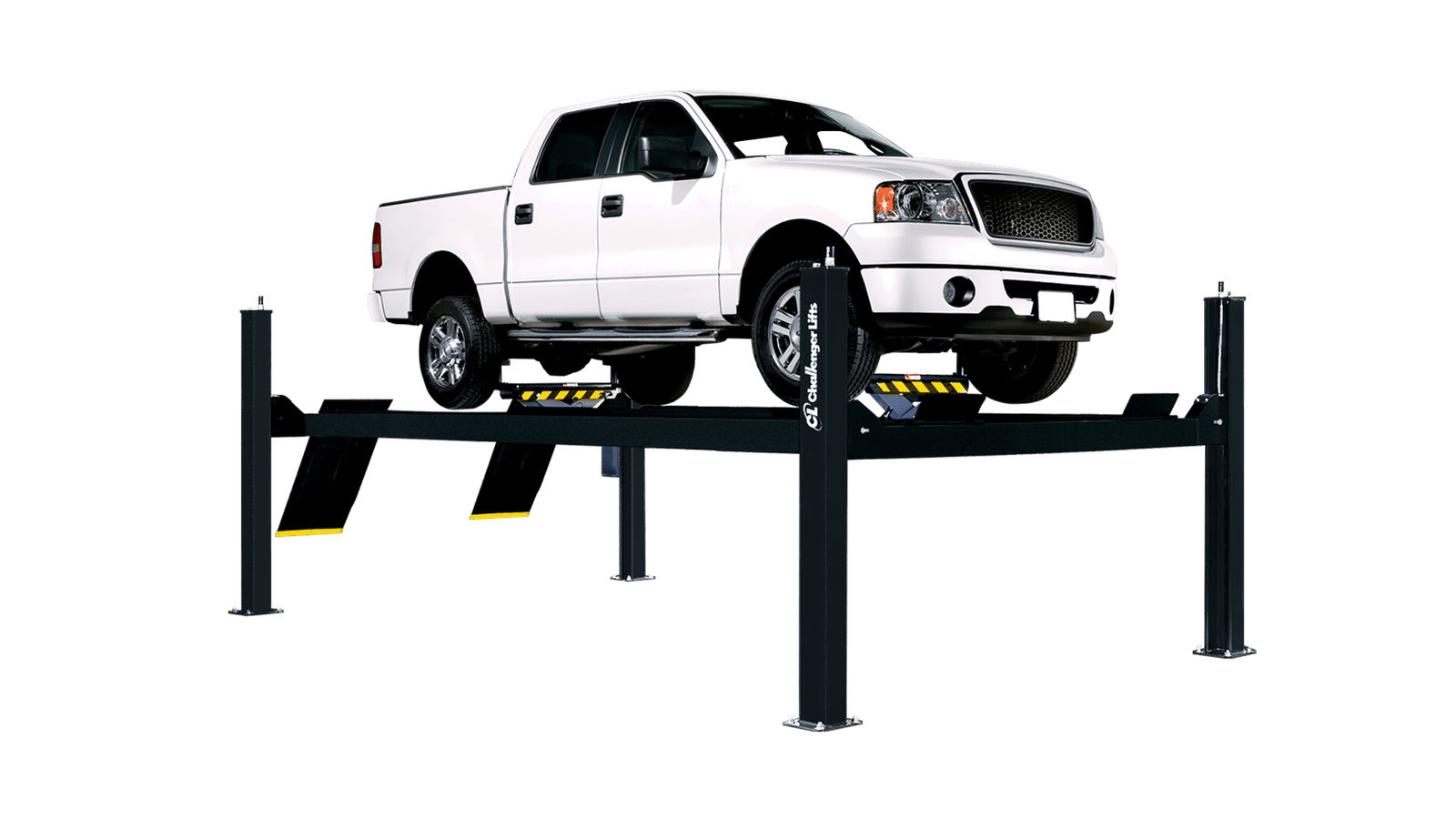

Challenger 44030X HD 4-Post Hydraulic XL Ex-Length Lift 30,000 lb – New Black Color
When your shop demands serious lifting power for heavy-duty trucks, buses, and commercial vehicles, the Challenger 44030X delivers uncompromising performance. This 30,000 lb capacity four-post hydraulic lift is engineered for durability and reliability, featuring extra extended length runways that accommodate wheelbases up to 350 inches. With a 68-inch rise height, advanced hydraulic systems, and professional-grade construction, the 44030X transforms any heavy-duty service bay into a high-productivity workspace. Now available in a sleek new black color, this lift combines industrial strength with modern aesthetics for shops that refuse to compromise on quality or appearance.
Unmatched Heavy Duty Truck Lifting Power
The Challenger 44030X isn't just another four-post lift—it's a precision-engineered solution for shops that service the largest commercial vehicles on the road. With a commanding 30,000 pound capacity, this hydraulic truck lift handles everything from heavy-duty pickup trucks to full-size transit buses with confidence and stability.
At the heart of the 44030X is a superior lifting system built around high tensile strength leaf chain and sealed roller bearings. This combination ensures smooth, reliable lift operation even under maximum load conditions. Heavy-duty hydraulic cylinders deliver optimum lifting performance with minimal maintenance requirements, keeping your lift operational and your service bays productive day after day.
The single point air actuated lock release system is a game-changer for technician efficiency—it allows simultaneous disengagement of all column locks from a single location, eliminating the need to walk around the lift and unlock each post individually. The multi-position internal lock ladder provides a wide range of comfortable work heights, so technicians can position vehicles at the perfect height for any service task.

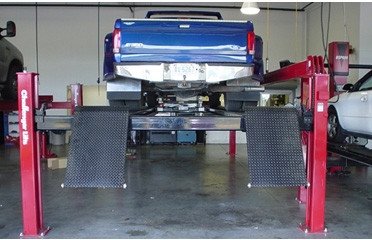

Diamond Plate Approach Ramps for Superior Traction
Loading heavy vehicles safely requires superior traction, and the 44030X delivers. Heavy-duty diamond plate approach ramps provide aggressive drive-on tread traction that ensures positive vehicle grip during approach and unload operations. These aren't lightweight accessories—they're engineered with heavy-duty steel rolling wheels designed for high-volume durability in demanding commercial shop environments.
The lift's diamond plate anti-skid runway surfaces extend this commitment to safety across the entire platform. Whether you're loading a commercial van, a dually pickup, or a transit bus, you can count on positive traction that keeps vehicles secure throughout the lifting and lowering process.
An All-in-One Commercial Vehicle Productivity Solution
The 44030X truck lift is designed to be more than just a lifting platform—it's a complete productivity solution for your heavy-duty service operations. The adjustable runways accommodate a wide variety of commercial transit buses and other large vehicles with different track widths, offering the flexibility modern shops demand. With 24-inch wide runways and width adjustment between 54 to 75 inches, you can service virtually any heavy-duty vehicle that rolls through your doors.
A built-in runway rail system provides exceptional versatility by allowing you to add convenience options that transform your lifting capabilities. Add optional rolling jacks for brake and wheel work, install a sliding oil drain pan for fluid service, or integrate heavy-duty turning radius gauges for alignment diagnostics. The 44030 series is also available in alignment rack configurations, giving you even more options to customize your heavy-duty service capabilities.
With the X (extra extended) length configuration, this lift accommodates wheelbases up to 350 inches, making it ideal for stretched chassis commercial vehicles, luxury coaches, and extended-wheelbase trucks. The overall length of 34 feet 7-1/2 inches ensures you have the platform capacity to handle even the longest vehicles in your service queue.
Heavy-Duty Chain and Professional-Grade Lifting System
The 44030X features a professional-grade lifting system built around heavy-duty, high tensile strength leaf chain paired with sealed roller bearings for smooth, reliable operation under demanding loads. This isn't consumer-grade equipment—it's industrial lifting technology engineered for shops that run multiple shifts and demand consistent performance.
The integrated single point air actuated lock release system allows technicians to disengage all column locks simultaneously from one convenient location, dramatically improving workflow efficiency and reducing service time. Combined with a fast 105-second rise time powered by a robust 3HP motor, the 44030X keeps your bays moving and your productivity high.
Key Selling Points at a Glance
- 30,000 lb capacity handles heavy-duty trucks, buses, and commercial vehicles with ease
- Extra Extended Length (X model) accommodates wheelbases up to 350 inches for stretched chassis vehicles
- 68-inch rise height provides excellent undercarriage access for comprehensive service work
- Single point air lock release disengage all column locks simultaneously for improved technician efficiency
- Built-in runway rail system easily add rolling jacks, oil drain pans, and other productivity-enhancing accessories
- Adjustable runways accommodate varying track widths from 54 to 75 inches
- Diamond plate anti-skid surfaces ensure positive traction and long-lasting durability
- Fast 105-second rise time keep service bays moving and maximize shop productivity
- New black color finish modern, professional appearance that enhances any shop environment
Product Features

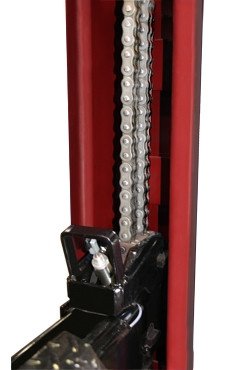

- Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation
- Heavy duty cylinder for optimal performance and minimal maintenance

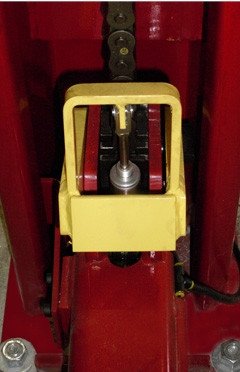

- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)

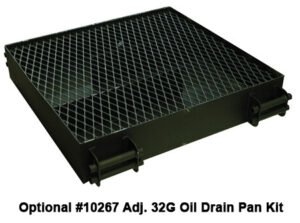

- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan
Product Specifications

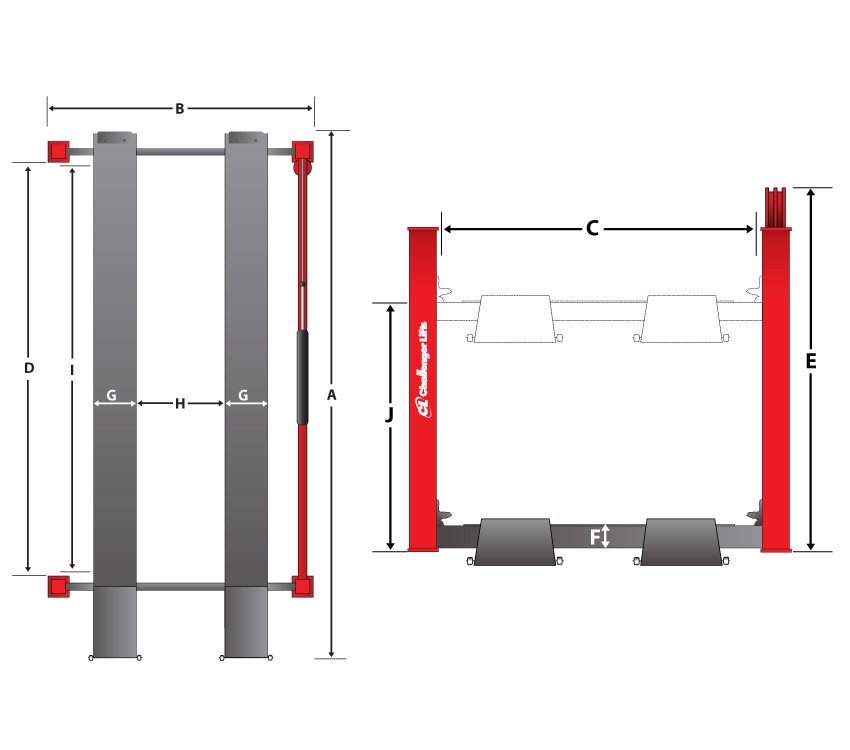

To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.
Model Number
44030
44030AR
44030E
44030EAR
44030X
44030XAR
Lift Capacity
30,000 lbs.
A Overall Length
24' 7-1/2"
29' 7-1/2"
34' 7-1/2"
B Overall Width
12’ 5½”
C Inside Columns
132-1/2"
D Between Columns
233-3/4"
293-3/4"
353-3/4"
E Overall Height
92"
F Height of Runways
9"
G Width of Runways
24"
H Width Between Runways
54" – 75"
I Maximum Wheelbase
230"
290"
350"
J Rise Height
68"
Max. 2 Wheel Align
N/A
206"
N/A
266"
N/A
326"
Motor
3HP
Voltage
208v – 230v
Speed of Rise
105 seconds
Amps
30
Shipping Weight
5250 lbs
(2381 kg)
5450 lbs
(2472 kg)
5750 lbs
(2608 kg)
5950 lbs
(2699 kg)
6250 lbs
(2835 kg)
6450 lbs
(2926 kg)
*Optional Three Phase Electrical Power Available. Please Specify at time of order.
Available in Black Only
Key Features
- Published product configuration: Challenger 44030X HD 4-Post Hydraulic XL Ex-Length Lift 30,000 lb – New Black Color When your shop demands serious lifting power for heavy-duty trucks, buses, and commercial vehicles, the Challenger 44030X delivers uncompromising performance. This 30,000 lb capacity four-post hydraulic lift is engineered for durability
- Exact manufacturer model or part number: 44030X-V001
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 44030X-V001 |
| MPN / Model | 44030X-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 44030X-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
