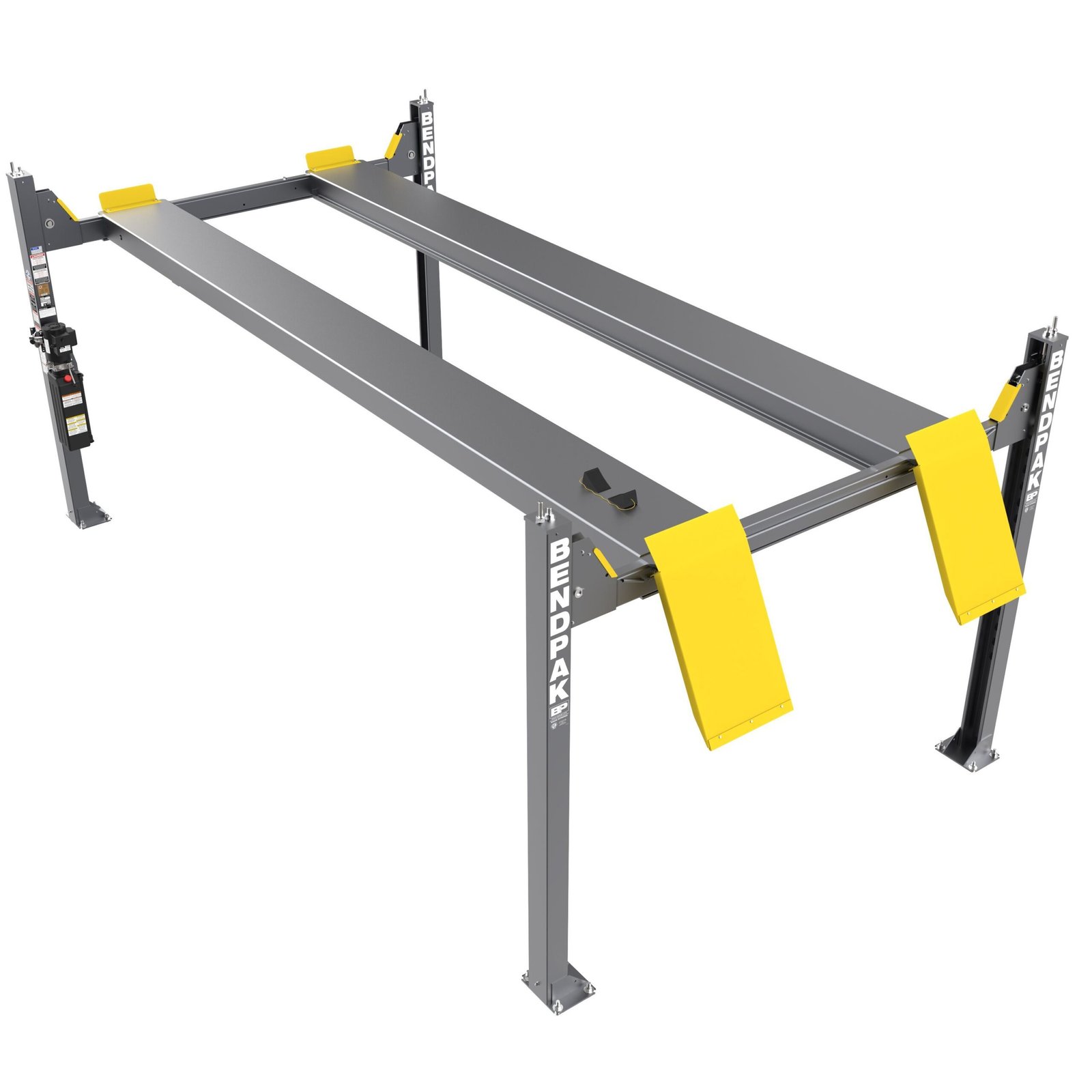

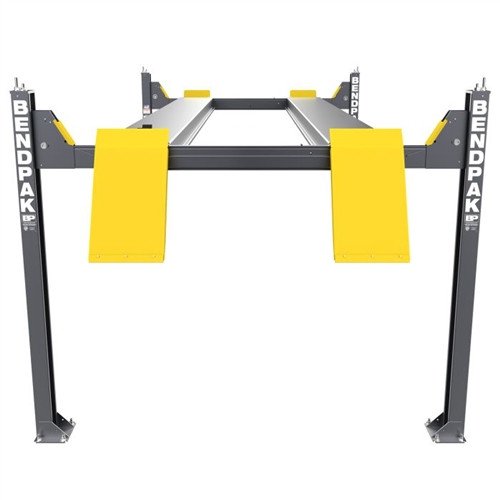

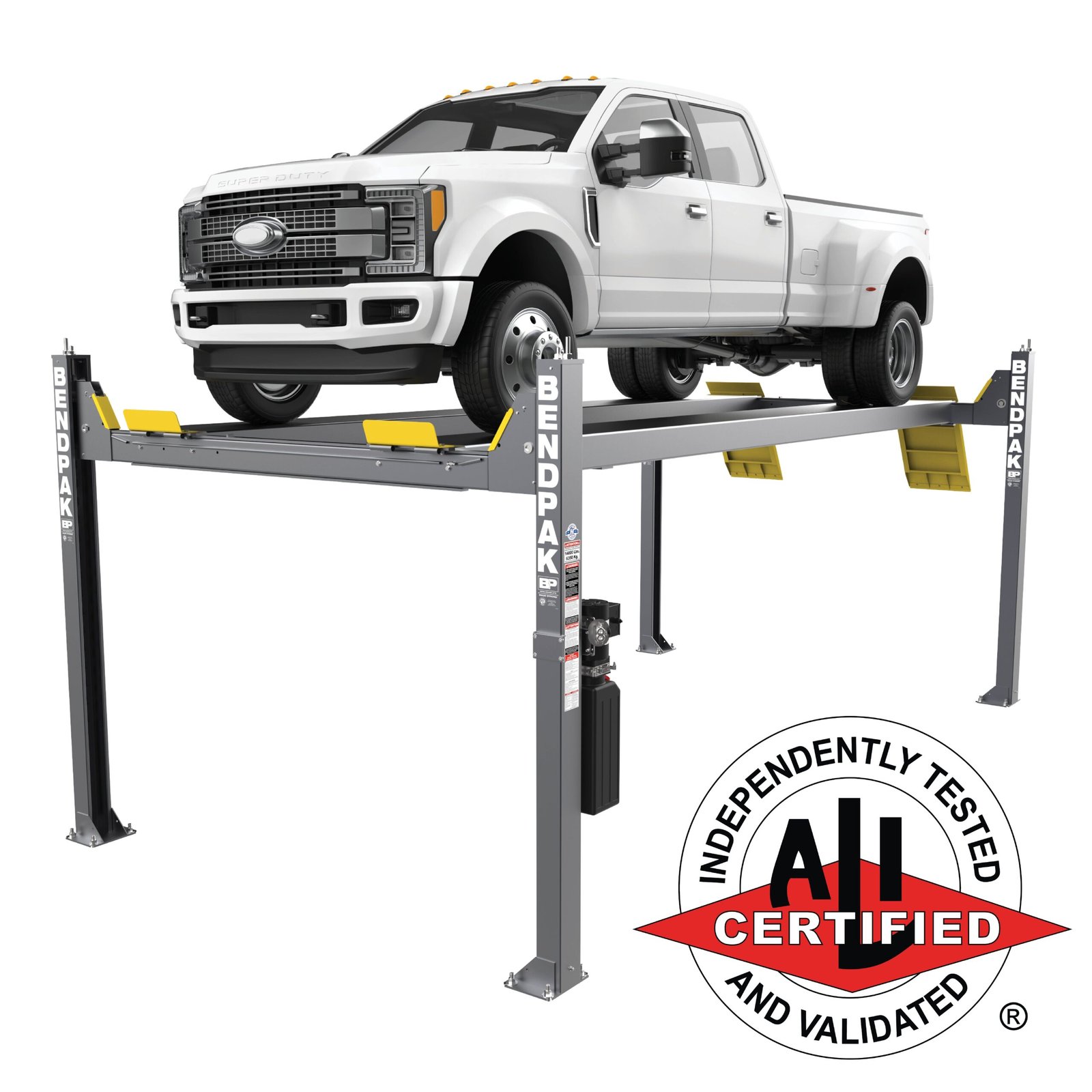

BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb.
The BendPak HDS-14XT is an extended-length, high-rise four-post lift engineered specifically for long-wheelbase vehicles including limousines, extended-cab trucks, and large SUVs. With a 14,000 lb. lifting capacity and extended runways reaching 227.5 inches, this lift delivers the stability and reach your shop needs to service oversized vehicles safely and efficiently. CE Approved and Certified, the HDS-14XT meets or exceeds the standards prescribed by European Standard EN-1493, and it's built with all the legendary BendPak features that make it the top choice for professional installers and serious enthusiasts.
Built for the Most Demanding Lifting Applications
There's No Such Thing as Overboard when it comes to safety, durability, and performance. The BendPak HDS-14XT is engineered to meet the strenuous demands of your toughest professional lifting applications. Every lift incorporates a comprehensive list of premium features—from oversized cable sheaves and heavy-duty 1/2" aircraft cable to spring-loaded automatic safety locks and large 10" x 12" base plates ensuring BendPak lifts remain the absolute best in the industry.
Extended Runways for Long Wheelbases: Vehicles approaching 14,000 lbs. often have wheelbases that demand specialized equipment to keep them safe and properly supported. The HDS-14XT's 227.5-inch extended runways prevent excessive wear and tear on your vehicle, providing a smooth, stable drive-on experience. Your truck or limo shouldn't feel like it's climbing Mt. Everest just to get on the lift—this extended-length design makes loading and lifting effortless and secure.

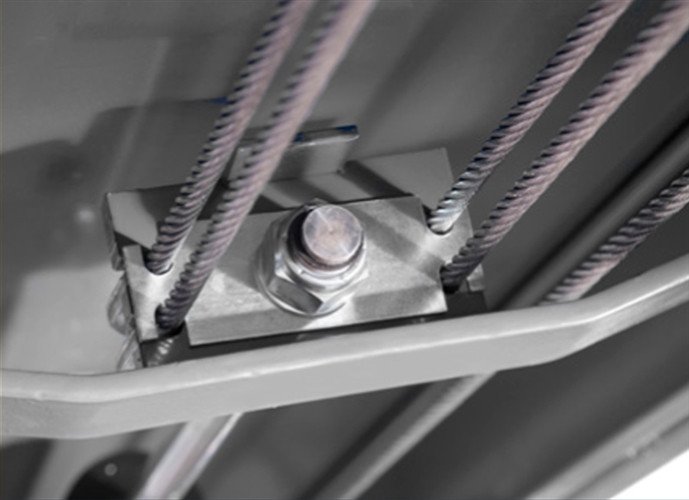

Dual-Hub Cable Sheaves: The HDS-14XT features dual-hub cable sheaves that significantly reduce stress, fatigue, and wear on critical lifting components. Massive 10.5" diameter cable sheaves within the runway and cross tubes, combined with robust 2.25" diameter sheave axles, dramatically improve cable longevity and component lifespan. This means fewer service-related expenses and more uptime for your shop.
Heavy-Duty Aircraft Cable: This lift is equipped with four 1/2" diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength of over 14,000 lbs. This aircraft-quality cable is specifically designed for lifting applications, providing an optimal balance between abrasion resistance and fatigue resistance for long-lasting, reliable performance.
Solid Foundation with Large Base Plates: Every 14,000 lb. capacity four-post lift from BendPak rests on 10" x 12" base plates, delivering a rock-solid foundation for stable, secure lifting operations every single time.
Spring-Loaded Safety Locks: Safety locks automatically engage continuously during the rise cycle, providing redundant protection at every stage. Adjustable safety ladders allow for precise runway leveling, even when the lift is installed on sloped floors, ensuring consistent performance in any shop environment.
Why Choose the BendPak HDS-14XT?
- Extended 227.5-inch runways accommodate long-wheelbase vehicles including limos, extended trucks, and large SUVs
- 14,000 lb. lifting capacity with 7,000 lb. max per axle for balanced, safe lifting
- Maximum lifting height of 89.5 inches provides ample working clearance for undercarriage service
- CE Approved and Certified to meet or exceed European Standard EN-1493 for superior quality and safety

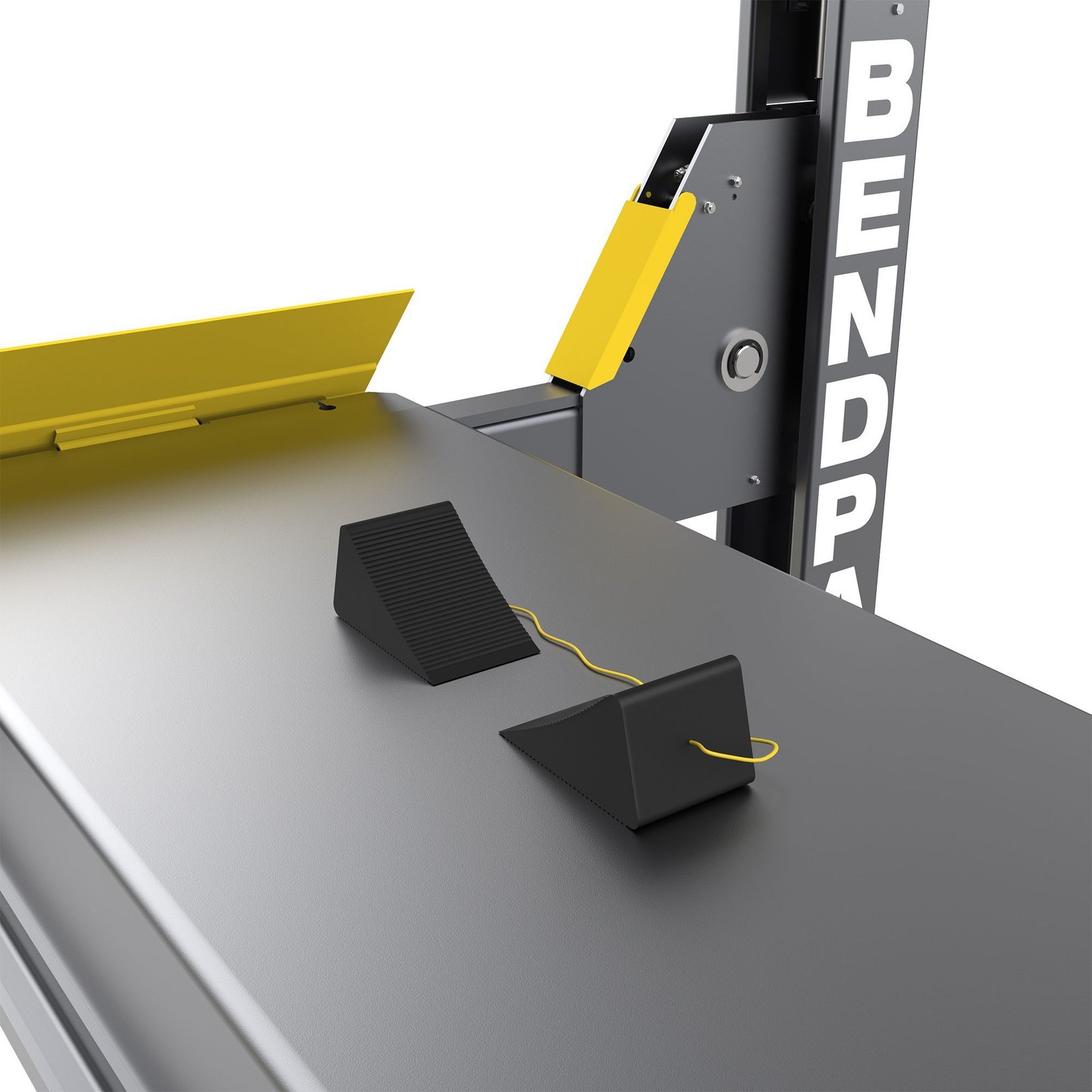

- Mid to long-style approach ramps designed for low ground clearance vehicles, with built-in rear-wheel chocks for added security
- Fully enclosed lifting cables, safety locks, and sheaves minimize pinch points and improve operator safety
- Single hydraulic cylinder mounted underneath the runway for clean, efficient operation
- Internal anti-sway slider blocks in each column reduce lateral movement and enhance stability
- Pneumatic push-button safety release for convenient, hands-free lock disengagement
- 17 locking positions spaced every 4 inches for precise height adjustments
- Runways include rail-kit for optional accessories such as rolling jacks and drip trays
- Independent backup slack-cable safety latches for redundant protection
- Customizable power unit location to fit your shop layout
- 220 VAC / 60 Hz / 1Ph motor for reliable, efficient operation
Key Highlights: What Sets the HDS-14XT Apart

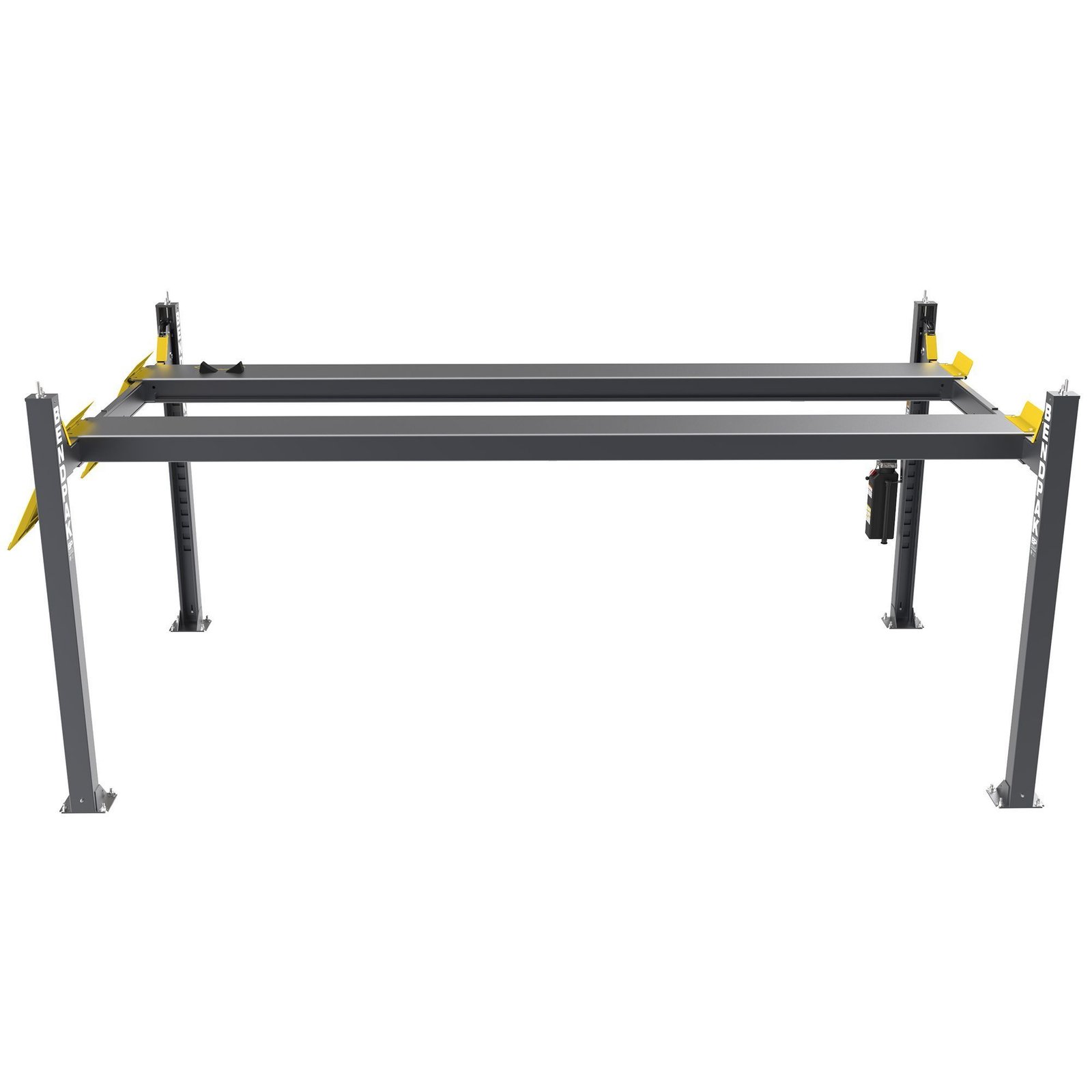

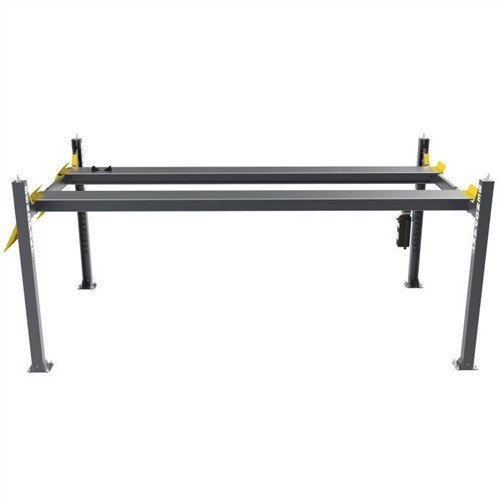

Extended Limo-Style Design: With 227.5-inch runways and an overall length of 272 inches, this lift is purpose-built for long-wheelbase vehicles that won't fit on standard lifts.
Exceptional Lifting Height: The HDS-14XT reaches a maximum rise of 83 inches and a maximum lifting height of 89.5 inches, giving you plenty of room for undercarriage work.
Safety First, Always: Spring-loaded automatic safety locks engage continuously during rise, with 17 locking positions and independent backup slack-cable latches providing multiple layers of protection.
Built to Last: Oversized cable sheaves, heavy-duty aircraft cable, rugged 1.75" roller axles, and self-lubricating cable rollers ensure years of reliable service with minimal maintenance.
Professional-Grade Performance: From the low 6.75" minimum runway height to the 120" width between columns, every dimension is optimized for real-world shop use.
Important Technical Notes
Air Supply Required: An air supply (minimum 30 psi / 3 CFM ) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Wheelbase and Capacity: The lift supports less weight than its rated capacity if the vehicle's wheelbase is shorter, because the wheels are closer to the middle of the runways where there is less support. For example, the maximum weight allowed on the lift for a vehicle with a wheelbase of 85 inches is 50% of the lift's rated capacity (or 7,000 lbs. when the rated capacity is 14,000 lbs. ). Consult the specifications for minimum wheelbase requirements at various load capacities.
Product Features
- 14,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Mid to long-style approach ramps for low ground clearance vehicles
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Heavy-duty 1/2" aircraft cable and 1.75" roller axles

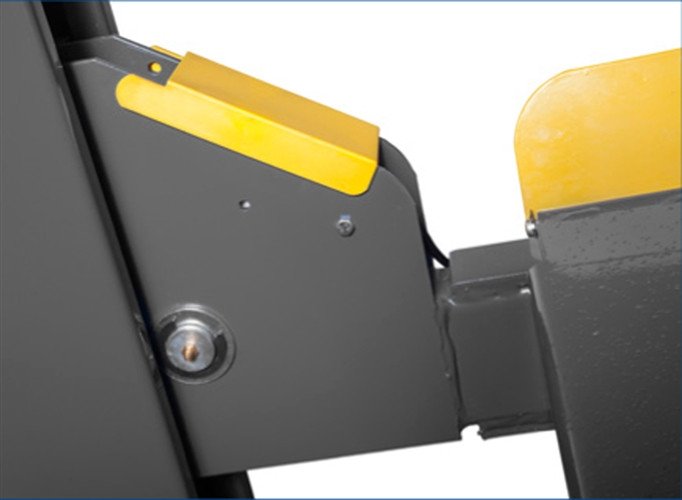

- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Oversized self-lubricating cable rollers
- Rugged 1.75" roller axles
- Multi-position safety locks in each column
- Customizable power unit location
- Approach ramps incorporate built-in rear-wheel chocks
- Independent backup slack-cable safety latches
Product Specifications
Model
HDS-14
HDS-14XT
Style
Standard Length
Extended Length
Capacity
Lifting Capacity: (*)
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)
Rise
A Min. Runway Height
7.5" (191 mm)
6.75" (171 mm)
B Max. Rise
70" (1,778 mm)
83" (2,104 mm)
C Max. Lifting Height
77.5" (1,969 mm)
89.5" (2,275 mm)
Time to Full Rise
60 seconds
N/A
Outside Dimensions
D Overall Width
130" (3,304 mm)
(±.125 in. / 3 mm) 130" (3,304 mm)
E Outside Length
213" (5,410 mm)
243" (6,170 mm)
F Overall Length
242" (6,147 mm)
272" (6,907 mm)
G Height of Columns
92" (2,337 mm)
104" (2,643 mm)
Inside Dimensions
H Width Between Columns
120" (3,048 mm)
I Drive-Thru Clearance
98" (2,489 mm)
98.25" (2,489 mm)
Runways
J Runway Width
20" (508 mm)
19" (482 mm)
K Length of Runways
197.5" (5,017 mm)
227.5" (5,777 mm)
L Width Between Runways
34.5" or 41.5" (876 or 1,054 mm)
35.75" or 42" (910 or 1,068 mm)
M Runway Centerline
57.5" or 64.5" (1,461 or 1,638 mm)
N Outside Edge of Runways
77.5" or 84.5" (1,969 or 2,146 mm)
Minimum Wheelbase
Rated Capacity
140" (3,556 mm)
* 135" (3,429 mm)
75% Capacity
120" (3,048 mm)
* 115" (2,921 mm)
50% Capacity
100" (2,540 mm)
* 95" (2,413 mm)
25% Capacity
- 80" (2,032 mm)
Locking
Locking Positions
15
17
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
N/A
Shipping
Weight
2,606-lbs. (1182 kg)
N/A
Dimensions
209" x 22" x 29"
(5359 mm x 610 mm x 737 mm)
N/A
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
* The Lift supports less weight than its rated capacity if the Vehicle’s wheelbase is shorter; this is because the wheels are closer to the middle of the Runways, where there is less support. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85 in. is 50 percent of the Lift’s rated capacity (or 7,000 lbs. when the rated capacity is 14,000 lbs.).
2 Special voltages available upon.
Key Features
- Published product configuration: BendPak HDS-14XT Extended Limo Style 4 Post Lift 14,000 lb. The BendPak HDS-14XT is an extended-length, high-rise four-post lift engineered specifically for long-wheelbase vehicles including limousines, extended-cab trucks, and large SUVs. With a 14,000 lb. lifting capacity and extended runways reaching 227.5 inches
- Exact manufacturer model or part number: 5175624
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175624 |
| MPN / Model | 5175624 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model 5175624, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
