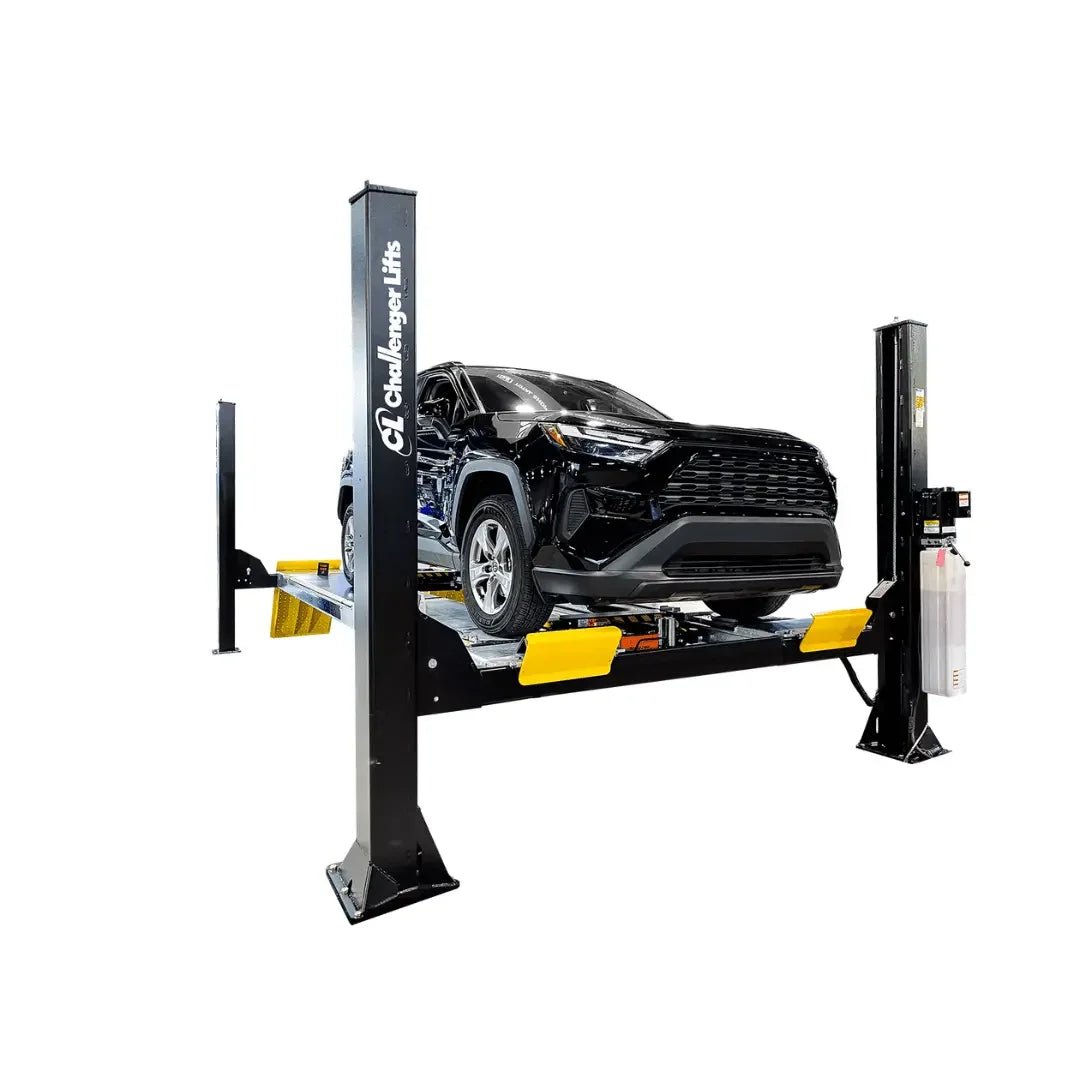

Challenger AR4115XAO Ex-Length Open Front 15,000 lbs 4 Post Alignment Rack Package – Black Only

Product Overview

Challenger AR4115XAO Ex-Length Open Front 4 Post Alignment Rack Package 15,000 lbs

Supersedes AR4015XAO

Designed with productivity and safety in mind, the Challenger AR4115XAO represents the next generation of 15,000 lb capacity four-post alignment lifts. This extended-length, open-front configuration delivers the versatility your shop needs to handle everything from compact passenger cars to medium-duty trucks and vans — all with enhanced ergonomics, advanced alignment capabilities, and a sleek, professional appearance that keeps your bay looking modern and organized.

Engineered to maximize your service revenue, this lift comes as a complete alignment rack package including two 7,500 lb rolling jacks, flush mount stainless steel turning radius gauges, an internal airline system for dual rolling jack operation, rear slip plates, multi-position work-steps, and automatic wheel stops. Whether you're expanding your alignment services or upgrading your existing equipment, the AR4115XAO is built to deliver reliable performance and long-term value.

Why Choose the AR4115XAO?

The 4115 Series represents a significant upgrade over previous models, with thoughtful design improvements throughout. All-new 22-inch wide runways provide greater stability and accommodate a wider range of vehicle types. The open-front design improves ergonomics dramatically, giving technicians easy access to adjustment points without awkward positioning or wasted time.

Extended-length runways on the AR4115XAO deliver an impressive 210.5-inch maximum wheelbase capacity, enabling you to service long-wheelbase trucks, extended vans, and oversized vehicles that many standard lifts simply can't handle. With an improved 4-wheel alignment wheelbase range of 68" to 158", you'll have the flexibility to perform precision alignments on both compact cars and full-size trucks.

The lift features louvered approach ramps that prevent wheel-spin far more effectively than diamond tread or abrasive strips, ensuring smooth and safe vehicle loading every time. An all-enclosed front column and crossbeam design not only keeps your shop looking clean and professional, but also protects internal components for longer operational life. The UHMW internally encapsulated slide block delivers smoother, quieter operation with reduced maintenance requirements.

With 17 locking positions and an improved lock design, you'll enjoy precise height control and enhanced safety on every lift. The 78-inch rise height gives technicians plenty of working clearance, and the 85-second speed of rise keeps bay turnaround times efficient without sacrificing smoothness or control.

Complete Alignment Package Included

The AR4115XAO Alignment Rack Package comes fully equipped with everything you need to start performing precision alignments and full-service undercarriage work immediately:

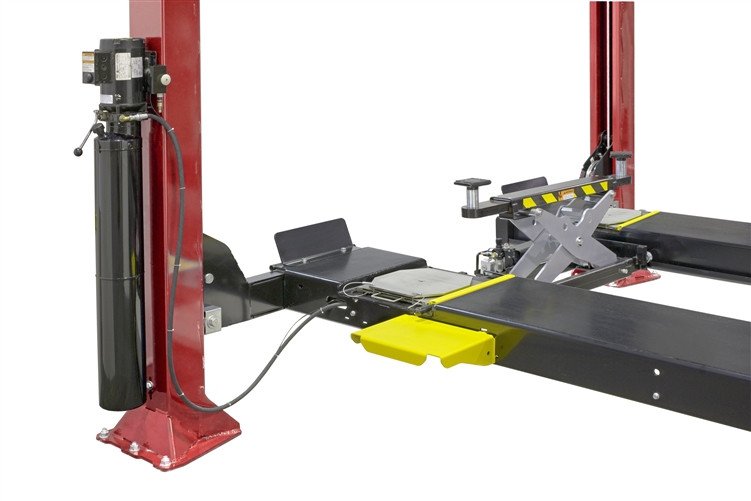

Two 7,500 lb Rolling Jacks
These air/hydraulic rolling jacks feature adjustable width, low vehicle drive-over clearance, and stackable height extensions with built-in storage rack. Each jack includes (4) 3-inch stack adapters and comes with a factory-installed and protected filter lubricator and regulator. Broaden your service revenue with easy access to brakes, suspension components, and wheels from underneath the lift.

Flush Mount Stainless Steel Turning Radius Gauges
Recessed stainless steel turning radius gauges provide accurate readings and are essential for measuring how many degrees the front wheels are turned left or right. These gauges are commonly used when measuring caster, camber, and toe-out on turns, ensuring precision alignment results every time.

Internal Airline Kit (40230X)
The internal air line kit provides air supply for dual rolling jack operation on extended-length four-post lifts. This integrated system keeps air hoses organized and out of the way, maintaining a clean and safe workspace.

The package also includes rear recessed free-floating slip plates that offer a wider range of 4-wheel alignment capabilities, multi-position work-steps for easy vehicle access, and automatic wheel stops for safe and consistent vehicle positioning.

Product Highlights

• 15,000 lb capacity handles everything from passenger cars to medium-duty trucks and vans

• Extended-length open-front design with 277-inch overall length and 210.5-inch maximum wheelbase

• All-new 22-inch wide runways with 78-inch rise height for enhanced stability and working clearance

• Complete alignment package with dual rolling jacks, turning radius gauges, rear slip plates, and internal airline system

• 17 locking positions with improved lock design and UHMW internally encapsulated slide blocks for smooth, reliable operation

Watch the AR4115 Series in Action

Technical Overview

The AR4115XAO operates on 2HP, 208v-230v, 60Hz, 1Ph electrical power (optional three-phase available upon request at time of order). The lift requires 90-120 psi air supply for pneumatic operation. With an overall width of 142 inches, 22.375-inch runway width, and 40.625-inch spacing between runways, this lift is designed to fit standard bay configurations while maximizing vehicle compatibility.

The minimum recommended bay size for the AR4115XAO is 14' x 26', ensuring adequate clearance and safe operation. The lift's 7-inch runway height provides low drive-over clearance for sports cars and lowered vehicles, while the improved 4-wheel alignment wheelbase of 68" to 158" accommodates a wide range of vehicle sizes.

This lift is compatible with the industry's latest imaging alignment systems, making it a future-proof investment for shops looking to integrate advanced diagnostic equipment. The all-enclosed front column and crossbeam design protects internal components from dust, debris, and accidental damage, while the louvered approach ramps ensure smooth, slip-free vehicle loading.

✓ ALI Certified This lift meets rigorous safety and performance standards set by the Automotive Lift Institute, ensuring reliability and peace of mind for your shop and technicians.

⚠ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.

Product Features

• Available in Black Color Only

• All-new and wider 22" runways.

• Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.

• Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.

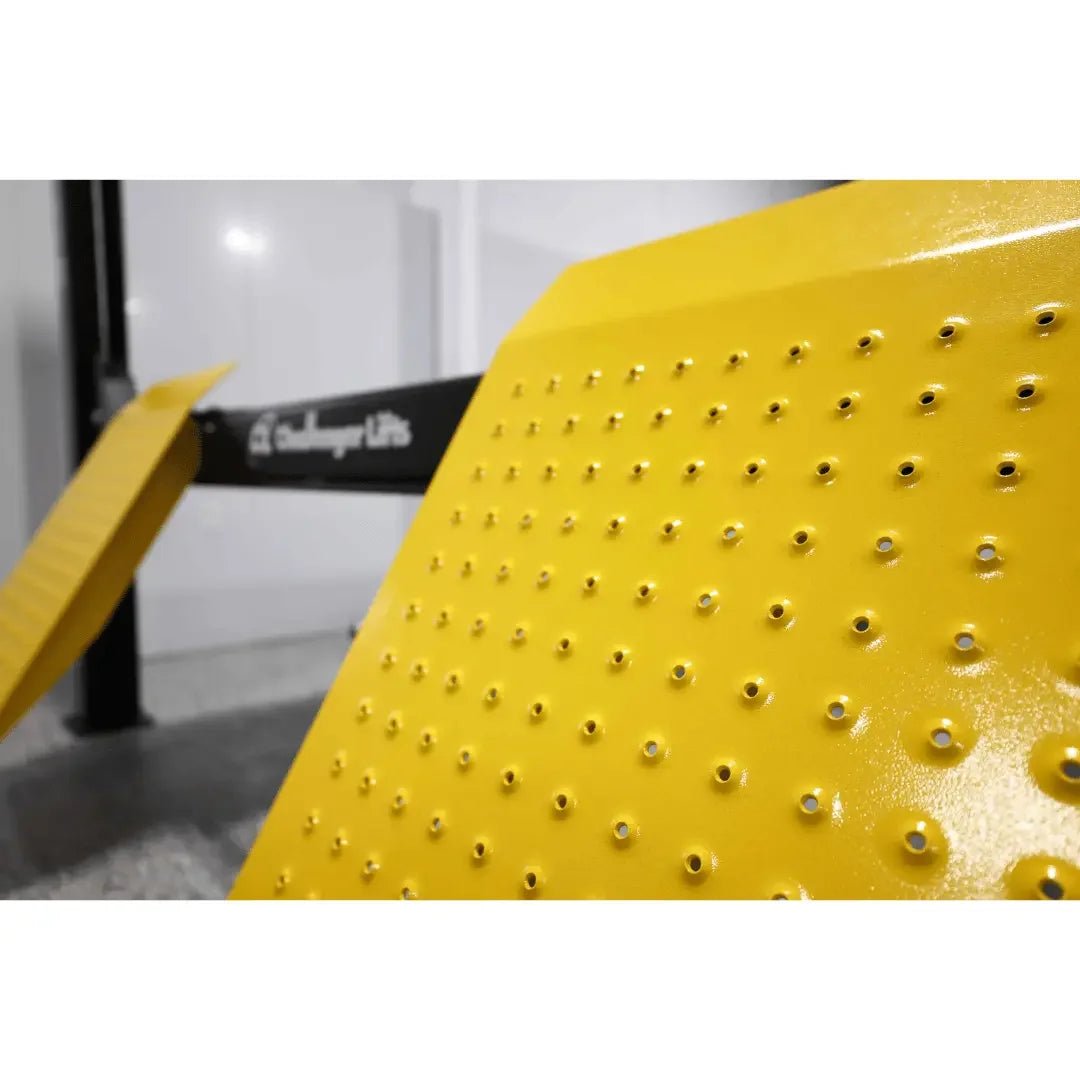

• Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.

• Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.

• Compatible with the industry’s latest imaging alignment systems.

• 17 locking positions with improved lock design.

Alignment Rack Package Includes
2) 9,000lb Rolling Jack, Flush Mount SS Turning Radius Gauges, Internal Airline Kit, Rear Slip Plates, Multi-Position Work-Steps & Automatic Wheel Stops

• Recessed stainless steel turning radius gauges provide accurate readings

• Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities

RJ7.5 7,500lb Rolling Jack
7,500 lb. capacity Rolling Jack for 4115series four post automotive lifts features air/hydraulic operation and includes (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 7,500 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.

Flush Mount Stainless Steel Turning Radius Gauges
Stainless Steel turning radius gauges for 4P12series, 44018AR and 4115series four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.

40230E Internal Airline Kit
Internal air line kit for dual rolling jack operation on 15,000 lb. capacity four post automotive lifts. Internal airline kit, #40230E provides air for dual rolling jack on the 4115series standard length four post lifts. #40230X provides air for dual rolling jack operation on the 4115series extended length four post lifts.

Product Specifications

Model

AR4115EAO

AR4115XAO

AR4115EAX

AR4115XAX

Open or Closed Front

Open

Open

Closed

Closed

Lift Capacity

15,000 lbs.

A Overall Length

250.75"

277"

247.625"

275.5"

B Overall Width

142"

C Inside of Columns

Front: 120.75” / Rear: 125.5

125.5"

D Between Columns

195"

222.5"

196"

223.375"

E Height of Columns

Front: 99.25” / Rear: 98"

98"

F Height of Runways

7"

G Width of Runways

22.375”

H Width Between Runways

40.625”

I Maximum Wheelbase 1

183"

210.5"

183"

210.5"

J Rise Height

78"

Max. 2 Wheel Alignment

167.75”

195.25”

167.75”

195.25”

Max. 4 Wheel Alignment

68" – 158"

Air Supply Required

90 -120 psi

Motor/Voltage 2

2HP, 208v-230v, 60Hz, 1Ph

Speed of Rise

85 seconds

Min. Recomm. Bay Size

14' x 24'

14' x 26'

14' x 24'

14' x 26'

1 Maximum wheelbase is based on a tire diameter of 30"

2 Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Color Only

Key Features

• Published product configuration: Challenger AR4115XAO Ex-Length Open Front 4 Post Alignment Rack Package 15,000 lbs Supersedes AR4015XAO Designed with productivity and safety in mind, the Challenger AR4115XAO represents the next generation of 15,000 lb capacity four-post alignment lifts. This extended-length, open-front configuration delivers the
• Exact manufacturer model or part number: AR4115XAO-V001
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model AR4115XAO-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
