BendPak HD-9SWX Double-Wide 82" Rise Storage/Parking Lift 9,000 lb – New Gray
Transform Your Garage Into a Four-Car Showroom
If you're looking for a little more lift and a lot less column interference, the BendPak HD-9SWX four-post lift is your answer. This super-wide, extended-length parking and storage lift is designed to transform your two-car garage into a state-of-the-art four-vehicle showroom. With an impressive 82" rise and 9,000-lb. capacity, the HD-9SWX delivers the ultimate combination of height, width, and strength for the serious car collector or commercial facility.

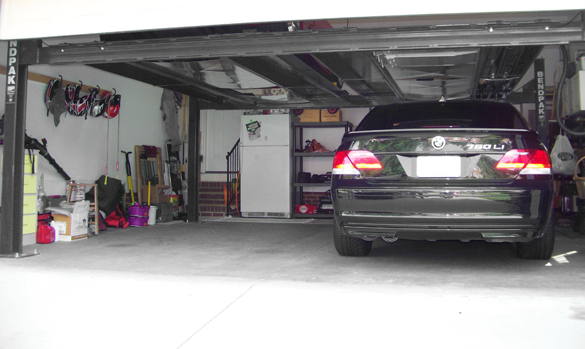

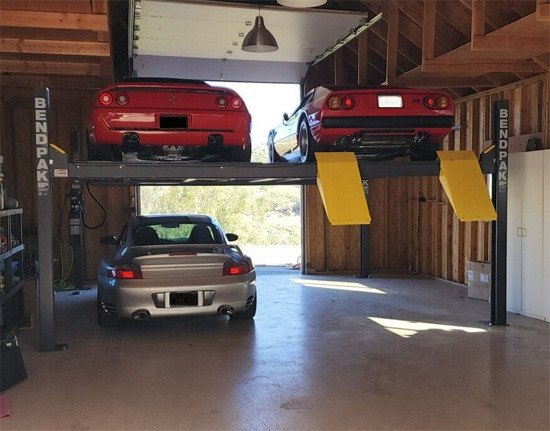

The HD-9SWX features an extended-length design with super-tall rise, making it ideal when you need additional under-lift clearance for a second vehicle parked beneath. The double-wide configuration allows you to raise and store two vehicles simultaneously on its four independent runways, while still leaving room underneath for more vehicles or workspace. It's like having two lifts in one—but taking up far less valuable floor space.
Designed into every HD-Series lift is an extensive list of features that ensure BendPak is the absolute best you can buy. This is an industrial-strength lift that works equally well in commercial service shops and private garages. We design our lifts with the attributes we feel should come standard with every model—you can always count on BendPak lifts for increased durability, safety, and productivity. Spend less time worrying about what you're working under and more time doing what you love.
The HD-9SWX is recognized worldwide as a benchmark of dependability and quality. Where other companies try to get away with the bare minimum, you can always bet on BendPak to find the perfect balance of quality, durability, and safety. When you add in all the optional accessories rolling jacks, drip trays, solid decks, and more this becomes one extremely adaptable four-post platform.
Key Highlights
- 9,000-lb. maximum lifting capacity with 82" maximum rise and 89" maximum lifting height perfect for stacking vehicles or creating generous under-lift workspace
- Double-wide freestanding design with four adjustable runways for quad-vehicle storage in a compact footprint; 202" overall width and 224.5" overall length
- Extended-length model with 188" runways and 48" extended aluminum ramps included for easy loading of low-clearance vehicles
- 16 multi-position safety locks (one every 4") with push-button pneumatic release and independent backup slack-cable safety latches for ultimate security
- High-speed lifting system (65 seconds to full rise) with single 220V/60Hz/1Ph electric-hydraulic power unit and ultra-quiet 45 dB operation
Unmatched Lifting Power and Versatility

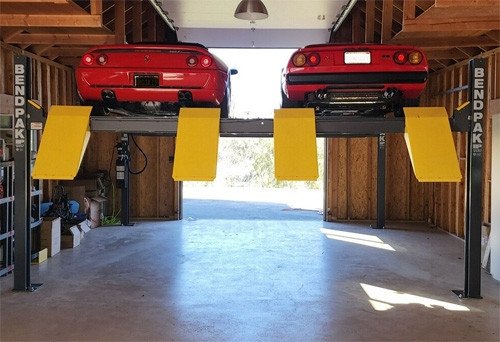

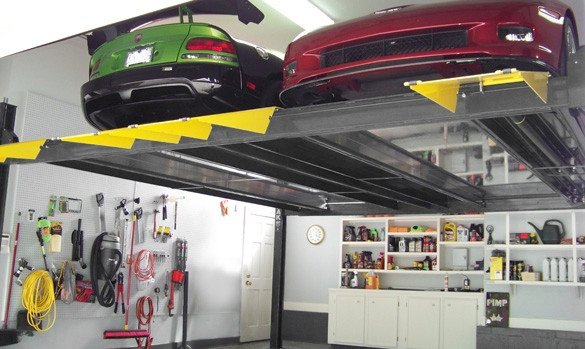

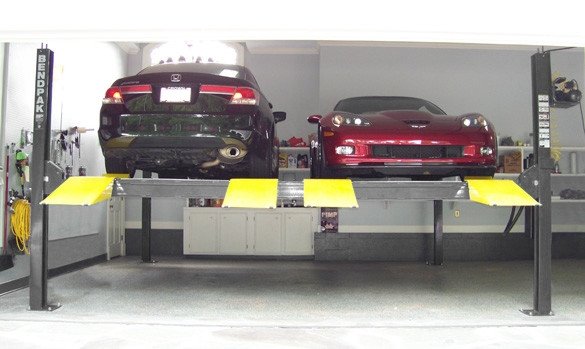

Double lifter design: The unique double-wide configuration lets you lift and store two vehicles simultaneously on four runways. It's like having two lifts side-by-side, but it takes up much less space and costs far less than two separate units. This makes the HD-9SWX perfect for collectors, showrooms, or high-end garages where space and efficiency matter.
Dependable lifting system: Each lift is equipped with four heavy-duty, high-quality stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway. This makes the HD-9SWX the most durable, maintenance-free lifting system on the market. The electric-hydraulic power system is fully integrated and all controls are conveniently located within close reach.
Dual-hub cable sheaves: We insist on using dual-hub cable sheaves, even though they cost us more to manufacture. These sheaves reduce stress and fatigue on the axles, sheaves, and cables, dramatically extending the life of your lift. Combined with our oversized self-lubricating cable rollers and oversized sheave diameter, cable fatigue is reduced and reliability is maximized. When you buy BendPak, peace of mind comes free with every lift.
Heavy-duty 3/8" aircraft cable: Each lift is supplied with four high-quality stainless steel lifting cables rated at 14,400 lbs. each. The combined rating of these cables is 640% of the maximum lifting capacity of the entire lift! All lifting cables are fully enclosed within the lift structure itself for a clean, integrated look and added safety.
Advanced Safety and Locking Technology
Multi-level locking positions: The HD-9SWX is equipped with 16 adjustable locking positions, one every 4", for variable-height parking and maximum flexibility. A convenient push-button pneumatic safety release disengages all four independent safety locks simultaneously for fast, safe operation.
Automatic safety locks: Spring-loaded safety locks made from aircraft-quality stainless steel and aluminum pneumatic cylinders automatically engage continuously as the lift is raised. For added protection, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure. Each column features adjustable lock ladders for precise positioning and security.
Independent backup slack-cable safety latches: In addition to the primary multi-position safety locks, each column is equipped with an independent backup latch system. This redundant safety feature provides an extra layer of protection and ensures the lift remains securely locked even in the case of an unexpected failure.
Precision-Engineered Hydraulic System
Single hydraulic cylinder with leak-proof technology: Each HD-9SWX lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass.
The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically to ensure superior cylinder operation and life. The superior-design, high-durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection.
The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth, and last a very long time. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture.
Rugged Construction and Premium Finish
Durable powder-coat finish: All HD-Series lifts feature a durable New Gray powder-coat finish that gives the metal a high-quality, extremely durable surface which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step powder-coating process.
First, all parts are visually inspected before being sandblasted. Afterward, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25 feet long. Once cleaned, they're immediately dried to avoid rust production, then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. After the parts are washed and outgassed, any surfaces and threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun, and once the parts are powder coated, the carts are rolled into our curing oven and baked at 400°F for 45 minutes.
Large base plates: 10" x 12" base plates provide a solid, stable foundation for the HD-9SWX, distributing weight evenly and ensuring long-term reliability even under maximum load.
Rugged 1.25" roller axles: Oversized axles provide exceptional strength and durability throughout the lifting mechanism, ensuring smooth, reliable operation for decades to come.
Designed for Real-World Performance
Integrated, enclosed design: Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the lift structure. This integrated design protects critical components from damage, keeps your workspace clean and professional, and eliminates pinch points for safer operation.
Internal anti-sway slider blocks: Each column is equipped with internal anti-sway slider blocks that ensure smooth, stable lifting and prevent side-to-side movement during operation. This keeps your vehicles secure and stable throughout the entire lifting cycle.

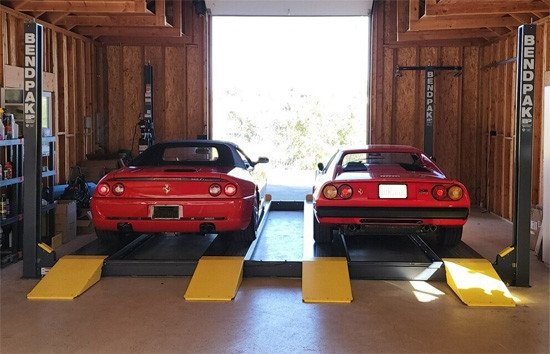

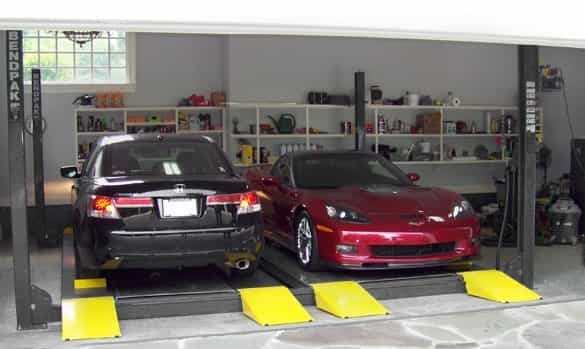

Low 7" minimum runway height: The low-profile runway design accommodates even the lowest ground-clearance vehicles, making it easy to load sports cars, exotics, and other low-slung vehicles without scraping.
Extra-long 48" aluminum approach ramps included: Each HD-9SWX comes standard with a pair of 48" extended aluminum ramps (Part #5174670) designed to help when loading low ground-clearance vehicles. It's the little bit that makes a big difference, providing a gentler approach angle for exotic and lowered vehicles.
Removable approach ramps: The included ramps are fully removable, providing additional drive-under clearance when needed. Optional drive-thru ramps are also available for added versatility.
Non-skid runway surface: All four runways feature a non-skid surface for secure vehicle positioning and operator safety, even in wet or oily conditions.
Flexible Configuration and Customization

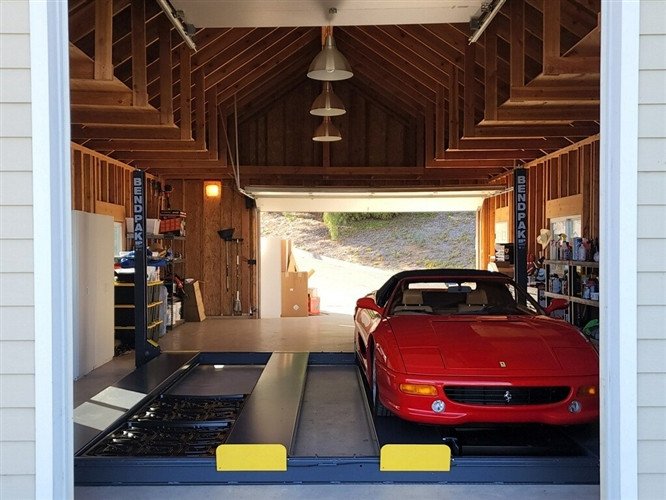

Adjustable runways for different tread widths: The inside runways adjust to accommodate vehicles with different tread widths, providing the ultimate flexibility for varied vehicle types. Runway centerlines can be set at either 56" or 61", with 37" or 42" width between runways.
Runways include rail-kit for optional accessories: Each runway is equipped with integrated rail-mounting points, making it easy to add optional accessories like 4,500-lb. air-hydraulic rolling jacks, drip trays, and other BendPak accessories.
Customizable power unit location: The power unit can be positioned on either side of the lift during installation, giving you the flexibility to optimize your workspace layout and electrical connections.
Optional accessories expand functionality: Add optional solid decks to increase storage capacity, optional drip trays to protect vehicles and flooring from leaks, or optional 4,500-lb. air-hydraulic rolling jacks to turn your storage lift into a full-service platform.
Watch the HD-9SWX in Action
Optional Drip Trays for Added Protection
BendPak 5700301 Plastic Drip Trays (Set of 2): A lightweight, cost-effective solution to drips and leaks. These polypropylene drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two and designed to fit BendPak's HD-7 and HD-9 Series lifts.
These optional drip trays feature a reversible design that allows them to accommodate four-post lifts with the runways positioned either wide or narrow. Each tray comes with 56 articulated catches and gutters to restrain fluid from sloshing out—so all that oil, coolant, and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes, keeping your workspace looking clean and professional.
Optional BendPak Drip Trays specifications and dimensions
âš WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Product Features
- 9,000-lb. maximum lifting capacity
- Freestanding design
- Perfect for parking, storage and service
- Double-wide configuration for quad-vehicle storage
- Four runways
- Super-tall rise
- Extra-long ramp
- Runways accommodate wide or narrow vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Inside runways adjust for different tread widths
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available
Includes
- 1 Pair – #5174670 48" Extended Aluminum Ramps
Product Specifications
Model
HD-9SW
HD-9SW-E
HD-9SWX
Style
Super Wide
Extra Wide
Super Wide/Extended Length
Capacity
Lifting Capacity: (*)
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A Min. Runway Height
7" (178 mm)
B Max. Rise
70" (1,778 mm)
82" (2,083 mm)
C Max. Lifting Height
77.5" (1,969 mm)
89" (2,261 mm)
Time to Full Rise
55 seconds
65 seconds
Outside Dimensions
D Overall Width
202" (5,131 mm)
248" (6,300 mm)
202" (5,131 mm)
E Outside Length
174" (4,420 mm)
198" (5,029 mm)
F Overall Length
200.5" (5,095 mm)
224.5" (5,705 mm)
G Height of Columns
90" (2,286 mm)
102" (2,591 mm)
Inside Dimensions
H Width Between Columns
192" (4,877 mm)
238" (6,046 mm)
192" (4,877 mm)
I Drive-Thru Clearance
178" (4,521 mm)
N/A
178" (4,521 mm)
Runways
J Runway Width
19" (483 mm)
K Length of Runways
164.5" (4,178 mm)
188" (4,775 mm)
L Width Between Runways
37" or 42" (940 or 1,067 mm)
M Runway Centerline
56" or 61" (1,422 or 1,549 mm)
N Outside Edge of Runways
75" or 80" (1,905 or 2,032 mm)
Minimum Wheelbase
Rated Capacity
115" (2,921 mm)
135" (3,429 mm)
75% Capacity
100" (2,540 mm)
115" (2,921 mm)
50% Capacity
85" (2,159 mm)
95" (2,413 mm)
25% Capacity
70" (1,778 mm)
80" (2,032 mm)
Locking
Locking Positions
14
16
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
Shipping
Weight
2,752-lbs. (1,248.3 kg)
N/A
2,987-lbs. (1354.9 kg)
Dimensions
219" x 21" x 42"
(5,563 mm x 533 mm x 1,067 mm)
N/A
206" x 22" x 40"
(5,232 mm x 559 mm x 1,016 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-9SWX Double-Wide 82" Rise Storage/Parking Lift 9,000 lb – New Gray Transform Your Garage Into a Four-Car Showroom If you're looking for a little more lift and a lot less column interference, the BendPak HD-9SWX four-post lift is your answer. This super-wide, extended-length parking and storage lift is
- Exact manufacturer model or part number: 5175024
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175024 |
| MPN / Model | 5175024 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175024, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
