BendPak HD-9SW-E Extra-Wide Car Storage Parking Lift 9,000 lb. – New Gray

Product Overview

BendPak HD-9SW-E Extra-Wide Car Storage Parking Lift 9,000 lb. – New Gray

If you're looking for a little more lift and a lot less column interference, the BendPak HD-9SW-E is the answer. This extra-wide, four-post parking lift is designed to transform your garage into a state-of-the-art parking facility—turning that two-car space into a four-car trophy stand. With an industry-leading 238" width between columns, the HD-9SW-E accommodates the widest vehicles with ease while delivering 9,000 lbs. of rated lifting capacity and a 70" maximum rise.

Designed with a laundry list of heavy-duty features, the HD-9SW-E sets the benchmark for durability, safety, and productivity. Every BendPak lift in the HD-Series comes with attributes that should be standard on every four-post lift—yet often aren't with the competition. You can always count on BendPak to deliver increased strength, robust construction, and advanced safety systems. Spend less time worrying about what you're working under and more time doing what you love.

The HD-9SW-E Extra-Wide is an industrial-strength lift that works equally well in the service shop and at home. Its unique super-wide design allows this lift to raise and store two vehicles simultaneously on four runways, while the shorter ramp design means that the lift fits in tighter shops and garages. When you add in all of the optional kits including drip trays, solid decks, and 4,500-lb. rolling jacks this becomes one extremely adaptable four-post parking solution.

As with all BendPak products, we've engineered the HD-9SW-E to be tougher and safer than it needs to be. Where other companies might try to get away with the bare minimum, you can always bet on BendPak to find the perfect cross-section of quality, durability, and safety. From heavy-duty 3/8" aircraft cables rated at 640% of maximum lift capacity to multi-position safety locks and backup slack-cable safety latches, every component is built to last.

Key Highlights

• 238" Width Between Columns The extra-wide design provides maximum clearance for dual-vehicle parking or lifting the widest exotic cars, trucks, and SUVs with ease.

• 9,000-lb. Rated Capacity Supports 4,500 lbs. per axle, delivering commercial-grade strength for two mid-sized vehicles or one heavy truck.

• 70" Maximum Rise Provides ample height for storage parking while keeping the overall column height manageable at 90 inches.

• High-Speed Operation Reaches full rise in just 55 seconds, powered by an efficient 220V / 1-Phase motor with ultra-quiet 45 dB operation.

• Push-Button Pneumatic Safety Release Releases all 14 multi-position safety locks simultaneously with one button, making height adjustments fast and effortless.

HD-9SW-E in Action

Double Lifter Design

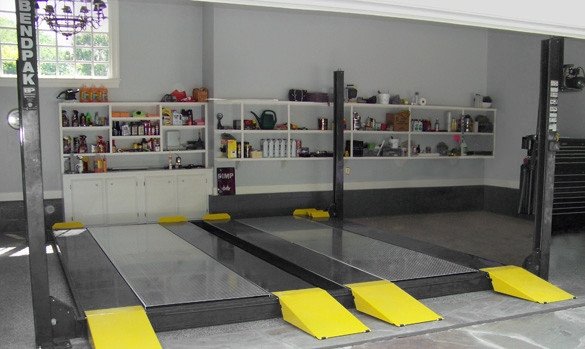

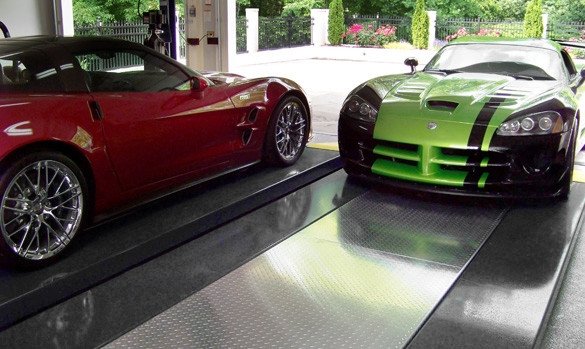

The unique double-wide design of the HD-9SW-E lets you lift and store two vehicles simultaneously. It's like having two separate lifts, but it takes up much less space and costs far less. The 238" clear span between columns ensures there's no column interference, even when parking two full-size sedans or SUVs side-by-side.

Each runway is equipped with 19"-wide platforms and includes a rail kit for optional accessories such as drip trays, jack trays, and caster kits. The 37" or 42" adjustable width between runways accommodates vehicles with narrow or wide track widths, making this lift incredibly versatile.

Dependable Electric/Hydraulic Power System

At the heart of the HD-9SW-E is a proven electric/hydraulic power system featuring a single hydraulic cylinder mounted underneath the runway for minimal exposure and maximum reliability. This industrial-grade cylinder features a single-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup seals, backups, and wear bands to virtually eliminate fluid bypass.

The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically, ensuring superior cylinder operation and longevity. An integrated flow restrictor provides controlled descent in the unlikely event of an unexpected hose rupture, adding an extra layer of safety.

Heavy-Duty Aircraft Lifting Cables

Each HD-9SW-E is supplied with four high-quality, stainless steel lifting cables, each rated at 14,400 lbs. The combined rating of these cables is an astounding 640% of the maximum lifting capacity of the entire lift! These 3/8" aircraft-quality cables provide the perfect balance of strength, abrasion resistance, and fatigue life.

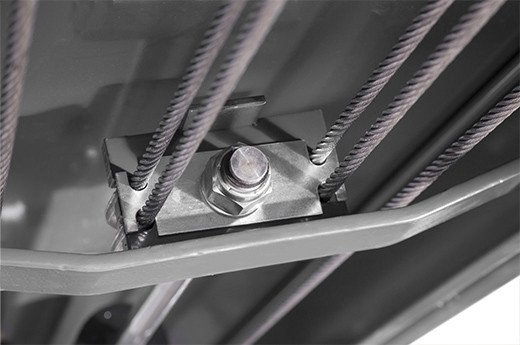

All lifting cables are fully enclosed within the lift structure, keeping them protected from dirt, debris, and accidental damage. Oversized self-lubricating cable rollers and oversized sheave diameters reduce cable fatigue and extend service life. Every sheave and sheave axle features grease nipples, making routine lubrication maintenance a breeze.

Advanced Multi-Position Safety Locks

The HD-9SW-E is equipped with 14 multi-position locking positions spaced every 4 inches for variable-height parking and service work. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously, allowing smooth and effortless height adjustments.

The spring-loaded safety locks automatically engage continuously as the lift is raised. For added peace of mind, a secondary lock system acts as a backup slack-cable device to engage in the unlikely event of cable failure. These aircraft-quality stainless steel and aluminum pneumatic cylinders deliver years of reliable, maintenance-free operation.

Air Supply Required: An air supply with a minimum of 30 psi / 3 CFM is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.

Dual-Hub Cable Sheaves and Rugged Roller Axles

BendPak insists on using dual-hub cable sheaves, even though they cost more to manufacture. This design reduces stress and fatigue on the axles, sheaves, and cables—delivering years of trouble-free service. Combined with rugged 1.25" roller axles and oversized self-lubricating cable rollers, the HD-9SW-E is built to withstand decades of heavy use.

Internal anti-sway slider blocks in each column provide additional stability and keep the lift operating smoothly, even under maximum load. When you buy BendPak, we throw in peace of mind free with every lift.

Premium Powder-Coat Finish

All HD-Series lifts feature a durable powder-coat finish in a sleek new gray color that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in a meticulous 10-step process.

First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in a 5-stage phosphate tank that can accommodate parts up to 25 feet long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and will likely cause chips in the powder.

After the parts are washed and outgassed, any surfaces and/or threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun the powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into the curing oven and baked at 400°F for 45 minutes. The result is a beautiful, chip-resistant finish that looks as good as it performs.

Low-Profile Design for Low-Clearance Vehicles

The HD-9SW-E features low-deck runways with a minimum runway height of just 7 inches, allowing you to accommodate even the lowest sports cars and exotics. The longer approach ramps are designed to help when loading low ground-clearance vehicles—it's the little bit that makes a big difference.

The approach ramps are also removable, providing additional drive-under clearance when needed. Optional drive-thru ramps are available for shops that require unobstructed front-to-back access.

Solid Foundation and Customizable Power Unit Location

Large 10" x 12" base plates provide a solid foundation for the HD-9SW-E, ensuring maximum stability even when fully loaded. The customizable power unit location allows you to tailor the lift installation to your specific shop or garage layout, providing maximum flexibility.

Integrated Design and Non-Skid Runways

Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the lift structure, creating a clean, integrated design that protects critical components from damage. The runways feature a non-skid surface that provides sure footing and prevents slipping, even in wet or oily conditions.

Optional Drip Trays – Keep Your Garage Clean

BendPak 5700301 Plastic Drip Trays are a light-weight, cost-effective solution to drips and leaks. These drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two, these polypropylene drip trays are a perfect accessory for any four-post lift, especially if you have a vehicle that leaks.

A reversible design allows the trays to accommodate BendPak four-post lifts with the runways positioned either wide or narrow. These affordable, impact-resistant polypropylene drip trays are rugged and light, and help solve the common problem of potentially harmful drips.

Each tray comes with 56 articulated catches and gutters to restrain the fluid from sloshing out. So all that oil, coolant, and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes.

BendPak Drip Trays Specifications

Additional Optional Accessories

Expand the capabilities of your HD-9SW-E with a variety of optional accessories:

• Solid Deck Kits Increase storage capacity and create a flat work surface.

• 4,500-lb. Air/Hydraulic Rolling Jacks Lift individual wheels for tire and brake service.

• Drive-Thru Ramps Provide unobstructed front-to-back access.

• Caster Kits and Jack Trays Keep tools and jacks organized and within reach.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.

Product Features

• Standard rise

• Shorter runway for smaller spaces

• Runways accommodate wide or narrow vehicles

• Runways include rail kit for optional accessories

• Electric / hydraulic power system

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Oversized sheave diameter reduces cable fatigue

• High-speed lifting

• Features heavy-duty 3/8" aircraft cable

• Rugged 1.25" roller axles

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature non-skid surface

• Push-button pneumatic safety release

• Independent backup slack-cable safety latches

• Inside runways adjust for different tread widths

• Customizable power unit location

• Removable approach ramps for additional drive-under clearance

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air / hydraulic rolling jacks available

Product Specifications

Model

HD-9SW
HD-9SW-E
HD-9SWX

Style

Super Wide
Extra Wide
Super Wide/Extended Length

Capacity

Lifting Capacity: (*)

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A Min. Runway Height

7" (178 mm)

B Max. Rise

70" (1,778 mm)
82" (2,083 mm)

C Max. Lifting Height

77.5" (1,969 mm)
89" (2,261 mm)

Time to Full Rise

55 seconds
65 seconds

Outside Dimensions

D Overall Width

202" (5,131 mm)
248" (6,300 mm)
202" (5,131 mm)

E Outside Length

174" (4,420 mm)
198" (5,029 mm)

F Overall Length

200.5" (5,095 mm)
224.5" (5,705 mm)

G Height of Columns

90" (2,286 mm)
102" (2,591 mm)

Inside Dimensions

H Width Between Columns

192" (4,877 mm)
238" (6,046 mm)
192" (4,877 mm)

I Drive-Thru Clearance

178" (4,521 mm)
N/A
178" (4,521 mm)

Runways

J Runway Width

19" (483 mm)

K Length of Runways

164.5" (4,178 mm)
188" (4,775 mm)

L Width Between Runways

37" or 42" (940 or 1,067 mm)

M Runway Centerline

56" or 61" (1,422 or 1,549 mm)

N Outside Edge of Runways

75" or 80" (1,905 or 2,032 mm)

Minimum Wheelbase

Rated Capacity

115" (2,921 mm)
135" (3,429 mm)

75% Capacity

100" (2,540 mm)
115" (2,921 mm)

50% Capacity

85" (2,159 mm)
95" (2,413 mm)

25% Capacity

70" (1,778 mm)
80" (2,032 mm)

Locking

Locking Positions

14
16

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

2,752-lbs. (1,248.3 kg)
N/A
2,987-lbs. (1354.9 kg)

Dimensions

219" x 21" x 42"
(5,563 mm x 533 mm x 1,067 mm)
N/A
206" x 22" x 40"
(5,232 mm x 559 mm x 1,016 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HD-9SW-E Extra-Wide Car Storage Parking Lift 9,000 lb. – New Gray If you're looking for a little more lift and a lot less column interference, the BendPak HD-9SW-E is the answer. This extra-wide, four-post parking lift is designed to transform your garage into a state-of-the-art parking facility—turning that
• Exact manufacturer model or part number: 5175578-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175578-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
