Product Overview
BendPak HD-9EWT Extra-Wide / High Lift 4-Post Car Lift 9,000 lb.
The BendPak HD-9EWT is the ultimate four-post lift for shops and garages with extra space and high ceilings. Engineered for extra-wide vehicles and high-rise lifting, this 9,000 lb. capacity lift is designed to comfortably accommodate wide-body trucks, SUVs, and off-road vehicles—without the worry of scratching mirrors, doors, or side panels that narrower lifts can cause. With an impressive 82" rise and a maximum lifting height of 87", the HD-9EWT provides ample space beneath the vehicle for taller technicians to work comfortably, and plenty of clearance above for high-stance trucks and SUVs. Whether you're storing vehicles, performing routine maintenance, or tackling comprehensive repairs, this lift delivers the space, strength, and versatility you need.
Built on a freestanding design, the HD-9EWT combines robust construction with advanced safety features. The lift's electric-hydraulic power system features a single hydraulic cylinder mounted underneath the runway, delivering smooth, precise operation you can control with ease. Start, stop, or reverse the lift at any point with simple push-button controls. The multi-position safety locks (17 locking positions spaced every 4 inches) give you the flexibility to secure the lift at the perfect working height—no more crouching or overreaching during service work. This is a lift designed around real-world shop conditions and user comfort.
Superior Safety Engineering & Heavy-Duty Cable System
Safety is never an afterthought with BendPak. The HD-9EWT features four superior-grade stainless steel lifting cables, each rated to handle an impressive 14,400 lbs. These cables are routed internally within the post columns, creating a clean, streamlined appearance while protecting them from damage and environmental exposure. The lift uses dual-hub cable sheaves a premium feature that costs more to manufacture but dramatically extends the life of the axles, sheaves, and cables by preventing premature wear and burnout. It's this kind of engineering detail that sets BendPak apart.

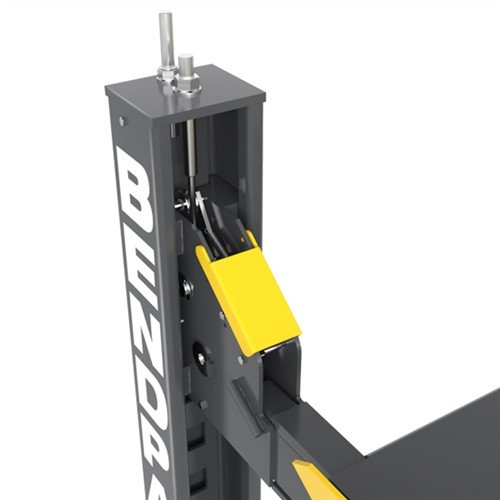

The lift's fully enclosed design hides all lifting cables, airlines, safety latches, and sheaves within the columns, contributing to both safety and aesthetics. Four safety locks engage simultaneously as the lift is raised, and an independent backup slack-cable safety latch system catches any cable slack in the unlikely event of cable failure. Push-button pneumatic safety release ensures quick and secure unlocking, while internal anti-sway slider blocks and oversized self-lubricating cable rollers keep the lift stable and smooth throughout operation. Every detail is engineered with your safety and peace of mind in mind.
Extra-Wide Design for Trucks, SUVs & Off-Road Vehicles
The HD-9EWT is specifically engineered to handle wide vehicles with ease. With an overall width of 117 inches and 107 inches of clearance between columns, this lift gives you the breathing room you need when working on lifted trucks, full-size SUVs, and vehicles with aftermarket wheels or extended mirrors. The adjustable runways (width between runways adjustable from 35.75" to 42") accommodate both narrow sports cars and wide trucks, making this lift incredibly versatile. The 19-inch-wide runways span 182.25 inches in length, providing stable support for vehicles with wheelbases ranging from 80 inches up to 135 inches depending on load.

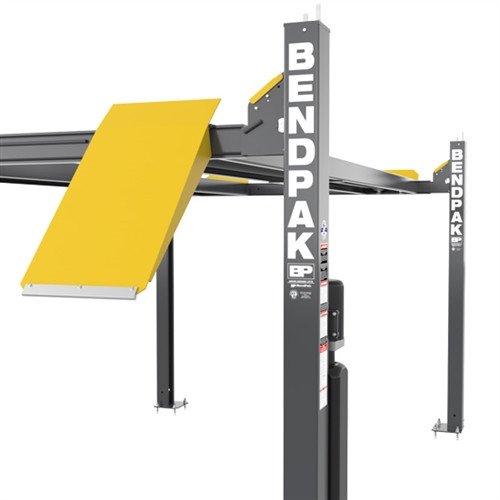

The runways also feature a durable matte finish that resists wear and provides excellent traction. They come equipped with rail-kits for optional accessories, so you can customize your setup with rolling bridge jacks, drip trays, and other tools. Removable approach ramps provide additional drive-under clearance when needed, and longer approach ramps for low-ground-clearance vehicles are available as an option. This lift adapts to your needs, not the other way around.
Perfect for Storage, Service & Professional Shops
The HD-9EWT is the ideal solution whether you're a professional shop owner or a dedicated DIY enthusiast. Its high-rise capability (maximum rise of 82.165 inches and maximum lifting height of 87 inches ) provides ample working space beneath the vehicle, allowing taller technicians to stand upright and work comfortably without back strain. The generous height also accommodates high-clearance trucks and lifted SUVs on the runways, so you're never turning away customers or limiting your own projects.

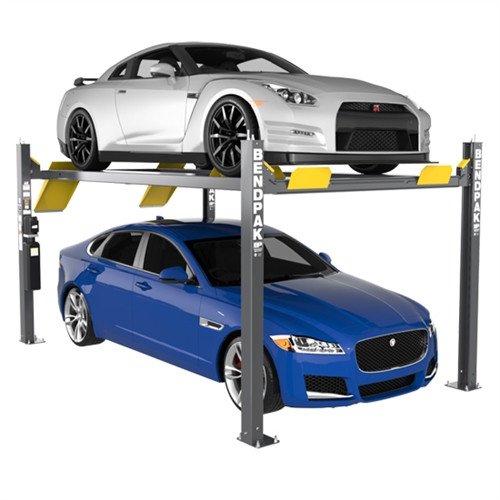

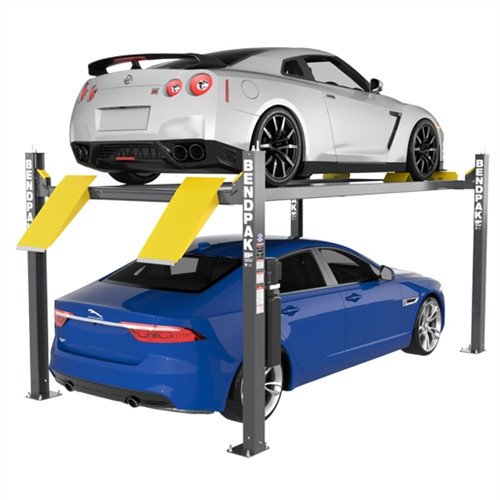

Beyond service and repair, this lift is perfect for vehicle storage. Maximize your garage space by stacking vehicles, protecting valuable cars from the elements, and freeing up floor space for other equipment or projects. The customizable power unit location allows you to position the motor and hydraulic system where it's most convenient for your shop layout. With a minimum runway height of just 4.75 inches, the HD-9EWT makes it easy to drive even low-profile sports cars onto the lift without scraping.
Why Choose the BendPak HD-9EWT?
- Extra-Wide Design: Accommodates wide-body trucks, SUVs, and off-road vehicles with ease—no more worrying about mirrors or door scratches.
- High-Rise Lifting: 82" rise and 87" max lifting height provide generous working space for taller techs and high-clearance vehicles.
- 9,000 lb. Capacity: Handles a wide range of vehicles, from sports cars to full-size trucks, with confidence.
- Superior Safety Features: Four 14,400 lb. stainless steel cables, dual-hub sheaves, multi-position safety locks, and independent backup latches ensure maximum protection.
- Versatile & Adjustable: Adjustable runways, removable ramps, and optional longer ramps accommodate narrow, wide, low, and high vehicles.
- Professional-Grade Construction: Freestanding design, electric-hydraulic power system, fully enclosed cables and components, and durable matte finish runways built to last.
- ALI Certified: Meets rigorous industry standards for safety and performance.
Key Specifications at a Glance
- Lifting Capacity: 9,000 lbs. (4,500 lbs. per axle)
- Max Rise: 82.165" / 2,087 mm
- Max Lifting Height: 87" / 2,208 mm
- Overall Width: 117" / 2,970 mm
- Width Between Columns: 107" / 2,716 mm
- Drive-Thru Clearance: 93.25" / 2,371 mm
- Runway Width: 19" / 482 mm
- Runway Length: 182.25" / 4,629 mm
- Overall Length: 224.5" / 5,028 mm
- Height of Columns: 100" / 2,537 mm
- Locking Positions: 17, spaced every 4" / 102 mm
- Motor: 220 VAC / 60 Hz / 1Ph
- Air Supply Required: Minimum 30 psi / 3 CFM (for safety-lock disengagement)
Important Notes
Air Supply Required: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Product Specifications Diagram
Product Features
- 9,000-lb. maximum lifting capacity
- Freestanding design
- High-rise
- Better suited for wide cars and off-road vehicles
- Perfect for parking, storage, and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric-hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks, and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Multi-position safety locks in each column
- Adjustable safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles available
Product Specifications
Model
HD-9EWT
Style
Extra-Wide / High Lift
Capacity
Lifting Capacity: (*)
4,500 lbs. / 2,041 kg
*Max Capacity / Front Axle
4,500 lbs. / 2,041 kg
*Max Capacity / Front & Rear Axle
Rise
A Min. Runway Height
4.75" / 121 mm
B Max. Rise
82.165" / 2,087 mm
C Max. Lifting Height
87" / 2,208 mm
Time to Full Rise
N/A
Outside Dimensions
D Overall Width ±.125 in. / 3 mm
117" / 2,970 mm
E Outside Length
198" / 5,028 mm
F Overall Length
224.5" / 5,028 mm
G Height of Columns
100" / 2,537 mm
Inside Dimensions
H Width Between Columns
107" / 2,716mm
I Drive-Thru Clearance
93.25" / 2,371 mm
Runways
J Runway Width
19" / 482 mm
K Length of Runways
182.25" / 4,629 mm
L Width Between Runways Min/Max
35.75" – 42" / 910 mm – 1,068 mm
M Runway Centerline
57.75" – 64" / 1,468 – 1,626 mm
N Outside Edge of Runways
76.75"- 83" / 1,950 – 2,108 mm
Minimum Wheelbase
Rated Capacity
115" / 2,921 mm
75% Capacity
95" / 2,413 mm
25% Capacity
80" / 2,032 mm
Max. Load Operating Pressure
135" / 3,429 mm
Locking
Locking Positions
17 spaced every 4" / 102 mm
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-9EWT Extra-Wide / High Lift 4-Post Car Lift 9,000 lb. The BendPak HD-9EWT is the ultimate four-post lift for shops and garages with extra space and high ceilings. Engineered for extra-wide vehicles and high-rise lifting, this 9,000 lb. capacity lift is designed to comfortably accommodate wide-body trucks
- Exact manufacturer model or part number: 5175607-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175607-V001 |
| MPN / Model | 5175607-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175607-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
