BendPak 12AP-SRT Low-Ceiling Mid-Rise 2 Post Car Lift 12,000 lb. – New

Product Overview

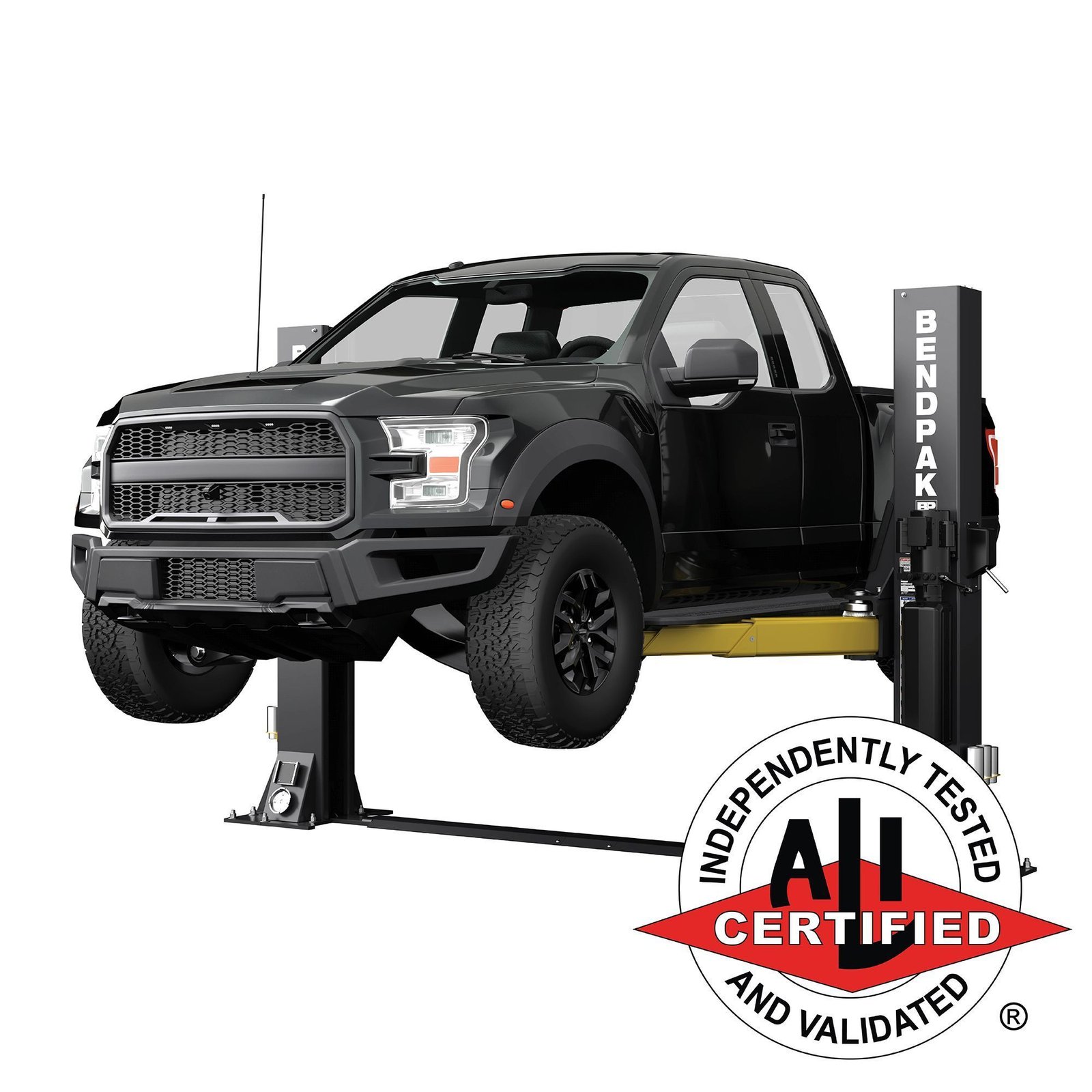

BendPak 12AP-SRT Low-Ceiling Mid-Rise 2 Post Car Lift – 12,000 lb. Capacity

The BendPak 12AP-SRT is the ultimate solution for shops with space or ceiling height constraints that still demand full commercial lifting capacity. Engineered with an innovative low-profile design and a post height of just 93.5 inches, this 12,000 lb. capacity mid-rise lift fits perfectly into garages, service centers, and dealerships with low ceilings where traditional full-rise lifts simply won't work. With a maximum rise of 46.25 inches, the 12AP-SRT provides outstanding access for tire and wheel service, undercarriage inspections, brake work, suspension jobs, detailing, and quick maintenance tasks—without requiring technicians to stand fully underneath the vehicle. This lift delivers the power, safety features, and engineering excellence BendPak is known for, in a compact footprint designed for modern, fast-paced automotive service environments.

The Ultimate Mid-Rise Lift for Versatile Service Work

At BendPak, we understand that different jobs require different tools. You're not always going to need a standard full-rise lift where you stand under a vehicle, and that's exactly where the 12AP-SRT excels. This short-rise, short-column lift is the latest addition to the revolutionary AP Series and fits perfectly into shops and low-ceiling garages where traditional lifts can't be installed. Despite its compact design, it's capable of safely handling up to 12,000 lbs. with ease, making it one of the most versatile and powerful mid-rise lifts on the market today.

Whether you're running a high-volume tire shop, a dealership service lane, or a specialty detail center, the 12AP-SRT provides the perfect blend of accessibility, power, and safety. With a maximum lifting height of approximately 46 inches, this lift is purpose-built for tasks that don't require full underbody access—like tire and wheel service, detailing, brake jobs, suspension inspections, and routine maintenance. The reduced rise height also means faster cycle times, allowing your team to move vehicles in and out quickly while maintaining the highest safety standards.

A New Paradigm in Automotive Lifting

The AP Series represents a complete reimagining of two-post lift design. BendPak engineers combined the best attributes of today's most advanced two-post lifts and fused them into a completely fresh approach to car lift engineering. The result is a lift unlike any other on the market—one that's built to handle tough jobs, heavy loads, and ensure the safety of both the vehicle and the operator at every stage of operation.

One of the standout features is BendPak's double-telescoping screw adapters, which are designed with precision and safety in mind. These adapters feature durable polyurethane pads that resist gouging and tearing, protecting vehicle frames and pinch welds from damage. They can be easily adjusted up or down to ensure level lifting, even when working with vehicles that have uneven undercarriages or challenging lift points.

For added versatility, the 12AP-SRT includes a complete set of 2.5" and 5" stackable adapters that provide precise and secure support for a wide variety of vehicles. Their convenient drop-in design allows for quick and effortless use, while a column-mounted adapter rack (included) keeps these adapters neatly organized and secure, streamlining your workflow and reducing setup time between lifts.

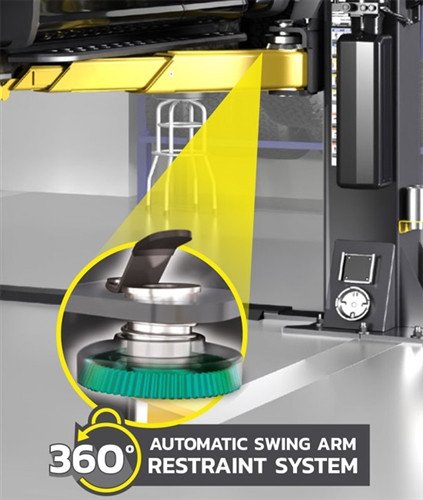

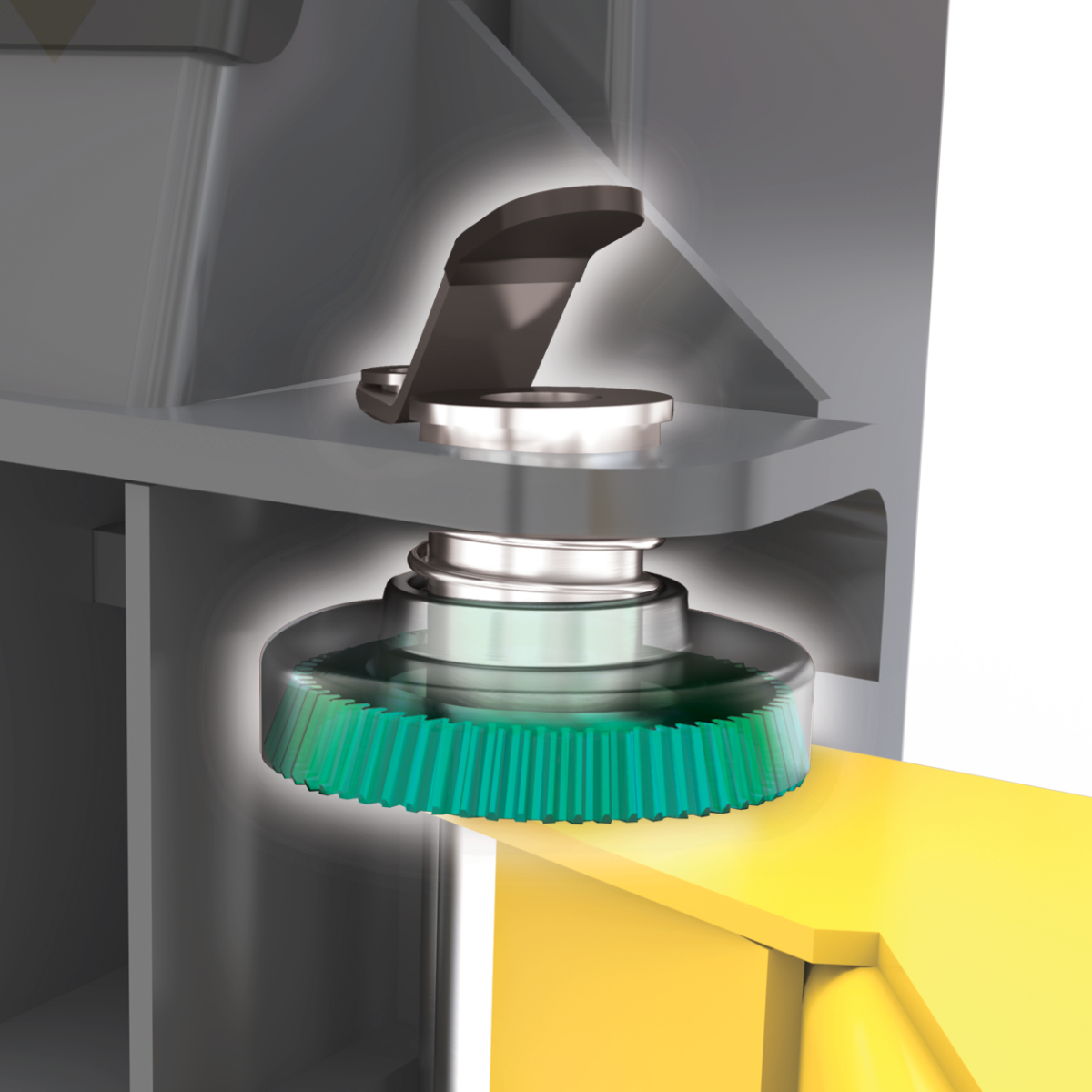

Revolutionary Safety: Automatic Swing Arm Restraint System (ASARS)

Traditional swing arm restraints serve their purpose, but BendPak takes safety to the next level. The AP Series introduces the revolutionary Automatic Swing Arm Restraint System (ASARS), a patented technology that stands strong against the forces exerted when vehicles unexpectedly shift during loading or service. This adaptive system boasts a heavily forged-steel design, providing over 2,000 pounds of load-holding force to keep swing arms locked securely in position.

With a 360-degree grip, this patented arm restraint system ensures arms stay firmly in place, minimizing unplanned swing arm movement that could compromise vehicle stability or technician safety. The system's quick-release operator lever guarantees precise and secure control, allowing operators to reposition arms confidently and efficiently without worrying about accidental slippage or movement during the lift cycle.

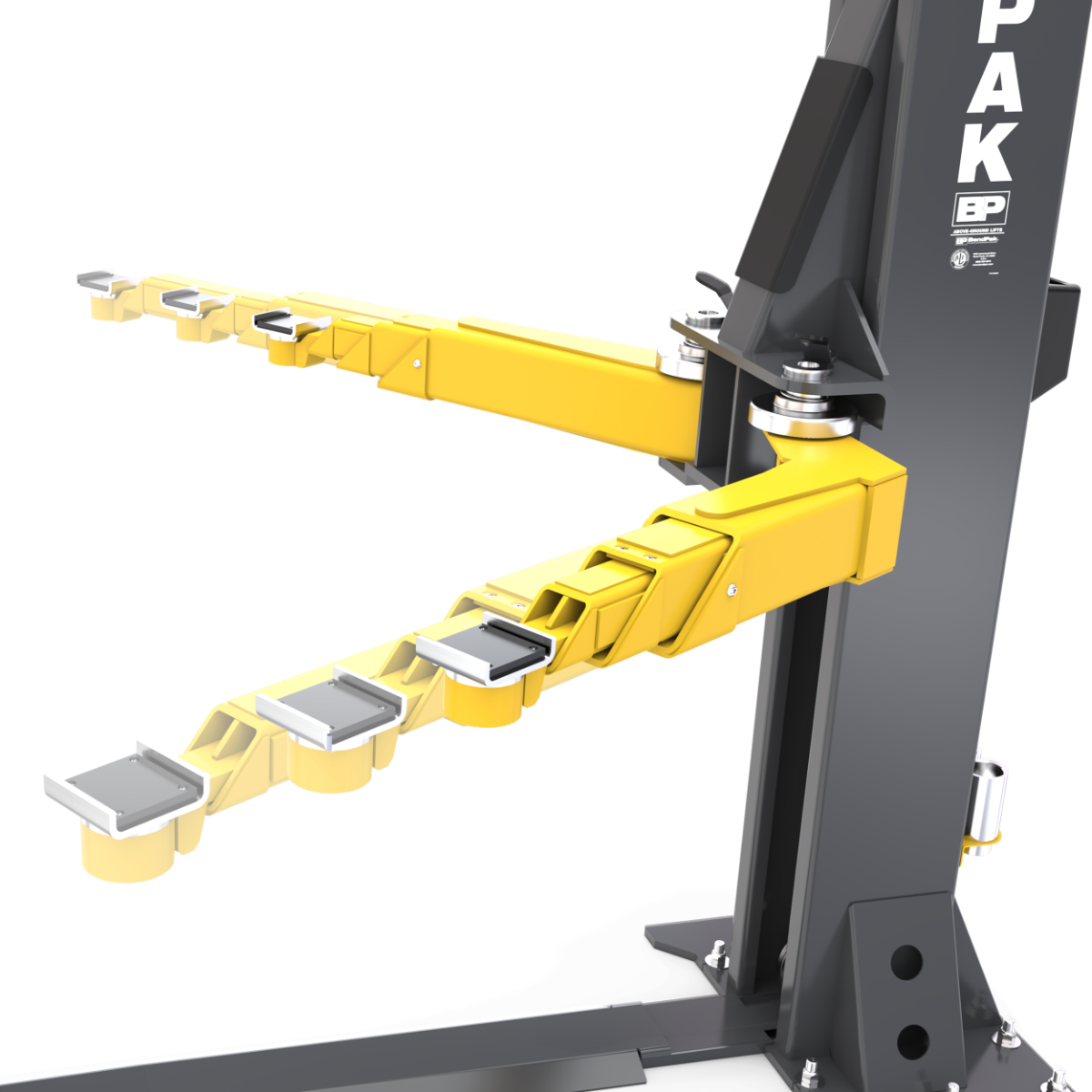

The Future Is Triple-Telescoping

Innovative and patented triple-telescoping swing arms redefine lifting precision and flexibility. Unlike traditional two-stage arms found on most lifts, the AP Series arms retract shorter and extend farther, offering versatile arm positioning options that make it easier to reach difficult lift points on a wider variety of vehicles. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension than any other lift in its class.

The inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency. Whether you're working on compact cars, full-size trucks, or luxury SUVs, these triple-telescoping arms give you the reach and adjustability needed to position pads exactly where they need to be—quickly and safely.

Bi-Metric Swing Arms: Symmetric and Asymmetric Versatility

Exclusive Bi-Metric adaptable swing arms give users the ability to set their lift up in either symmetric or asymmetric configurations without changing out arms. This 2-in-1 design provides operators the option of loading vehicles either symmetrically (with the centerline of the vehicle aligned at the column) or asymmetrically (with the centerline of the vehicle positioned behind the column for better door clearance and improved access).

By not having to switch out arms or reconfigure your lift between jobs, you'll be able to service a wider variety of vehicles faster than ever before, reducing downtime and increasing shop productivity. This versatility makes the 12AP-SRT ideal for busy service centers that handle everything from compact sedans to large trucks and SUVs.

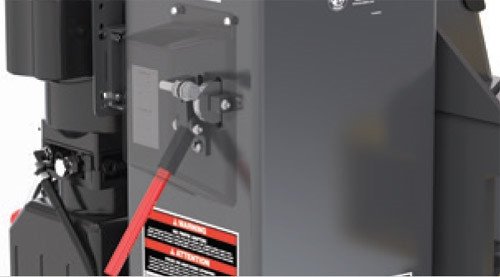

Innovative Automatic Safety Lock System

BendPak's patented automatic safety lock system is a game-changer for operator efficiency and safety. Its innovative design ensures that safety locks automatically engage during all lift rising operations, providing a reliable layer of protection without requiring any manual intervention. With 8 safety lock positions spaced every 3.75 inches, you have precise control over working height and can lock the vehicle securely at the perfect level for the job at hand.

What truly sets this system apart is the user-friendly experience it offers. With an ergonomic single-point release mechanism, operators can effortlessly disengage all safety locks during lift descent with a single motion. It's that simple—making your operations smoother, faster, and safer than ever before. No fumbling with multiple release handles or climbing around the lift to manually disengage locks. Just pull the single release, and you're ready to lower.

Why Choose the BendPak 12AP-SRT?

• 12,000 lb. lifting capacity handles full-size trucks, SUVs, and heavy commercial vehicles with confidence

• Compact 93.5" post height perfect for garages and shops with low ceilings where standard lifts won't fit

• Maximum lifting height of 46.25 inches ideal for tire service, brake work, detailing, and quick maintenance tasks

• Dual hydraulic direct-drive cylinders and HVLP electric/hydraulic power system for fast, smooth, reliable lifting cycles

• Patented ASARS (Automatic Swing Arm Restraint System) over 2,000 lbs. of side force resistance with 360° grip

• Triple-telescoping swing arms extend farther and retract shorter for unmatched positioning flexibility

• Bi-Metric design easily switch between symmetric and asymmetric configurations without changing arms

• Automatic safety lock system with single-point release – 8 lock positions spaced every 3.75 inches

• Drop-end arms with low minimum pad height (4.25 inches) – accommodates low-profile vehicles with ease

• Aircraft-quality ½" equalizer cables with oversized sheaves to reduce cable fatigue and extend service life

• Includes complete adapter set drop-in cradle pads, 5" tall adapters, 2.5" medium adapters, and adapter holder

• Power side post supports power unit, lowering handle, and safety lock release all conveniently located on one post

• Durable powder coat finish long-lasting, professional appearance that resists rust and wear

• Quiet operation less than 43 dB noise level, making it one of the quietest lifts in its class

• Fast cycle time approximately 45 seconds to full rise, keeping your workflow moving efficiently

• ALI certified meets rigorous industry safety and performance standards

Technical Specifications at a Glance

The BendPak 12AP-SRT is engineered for performance, durability, and safety. Here are some of the key specifications that make this lift stand out:

• Lifting Capacity: 12,000 lbs. (5,443 kg)

• Maximum Front Axle Capacity: 6,000 lbs. (2,721.5 kg)

• Maximum Rear Axle Capacity: 6,000 lbs. (2,721.5 kg)

• Post Height: 93.5" (2,377 mm)

• Maximum Rise: 42.75" (1,089 mm)

• Maximum Lifting Height: 46.25" (1,175 mm)

• Minimum Height with Pad: 4.25" (105 mm)

• Minimum Height with Adapters (5" + 2.5"): 11.75" (298 mm)

• Width Overall (Wide Configuration): 155" (3,937 mm)

• Drive-Thru Clearance (Wide): 102.25" (2,598 mm)

• Inside Posts (Wide): 119.25" (3,026 mm)

• Front Arm Reach: 26" Min – 55.25" Max (659 mm – 1,403 mm)

• Rear Arm Reach: 29.25" Min – 60" Max (745 mm – 1,525 mm)

• Safety Lock Positions: 8

• Motor: 220 VAC, 60 Hz, 1 Phase

• Noise Level: <43 dB

• Time to Full Rise: Approximately 45 seconds

• Operating Hydraulic Pressure Under Max Load: 2,170 psi

What's Included with Your 12AP-SRT

The BendPak 12AP-SRT comes complete with everything you need to start lifting vehicles safely and efficiently right out of the box:

• Drop-In Cradle Pads (5215761) secure, durable polyurethane pads for safe vehicle contact

• Set of Four 5" Tall Adapters (5215759) for additional height when needed

• Set of Four 2.5" Medium Adapters (5215758) stackable with the 5" adapters for maximum versatility

• Adapter Holder (5701660) convenient column-mounted rack keeps adapters organized and accessible

BendPak Quality You Can Trust

BendPak has been a trusted name in the automotive lift industry for decades, known for engineering innovative, reliable, and safe lifting solutions. The 12AP-SRT is no exception. Every component—from the heavy-duty ½" aircraft-quality equalizer cables to the oversized cable sheaves that reduce cable fatigue—is designed and built to deliver years of dependable service in demanding professional environments.

This lift is finished with a durable powder coat that not only looks professional but also resists rust, chemicals, and the daily wear and tear of a busy shop. And with ALI certification, you can be confident that the 12AP-SRT meets the highest industry standards for safety and performance.

Whether you're upgrading your shop, adding capacity, or need a lift that fits in a space where others won't, the BendPak 12AP-SRT delivers unmatched performance, safety, and value in a low-ceiling, mid-rise design.

⚠ California Proposition 65 Warning

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.

Product Features

• Dual Hydraulic Direct-Drive Cylinders

• Electric/Hydraulic HVLP Power System

• Single-Point Safety Release

• Drop-End Arms Provide a Lower Pad Height

• Durable Powder Coat Finish

• Safety Locks in Each Column Spaced Every 3.75"

• Heavy-Duty ½" Aircraft-Quality Equalizer Cables

• Oversized Cable Sheave Diameter Reduces Cable Fatigue

• ASARS – Withstand Over 2000 lbs. of Side Force

• Power Side Post Supports

• Power Unit

• Lowering Handle

• Safety Lock Release Handle

Includes

• 5215761 – Drop-In Cradle Pads

• 5215759 – Set of 4 5" Tall Adapters

• 5215758 – Set of 4 2.5" Medium Adapters

• 5701660 – Adapter Holder

Product Specifications

Model

10AP-SRT
12AP-SRT

Capacity

Lifting Capacity: (*)

10,000 lbs. (4,536 kg)

12,000 lbs. (5,443 kg)

Maximum Capacity – Front Axle

5,000 lbs. (2,268 kg)

6,000 lbs. (2,721.5 kg)

Maximum Capacity – Rear Axle

5,000 lbs. (2,268 kg)

6,000 lbs. (2,721.5 kg)

Dimensions

A Width Overall (Narrow)

136" / 3,453 mm

155" / 3,937 mm

A Width Overall (Wide)

146" / 3,707 mm

155" / 3,937 mm

B Base Plate Width

25.25" / 642 mm

26.5" / 674 mm

C Post Height

93.5" / 2,377 mm

D Drive-Thru (Narrow)

91" / 2,311.5 mm

102.25" / 2,598 mm

D Drive-Thru (Wide)

101" / 2,565 mm

102.25" / 2,598 mm

E Inside Posts (Narrow)

108.25" / 2,749 mm

119.25" / 3,026 mm

E Inside Posts (Wide)

118.25" / 3,003 mm

119.25" / 3,026 mm

F Outside Posts (Narrow)

129.5" / 3,289 mm

141.75" / 3,600 mm

F Outside Posts (Wide)

139.5" / 3,543 mm

141.75" / 3,600 mm

G Minimum Height w/ Pad

4.5" / 116 mm

4.25" / 105 mm

H Max. Lifting Height

46.25" / 1,081 mm

I Max. Rise

42.5" / 1,081 mm

42.75" / 1,089 mm

J Max. Screw Pad Adjustment

2.25" / 55mm

N/A

J Min. Height w/ Adapters (5" + 2.5")

N/A

11.75" / 298 mm

K Floor Plate Height

1.4 " / 36 mm

1.5 " / 38 mm

L Floor Plate Width

9.5" / 240 mm

M Front Arm Reach

22.25" Min – 47.5" Max. / 562 mm – 1,205mm

26" Min – 55.25" Max. / 659 mm – 1,403 mm

N Rear Arm Reach

29.5" Min – 47.5" Max. / 659 mm – 1,205mm

29.25" Min – 60" Max. / 745 mm – 1,525mm

Safety Lock Positions

8

Power Unit

Motor

220 VAC, 60 Hz, 1 Phase

Noise

<43 dB

Time to Full Rise

≈45 seconds

Operating Hydraulic Pressure Under Max. Load

2,170 psi

The design, material and specifications are subject to change without notice.

Key Features

• Published product configuration: BendPak 12AP-SRT Low-Ceiling Mid-Rise 2 Post Car Lift – 12,000 lb. Capacity The BendPak 12AP-SRT is the ultimate solution for shops with space or ceiling height constraints that still demand full commercial lifting capacity. Engineered with an innovative low-profile design and a post height of just 93.5 inches, this
• Exact manufacturer model or part number: 5175605
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175605, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
