Product Overview

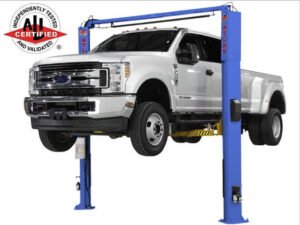

Atlas® Platinum PVL10 ALI Certified Adj Height 2 Post Lift 10,000 lbs w/Ext Kit
The Atlas® Platinum PVL10 is a premium 10,000 lb capacity ALI CERTIFIED two-post automotive lift designed for commercial-grade performance and reliability. This complete package includes the AP-Z23A-00H1 Height Extension Kit, which adds an additional 2 feet of overall height to accommodate larger vehicles, trucks, and SUVs. Engineered with the proven Double S column design, the PVL10 delivers the structural strength and dependability that has made this patented technology a worldwide standard for over two decades.

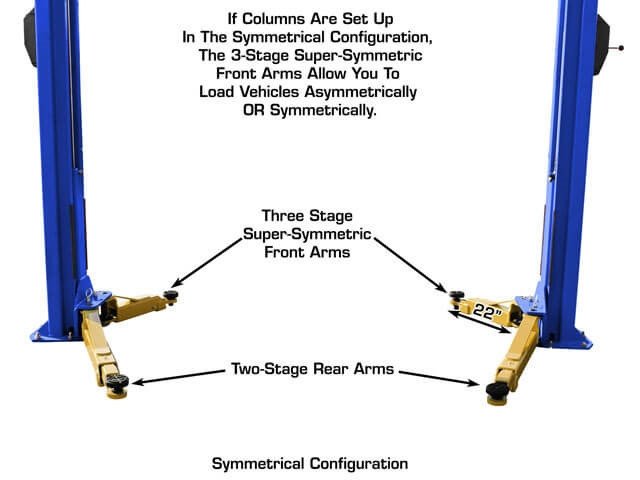

Whether you're lifting passenger cars, light trucks, or taller commercial vehicles, the PVL10-EXT offers the versatility you need. Configurable in both symmetric or asymmetric positions, this lift features three-stage telescoping front arms and two-stage rear arms, providing exceptional reach and flexibility. The adjustable height design allows you to tailor the lift to your facility's ceiling clearance, with configurations of 159 7/8" or 163 7/8" overall height available.
Proven Double S Column Technology
The Atlas Platinum PVL10 was engineered to bring commercial-grade reliability and strength to shops that demand the best. Tens of thousands of above-ground lifts incorporating the revolutionary Double S column design have been sold worldwide, establishing a proven track record of durability and safety. This innovative design incorporates special bends in the column structure that dramatically increase strength and load distribution—technology once protected by patent and now available in the Atlas Platinum line.
Constructed with 6mm thick steel columns measuring 7" x 10 1/4", the PVL10 is built to handle the toughest workloads. The 15" x 18" base footprint ensures exceptional stability, while the higher quality powder coating provides long-lasting protection against wear, corrosion, and the rigors of daily use in a professional automotive environment.
Premium Components and Professional-Grade Features
At the heart of the PVL10 is the ALLY Hydraulic AL2850 Power Unit, a premium hydraulic system certified by MET Laboratories Inc. for electrical compliance in both the United States and Canada. This industry-leading power unit features extra heavy-duty armatures and enhanced motor windings with increased silver metal content in the wires and connections, which drastically reduces heat generation and maintains constant torque throughout the entire lifting process. Unlike lower-grade power units that struggle under load, the AL2850 delivers smooth, consistent performance lift after lift—and is backed by an industry-leading two-year limited warranty.
The lift is equipped with padded carriages and rubber column guards to protect vehicles from scratches and damage during lifting operations. A professional-grade arm lock restraint system with single point lock release ensures fast, safe operation, while the double screw rubber/metal adapters with included truck height extensions accommodate a wide range of vehicle types and lifting points.

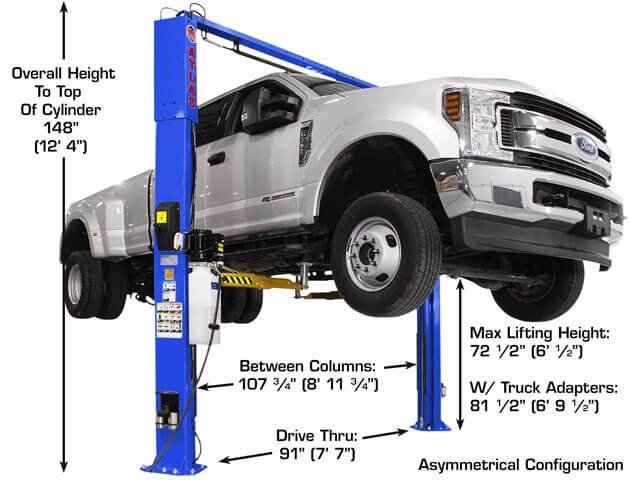

The PVL10 lifts to a maximum height of 81 1/2" with adapters or 72 1/2" without adapters, with a minimum arm height of just 4 inches, allowing you to work on low-clearance vehicles with ease. The lift offers generous drive-thru clearance of 91" in asymmetric mode and 99 1/2" in symmetric mode, making vehicle positioning simple and efficient.
Complete Package with Height Extension Kit
This model includes the AP-Z23A-00H1 Height Extension Kit (supersedes ATTDP-APEX10H-STD-EXT-KIT), which adds 2 feet of height to the overall lift structure. The kit includes column extensions, longer hydraulic hoses, and longer cables—everything you need to transform your PVL10 into a taller configuration ideal for shops working on trucks, vans, and vehicles with aftermarket lift kits or oversized tires.
With the extension kit installed, the lift reaches an overall height of 163 7/8" (13' 7 7/8"), with cylinders extending to 12' 4", providing the clearance you need for a wide variety of service tasks. The adjustable height design means you can configure the lift to match your facility's ceiling height and workflow requirements.
What's Included
The Atlas Platinum PVL10-EXT comes complete with everything you need for installation and operation:
- Mounting hardware for secure floor installation
- Truck adapter set for lifting larger vehicles and trucks
- Double screw-up adapter kit with four each of 3" and 6" adapter heights
- AP-Z23A-00H1 Height Extension Kit (column extensions, longer hoses, longer cables)
- ALLY Hydraulic AL2850 Power Unit (View Power Unit Specs)
Note: Door guard size may vary.
Key Highlights
- 10,000 lb capacity with ALI Certification for proven safety and reliability
- Adjustable height configuration (159 7/8" or 163 7/8") to fit your facility and with extension kit installed
- Double S column design with 6mm thick steel for maximum strength and durability
- Premium ALLY Hydraulic AL2850 Power Unit with two-year limited warranty and MET Labs certification

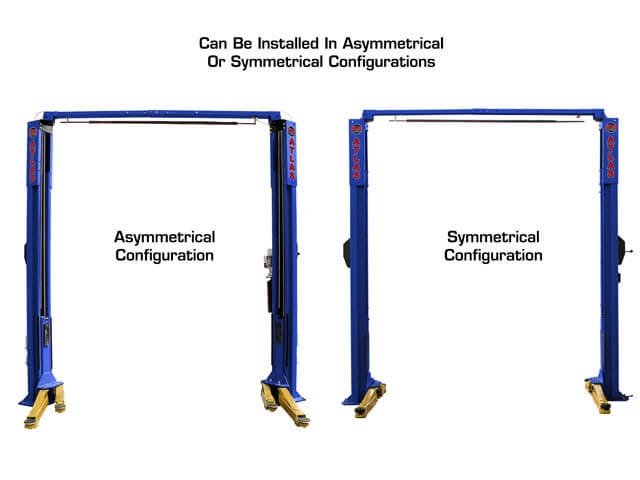

- Symmetric or asymmetric positioning for versatile vehicle compatibility and shop layout flexibility
Installation Insights
Installing the Atlas Platinum PVL10 is straightforward with the right tools and preparation. The lift requires a minimum of 4 inches of concrete with 3000 psi for proper anchoring. Electrical requirements are 2 HP 220V single phase with a 30 amp breaker. You'll also need 3-5 gallons of AW32 or AW46 hydraulic oil (not included). With a shipping weight of approximately 2,000-2,100 lbs, the lift ships in manageable components for easier handling.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 10,000 LB. Capacity
- ALI Certified

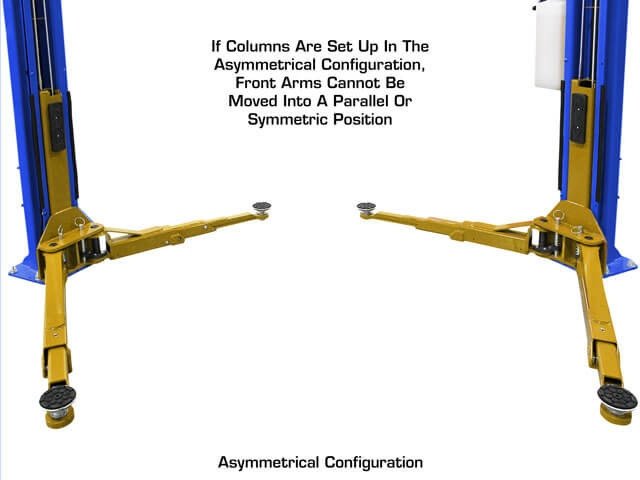

- Symmetric or Asymmetric columns
- 3 stage front arms and 2 stage rear arms offer more options
- Column design incorporates special Double S bends to increase column strength.

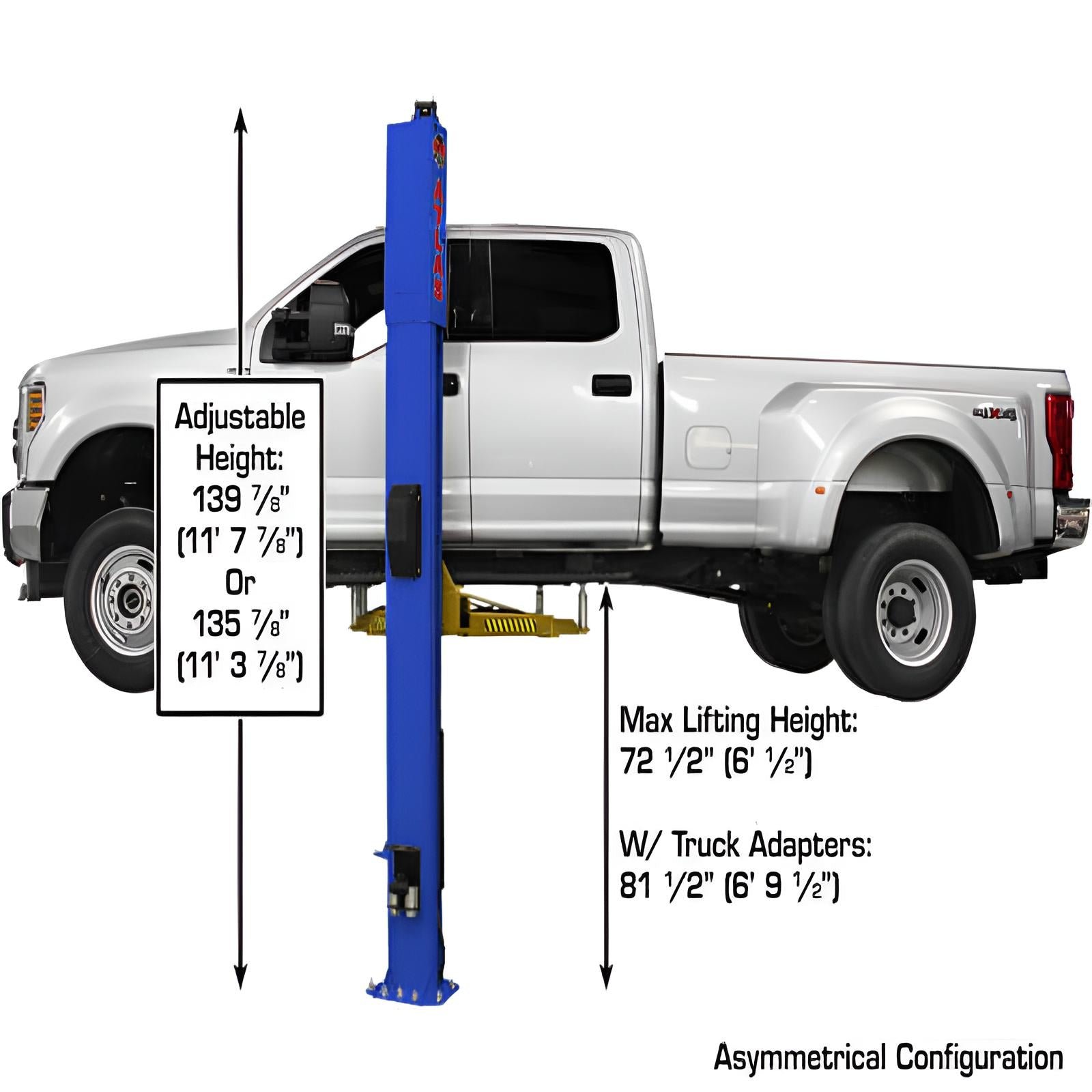

- Adjustable Height – 11' 7 7/8" or 11' 3 7/8"
- Padded Carriages
- Professional grade arm lock restraint system
- Higher quality powder coating
- Single point lock release
- Premium ALLY Hydraulic AL2850 Power Unit View Power Unit Specs
- Shipping Weight: 2,100 lbs.
Note: Door Guard Size May Vary
Includes
- Mounting Hardware
- Truck Adapter Set
- Double screw-up adapter kit
AP-Z23A-00H1
- Adds 2 feet of height
Supersedes ATTDP-APEX10H-STD-EXT-KIT
Product Specifications
Specifications
PVL10-EXT
Capacity
10,000 lbs
Lifting Time
N/A

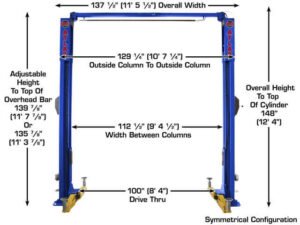

Overall Height
159 7/8" or 163 7/8" (13' 3 7/8" or 13' 7 7/8") ‐ (Cylinder Extends to 12' 4")
Overall Width

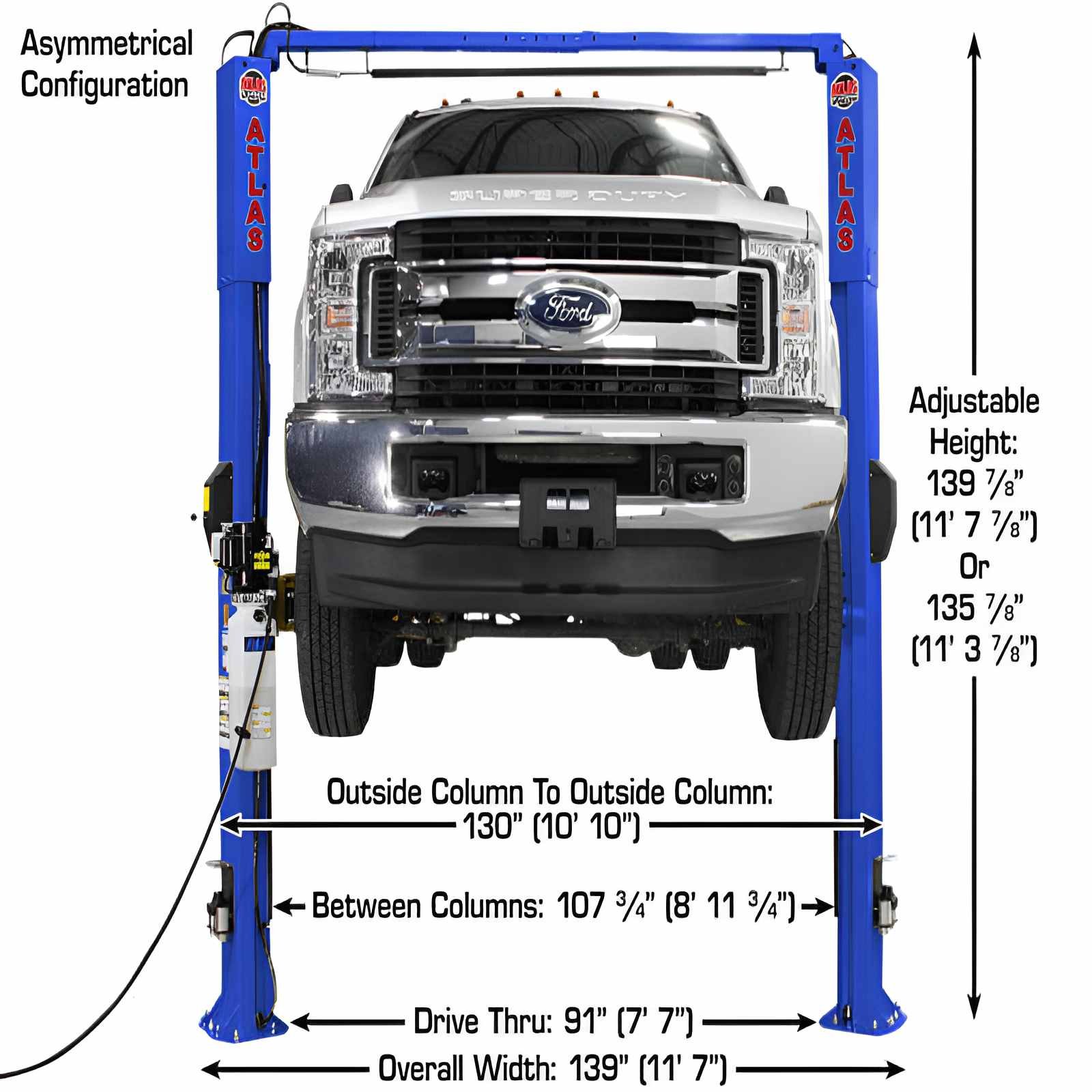

139" (11' 7") Asymmetric / 137 1/2' (11' 5 1/2") Symmetric
Outside Column to Outside Column
130" (10 10") Asymmetric / 129 1/4” (10 9 1/4") Symmetric
Maximum Lift Height w/Adapters
81 1/2"
Maximum Lift Height w/o Adapters
72 1/2"
Minimum Arm Height
4"
Inside Column
107 3/4” (8' 11 3/4”) Asymmetric / 112 1/2" (9' 4 1/2") Symmetric
Drive Thru
91" Asymmetric / 99 1/2" Symmetric
Column Size
7" x 10 1/4"
Column Thickness of Steel
6mm
Base of Lift
15" x 18"
Arm Hole/Adapter Peg Size
2"
Adapter Heights
4 Each – 3" & 6"
Motor/Electrical Requirement
2 HP 220V (1) phase / 30 amp breaker is required
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight
2,000 lbs.
Requires a minimum of 4" of concrete with 3000 psi
Key Features
- Published product configuration: Atlas® Platinum PVL10 ALI Certified Adj Height 2 Post Lift 10,000 lbs w/Ext Kit The Atlas® Platinum PVL10 is a premium 10,000 lb capacity ALI CERTIFIED two-post automotive lift designed for commercial-grade performance and reliability. This complete package includes the AP-Z23A-00H1 Height Extension Kit, which adds an
- Exact manufacturer model or part number: AP-PVL10-EXT
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Platinum |
|---|---|
| SKU | AP-PVL10-EXT |
| MPN / Model | AP-PVL10-EXT |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Compatibility & Ordering Notes
Use SKU / MPN AP-PVL10-EXT as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
