Product Overview

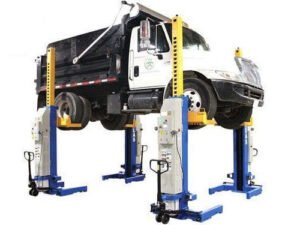

Atlas® ML-4030BC ALI Certified Battery Powered Mobile Column Lift System 66,000 lbs
Ultimate Heavy-Duty Lifting with Unmatched Mobility

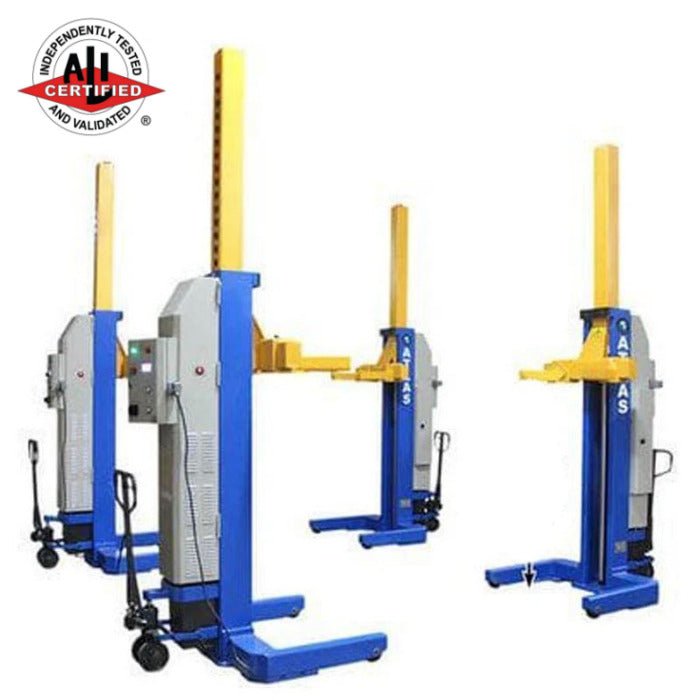

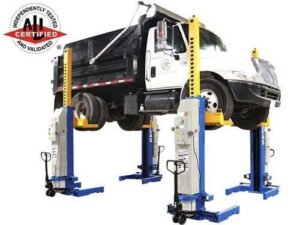

The Atlas® ML-4030BC-KIT mobile column lift system is the perfect solution for any professional repair shop that needs to safely raise heavy-duty trucks and commercial vehicles while managing limited bay space. This ALI Certified four-column system delivers an impressive 66,000 lb. total lifting capacity (16,500 lbs per column) with the freedom and versatility that only wireless, battery-powered mobile columns can provide.
Each heavy-duty mobile column is powered by a robust 2.2 Kw 24V DC motor and equipped with two rechargeable batteries per column, ensuring sustained performance throughout your workday. Combined with an integrated hydraulic pallet jack system on each column, this design allows for unparalleled freedom of movement around your shop. The columns may even be moved outside for use on any level concrete surface with a minimum thickness of six (6) inches, giving you the flexibility to lift vehicles wherever you need. When not in use, the mobile columns can be easily stored out of the way, maximizing your valuable shop floor space.

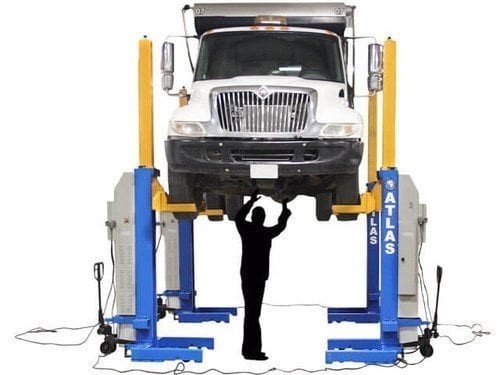

The Atlas® ML-4030BC mobile column set offers full lifting capacity for both short and long wheelbase vehicles. Need even more power? The system is easily expandable add two extra columns to reach 99,000 lbs capacity, or four extra columns to achieve a massive 132,000 lbs capacity for the heaviest commercial equipment. The easily adjustable forks accommodate tire diameters ranging from 19 inches to 44 inches, making this lift system adaptable to virtually any vehicle type, from standard trucks to oversized commercial rigs.

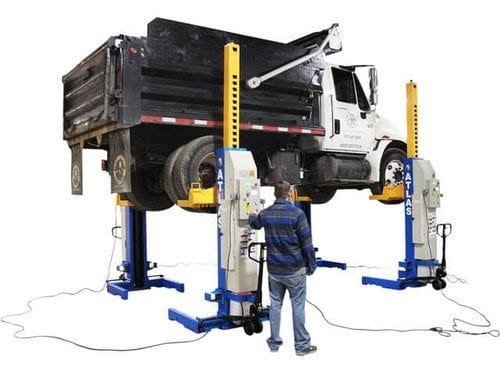

Each column features an LCD screen that displays the exact lifting height in real time, ensuring precise control and synchronization across all columns. An electronic synchronization system guarantees simultaneous operation of all columns for balanced, safe lifts every time. Double-safety is assured by both hydraulic flow control and automatic mechanical locks. Every column is equipped with an emergency stop button for immediate operator control.

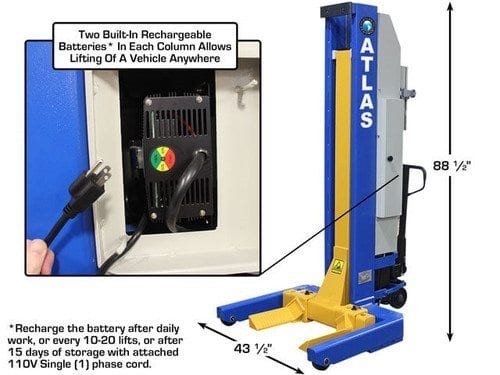

Battery power lasts for 10-20 lifts depending on load, and recharging is simple with the attached 110V single-phase cord at each column. The kit includes four 32-foot column connecting cables for versatile positioning, and the system is backed by a 2-Year Limited Warranty for your peace of mind.
Optional Atlas® Tripod Support Stands can be added to support vehicles securely during wheel service and other maintenance tasks.
Key Selling Points
- 66,000 lb. Total Capacity Four mobile columns, each rated at 16,500 lbs, provide the lifting power you need for heavy trucks and commercial vehicles.
- True Wireless Mobility Battery-powered columns with integrated hydraulic pallet jacks allow you to move and position lifts anywhere in your shop or even outside on level concrete.
- Expandable System Start with four columns and expand to six (99,000 lbs) or eight columns (132,000 lbs) as your needs grow.
- Advanced Safety & Synchronization Electronic synchronization, LCD height displays on each column, hydraulic flow control, mechanical locks, and emergency stop buttons on every column ensure maximum operator safety.

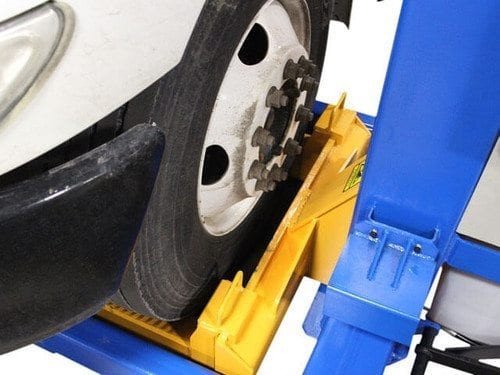

- Versatile Tire Accommodation Adjustable forks handle tire diameters from 19 inches to 44 inches, making this system ideal for a wide range of vehicles.
WARNING: Proposition 65 requires warnings on products that contain certain chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- ALI CERTIFIED
- 66,000 lb. Total Capacity – 16,500 lbs per Column
- 4 Mobile Columns
- Simultaneous operation of all columns

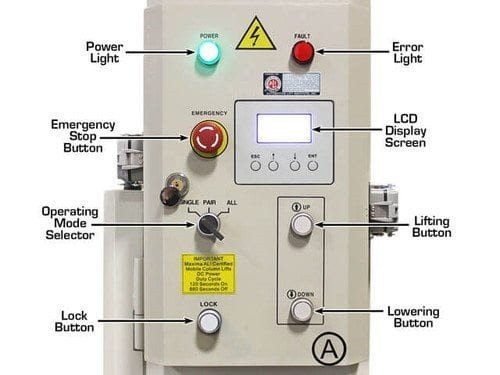

- LCD screen shows exact lifting height of each column
- Electronic system ensuring synchronization of all columns
- Double-safety guaranteed by both hydraulic flow control and mechanical locks
- Portable columns make your work easy and comfortable
- Can be Expanded from a four (66,000 lb. capacity) column system to a six (99,000 lb. capacity) or eight (132,000 lb. capacity) column system

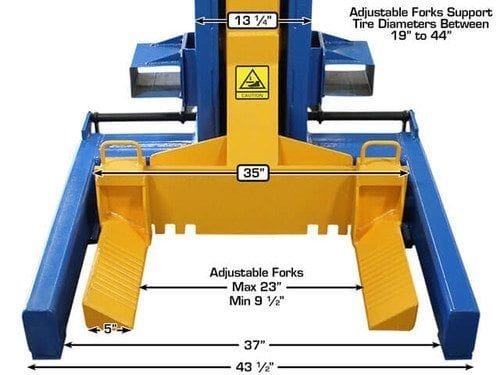

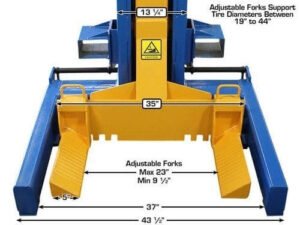

- Adjustable forks can accommodate tire diameters from 19 inches to 44 inches
- Emergency stop button on every column
- Four 32' column connecting cables included
- 2.2 Kw 24V DC motor with two batteries per column
- 2 Year Limited Warranty
WARNING: Proposition 65 requires warnings on products that contain certain chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Specifications
Specifications
ML-4030BC-KIT
Capacity
16,500 lbs per Column – 66,000 lbs Total

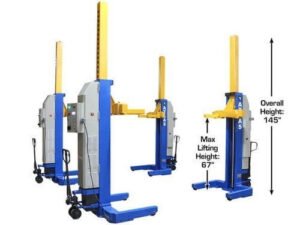

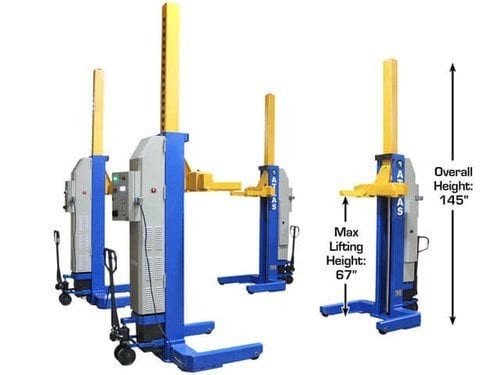

Max Lifting Height
67" (5' 7")
Overall Height
145" (12' 1")
Resting Height
88 1/2" (7' 4 1/2")
Max Tire Diameter
44"
Min Tired Diameter
19"

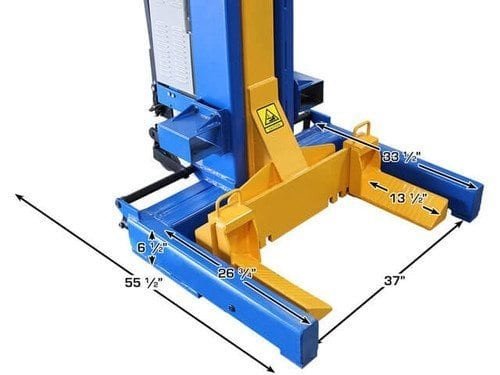

Width
43 1/2" (3' 7 1/2")
Length
55 1/2" (4' 7 1/2"
Column Width
13 1/4"
Motor
2.2 Kw 24V DC motor with two batteries per column
Shipping Weight (For Four Columns)
6,400 lbs
Shipping Weight Per Column
1,600 lbs. each
Key Features
- Published product configuration: Atlas® ML-4030BC ALI Certified Battery Powered Mobile Column Lift System 66,000 lbs Ultimate Heavy-Duty Lifting with Unmatched Mobility The Atlas® ML-4030BC-KIT mobile column lift system is the perfect solution for any professional repair shop that needs to safely raise heavy-duty trucks and commercial vehicles while
- Exact manufacturer model or part number: ML-4030BC-KIT
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ML-4030BC-KIT |
| MPN / Model | ML-4030BC-KIT |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model ML-4030BC-KIT, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
