Product Overview
AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs
Overview
The AMGO® Hydraulics OHX-10H delivers professional-grade lifting performance with 10,000 lb capacity and an exceptionally tall design perfect for shops with high ceilings requiring maximum lift height. This Ex-Tall Super-Asymmetric® 2 Post Lift combines ease of installation, unmatched versatility, and rugged reliability to handle everything from compact cars to full-size trucks and SUVs. Engineered with single-piece columns, this lift installs faster and more conveniently than traditional two-piece column designs, saving you valuable setup time and reducing installation complexity.
The OHX-10H model offers impressive maximum lifting heights up to 78 3/4" / 80 5/8" without extension adapters and 81 3/4" / 83 5/8" with extension adapters providing the extra clearance your technicians need for undercarriage work on lifted vehicles and high-profile equipment. The overall height of 157" / 167 3/16" ensures this lift is designed specifically for facilities with tall ceiling clearances, making it the ideal choice for demanding professional environments.
The lift features dual direct-drive hydraulic cylinders manufactured to exacting standards for smooth, reliable operation. Powered by a 2 HP / 220V single-phase motor, the OHX-10H achieves full lift in approximately 63 seconds, balancing speed with precision. The clear-floor design keeps your work area unobstructed, and self-lubricating UHMW polyethylene sliders ensure quiet, low-maintenance performance for years to come.
Super-Asymmetric® Versatility for Every Vehicle
The OHX Series is engineered with Super-Asymmetric® technology, offering unparalleled flexibility to lift vehicles in both asymmetric and symmetric configurations on demand. This versatility allows you to precisely position a wide variety of vehicles for optimal balance and access—whether you're working on sedans, coupes, SUVs, or trucks. The Super-Asymmetric arms adapt seamlessly to each vehicle's center of gravity, providing the perfect lifting position every time.
The extremely long carriages are a standout feature of the OHX Series, designed to reduce stress and force on the columns—making this lift significantly more durable and reliable than competing products. In fact, these carriages are two times or more longer than standard lifts on the market, ensuring exceptional stability and longevity even under constant professional use.
The top beam is designed with width adjustment capability to fit different vehicle dimensions. Standard drive-thru clearance of 99 13/16" provides ample room for most vehicles, and with the optional width extension kit #21005, you can expand the drive-thru clearance to 105 11/16" and the width between columns from 112 1/4" to 118 1/8", accommodating even wider vehicles with ease.
Safety and Ease of Use Built In

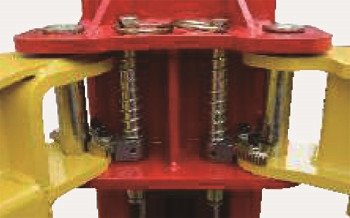

Safety is paramount in any professional shop, and the OHX-10H delivers with intelligent, operator-friendly features. The single-point safety release system allows the operator to disengage both column locks simultaneously from one location, streamlining the lowering process and reducing operator fatigue. The automatic arm restraint with high-strength gear rack ensures arms remain securely locked in position, providing greater stability and peace of mind during service.
An overhead safety shut-off device is integrated to prevent vehicle damage by automatically stopping lift operation if the vehicle reaches the top beam. This intelligent safety feature protects both your equipment and your customer's vehicles from accidental contact. Aero sync cables come as standard, ensuring both columns lift and lower in perfect synchronization for balanced, smooth operation.
The lift includes a detachable toe guard and tool tray for added convenience and protection, keeping your workspace organized and reducing trip hazards. Rubber door guards protect vehicle finishes during positioning, while the minimum pad height of 3 1/2" ensures compatibility with a wide range of vehicle lift points.
Why Choose the AMGO® OHX-10H?
- Extra-Tall Lifting Heights: Reach up to 81 3/4" / 83 5/8" with extension adapters—perfect for high-ceiling shops and oversized vehicles
- One-Piece Columns: Simplified installation process compared to traditional two-piece column lifts, saving time and reducing setup complexity
- Super-Asymmetric® Technology: Load vehicles asymmetrically or symmetrically for optimal balance and access, adapting to each job's unique needs
- Heavy-Duty Construction: Extremely long carriages reduce column stress, delivering twice the durability of typical market offerings
- Clear-Floor Design: Provides unobstructed workspace, maximizing shop floor utility and safety
What's Included
The AMGO® OHX-10H comes complete with double-screw rubber pads with 3" extension adapters, providing secure contact with a wide range of vehicle lift points right out of the box. The lift is ready to handle professional-grade service work the moment it's installed, with all essential components included for immediate operation.
For shops requiring additional width flexibility, the optional width adjustable kit #21005 is available to extend the overall width from 134 15/16" to 140 7/8" and drive-thru clearance from 99 13/16" to 105 11/16", accommodating wider vehicles like dually trucks and commercial vans.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

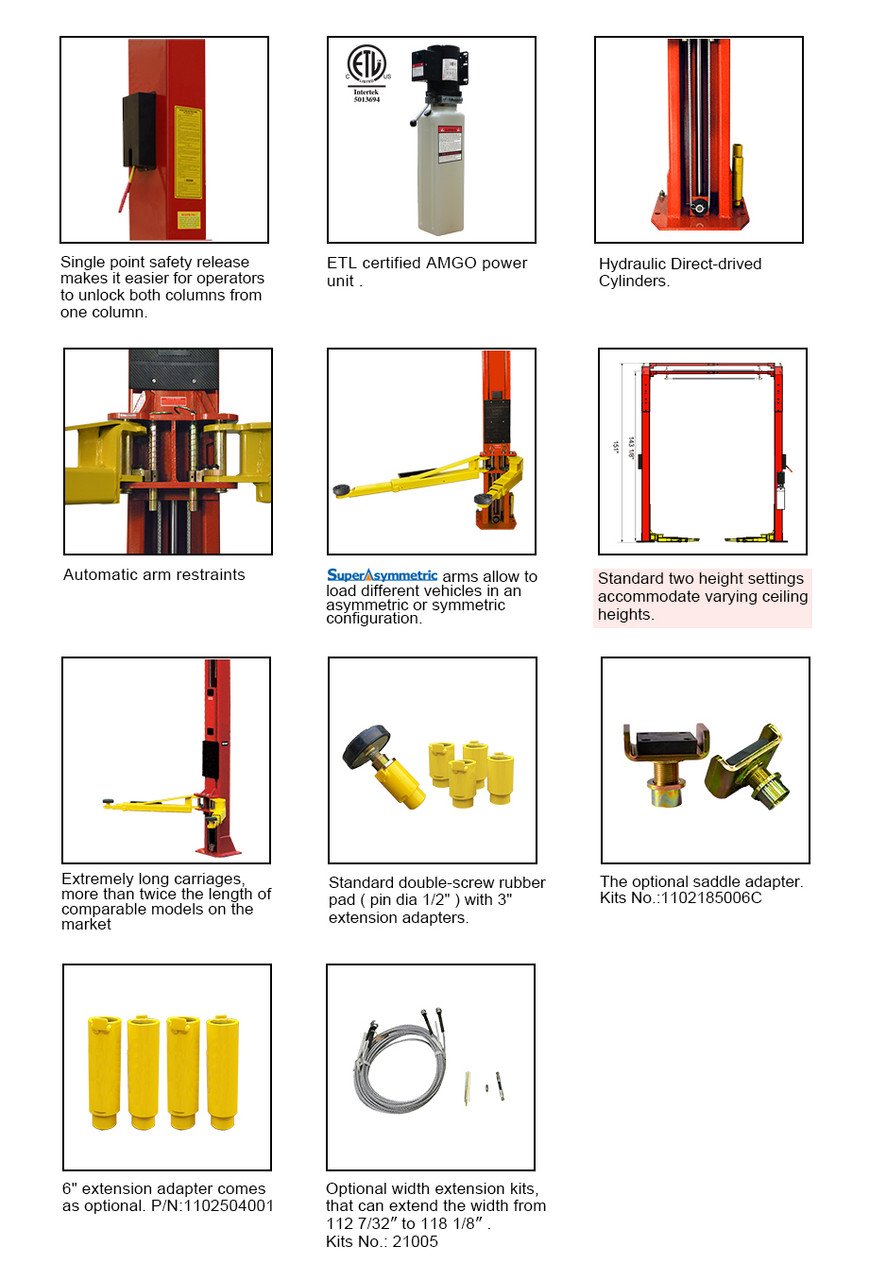

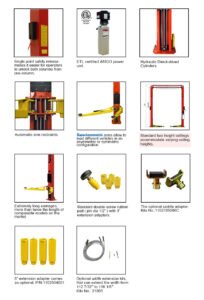

Product Features
- 10,000 lbs lifting capacity
- Dual hydraulic direct-drived cylinders made on high standard
- The SuperAsymmetric allows for a symmetrical or an asymmetrical loading, ensuring adequate door clearance
- Single-point manual safety lock release, simultaneously unlocks both columns from one side
- Clear-floor design, provides unobstructed floor us;
- Overhead safety shut-off device for maximum vehicle protection
- Two standard height settings accommodate varying ceiling heights
- Additional optional kits are available to extend the height and width to support a more comprehensive service
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint
- Areo sync cables come standard
- Comes with detachable toe guard and tool tra;
- Standard double-screw rubber pad (pin dia 2") with 3" extension adapters.
Includes
- Set of Single Screw Rubber Pads
- 3" Extension Adapters
- Toe Guard & Tool Tray
Product Specifications
Model
OHX-10
OHX-10H
Lifting Capacity
10,000 lbs
A Max Lifting Height w/o Extension Adapter
71 7/16" ~ 73 3/8"
78 3/4" ~ 80 5/8"
A Max Lifting Height w/ Extension Adapter
74 7/16" ~ 76 5/16"
81 3/4" ~ 83 5/8"
A Max Lock Height w/o Extension Adapter
69 5/8" ~ 71 1/2"
77 3/16 "~ 79 1/16"
A Max Lock Height w/ Extension Adapter
72 5/8" ~ 74 1/2"
80 3/16" ~ 82 1/16"
B Overall Height
144"
157" ~ 167 3/16"
C Overall Width
134 15/16" (140 7/8" w/Optional Ext Kit)
D Drive-Thru Clearance
99 13/16"
D Drive-Thru Clearance w/Optional Ext Kit
105 11/16"
E Width Between the Column
112 1/4"
E Width Between the Column w/Optional Ext Kit
118 1/8"
F Minimum Pad Height
3 9/16"
Lifting Time
57 S
63 S
Motor
2 HP / 220V
Gross Weight
1,592 lbs
1,709 lbs
Key Features
- Published product configuration: AMGO® Hydraulics OHX-10H Ex-Tall Super-Asymmetric® 2 Post Lift 10,000 lbs Overview The AMGO® Hydraulics OHX-10H delivers professional-grade lifting performance with 10,000 lb capacity and an exceptionally tall design perfect for shops with high ceilings requiring maximum lift height. This Ex-Tall Super-Asymmetric® 2
- Exact manufacturer model or part number: OHX-10H
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | OHX-10H |
| MPN / Model | OHX-10H |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
