Product Overview

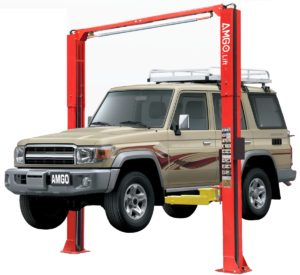

AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs
Overview
The AMGO® Hydraulics OH-10 ALI Certified two-post lift represents the perfect balance of professional-grade lifting power and smart design for modern automotive shops and home garages. With a robust 10,000 lb lifting capacity, this ALI Certified lift is engineered to handle a wide range of vehicles—from compact cars to full-size trucks and SUVs—with confidence and reliability.
What sets the OH-10 ALI apart is its innovative Super-Asymmetric® arm design. The unique three-piece back arms and two-piece front arms can be adjusted to accommodate either asymmetric or symmetric vehicle positioning, giving you unmatched flexibility in how you load and service different makes and models. This asymmetric configuration makes it significantly easier to enter and exit vehicles during service, reduces the risk of door dings and dents, and provides better balance for vehicles with uneven weight distribution.

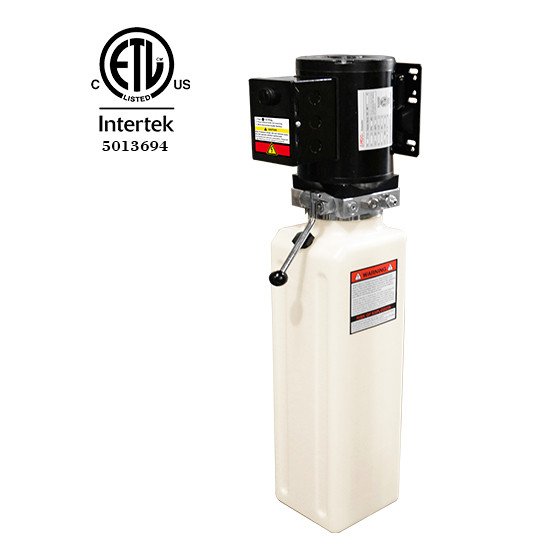

Built with professional standards in mind, the OH-10 ALI features dual direct-drive hydraulic cylinders made to exacting specifications, 3/8" aircraft-quality cable for precise synchronization, and a 2 HP / 220V single-phase motor that lifts vehicles in just 57 seconds. The clear floor design provides unobstructed workspace underneath, while self-lubricating UHMW polyethylene sliders and bronze bushings ensure smooth, quiet operation for years to come.
Key Features & Benefits
Super-Asymmetric® Arm Configuration: The advanced three-piece rear arms and two-piece front arms give you the freedom to position vehicles asymmetrically for optimal door clearance and operator access, or symmetrically for traditional balance. Self-lubricating UHMW polyethylene sliders and rubber door guards protect your vehicle's finish while ensuring smooth arm movement.

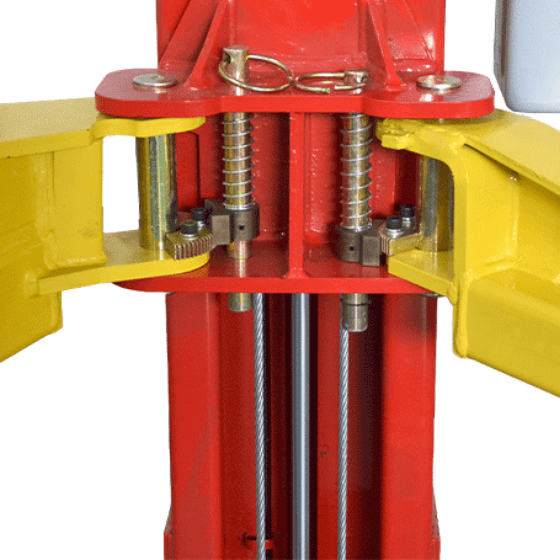

Lifting Arm Lock with Automatic Release: The high-strength gear rack system provides stable, secure locking at any height. The automatic release device ensures consistent engagement and disengagement, making operation safer and more predictable with every lift cycle.

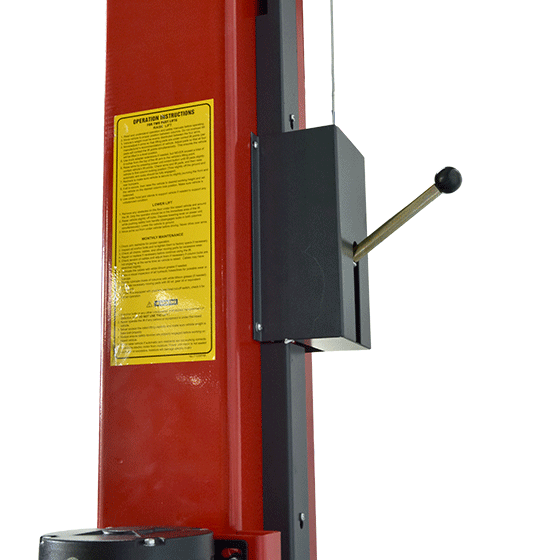

Single Point Safety Release: One of the most operator-friendly features on the OH-10 ALI is the single-point safety release system. Instead of walking back and forth between columns to unlock each side, the operator can disengage both columns simultaneously from one convenient location, saving time and improving workflow efficiency.
Overhead Safety Shut-Off Device: An integrated overhead sensor monitors vehicle position during lifting and automatically stops operation if it detects potential contact or damage, adding an extra layer of protection for your vehicles.

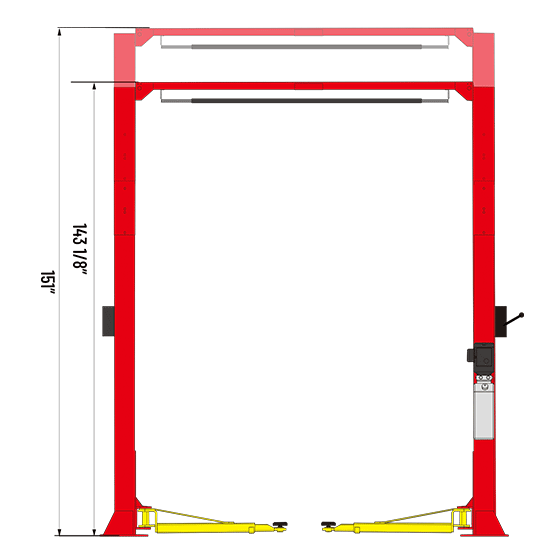

Adjustable Height for Varying Ceiling Heights: The OH-10 ALI comes standard with adjustable height settings to accommodate different shop ceiling heights. With an overall height range of 142 1/2" to 150" and a maximum lifting height between 71 1/2" and 80 1/2", this lift adapts to your workspace rather than forcing you to adapt to the lift.
Versatile Extension Adapters: Every OH-10 ALI includes stackable rubber pads and three sizes of extension adapters ( 1.5", 2.5", and 5" ) that let you adjust the height of the lifting pads freely. This ensures proper contact points for vehicles with varying ground clearance and frame configurations, from lowered sports cars to lifted trucks.
Professional-Grade Construction & Design
The AMGO® OH-10 ALI is built to meet the demands of high-volume professional shops while remaining accessible for serious home mechanics. The dual direct-drive hydraulic cylinders are manufactured to rigorous quality standards, delivering smooth, consistent lifting performance day after day. 3/8" aircraft-quality synchronization cable ensures both columns rise and descend in perfect unison, preventing binding and premature wear.
With an overall width of 135", a generous 112 3/16" width between columns, and an impressive 85 1/2" drive-thru clearance, the OH-10 ALI accommodates a wide range of wheelbase sizes and vehicle types. The clear floor design keeps the work area unobstructed, while the minimum pad height of just 3 15/16" allows you to lift even low-profile vehicles with confidence.
A durable powder-coat finish protects the lift's structural components from corrosion, chemicals, and daily wear, ensuring years of reliable service in demanding shop environments. At a gross weight of 1,645 lbs, the lift is substantial enough for stability yet manageable for professional installation.
Why Choose the OH-10 ALI?
- ALI Certified Meets or exceeds stringent Automotive Lift Institute safety and performance standards
- Super-Asymmetric® flexibility Configure arms for asymmetric or symmetric loading to match any vehicle
- Fast 57-second lifting cycle Maximize shop productivity with quick, efficient operation
- Single-point safety release Disengage both columns simultaneously for faster, safer operation
- Adjustable height options Adapt to ceiling heights from 142 1/2" to 150 1/2" without compromise
- Complete adapter set included Stackable rubber pads plus 1.5", 2.5", and 5" extension adapters for ultimate versatility
Whether you're outfitting a professional automotive service center or building the ultimate home garage, the AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift delivers the performance, safety, and flexibility you need to work smarter and faster. With a proven 10,000 lb capacity, innovative arm design, and a full complement of included accessories, this lift represents exceptional value and long-term reliability for serious automotive work.
Product Features
- 10,000 lbs Lifting capacity
- ALI Certified
- Dual hydraulic direct-drived cylinders made on high standard
- SuperAsymmetric arms allow an asymmetric or symmetric configuration/li>
- Aero cable used for synchronization
- Single-point manual safety release mechanism, disengages both columns simultaneously from one side
- Self-lubricating UHMW Polyethylene sliders
- Clear-floor design, provide unobstructed floor use
- Overhead safety shut-off device for maximum vehicle protection
- Stackable rubber pads and 1.5", 2.5", 5" adapters as standard supply
- Two standard height settings accommodate varying ceiling heights
- Toe guards and tool trays come standard
Includes
- Stackable Rubber Pads
- 1.5", 2.5", & 5" Extension Adapters
- Toe Guard & Tool Tray
Product Specifications
Specifications
OH-10
Lifting Capacity
10,000 lbs
A Max Lifting Height w/o Adapters
71 1/2"
A Max Lifting Height w/Adapters
80 1/2"
A Max Lock Height w/o Adapters
69 1/2"
A Max Lock Height w/Adapters
78 1/2"
B Overall Height
142 1/2" or 150 1/2"
C Overall Width
135"
D Drive-Thru Clearance
99 1/2"
E Width Between Columns
112 3/16"
F Minimum Pad Height
3 15/16"
Lifting Time
75 S
Motor
2 HP / 220V
Gross Weight
1,645 lbs
Key Features
- Published product configuration: AMGO® Hydraulics OH-10 ALI Certified Super-Asymmetric® 2 Post Lift 10,000 lbs Overview The AMGO® Hydraulics OH-10 ALI Certified two-post lift represents the perfect balance of professional-grade lifting power and smart design for modern automotive shops and home garages. With a robust 10,000 lb lifting capacity, this
- Exact manufacturer model or part number: OH-10ALI
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | OH-10ALI |
| MPN / Model | OH-10ALI |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model OH-10ALI, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
