Product Overview

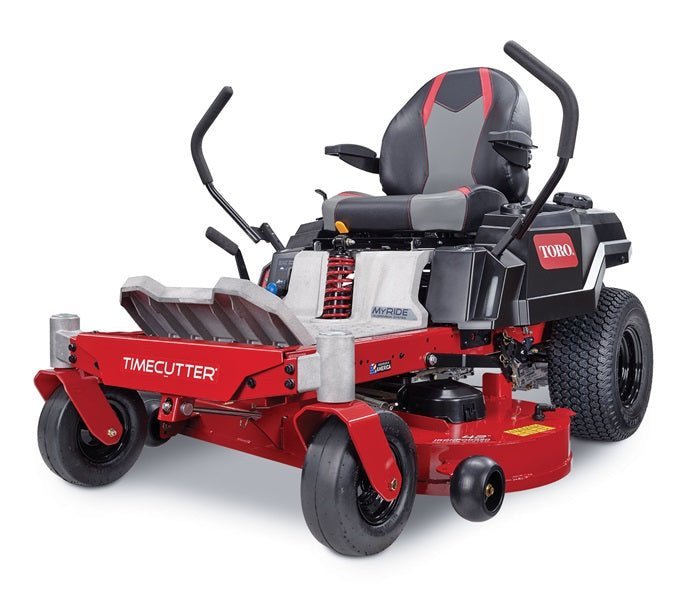

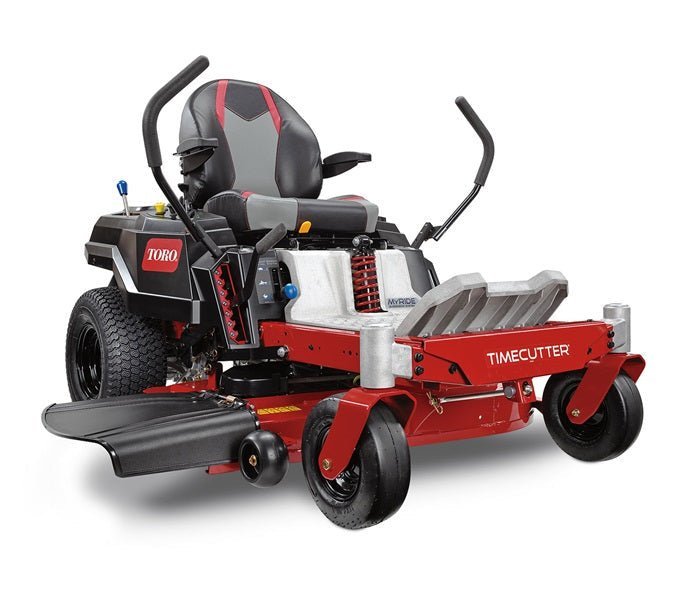

The Toro 75747 42″ TimeCutter® MyRIDE® Zero Turn Mower is a Toro lawn and grounds equipment attachment listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 75747. Key specifications for this configuration include engine brand: Kohler; cutting width: 42″; transmission: Dual Hydrostatic HG-ZT2100; fuel capacity: 3 gallons.
Key Features
- JDF SKU: 75747
- Engine Brand: Kohler
- Cutting Width: 42″
- Transmission: Dual Hydrostatic HG-ZT2100
- Fuel Capacity: 3 gallons
- Foot Operated Height of Cut: Optional
- Height of Cut: 1.5″ – 4.5″
- AIR FILTER: 32 883 09-S1
- BLADE: 137-1999-03
- Blade Count: 137
Product Highlights
- Operator station: a high-back seat is identified and suspension support.
- Ground-speed control: the published product information identifies three selectable operating ranges for trimming, towing, and mowing.
Product Specifications
| Brand | Toro |
|---|---|
| Engine Brand | Kohler |
| Model / MPN | 75747 |
| JDF SKU | 75747 |
| Cutting Width | 42″ |
| Transmission | Dual Hydrostatic HG-ZT2100 |
| Fuel Capacity | 3 gallons |
| Foot Operated Height of Cut | Optional |
| Height of Cut | 1.5″ – 4.5″ |
| AIR FILTER | 32 883 09-S1 |
| BLADE | 137-1999-03 |
| Blade Count | 137 |
| DECK BELT | 119-8819 |
| Deck Design | 42″ IronForged® Fabricated Deck |
| DRIVE BELT | 139-2399 |
| Engine | Kohler 22 hp Model: KT725-3097 |
| FUEL FILTER | 25 050 22-S1 |
| Ground Speed | MOW: 7 mph/3 mph TRIM: 5.5 mph/2.4 mph TOW: 4 mph/1.7 mph |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| OIL FILTER | 12 050 01-S |
| PRE FILTER | INCLUDED IN ABOVE |
| Seat | 18″ Handcrafted High Back with Arm Rests – Lever Slide |
| SPARK PLUG | 25 132 14-S OR XC12YC |
| Steering Controls | Dual Wrap Around Levers |
| Tires | 11″ x 4″ Front, 18″ x 7.5″ Rear |
| XTREME BLADE | n/a |
Application and Compatibility
Confirm the carrier machine, hitch or mounting interface, hydraulic requirements, dimensions, and included hardware before ordering this attachment.
Before You Order
- Use JDF SKU 75747 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
