Product Overview

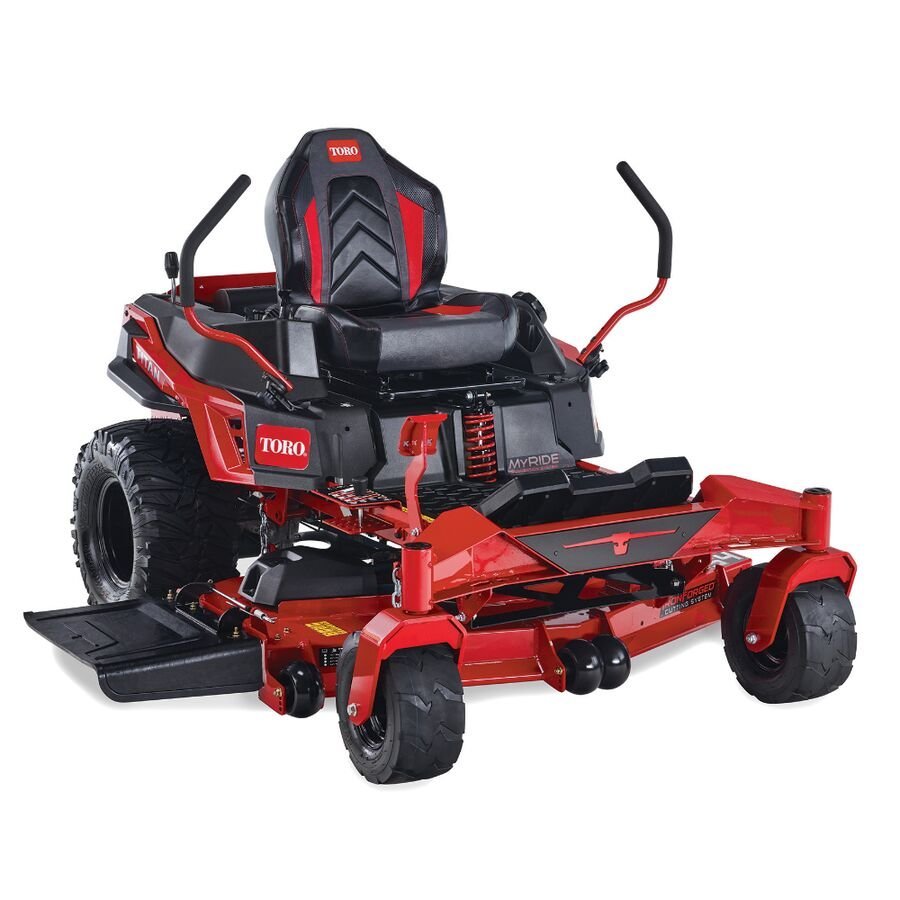

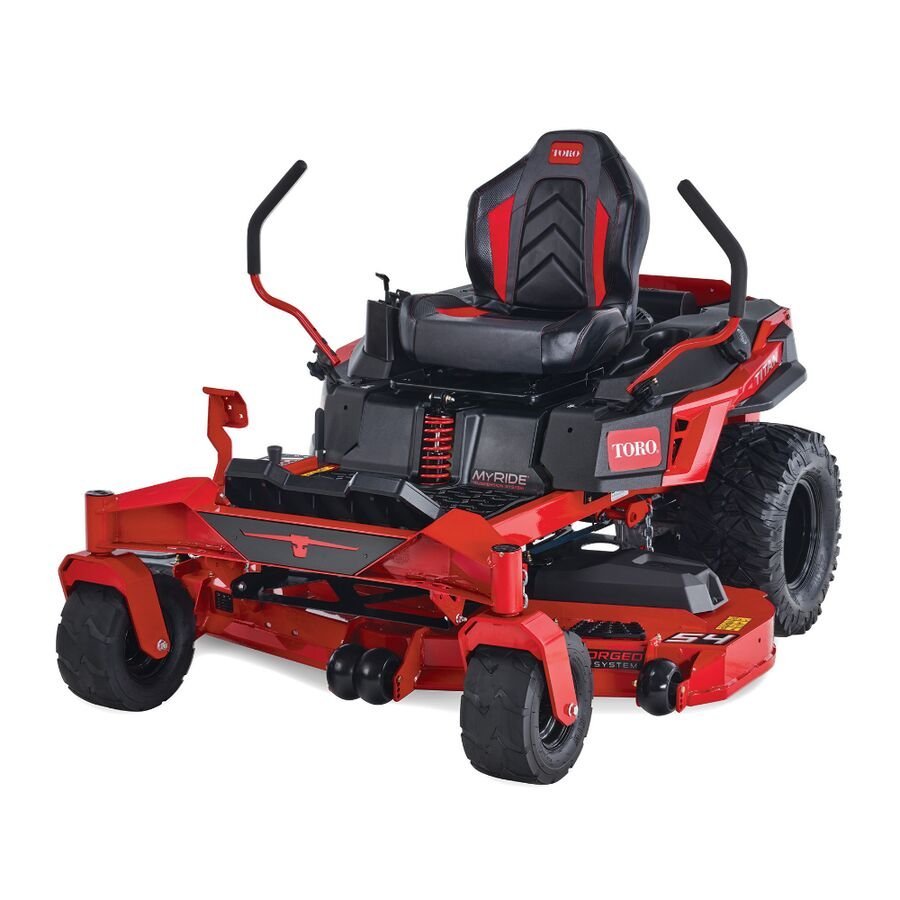

The Toro 76511 54″ TITAN® MyRIDE® Zero Turn Mower is a Toro zero-turn mower listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 76511. Key specifications for this configuration include engine brand: Kohler; cutting width: 54 in; transmission: Dual hydrostatic HG ZT2800; maximum speed: 8.5 mph.
Key Features
- JDF SKU: 76511
- Engine Brand: Kohler
- Cutting Width: 54 in
- Transmission: Dual hydrostatic HG ZT2800
- Maximum Speed: 8.5 mph
- Fuel Capacity: 5 gal.
- Weight: 789 lbs
- Foot Operated Height of Cut: Standard
- Height of Cut: 1.5 – 5.0 in.
- Air Filter: Kohler Pro Cleaner Air Filter
- Anti Scalp Wheels: 4 Standard
Product Highlights
- Deck construction: the published configuration uses 10-gauge fabricated or welded steel.
Product Specifications
| Brand | Toro |
|---|---|
| Engine Brand | Kohler |
| Model / MPN | 76511 |
| JDF SKU | 76511 |
| Cutting Width | 54 in |
| Transmission | Dual hydrostatic HG ZT2800 |
| Maximum Speed | 8.5 mph |
| Fuel Capacity | 5 gal. |
| Weight | 789 lbs |
| Foot Operated Height of Cut | Standard |
| Height of Cut | 1.5 – 5.0 in. |
| Air Filter | Kohler Pro Cleaner Air Filter |
| Anti Scalp Wheels | 4 Standard |
| Blade Design | 0.164 in. Steel with Blade Stiffner |
| Blade Tip Speed | 18,908 ft/min / 5,763 m/min |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Deck Design | 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in |
| Discharge Chute | Rubber |
| Drive System | Hydrostatic |
| Drive Tires | 22 in. x 11 in |
| Engine | Kohler KT745 26 hp 747cc |
| Forward Speed | Up to 8.5 mph |
| Front Bumper | Reinforced Bull-Nose |
| Hitch Bracket | Standard |
| Product Use | Residential |
| Seat | 20″ Gaming Style |
| Spindle Housing | Cast-Aluminum |
| Tires | 13 in. x 6.5 in. Front, 22 in. x 11 in. Rear |
Application and Compatibility
Confirm deck width, engine and transmission configuration, terrain or slope limits, access width, and service requirements before purchase.
Before You Order
- Use JDF SKU 76511 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
