Product Overview

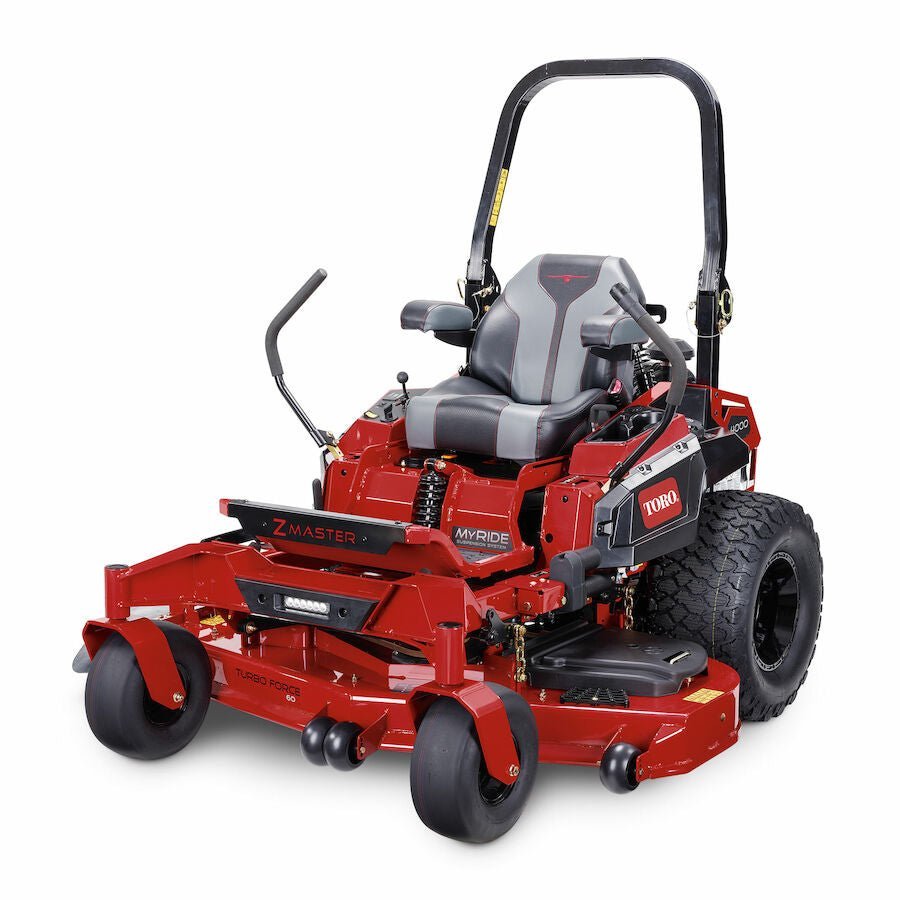

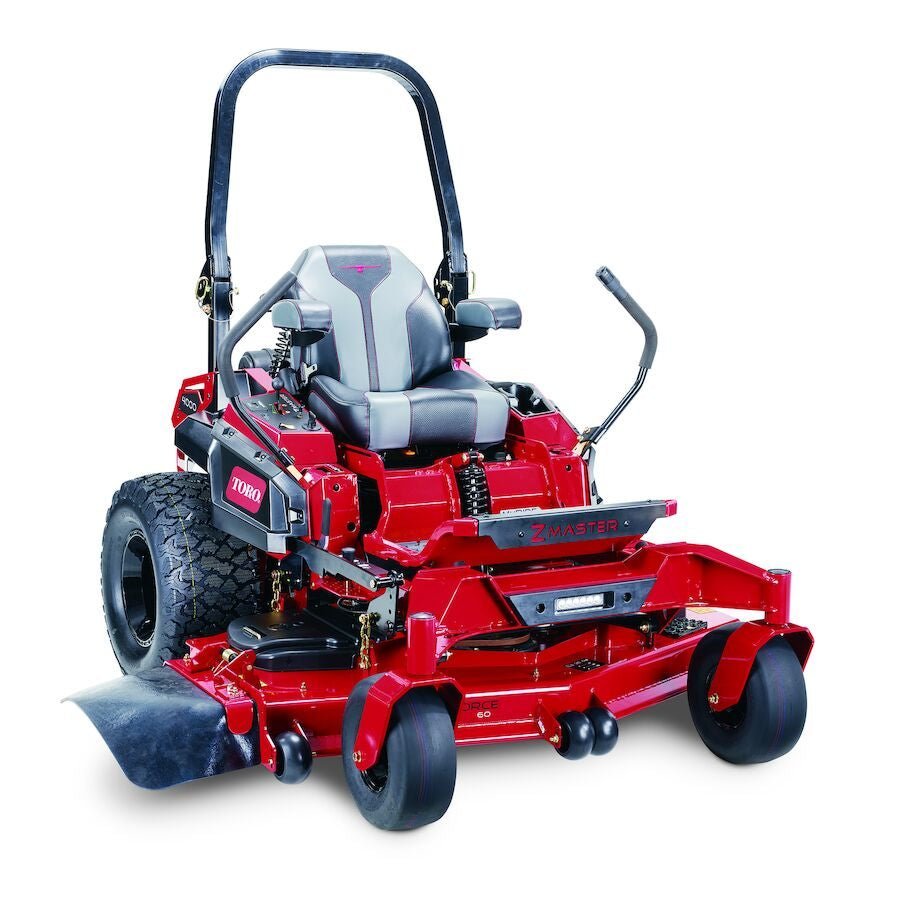

The Toro 74057 4000 Series MyRIDE® HDX 60″ 35 hp 999cc is a Toro zero-turn mower listed in the JDF Equipment Sales Lawn Care catalog. It is identified by JDF SKU 74057. Key specifications for this configuration include engine brand: Kawasaki; cutting width: 60 in.; engine power: 35 hp; engine displacement: 999 cc.
Key Features
- JDF SKU: 74057
- Engine Brand: Kawasaki
- Cutting Width: 60 in.
- Engine Power: 35 hp
- Engine Displacement: 999 cc
- Engine Displacement (cc): 999 cc
- Transmission: ZT-4400 Integrated Pumps & Wheel Motors
- Maximum Speed: 12.0 mph
- Fuel Capacity: 10 gal.
- Foot Operated Height of Cut: Standard
- Height of Cut: 1.5 – 5.5 in.
Product Highlights
- Deck construction: the published configuration uses 7-gauge fabricated or welded steel.
- Operator comfort: the published product information identifies a suspension or spring-supported seat.
Product Specifications
| Brand | Toro |
|---|---|
| Engine Brand | Kawasaki |
| Model / MPN | 74057 |
| JDF SKU | 74057 |
| Cutting Width | 60 in. |
| Engine Power | 35 hp |
| Engine Displacement | 999 cc |
| Engine Displacement (cc) | 999 cc |
| Transmission | ZT-4400 Integrated Pumps & Wheel Motors |
| Maximum Speed | 12.0 mph |
| Fuel Capacity | 10 gal. |
| Foot Operated Height of Cut | Standard |
| Height of Cut | 1.5 – 5.5 in. |
| Blade Design | 0.25 in. / 0.635 cm thick heat-treated steel |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Caster Tires | 15″ x 6.5″ – 6″ Flat-free semi-pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Deck Design | 60″ 7-Gauge High-Strength Steel TURBO FORCE® |
| Discharge Chute | Rubber |
| Drive Tires | Voodoo Trac 26 in. x 12 in. – 12 in. |
| Engine | 35 hp* Kawasaki FX1000V (999cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner |
| Engine Horsepower | 35 hp |
| Forward Ground/Transport Speed | Up to 12.0 mph |
| Fuel Type | Gasoline |
| Hour Meter | Standard Hour Meter |
| Mower Type | Zero Turn Mower |
| Roll-Over Protection (ROPS) | Folding; Standard |
| Seat | Deluxe Suspension Seat with Arm Rests |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | 9 in Diameter Cast Aluminum |
| Start Type | Electric |
| Steering Controls | 1.4″ (3.6 cm) Diameter Grips; Adjustable, Dampened |
Application and Compatibility
Confirm deck width, engine and transmission configuration, terrain or slope limits, access width, and service requirements before purchase.
Before You Order
- Use JDF SKU 74057 as the primary ordering reference.
- Confirm that the published configuration, included equipment, capacities, dimensions, and power system match the intended application.
- For replacement parts, accessories, bundles, or attachments, verify compatibility using the equipment model and serial-number range.
- Plan delivery access, unloading equipment, storage space, and any assembly or dealer setup required for the product.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
