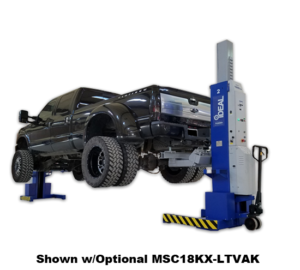

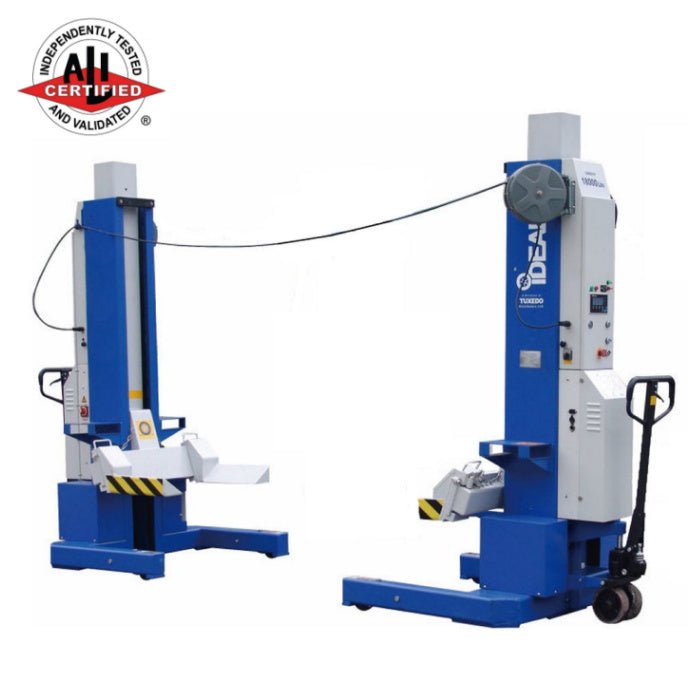

iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2)

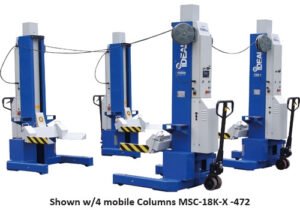

The iDeal MSC-18K-X-236 is a professional-grade, ALI-certified mobile column lift system engineered for heavy-duty commercial vehicle service. With 18,000 lbs. of lifting capacity per column, this set of 2 columns delivers a combined 36,000 lbs. total capacity, making it ideal for lifting fire trucks, school buses, medium-duty trucks, and other large commercial vehicles by the wheels. The system is also available in sets of four (MSC-18K-X-472) or six columns (MSC-18K-X-6108) to accommodate even larger vehicles with up to 108,000 lbs. of total lifting capacity.
Designed with mobility and versatility in mind, the MSC-18K-X features a compact footprint and battery-powered operation that allows technicians to quickly transform a flat bay into a fully functional lift bay. Each column operates independently or in synchronized pairs using a sophisticated PLC and optical encoder system that provides continuous synchronization for safe, precise lifting. The 24VDC battery operation with onboard charging system eliminates the need for floor-mounted power drops, giving you the freedom to position columns anywhere in your shop with a concrete surface strength of at least 3,000 PSI.
Exceptional Lifting Performance for Commercial Vehicles

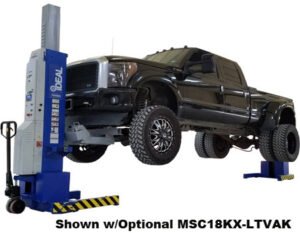

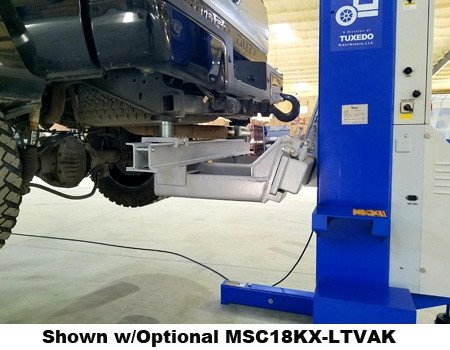

Each column in the MSC-18K-X-236 system is capable of lifting 18,000 pounds. In a tandem of 2, that means 36,000 pounds of lifting capacity. The iDeal MSC-18K-X is available in sets of two, four and six columns to provide up to 108,000 lbs. of lifting capacity. The MSC-18K-X is designed to lift fire trucks, school buses and other large commercial vehicles by the wheels. Optional accessories provide the flexibility to lift pickup trucks and wheels-free lifting for expanded service capabilities.
Technicians realize improved productivity through safe, simple operation of the lift at each column using the well-designed control panel. Each column delivers a 67.1" lifting height with adjustable column height ranging from a minimum of 88.6" to a maximum of 155.5". The column width measures 44.1", providing a stable base for heavy loads. The system achieves full lifting in 100 seconds and lowering in 60 seconds at the rated load of 18,000 lbs. per column, providing efficient operation without compromising safety.
The adjustable lifting forks offer a range from 12.6" to 22", accommodating the widest range of wheel diameters for maximum versatility across your fleet. Each fork measures 17.9" in length and maintains a 10" clearance from fork to column for easy positioning. Columns can be positioned up to 32'8" apart, offering exceptional flexibility for vehicles of various wheelbases and configurations.
Advanced Safety and Control Features
Safety is paramount when lifting heavy commercial vehicles. The MSC-18K-X incorporates multiple layers of protection, including an independent mechanical locking system at each column and emergency stop switches at every station for the highest safety assurance. The system's PLC-controlled synchronization with optical encoder continuously monitors and adjusts each column's height to maintain perfect alignment throughout the lift cycle, preventing dangerous tipping or uneven loading.
Technicians appreciate the easy-to-use master control panel that allows for individual column operation or paired synchronized lifting from any column location. Convenient operation from any column means you can control the entire system without walking back and forth across the bay. The LCD screen with keypad provides clear, easy-to-read visuals for setting lifting height with precision, eliminating guesswork and ensuring consistent, safe operation.
The mobile design and quick setup process mean less downtime between jobs. The poly caster wheels make it easy to move each column into position using standard pallet jack equipment. Once positioned, the system is ready for indoor set-up operation on any concrete surface with minimum 3,000 PSI strength. The communication cable with retractable cable reels keeps wiring organized and safe during operation and storage.
Mobile Design for Maximum Workspace Efficiency
The true advantage of the MSC-18K-X mobile column system is its ability to maximize your shop's productivity and space utilization. Unlike traditional fixed lifts that permanently occupy valuable floor space, these columns can be quickly deployed when needed and conveniently stored out of the way when not in use to maximize work space. The mobile design allows you to reconfigure your shop layout on demand, converting any bay with adequate floor space into a heavy-duty service station.
The battery-powered operation means no hardwired electrical connections or hydraulic lines to route across your shop floor. Each column requires Qty 2 12V or Qty 1 24V deep cycle batteries ( batteries not included ) and includes an onboard charging system for convenient recharging. The charging voltage input is 100-140V / 60Hz / single phase, and the system outputs 24VDC at max 15 Amp for reliable, consistent performance.
The recommended battery specification is a 12VDC sealed deep cycle battery, BCI Group 31, AH 105 with a rating of 120 AMP/HR and 350-500 CCA starting current. Recommended batteries are Type 27 or 31 Series deep cycle batteries. Battery dimensions must not exceed 14.2" x 7.5" x 11.8" tall to fit within the battery cover size of 14.56" x 8.27" x 13".

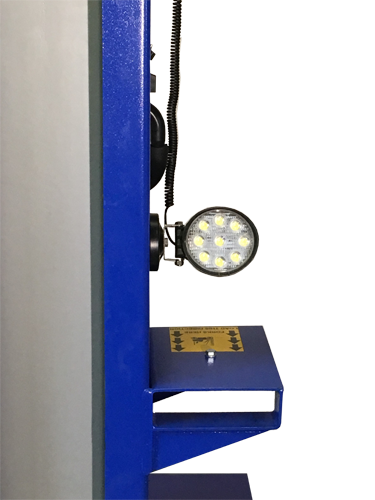

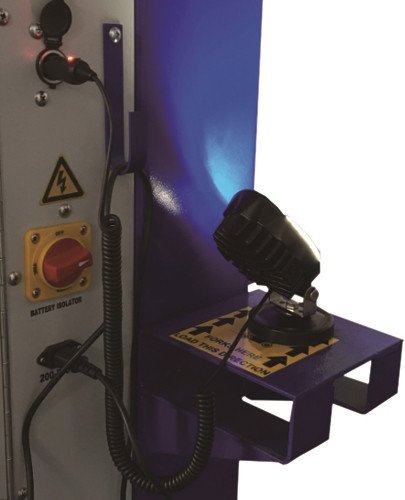

The system now includes a NEW! LED light with magnetic base for improved visibility during service procedures. The U-shape wiring configuration allows for quick vehicle entry and exiting without having to disconnect or move cables, streamlining workflow and reducing setup time between lifts.
Key Highlights
- 18,000 lbs. capacity per column 36,000 lbs. total capacity for this 2-column set (also available in 4 or 6-column configurations)
- Mobile battery-powered design with 24VDC operation and onboard charging eliminates hardwired electrical requirements
- ALI-certified for safety and reliability, with independent mechanical locking and emergency stops at each column
- PLC and optical encoder synchronization ensures precise, safe lifting across all columns with continuous monitoring
- Adjustable lifting forks (12.6" – 22") accommodate a wide range of wheel diameters for maximum versatility
Product Features
- 18,000 lb lifting capacity per column. 2 Columns total capacity 36,000 lbs
- Sold in Sets of 2 (MSC-18K-X-236), 4 (MSC-18K-X-472) or 6 (MSC-18K-X-6108)
- 24VDC Battery Operation with Onboard Charging System Batteries are NOT Included
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns
- Easily positioned with Pallet Jack type device with Poly Caster Wheels
- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- New! LED Light with Magnetic Base!!
Product Specifications
Specifications
MSC-18K-X-236
MSC-18K-X-472
MSC-18K-X-6108
Capacity Per Column
18,000 lbs.
Total Capacity
36,000 lbs.
72,000 lbs.
108,000 lbs.
Lifting Height
67.1"
Column Height
Min 88.6" / Max 155.5"
Column Width
44.1"
Fork Adjustable Range
12.6" – 22"
Fork Length
17.9"
Fork to Column Clearance
10"
Lifting / Lowering Time
100 seconds / 60 sec at load of 18,000 lbs each column
Max Distance Betwwen Columns
32' 8"
Min Concrete Surface Strength
3,000 Psi
Set-Up Operation
Indoor
Charging Voltage Input
100-140 V / 6oHz / Single Phase
Charging Voltage Output
24VDC, Max 15 Amp
*Battery Type (Recommended)
12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105
*Battery NOT Included
Battery (Not Included) Specifications
MSC-13K-B & MSC-18K-X
Deep Cycle Batteries
Type 27 or 31 Series
Requirement Voltage Per Column
Qty 2 12V or Qty 1 24V
Rating
120 AMP / HR
Starting Current
350 CCA – 500 CCA
Battery Cover Size
14.56" x 8.27" x 13"
Battery Dimension
14.2" x 7.5" x 11.8" Tall Max
Key Features
- Published product configuration: iDeal Lift MSC-18K-X-236 18,000lb. Per Mobile ALI Column Lifting System (Set of 2) The iDeal MSC-18K-X-236 is a professional-grade, ALI-certified mobile column lift system engineered for heavy-duty commercial vehicle service. With 18,000 lbs. of lifting capacity per column, this set of 2 columns delivers a combined
- Exact manufacturer model or part number: MSC-18K-X-236
- Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | iDeal Lift |
|---|---|
| SKU | MSC-18K-X-236 |
| MPN / Model | MSC-18K-X-236 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Mobile Column Lifts |
Before You Order
Confirm that model MSC-18K-X-236, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
