iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2)

Product Overview

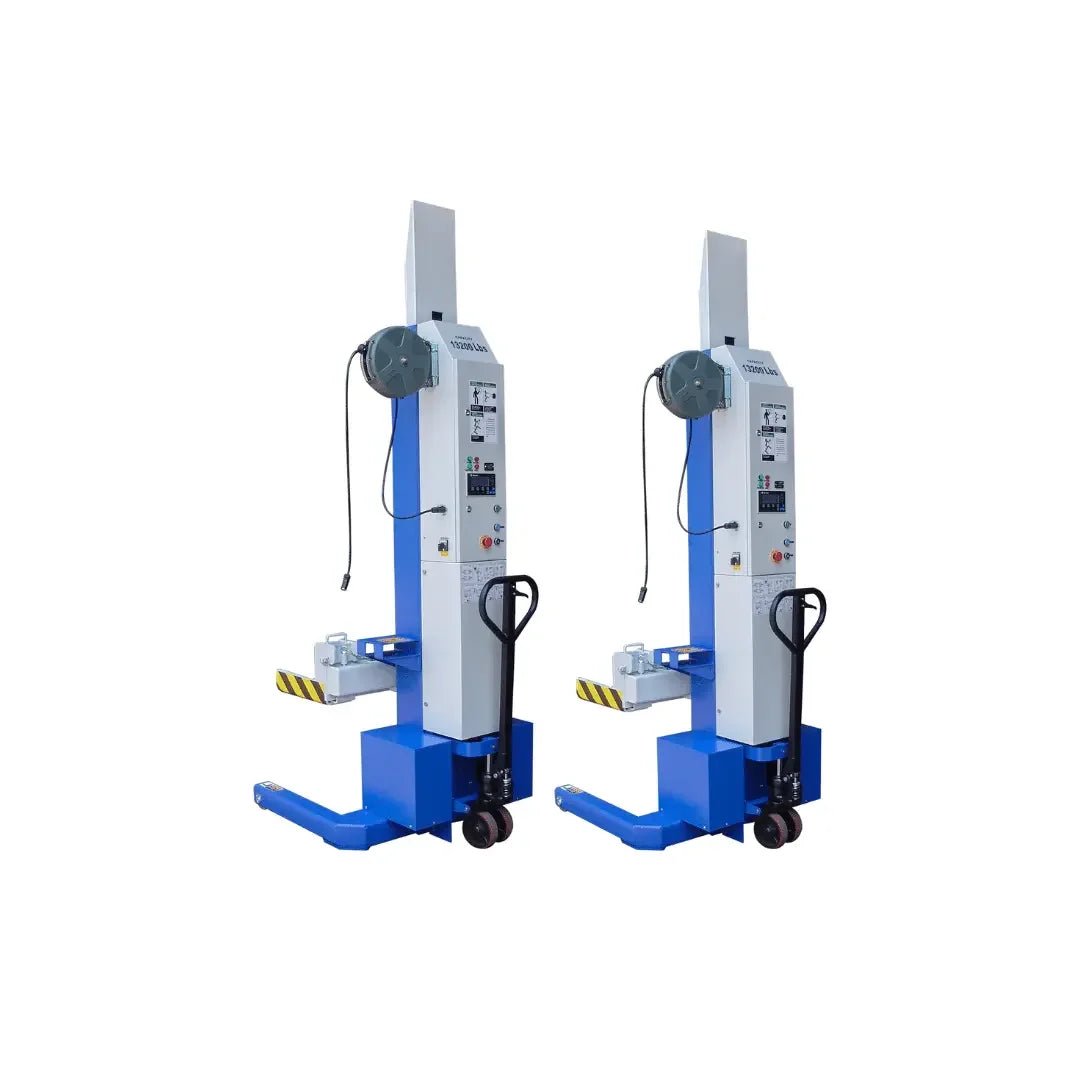

iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2)

The iDeal Lift MSC-13K-B-226 represents the pinnacle of modern mobile column lifting technology for professional automotive shops and heavy-duty service facilities. This 2-column lifting system delivers an impressive 13,200 lbs. capacity per column for a combined 26,400 lbs. total lifting capacity, making it ideal for light to medium commercial vehicles, buses, RVs, and fleet maintenance operations. Each column features the advanced Siemens PLC control system paired with Electro-Optical encoder technology that provides continuous, real-time synchronization across all columns for perfectly balanced lifting every time.

Engineered for maximum versatility and safety, the MSC-13K-B-226 system brings together heavy-duty hydraulic power, wireless battery-powered operation, and intuitive LCD controls in a completely mobile package. Position each column precisely where you need it using the integrated pallet jack-style wheel system, then lift with confidence knowing that independent mechanical locking systems and emergency stop switches on each column provide multiple layers of protection. Whether you're performing routine maintenance, tire service, brake work, or major repairs on fleet vehicles, this system delivers the power, precision, and safety you demand from professional-grade equipment.

Powerful Synchronized Lifting Performance

Each column in the MSC-13K-B-226 system is capable of lifting 13,200 pounds independently. When configured as a tandem set of 2 columns, you achieve a combined lifting capacity of 26,400 pounds, providing ample power for a wide range of commercial vehicles and equipment. The system can be expanded with additional columns: available as MSC-13K-B-446 (4 columns, 52,800 lbs. total capacity) or MSC-13K-B-678 (6 columns, 79,200 lbs. total capacity) to grow with your shop's needs.

At the heart of this system is the Siemens PLC controller working in tandem with precision Electro-Optical encoders. This advanced combination ensures continuous synchronization of all columns throughout the entire lifting cycle, eliminating the dangerous scenario of uneven lifting. The 24VDC/3HP power pack in each column delivers smooth, consistent hydraulic power with a lifting time of just 75 seconds and lowering time of 60 seconds, all while operating at a remarkably quiet 70dB(A) noise level that won't disrupt your shop environment.

The heavy-duty hydraulic system is complemented by large carriage bearings that provide exceptional durability and smooth operation even under maximum load. This robust construction ensures fast, easy lifting with minimal maintenance requirements, keeping your shop productive and your equipment investment protected for years to come.

Ultimate Mobility and Positioning Freedom

True mobility is what sets the MSC-13K-B system apart from traditional fixed lifts. Each column features an integrated pallet jack-style wheel system that allows a single technician to easily position columns exactly where needed. No installation required, no floor cutting, no permanent modifications to your shop. Simply roll each column into position around the vehicle, connect the wireless communication system, and you're ready to lift.

The system accommodates columns up to 32 feet 8 inches apart, giving you the flexibility to work on everything from compact utility vehicles to extended chassis buses and RVs. Each column stands 88.5 inches tall with a 44-inch overall width, providing a stable footprint while maintaining a compact profile that won't consume excessive bay space. At 1,210 lbs. per column ( 2,420 lbs. total system weight ), these units are solidly built yet remain maneuverable with the integrated mobility system.

The 14-inch adjustable lifting forks can be positioned to accommodate the widest range of wheel sizes and vehicle configurations, ensuring secure contact points every time. This adjustability means you're never limited by fixed lifting positions—adapt quickly to different vehicles throughout your workday without complicated setup changes.

Advanced Control and Monitoring

The MSC-13K-B-226 features an intuitive master controller that enables both individual column operation and fully synchronized paired operation. Switch effortlessly between modes depending on your service requirements—operate a single column independently for specific tasks or engage synchronized mode for balanced, coordinated lifting across the entire system.

The integrated LCD screen with keyboard provides clear, easy-to-read visuals of all system settings and precise lifting height measurements in real-time. No guesswork, no confusion—just clear digital readouts that keep you informed at every stage of the lifting process. Monitor system status, check column synchronization, and verify exact lifting height all from the master control interface.

Standard equipment includes a cable reel system on each column for organized power and communication cable management. This thoughtful design keeps cables out of the way during operation and prevents tangles or damage. For even greater convenience, an optional hand-held remote is available, allowing operators to control the entire system from any position around the vehicle. This wireless flexibility enhances both efficiency and safety, letting you maintain visual contact with all lifting points throughout the operation.

Uncompromising Safety Features

Safety is engineered into every aspect of the MSC-13K-B design. Each column is equipped with an independent mechanical locking system that automatically engages to secure the load at any height. These mechanical locks provide fail-safe protection independent of the hydraulic system, ensuring the vehicle stays safely elevated even in the event of hydraulic failure or power loss.

Additionally, every column features a dedicated emergency stop switch that provides instant system shutdown capability from any position. In any unexpected situation, any technician can immediately halt all column movement with the push of a button. This redundant safety approach ensures that help is always within reach regardless of where you're working around the vehicle.

The heavy-duty hydraulic system and large carriage bearings are designed for durability and reliability, delivering smooth, controlled lifting and lowering with minimal maintenance requirements. The entire system is built to withstand the demanding conditions of professional shop environments while maintaining consistent performance. For added security during extended service work, optional jack stands are available to provide additional mechanical support beneath the vehicle.

Key Highlights

• 13,200 lbs. capacity per column with 26,400 lbs. total system capacity for versatile commercial vehicle lifting

• Siemens PLC and Electro-Optical encoder technology ensures precise, continuous synchronization across all columns for balanced, safe lifting

• Wireless battery-powered operation with 24VDC/3HP power pack eliminates the need for shop air or electrical connections—work anywhere in your facility

• Easy positioning with pallet jack-style wheels and accommodates column spacing up to 32 feet 8 inches for maximum vehicle compatibility

• Independent mechanical locking systems and emergency stops on each column for maximum operator safety and fail-safe protection

Battery Power System

The MSC-13K-B-226 operates on 24-volt deep cycle battery power, providing complete freedom from air lines and electrical cords. Each column requires one 24V battery or two 12V batteries to operate (batteries not included). The system is designed to work with standard Type 27 or 31 Series deep cycle batteries rated at 120 AMP/HR with 350-500 CCA starting current.

Each column includes a dedicated battery compartment with a cover size of 14.56" x 8.27" x 13" that accommodates batteries with maximum dimensions of 14.2" x 7.5" x 11.8" tall. This cordless operation means you can position columns anywhere in your shop without worrying about power source proximity, and the substantial battery capacity ensures a full day of operation between charges. The battery-powered design also means you can take the system to remote locations or outdoor service areas where fixed power isn't available.

Important: This system requires a total of 2 deep cycle 24V batteries (1 battery per column). Batteries are NOT included with the MSC-13K-B-226 and must be purchased separately. Refer to the battery specifications for proper requirements—using the correct battery type ensures optimal performance and system longevity.

Standard and Optional Equipment

Every MSC-13K-B-226 system includes integrated cable reel management as standard equipment to keep communication and power cables organized and protected during operation. This built-in feature ensures cables remain neatly stored when not in use and deploy smoothly when positioning columns, preventing workplace hazards and extending cable life.

Standard Feature: Cable Reel

Integrated cable reel keeps power and communication cables organized for safe, professional operation

For shops seeking the ultimate in operational flexibility, an optional hand-held remote control is available. This wireless remote allows technicians to operate the lifting system from any vantage point, providing enhanced visibility of all lift points and greater control during complex lifting operations. The remote control option is particularly valuable in busy shops where multiple technicians need to coordinate vehicle positioning and lifting.

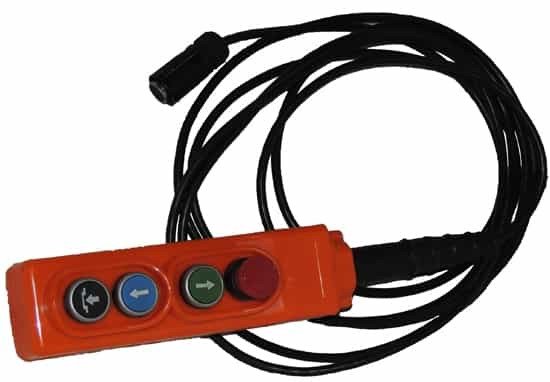

Optional Feature: Hand Held Remote

Upgrade your system with the optional wireless hand-held remote for enhanced operational control

Additional optional accessories include heavy-duty jack stands specifically designed for use with the MSC-13K-B system. These stands provide supplemental mechanical support for extended service operations, offering an extra layer of security when working beneath vehicles for prolonged periods.

Expandable System Architecture

The MSC-13K-B series is designed with growth in mind. Start with the MSC-13K-B-226 (2 columns) for smaller operations or specific vehicle types, then expand your capabilities as your business grows. Add additional columns to create a 4-column system (MSC-13K-B-446) with 52,800 lbs. total capacity, or build out to a 6-column configuration (MSC-13K-B-678) delivering an impressive 79,200 lbs. total capacity for the heaviest commercial vehicles and equipment.

All columns within the MSC-13K-B family share the same advanced Siemens PLC control architecture, ensuring seamless communication and synchronization regardless of how many columns you deploy. This modular approach protects your investment and provides a clear upgrade path as your shop's lifting requirements evolve.

Built for Professional Heavy-Duty Service

The iDeal Lift MSC-13K-B-226 is engineered specifically for professional service environments that demand reliability, safety, and performance. Whether your shop specializes in municipal fleet maintenance, commercial truck service, bus repair, RV service, or emergency vehicle maintenance, this system delivers the lifting power and precision control you need to work efficiently and safely.

The combination of wireless operation, synchronized lifting, multiple safety systems, and true portability makes the MSC-13K-B-226 a versatile solution that adapts to your workflow rather than forcing you to adapt to fixed equipment. Move columns to different bays as needed, reconfigure your shop layout without reinstallation, and service a wider variety of vehicles than ever before—all with professional-grade performance backed by iDeal Lift's reputation for quality and durability.

Product Features

• 13,200 lb lifting capacity per column. Total capacity 26,400 lbs

• Sold in Sets of 2 (MSC-13K-B-226), 4 (MSC-13K-B-452) or 6 (MSC-13K-B-678)

• Easy to use master controller for individual or paired synchronized operation

• Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

• Adjustable lifting forks accommodate the widest range of wheels

• Easily positioned with pallet jack style wheel

• Heavy-duty hydraulic system and large carriage bearings provide durable, fast and easy lifting

• LCD screen with keyboard offers easy to read visuals of settings and lifting height

• Independent mechanical locking system and emergency switch on each column provide highest safety assurance

• Emergency switch on each column provide highest safety assurance

• Optional jack stands are available

• Requires a Total of 2 24v Battery (1 Per ea Lift) Batteries are NOT Included

Standard Features

Cable Reel

Optional Features

Hand Held Remote

Product Specifications

Specifications
MSC-13K-B-226
MSC-13K-B-446
MSC-13K-B-678

Capacity Per Column
13,200 lbs.

Total Capacity
26,400 lbs.
52,800 lbs.
79,200 lbs.

Overall Height Per Column
88.5"

Overall Width Per Column
44"

Maximum Distance Between Columns
32'-8"

Fork Length
14"

Lifting/Lowering Time
75/60 sec

Power Pack
24VDC/3HP

Noise Level
70dB(A)

Net Weight Per Column
1,210 lbs

Total Net Weight
2,420 lbs.
4,840 lbs.
7,260 lbs.

Battery (Not Included) Specifications
MSC-13K-B & MSC-18K-X

Deep Cycle Batteries
Type 27 or 31 Series

Requirement Voltage Per Column
Qty 2 12V or Qty 1 24V

Rating
120 AMP / HR

Starting Current
350 CCA – 500 CCA

Battery Cover Size
14.56" x 8.27" x 13"

Battery Dimension
14.2" x 7.5" x 11.8" Tall Max

Key Features

• Published product configuration: iDeal Lift MSC-13K-B-226 13,200lb. Per Mobile Column Lifting System (Set of 2) The iDeal Lift MSC-13K-B-226 represents the pinnacle of modern mobile column lifting technology for professional automotive shops and heavy-duty service facilities. This 2-column lifting system delivers an impressive 13,200 lbs. capacity per
• Exact manufacturer model or part number: MSC-13K-B-226
• Cataloged for Lifts & Hoists: Car Lifts — Mobile Column Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model MSC-13K-B-226, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
