Product Overview

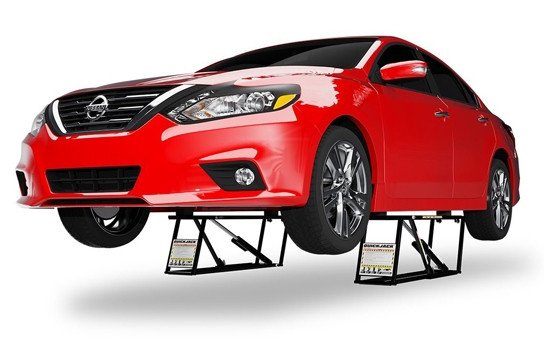

QuickJack™ BL-3500SLX Portable Car Lifting System 3,500 Lb. Capacity

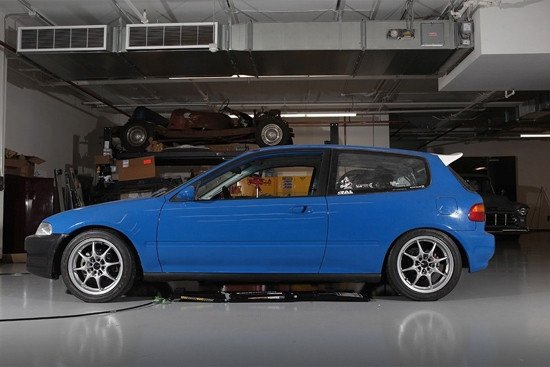

You're looking at the smartest home car lift ever made. The QuickJack BL-3500SLX portable car lifting system will change everything you thought you knew about mobile auto repair. Say goodbye forever to unsafe ramps, flimsy jacks, and untrustworthy stands. QuickJack gets your vehicle about 21 inches in the air in less than 30 seconds. It's cool.
The BL-3500SLX has a 3,500-lb. lifting capacity with a durable powder coat finish. As the smallest and lightest frame assembly in the QuickJack lineup, the true strength of this portable car lift is that it goes virtually anywhere. This QuickJack is so lightweight and space-efficient that it fits in the average car trunk or backseat. Following the initial one-time assembly, all you have to do is hook up the power. With the frames and rubber blocks in place under your vehicle's lift points, QuickJack will be up and running in no time. It's really that easy.

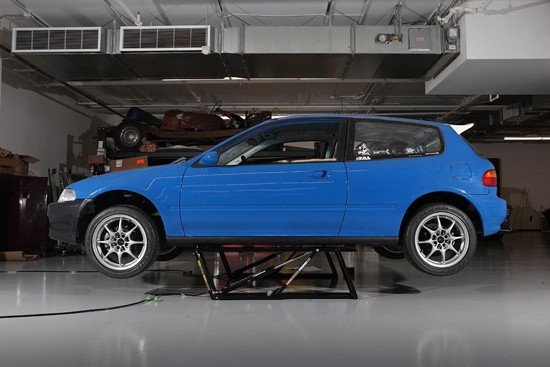

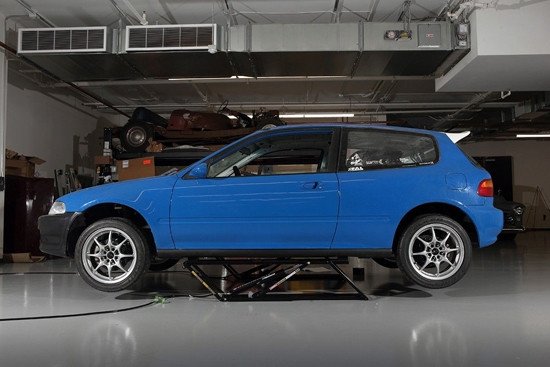

Its super-low 3" profile lets the QuickJack fit where other car lifts and jacks can only dream. And because there aren't any cross members to worry about with this portable garage lift, you can tailor the platform spacing to fit nearly any vehicle 3,500 lbs. and under. Its lightweight nature makes this portable car lift the perfect tool for the track. Hundreds of satisfied racers and enthusiasts have enjoyed QuickJack for quick wheel service or tune-ups away from home. An optional DC power unit connects the car lift to your car battery or portable battery pack.
Perfect for the Track

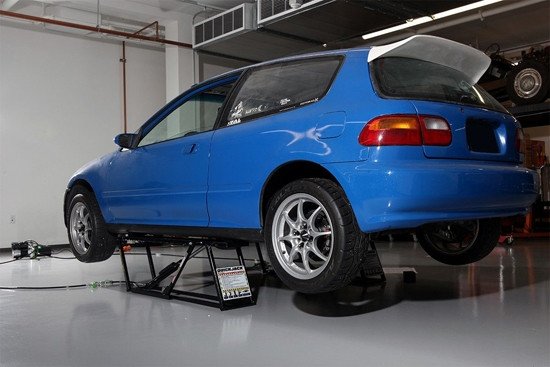

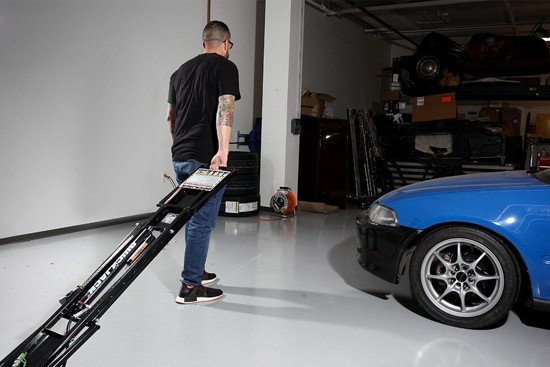

Convert your garage lift to a portable car lift just by rolling it to the trunk of your car and hauling it to the track. 12V DC power option makes this the world's first-ever true track lift. If you don't have a professional pit crew at your disposal, you'll want QuickJack by your side. Each frame weighs just 60 lbs., making transport effortless, while the 30-second full rise time means you'll be back in action fast.
Have a heavier vehicle? The BL-5000SLX is also great for track day.
Extended Block Trays
We increased the size of our rubber block trays to improve access to varied lift points. Position blocks from 27" to 50.5" apart, satisfying most lift point spreads. The system includes 4 medium rubber lift blocks (2") and 4 tall rubber lift blocks (3"), giving you versatile lift height options from 16.5" to a maximum of 21".

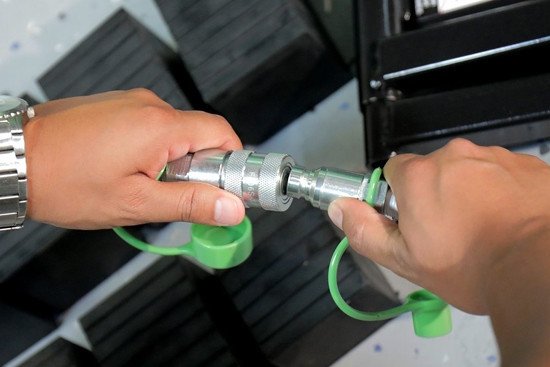

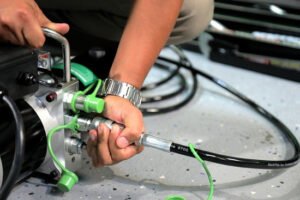

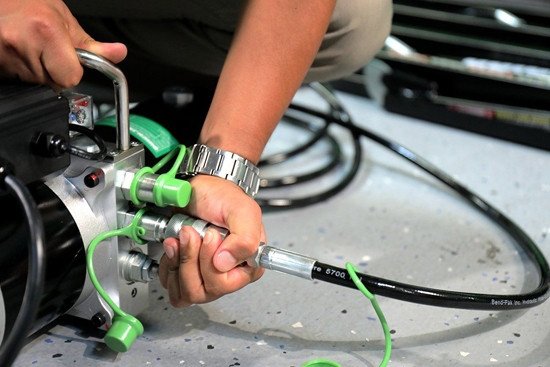

Zero-Leak Fittings
Our car lift components include flush-face hose fittings to ensure fluids stay in the unit and not on your garage floor. You don't want to be the one to leak all over the track, either. The system comes with short and long hydraulic hoses plus all necessary fittings and thread tape for proper setup.

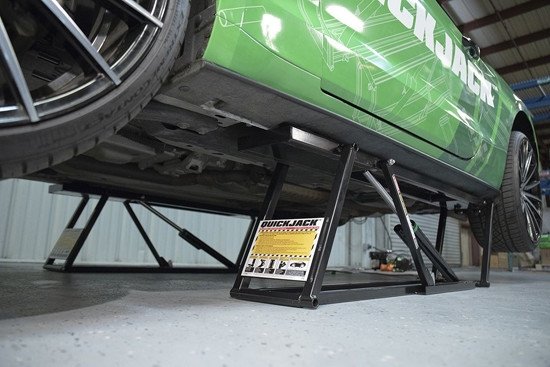

Open-Center Design
Don't let us get in your way! Inspired by larger frame-engaging car lifts, our open-center design gives users total access to the wheels and undercarriage. The BL-3500SLX frame dimensions are 62.5" long by 10.5" wide, providing a stable footprint while keeping the center completely clear for service work.
Key Highlights
- 3,500 lbs. lifting capacity ideal for sports cars, sedans, and light vehicles
- Super-low 3" profile fits under low-clearance vehicles where traditional jacks can't reach
- 21" maximum lift height provides excellent working clearance with optional stacking blocks
- 30-second rise time get to work fast with hydraulic lifting power
- Ultra-portable design each 60 lb. frame fits in most car trunks for track days and mobile service

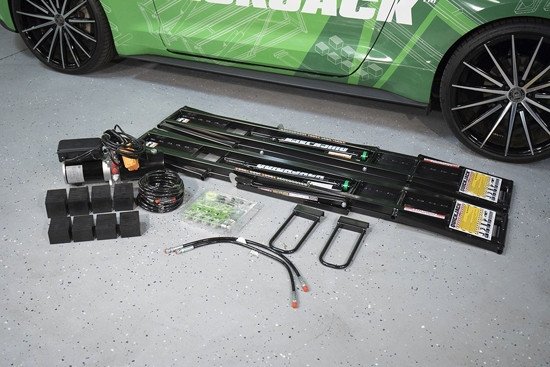

What's Included
The QuickJack BL-3500SLX arrives as a complete lifting system ready to assemble and use:
- BL-3500SLX left frame assembly
- BL-3500SLX right frame assembly
- 1x hydraulic power unit with control ( 30 lbs. )
- 4x medium rubber lift blocks (2")
- 4x tall rubber lift blocks (3")
- 2x short hydraulic hoses
- 2x long hydraulic hoses
- 2x frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
Requirements
To set up and operate your QuickJack BL-3500SLX, you'll need:
- 3 liters of Automatic Transmission Fluid (ATF)
- Air source to inflate air cylinders up to 50 PSI
- Basic assembly tools
Product Features
- 3500 lbs Capacity
- Durable powder coat finish
Includes
- BL-3500SLX Left Frame Assembly
- BL-3500SLX Right Frame Assembly
- 1x Hydraulic power unit with control
- 4x Medium rubber lift blocks (2")
- 4x Tall rubber lift blocks (3")
- 2x Short hydraulic hoses
- 2x Long hydraulic hoses
- 2x Frame-positioning handles
- Fittings and thread tape for setup
- Instruction manual
Requirements
- 3 liters of Automatic Transmission Fluid
- Air source to inflate air cylinders up to 50 PSI
- Assembly tools
Product Specifications
Model
BL-3500SLX
5000TL
7000TL
Capacity
Lifting Capacity
3,500 lbs. (1,588 kg)
5,000 lbs. (2,268 kg)
7,000 lbs. (3,175 kg)
Lowered Height
A Frame Only
3" (76 mm)
3.5" (89 mm)
B With 2" Block
3.5" (89 mm)
4" (102 mm)
Lifting Height
C Frame Only
16.5" (419 mm)
N/A
D With 2" Block
17.5" (445 mm)
21" (521 mm)
22.5" (572 mm)
E With 3" Block
18.5" (470 mm)
22" (546 mm)
22.5" (572 mm)
F Max Height
21" (533 mm)
24" (616 mm)
24.5" (622 mm)
G W/Optional Adapters
Not Compatible
24" (597 mm)
24.25" (610 mm)
H W/Optional Adapters + Pin
Not Compatible
26.75" (673 mm)
27" (686 mm)
Lift Point Spread
I Maximum
50.5" (1,283 mm)
60" (1,524 mm)
J Minimum
27" (686 mm)
37" (940 mm)
Frame Dimensions (ea.)
K Width
10.5" (267 mm)
11" (278 mm)
12.5" (318 mm)
L Length
62.5" (1,588 mm)
70" (1,778 mm)
70.75" (1,797 mm)
A Height (Lowered)
3" (76 mm)
3.5" (89 mm)
Weight
60 lbs. (27 kg)
78 lbs. (35 kg)
98 lbs. (45 kg)
Other Specs
Time to Full Rise
30 seconds
Power Unit Weight
30 lbs. (13 kg)
15 lbs. (7 kg)
Shipping
Shipping Dimensions (ea. frame)
N/A
73.5" L x 15.25" W x 5" H
(1,869 x 385x 129 mm)
73.75" L x 16.75" W x 6.25" H
(1,869 x 425 x 155 mm)
Total Shipping Weight
180 lbs. (82 kg)
240 lbs. (109 kg)
280 lbs. (127 kg)
Key Features
- Published product configuration: QuickJack™ BL-3500SLX Portable Car Lifting System 3,500 Lb. Capacity You're looking at the smartest home car lift ever made. The QuickJack BL-3500SLX portable car lifting system will change everything you thought you knew about mobile auto repair. Say goodbye forever to unsafe ramps, flimsy jacks, and untrustworthy
- Exact manufacturer model or part number: 5175010
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | QuickJack |
|---|---|
| SKU | 5175010 |
| MPN / Model | 5175010 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model 5175010, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
