Challenger 44030E HD 4-Post Hydraulic Ex-Length Lift 30,000 lb – New Black Color

Product Overview

Challenger 44030E HD 4-Post Hydraulic Ex-Length Lift 30,000 lb – New Black Color

When your shop demands the ultimate in heavy-duty lifting capability for commercial trucks, buses, and large fleet vehicles, the Challenger 44030E delivers. With a massive 30,000 lb. capacity and an extended length design that accommodates wheelbases up to 290 inches, this professional-grade 4-post hydraulic lift is engineered to handle the toughest jobs with reliability and precision. Featuring a superior lifting system with high tensile strength leaf chain, sealed roller bearings, and a robust 3HP motor, the 44030E offers smooth, consistent operation and minimal maintenance requirements—making it the go-to solution for busy commercial service centers.

Now available in the new black color finish, the Challenger 44030E combines rugged functionality with a modern, professional appearance. This extended length model is part of the versatile 44030 series, designed to transform your facility into a complete heavy-duty productivity powerhouse. Whether you're performing routine maintenance, brake work, suspension repairs, or wheel service, this lift provides a stable, accessible platform with 68 inches of rise height and multiple lock positions for comfortable working conditions at any elevation.

30,000 Pounds of Heavy Duty Truck Lifting Power

The 30,000 lb. capacity heavy duty four post truck lift features a superior lifting system with high tensile strength leaf chain and sealed roller bearings for maximum reliability and smooth operation over thousands of cycles. Heavy duty hydraulic cylinders provide optimum lifting performance with minimum maintenance requirements, ensuring your investment delivers years of dependable service.

Additional features and benefits of the 44030E four post lift include a single point air lock release system that allows technicians to disengage all post column locks simultaneously for rapid, efficient operation. Diamond plate approach ramps and anti-skid runway surfaces provide positive traction upon approach and unload, ensuring safe vehicle positioning every time. The internal multi-position lock ladder offers a variety of comfortable work heights, allowing technicians to position vehicles at the ideal elevation for any service task.

An All-in-One Hydraulic Truck Lift Solution

The 44030E four post truck lift accommodates a wide range of heavy duty vehicles and can be transformed into a complete productivity solution with optional accessories. Add ramp kits, oil drain pans, heavy duty turning radius gauges, and rolling jacks for comprehensive brake and wheel work capabilities. The built-in runway rail system provides exceptional versatility, allowing you to integrate convenience options like rolling jacks and sliding oil drain pans directly into your workflow.

The 44030 series truck lifts are available in standard length, extended length ( 44030E ), and extra extended lengths to handle wheelbases ranging from 230 inches up to an impressive 350 inches making them suitable for everything from medium-duty trucks to full-size transit buses. These hydraulic lifts are also available in alignment rack four post models (AR versions) for shops requiring precision two-wheel alignment capabilities.

With adjustable runways that accommodate a variety of commercial transit buses and other large vehicles, the 44030E offers unmatched flexibility. The 24-inch wide runways feature variable spacing between 54 and 75 inches, ensuring compatibility with diverse vehicle configurations. The overall width of 12 feet 5½ inches and inside column clearance of 132½ inches provide ample space for oversized vehicles and equipment access.

Engineered for Durability and Performance

Diamond Plate Ramps: The heavy-duty diamond plate approach ramps provide exceptional drive-on tread traction and feature robust steel rolling wheels engineered for high volume durability. Vehicles load smoothly and safely, reducing operator stress and improving shop efficiency.

Internal Lock Ladder: The multi-position internal lock ladder system enables technicians to secure vehicles at a variety of comfortable work heights throughout the full 68-inch rise range. This flexibility ensures optimal ergonomics and productivity for any service procedure.

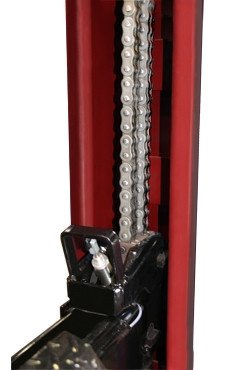

Heavy-Duty Chain System: The high tensile strength leaf chain with sealed roller bearings delivers smooth, reliable lift operation cycle after cycle. Combined with the single point air actuated lock release system, technicians can operate the lift quickly and confidently, reducing service times and maximizing throughput.

Powered by a dependable 3HP motor operating on 208v-230v single phase power ( optional three phase available upon request ), the lift achieves full rise in just 105 seconds, minimizing wait times and keeping your operation moving. The system draws 30 amps, making it compatible with most shop electrical installations.

Key Highlights

• 30,000 lb. lifting capacity for heavy commercial trucks and buses

• Extended length design with 29' 7½" overall length and 290" maximum wheelbase

• 68-inch rise height with multi-position internal lock ladder for flexible work positioning

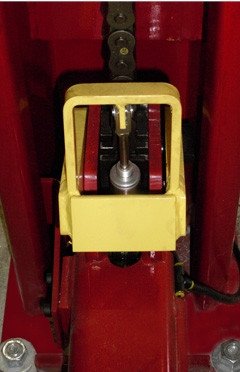

• Single point air actuated lock release for fast, simultaneous column unlocking

• Adjustable runways with built-in rail system for rolling jacks and accessories

Product Features

• Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation

• Heavy duty cylinder for optimal performance and minimal maintenance

• Single point air actuated lock release system allows technician to disengage all column locks simultaneously

• Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability

• Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)

• Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan

Product Specifications

To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.

Model Number

44030
44030AR
44030E
44030EAR
44030X
44030XAR

Lift Capacity

30,000 lbs.

A Overall Length

24' 7-1/2"

29' 7-1/2"

34' 7-1/2"

B Overall Width

12’ 5½”

C Inside Columns

132-1/2"

D Between Columns

233-3/4"

293-3/4"

353-3/4"

E Overall Height

92"

F Height of Runways

9"

G Width of Runways

24"

H Width Between Runways

54" – 75"

I Maximum Wheelbase

230"

290"

350"

J Rise Height

68"

Max. 2 Wheel Align

N/A

206"

N/A

266"

N/A

326"

Motor

3HP

Voltage

208v – 230v

Speed of Rise

105 seconds

Amps

30

Shipping Weight

5250 lbs
(2381 kg)

5450 lbs
(2472 kg)

5750 lbs
(2608 kg)

5950 lbs
(2699 kg)

6250 lbs
(2835 kg)

6450 lbs
(2926 kg)

*Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Only

Key Features

• Published product configuration: Challenger 44030E HD 4-Post Hydraulic Ex-Length Lift 30,000 lb – New Black Color When your shop demands the ultimate in heavy-duty lifting capability for commercial trucks, buses, and large fleet vehicles, the Challenger 44030E delivers. With a massive 30,000 lb. capacity and an extended length design that accommodates
• Exact manufacturer model or part number: 44030E-V001
• Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 44030E-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
