Product Overview

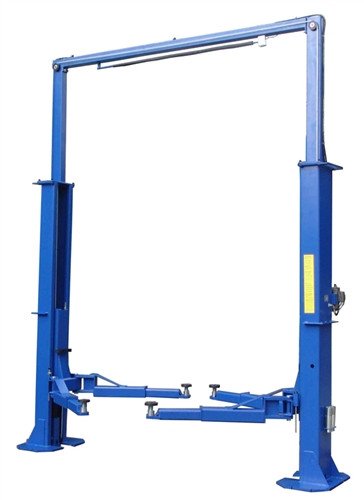

Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift
The Auto Lift AL2-15K-CX represents the next generation in professional automotive lifting equipment. With a massive 15,000 lb. lifting capacity, this clear floor symmetric design two post lift has been completely redesigned to deliver superior performance, enhanced safety features, and unmatched value for commercial shops and serious automotive enthusiasts. Built with heavy-duty 8mm steel construction throughout the columns, carriages, and arms, this lift is engineered to handle everything from compact cars to heavy-duty trucks and SUVs with confidence.
What sets the AL2-15K-CX apart is its comprehensive list of upgraded features that address real-world shop needs. The innovative low-profile drop-in swivel pads now offer a minimum pad height of just 5 inches (reduced from 9"), making this lift compatible with an even wider range of vehicles including low-clearance sports cars and performance vehicles. The chain-driven system with dual 3-inch cylinders and low-friction chain rollers delivers smooth, reliable operation with a lifting speed of just 50 seconds, getting vehicles in the air quickly so you can maximize productivity.
Revolutionary Redesign with Advanced Features
NEW REDESIGNED MODEL! The TP15K-CX (AL2-15K-CX) has undergone a complete transformation to become one of the most feature-rich heavy-duty two post lifts available. Every aspect has been carefully engineered to improve safety, functionality, and ease of use in demanding shop environments.
The redesigned lift now features internal hose routing within the columns, protecting hydraulic lines from damage and giving your shop a cleaner, more professional appearance. The power unit mounting location has been strategically reduced from 74" to 67 inches, improving accessibility for maintenance while the overall width has been optimized for better space efficiency. A padded overhead shut-off bar with integrated kill switch provides an additional layer of safety, automatically stopping lift operation if triggered.
The lift's symmetric design provides balanced lifting with 120.8 inches of clearance between columns and 109 inches of drive-through clearance, accommodating everything from compact vehicles to full-size trucks. With a maximum lifting height of 76.5 inches and arm reach adjustable from 37 to 52 inches, you'll have the flexibility to position vehicles exactly where you need them for optimal access to undercarriage components.
Innovative Pad System and Vehicle Adaptation
Low-Profile Drop-In Swivel Pads with Height Adjustment
The revolutionary drop-in swivel pad system eliminates the old slip-on truck adaptor design with a far more versatile and user-friendly solution. These 5-inch adjustable heavy-duty swivel pads feature 2 inches of built-in height adjustment, and they're white zinc plated for superior corrosion resistance (upgraded from black oxide). The pads drop securely into place and can be quickly adjusted to accommodate different vehicle lift points.
Stackable Height Adapters for Ultimate Versatility
Included with the lift are four stackable drop-in height adapters in both 3-inch and 5-inch sizes. These adapters allow you to raise the pad height as needed for trucks, SUVs, and high-clearance vehicles. The adapters simply drop into the swivel pads and can be stacked in various combinations to achieve the perfect height. A convenient bolt-on storage bracket is included to keep the height extensions organized and within easy reach when not in use.
Optional Spin-Up Cradle Adapters
For even greater versatility, optional TP12KFX-15KCX-SPNCA Spin-Up Cradle Adapters are available (sold separately as a set of four). These cradle-style adapters provide secure contact along the vehicle's pinch weld or frame rail, ideal for vehicles with limited lift point access or when additional stability is desired.
Enhanced Safety and Professional Design Features
Optimized Power Unit Positioning
The power unit mounting location has been carefully redesigned and positioned at 67 inches on the front side of the column (reduced from the previous 74" height). This front-side mounting configuration reduces the overall width footprint of the lift while improving access for routine maintenance and service. The lift now utilizes the advanced 220V DURO PU-220V-L-H-X power unit that integrates seamlessly with the overhead safety system.
Protected Internal Hose Routing
One of the most significant upgrades is the internal hose routing system that runs hydraulic lines through the lift columns rather than externally. This design protects hoses from accidental damage, reduces tripping hazards, and creates a much cleaner professional appearance in your shop. Integrated hose guards provide additional protection at connection points and movement areas.
Rubber Door Guards for Vehicle Protection
Heavy-duty rubber door guards are now standard equipment on the carriages, protecting vehicle doors from accidental contact with the lift's metal frame. This thoughtful addition prevents costly door dings and paint damage, especially important when working on high-end vehicles or in busy shop environments where doors may swing open during service.
Additional safety features include automatic electric override, multi-position mechanical lock bars for secure holding at any height, and a trip wire safety shut-off connected to the padded overhead bar with kill switch. The clear floor design eliminates tripping hazards and makes it easy to position vehicles, while "Big Foot" base plates provide exceptional stability even when lifting at maximum capacity.
Commercial-Grade Construction and Reliability
Every structural component of the AL2-15K-CX is built to commercial specifications. The columns, measuring 7.75" x 14.5", are constructed from 8mm thick steel, as are the carriages and arms. This heavy-gauge construction ensures decades of reliable service even in high-volume shop environments. The lift utilizes 3/8-inch diameter steel cable with a chain-driven system featuring low-friction rollers for smooth, consistent operation.
The dual 3-inch hydraulic cylinders provide powerful, balanced lifting force distributed evenly across all four arms. Each arm is rated for a maximum load of 3,750 pounds, giving you confidence when lifting heavy trucks or positioning weight asymmetrically for specific service needs. The entire lift is finished in the upgraded standardized blue powder coat paint, providing excellent corrosion resistance and a professional appearance that will last for years.
Critical components including swivel pads, arm shafts, and lock gears are now white zinc plated (upgraded from black oxide) for superior rust and corrosion resistance. A professional product identification plate displays the model number, capacity, serial number, and power specifications for easy reference and inspection compliance.
Key Advantages at a Glance
- 15,000 lb. capacity handles heavy-duty trucks, SUVs, and commercial vehicles with ease
- 5-inch minimum pad height accommodates low-clearance sports cars and performance vehicles
- Drop-in swivel pad system with stackable 3" and 5" height adapters for ultimate versatility
- Internal hose routing protects hydraulic lines and creates a cleaner shop appearance
- Clear floor symmetric design with 109" drive-through clearance and no tripping hazards
- Heavy-duty 8mm steel construction throughout columns, carriages, and arms
- Rubber door guards protect vehicles from carriage contact damage
- Fast 50-second lifting speed maximizes shop productivity
- 220V single-phase power (20 AMP) fits most shop electrical systems
- Free installation hardware included with all necessary mounting components
Complete Package with Installation Hardware
The lift ships at 2,575 pounds and requires 220-volt, 20-amp, single-phase electrical service. With an overall height of 179.4 inches and overall width of 148.4 inches, the lift is designed for professional shop installations with adequate ceiling clearance. The clear floor design requires proper concrete anchoring but eliminates the need for floor plates, making it easier to keep your shop floor clean and accessible.
Why Choose the AL2-15K-CX?
The Auto Lift AL2-15K-CX represents exceptional value in the heavy-duty two post lift category. With its comprehensive list of upgraded features, commercial-grade construction, and thoughtful design improvements, this lift delivers professional performance that shops can depend on day after day. The combination of 15,000 lb. capacity, versatile pad adjustment system, enhanced safety features, and protected internal components makes this one of the best investments you can make in your shop's productivity and capability.
Whether you're servicing compact cars, luxury vehicles, full-size trucks, or heavy SUVs, the AL2-15K-CX provides the capacity, reach, and versatility to handle them all with confidence. Backed by Auto Lift's reputation for quality and reliability, this redesigned lift sets a new standard for what a professional two post lift should be.
“`
Product Features
- 15,000 lb lifting capacity
- Symmetric design
- Chain driven
- Dual 3" cylinders with low friction chain rollers
- "Big Foot" base plates for extra stability
- 5" Adjustable Heavy-Duty swivel pads
- Automatic electric override
- Free hardware
- Powder coat paint finish
New Upgraded Features
- Min Pad Height from 9” to 5”
- Drop-in Swivel Pads with 4ea drop-in Height Extensions – 3” & 5” (Slip-On Truck Adaptors eliminated)
- Include ‘bolt-on’ Storage Bracket for Height Extensions
- Trip Wire / Safety Shut-Off to Padded OH Bar with Kill Switch (TP15KCX)
- Uses new 220V DURO PU-220V-L-H-X that does not require OH Kill Switch ‘trip wire’ Mechanism
- Reduce Power Unit mounting height location from 74” to 67”
- Internal Hose Routing in Columns
- Includes Rubber Door Guards on Carriages
- Swivel Pads, Arm Shafts & Lock Gears to be white zinc plated vs. black oxide
- Include Prod ID Plate with Model#, Capacity, Serial Number & Power Specs
- Upgraded to standardized blue color
Product Specifications
Specifications
AL2 15K-CX
Capacity
15,000 lbs.
Overall Height
179.4"
Width Overall
148.4"
Max Lift Height
76.5"
Width Between Columns
120.8"
Min Pad Height
5"
Drive thru Clearance
109"
Lifting speed
50 sec
Asymmetric / Symmetric
Symmetric
Clear Floor / Floor Plate
Clear Floor
Front Arm Reach – min/max
37" – 52"
Rear Arm Reach – min/max
Same
Max Load Per Arm
3,750 lbs
Cable Diameter
3/8"
Column Size
7.75" x 14.5"
Column Steel Thickness
8mm
Carriage Steel Thickness
8mm
Arm Steel Thickness
8mm
Power
220V – 20 AMP – 1 PH
Ship Weight
2,575 lbs.
Key Features
- Published product configuration: Auto Lift AL2-15K-CX 15,000 lb. Capacity Heavy Duty Two Post Car Lift The Auto Lift AL2-15K-CX represents the next generation in professional automotive lifting equipment. With a massive 15,000 lb. lifting capacity, this clear floor symmetric design two post lift has been completely redesigned to deliver superior
- Exact manufacturer model or part number: AL2-15K-CX
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | AL2-15K-CX |
| MPN / Model | AL2-15K-CX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model AL2-15K-CX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
