Product Overview

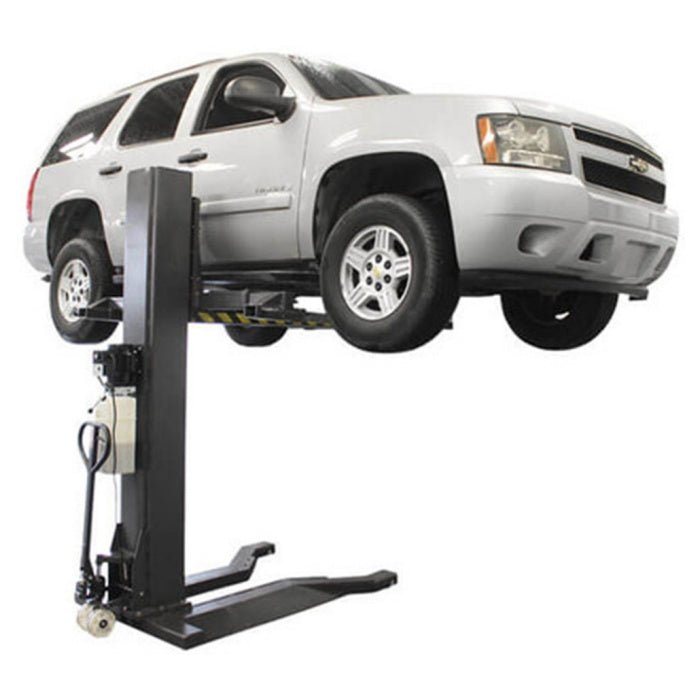

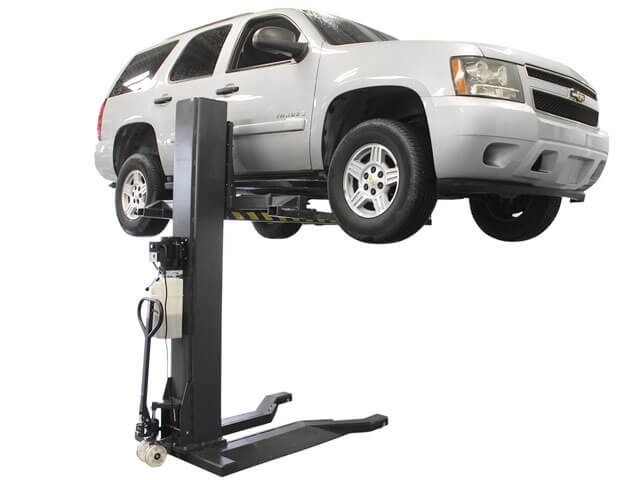

Atlas® PSP-6000 Portable Single Post Lift 6,000 lbs
The Atlas PSP-6000 Portable Single Post Lift delivers professional-grade lifting capability with the ultimate flexibility—move it where you need it, roll it away when you don't. With a 6,000 lb capacity and 110V electric operation, this portable lift is the perfect solution for commercial service shops and dedicated home garages that demand full undercar access without sacrificing valuable bay space to a permanently mounted lift.
Unlike traditional two-post or four-post lifts, the PSP-6000 gives you complete freedom of movement around the vehicle. Walk underneath for exhaust work, suspension repairs, or detailed undercarriage inspections. Perform wheel service with ease. The low profile design with built-in drive-over ramps means vehicles can literally drive over the lift when not in use, maximizing every square foot of your garage. When your work is done, simply roll the PSP-6000 into a corner or storage area—no bay space wasted.

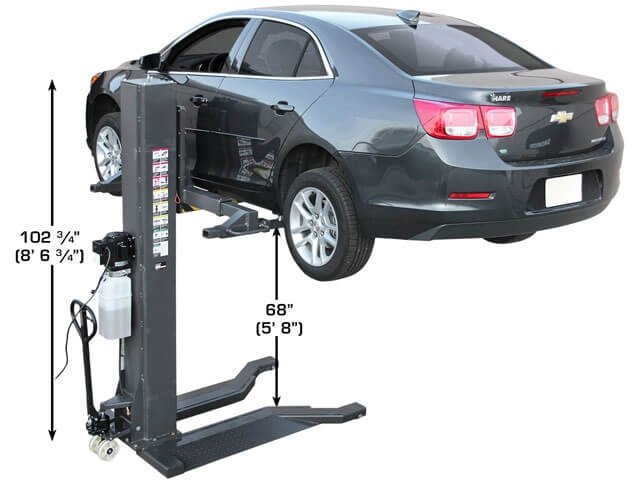

This portable single post lift rolls easily on level concrete surfaces and works equally well inside or outside your garage. The column is designed to fit under a 9-foot (108 inch) ceiling, with an overall height of 102 3/4 inches, and raises most vehicles high enough to access critical components that would be unreachable with a mid-rise lift. The maximum lifting height of 71 2/3 inches (without truck adapters) provides ample clearance for comprehensive service work.
Safety is engineered into every detail. The Atlas PSP-6000 column is equipped with an automatic chain break mechanism that locks the carriage into place in the unlikely event of a chain failure, giving you peace of mind during every lift operation. The single point lock release and locking arm restraints ensure secure, stable lifting every time.
Why Choose the Atlas PSP-6000?
- True Portability: Roll the lift wherever you need it—inside, outside, or out of the way when not in use. No permanent installation required.
- Full Vehicle Access: Walk completely around and under the vehicle with unobstructed access for wheel service, exhaust work, suspension repairs, and more.
- Space-Saving Design: Built-in drive-over ramps and low profile construction mean vehicles can drive right over the lift, freeing up your garage bay.

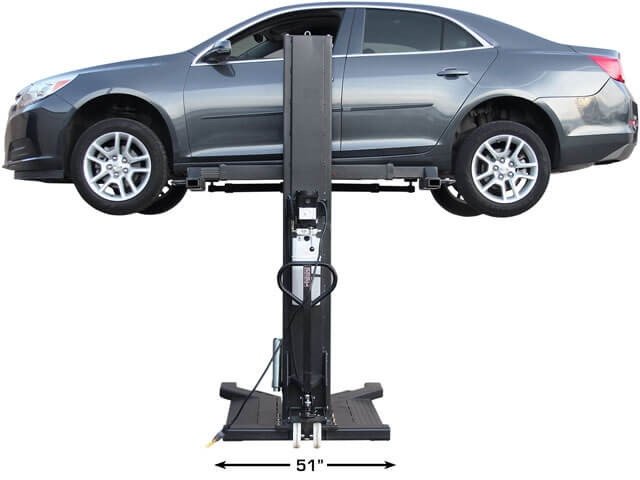

- Fits Standard Garages: Designed to fit under 9-foot ceilings with rigid base construction and a compact footprint of 111 1/2" L x 96" W.
- Plug-and-Play Power: 110V electric operation means no special wiring—just a 30 amp breaker and you're ready to lift.
Engineered for Versatility and Safety

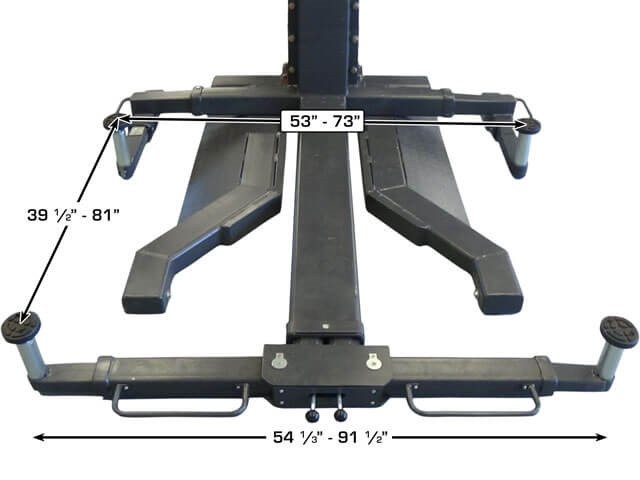

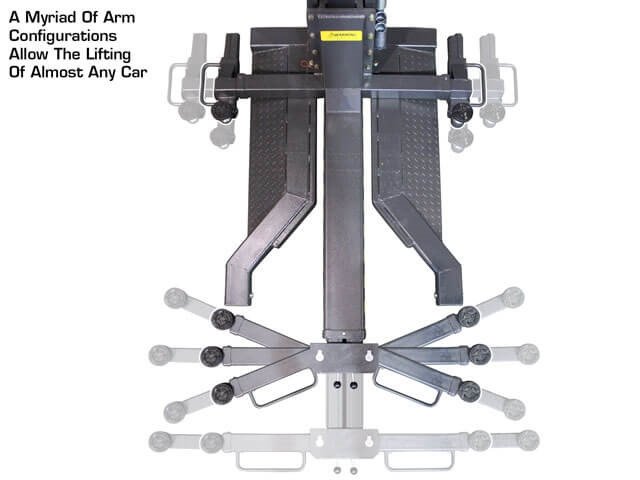

The PSP-6000 features two-stage telescoping swing arms that adjust to accommodate a wide variety of vehicle types and sizes. The distance between lifting pads adjusts from 39 1/2" to 81" (column side to offside), 53" to 73" (column side to column side), and 54 1/3" to 91 1/2" (offside to offside), giving you the flexibility to lift everything from compact cars to full-size trucks.

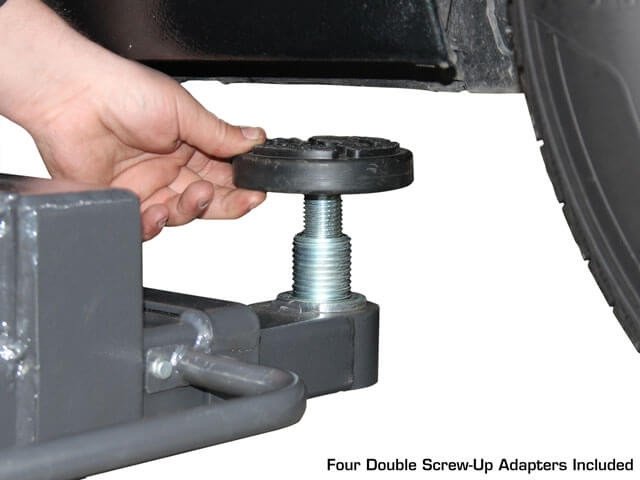

Each Atlas PSP-6000 includes a free 8-piece truck adapter set with double screw-up adapters, allowing you to safely lift trucks and vehicles with higher ground clearance right out of the box. The minimum height of just 5 inches ensures compatibility with low-profile vehicles, while the maximum clearance of 68 inches provides plenty of working room for larger jobs.
The lift's 10 1/2" x 12 1/2" column is built from heavy-duty materials with a rigid base construction that ensures rock-solid stability during operation. At 1,900 lbs, the lift is substantial enough to provide a stable lifting platform while still being mobile enough to reposition when needed.
What's Included
- Atlas PSP-6000 Portable Single Post Lift
- 8-Piece Truck Adapter Set with double screw-up adapters
- Installation manual and safety documentation
Important: Oil is NOT included. This lift requires 3-5 gallons of AW32 or AW46 hydraulic oil for operation. A 30 amp breaker is required for the 110V motor.
Product Features
- 6,000 lb Capacity
- Portable
- Low Profile Design
- Rigid Base Construction
- Built in Drive-over Ramps
- Single Point Lock Release
- Two-Stage Telescoping Swing Arms
- Locking Arm Restraints
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Free 8 Piece Truck Adapter Set
- Includes Double Screw-up Adapters
Includes
- Set of 8 Truck Adapters
Product Specifications
Specifications
PSP-6000
Capacity
6,000 lbs

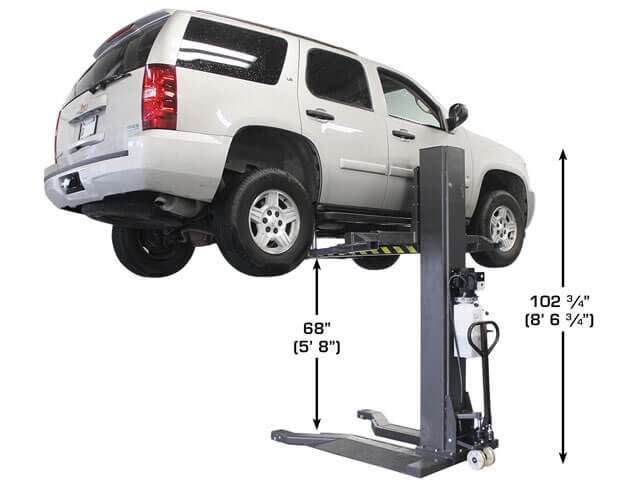

Overall Height
102 3/4" (8' 6 3/4")

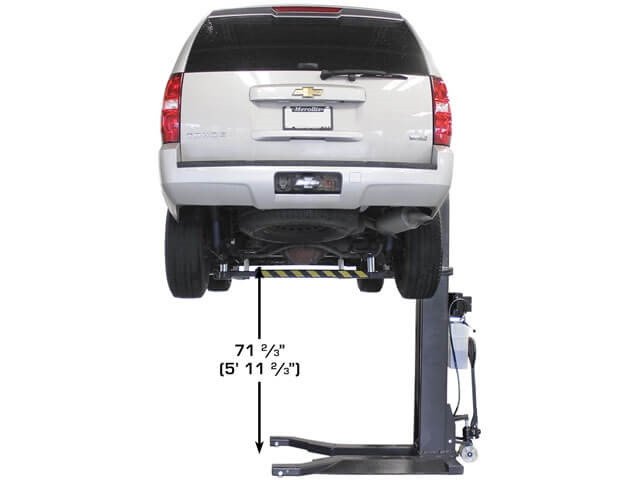

Maximum Lifting Height w/o Truck Adapters
71 2/3" (5' 11 2/3")
Max. Clearance
68" (5'8")
Min Height
5"
Column Size
10 1/2" x 12 1/2"
Distance Between Lifting Pads (Column Side to Offside)
39 1/2" – 81"
Distance Between Lifting Pads (Column Side to Column Side)
53" – 73"
Distance Between Lifting Pads (Offside Side to Offside)
54 1/3" to 91 1/2"
Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)
Motor
110V / 30 amp breaker required

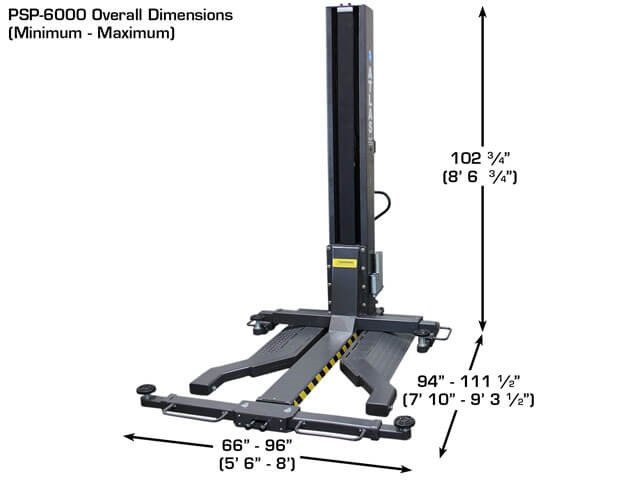

Overall Maximum Dimensions
111 1/2” L x 96" W x 102 3/4” H
Weight
1,900 lbs
Key Features
- Published product configuration: Atlas® PSP-6000 Portable Single Post Lift 6,000 lbs The Atlas PSP-6000 Portable Single Post Lift delivers professional-grade lifting capability with the ultimate flexibility—move it where you need it, roll it away when you don't. With a 6,000 lb capacity and 110V electric operation, this portable lift is the perfect
- Exact manufacturer model or part number: XH-PSP-6000
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | XH-PSP-6000 |
| MPN / Model | XH-PSP-6000 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model XH-PSP-6000, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
