Product Overview

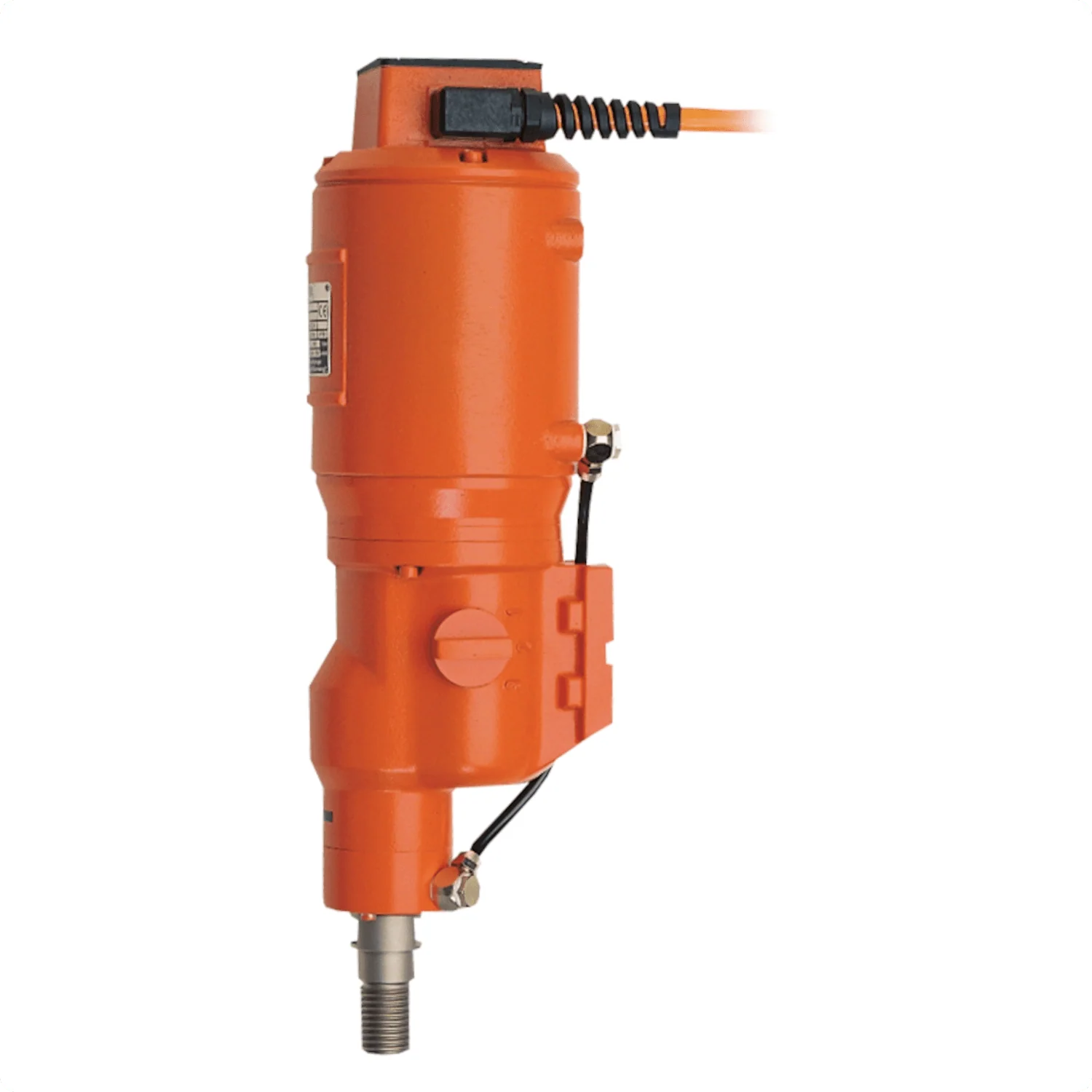

Weka DK42S Core Drill is a core drill designed for rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring. The DK42S configuration pairs Electric power source, 3000 W output power, and 13 lb weight.
Key Features
- 230V power/drive requirement captured for jobsite planning
- <=20" drilling or boring capacity for selecting the right bit and setup
- 910 RPM speed range or gearbox detail supports bit-size control
- 1.250"-7 spindle/thread detail helps confirm bit and adapter compatibility
- Rig-Mounted mount/system configuration supports correct rig pairing
- Rig-mounted format supports controlled feed and larger diameter core work
Product Specifications
- Tool Mount
- Rig-Mounted
- Available Variants
- DK42S 230 V 14.2 A 3PH; DK42S 460 V 8.2 A 3PH
- Model #
- DK42S
- SKU/Part #
- 4244024
- Product Type
- Core Drill
- Product Subtype
- Drill Motor
- Product Mount
- Rig-Mounted
- Engine/Motor
- Electric Motor
- Horse Power
- Heavy Duty
- Power Source
- Electric
- Voltage
- 230V
- Amperage
- 13 AMP
- Power Phase
- 3PH
- Variable Speed
- 3-Speed
- Speed 1 Max RPM
- 290 RPM
- Speed 2 Max RPM
- 610 RPM
- Speed 3 Max RPM
- 910 RPM
- Max Speed RPM
- 910 RPM
- Recommended Bit Diameter
- 3" – 18"
- Max Bit Diameter
- <=20"
- Drilling Depth per Pass
- User-Dependent
- Spindle Features
- 1.250"-7
- Dust Collection System
- Not applicable
- Weight (lbs)
- 13 lb
- Shipping Weight
- 48.7
- Clutch
- Slip
- Compact Design
- Yes
- Applications
- Concrete, Masonry, Stone
- Dry/Wet
- Wet
- Power Compatibility
- Standard Electric Supply
- Product Warranty
- 1 Year
- WooCommerce SKU
- 1745
- Store Title
- WEKA DK42S Core Drill Motor
- Manufacturer Part Number
- 4244024 for listed 230 V DK42S variant
- Nominal Power
- 3900 W
- Output Power
- 3000 W
- Manufacturer Drilling Diameter
- 50 – 300 mm for DK42S speed variant
- Included
- Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
Applications & Purchase Considerations
The DK42S is best matched to rig-mounted or handheld penetrations for plumbing, electrical, HVAC, and anchoring where the job requires Electric power source, 3000 W output power, and 13 lb weight.
- Site utility or fuel: 230V
- Tooling or working setup: Core drill motor in listed voltage/phase configuration; stand, core bit, vacuum pump, and water tank sold separately unless stated
- Handling reference: 13 lb
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Weka |
|---|---|
| SKU | 1745 |
| MPN / Model | 1745 |
| Condition | New |
| Division | Concrete Equipment |
| Primary Category | Core Drilling |
| Collection | Core Drill Motors |
| Product Type | Core Drill |
Before You Order
Confirm that model 1745, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
