Product Overview

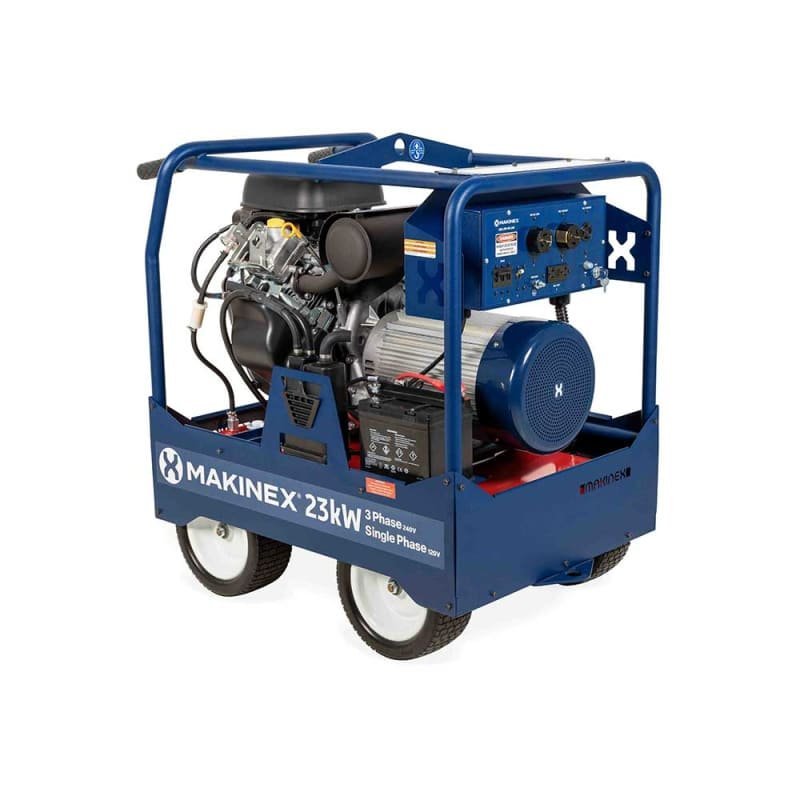

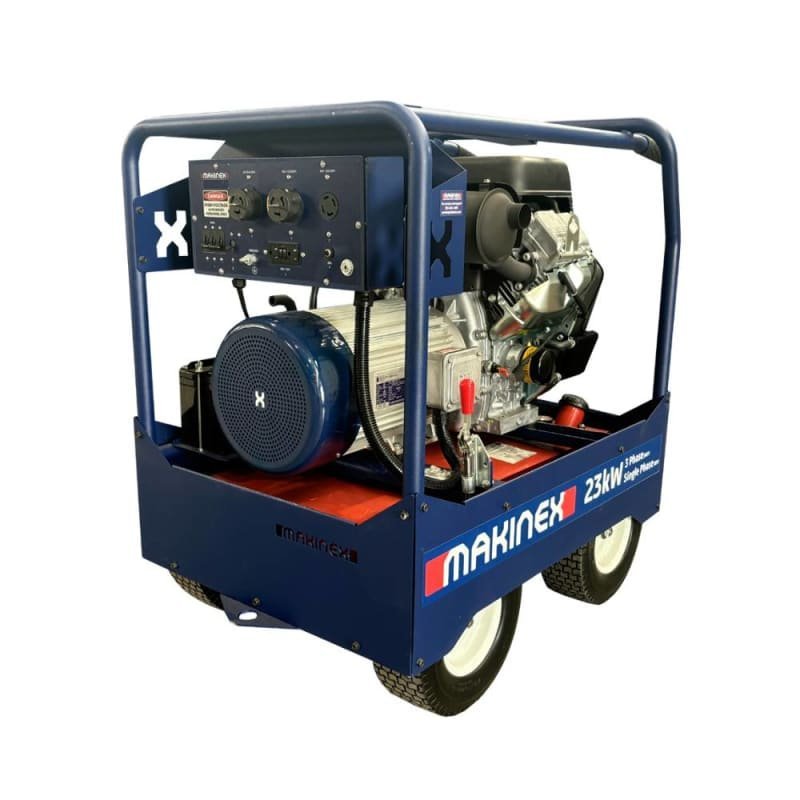

Makinex Generator 23kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 23kW configuration pairs 23 kW output class, 120V single phase; 240V three phase voltage, and 60 Hz frequency.
Key Features
- 240V three-phase output supports flooring, concrete, welding, and compressor loads.
- Runs single-phase and three-phase equipment from one compact generator.
- Permanent-magnet brushless alternator provides independent 120V and 240V circuits.
- Four-wheel portable design keeps power closer to the work area.
- Vanguard V-Twin engine is paired with Makinex radial flux alternator technology.
- CARB-compliant listing supports sales/use across all 50 states.
Product Specifications
- Store SKU
- GPE211038
- Manufacturer Product Code
- GEN-23P-MS-240
- Equipment Type
- Portable dual-phase gasoline generator
- Output Class
- 23 kW
- Voltage
- 120V single phase; 240V three phase
- Frequency
- 60 Hz
- Three-Phase Power
- Max 22 kW / continuous 20 kW
- Three-Phase Current
- Max 53 A / continuous 48 A
- Single-Phase Current
- Max 30 A / continuous 27.7 A
- Engine Type
- Twin-cylinder air-cooled petrol
- Engine Model
- Vanguard 61G277
- Displacement
- 993 cc
- Starting System
- Electric key start
- Fuel Economy
- 1.59 gal/hr at 50% load
- Fuel Tank
- 13.2 gal
- Noise Level
- 72 dB no-load at 7 m
- Dry Weight
- 573 lb
- Dimensions
- 43 x 25 x 40 in
- CARB Compliance
- 50-state CARB compliant per Makinex page
- Warranty
- 3-year warranty listed by Makinex for 23kW generators
Applications & Purchase Considerations
The Generator 23kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 23 kW output class, 120V single phase; 240V three phase voltage, and 60 Hz frequency.
- Site utility or fuel: 120V single phase; 240V three phase
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Makinex |
|---|---|
| SKU | GPE211038 |
| MPN / Model | GPE211038 |
| Condition | New |
| Division | Generators |
| Primary Category | Generators |
Before You Order
Confirm that model GPE211038, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
