Product Overview

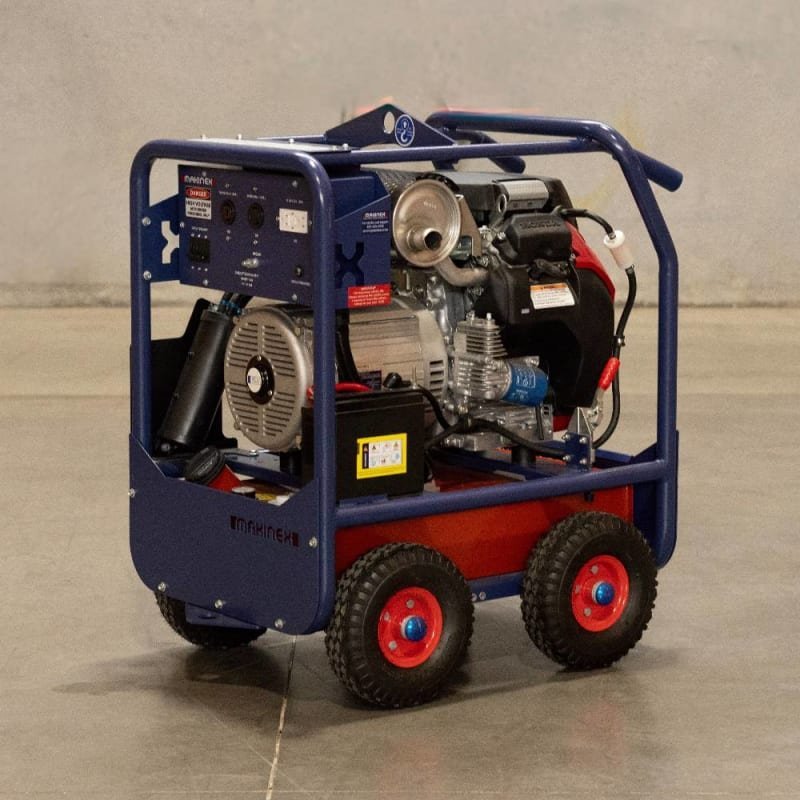

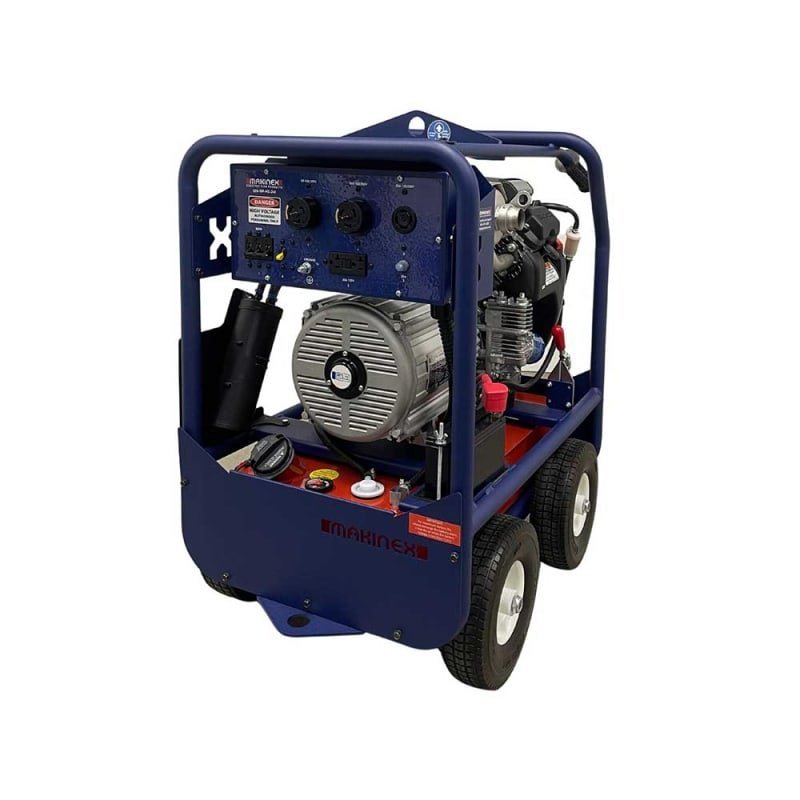

Makinex Generator 16kW Generator is a generator designed for portable or standby jobsite power for tools, lighting, and equipment. The Generator 16kW configuration pairs 16 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.
Key Features

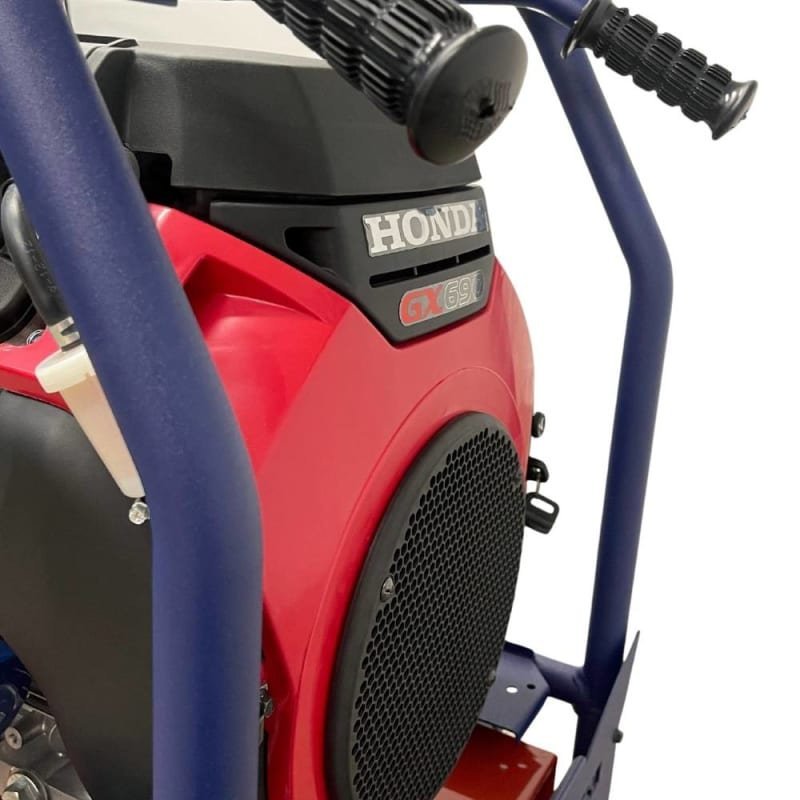

- Honda GX690 engine gives contractors a widely supported commercial engine platform.
- Dual-phase output can support 480V three-phase and 110V single-phase equipment.
- 342 lb dry weight is portable compared with larger towable generator options.
- Radial flux alternator helps deliver usable power in a smaller frame.
- CARB-compliant listing supports use across all 50 states.
- RCD and RCBO protection are highlighted by Makinex for user and equipment safety.
Product Specifications
- Store SKU
- GPE211036
- Manufacturer Product Code
- GEN-16P-MS-480
- Equipment Type
- Portable dual-phase gasoline generator
- Output Class
- 16 kW
- Voltage
- 110V single phase; 480V three phase
- Frequency
- 60 Hz
- Three-Phase Power
- Max 13 kW / continuous 11.5 kW per current Makinex page
- Single-Phase Auxiliary Power
- Max 2.2 kW / continuous 2 kW
- Three-Phase Current
- Max 16.9 A / continuous 15 A
- Single-Phase Current
- Max 30 A / continuous 30 A
- Engine Type
- Twin-cylinder air-cooled petrol
- Engine Model
- Honda GX690
- Displacement
- 688 cc
- Starting System
- Electric key start
- Fuel Economy
- 0.92 gal/hr at 50% load
- Fuel Tank
- 9.0 gal
- Noise Level
- 72 dB no-load at 7 m
- Dry Weight
- 342 lb
- Dimensions
- 30.4 x 20.8 x 35.5 in
- CARB Compliance
- 50-state CARB compliant per Makinex page
- Warranty
- 1-year warranty listed by Makinex
Applications & Purchase Considerations
The Generator 16kW is best matched to portable or standby jobsite power for tools, lighting, and equipment where the job requires 16 kW output class, 110V single phase; 480V three phase voltage, and 60 Hz frequency.
- Site utility or fuel: 110V single phase; 480V three phase
- Confirm delivery ZIP code and carrier-accessible receiving details before checkout
Product Identification
| Brand | Makinex |
|---|---|
| SKU | GPE211036 |
| MPN / Model | GPE211036 |
| Condition | New |
| Division | Generators |
| Primary Category | Generators |
Before You Order
Confirm that model GPE211036, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
